Removal [09/2016 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13 [09/2016 - 07/2020] , or refer to PROCEDURE - Step 13 [07/2020 - ]

  2. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the No. 1 fuel vapor feed hose from the fuel vapor feed pipe.

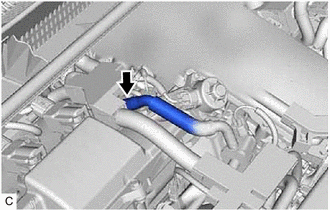

      GTY710427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the camshaft position sensor connector.

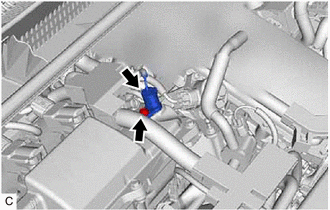

      GTY710428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
      NOTE:

      If a camshaft position sensor has been struck or dropped, replace it.
