Components [09/2016 - 12/2018]

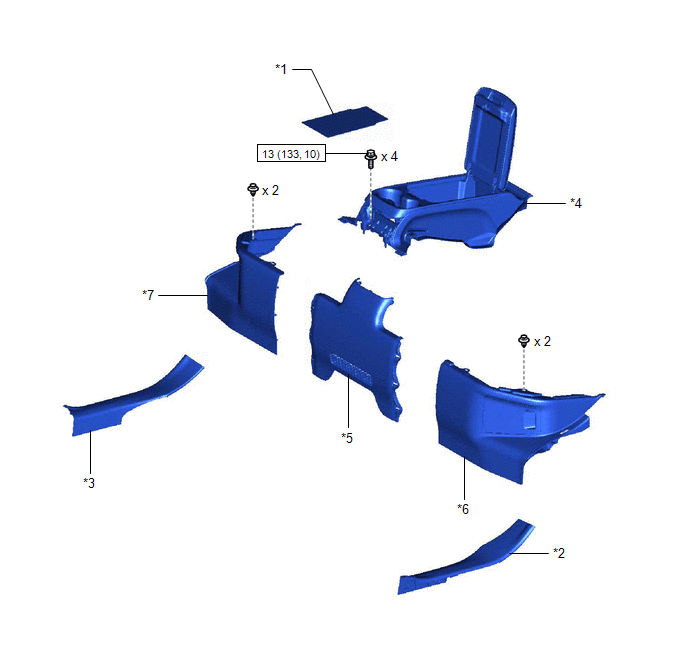

| Callout | Description | Callout | Description |
| *1 | REAR CONSOLE BOX COVER | *2 | REAR DOOR SCUFF PLATE LH |
| *3 | REAR DOOR SCUFF PLATE RH | *4 | REAR SEAT CONSOLE BOX ASSEMBLY |
| *5 | REAR UNDER COVER | *6 | REAR UNDER SIDE COVER LH |
| *7 | REAR UNDER SIDE COVER RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |

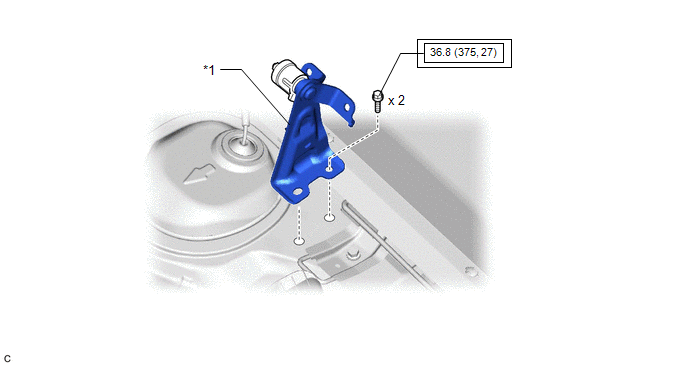

| *1 | CENTER REAR SEATBACK HINGE SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

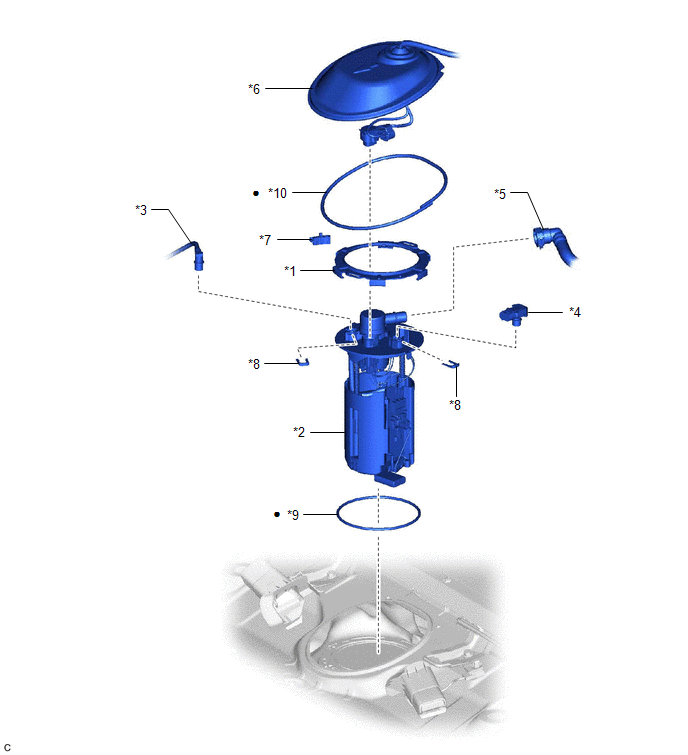

| *1 | FUEL PUMP GAUGE RETAINER | *2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *4 | FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR) |
| *5 | FUEL TANK VENT HOSE SUB-ASSEMBLY | *6 | REAR FLOOR SERVICE HOLE COVER |
| *7 | NO. 1 FUEL TUBE CLAMP | *8 | TUBE JOINT CLIP |
| *9 | FUEL SUCTION TUBE SET GASKET | *10 | BUTYL TAPE |
| • | Non-reusable part | - | - |
| *1 | FUEL PUMP WITH FILTER ASSEMBLY | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | FUEL SUCTION PLATE SUB-ASSEMBLY | *4 | FUEL PUMP HARNESS |
| *5 | FUEL PUMP FILTER HOSE | *6 | NO. 1 FUEL SUB-TANK |
| *7 | NO. 1 FUEL SUCTION SUPPORT | *8 | SUCTION FILTER |
| *9 | FUEL PUMP SPACER | *10 | FUEL FILTER |
| *11 | SPRING | *12 | E-RING |
| *13 | O-RING | *14 | FUEL SUCTION PLATE SHAFT |
| • | Non-reusable part | - | - |
