Components [09/2016 - 05/2019]

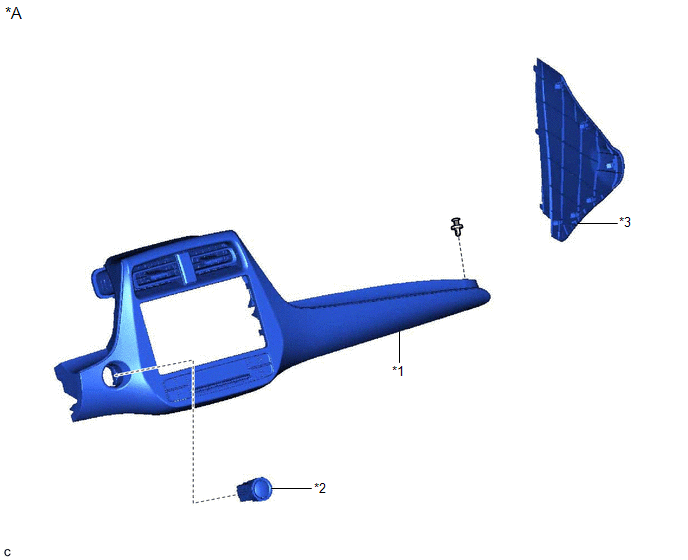

Fig 1: Power Switch Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 7 Inch Display	-	-
*1	CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	*2	POWER SWITCH
*3	INSTRUMENT PANEL FINISH PANEL END RH	-	-

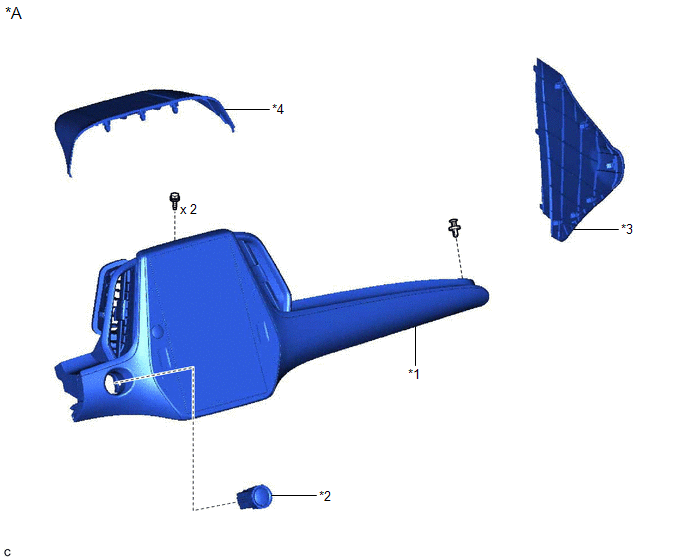

Fig 2: Power Switch Replacement Components (2 Of 2)

*A	for 11.6 Inch Display	-	-
*1	CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY WITH NAVIGATION RECEIVER ASSEMBLY	*2	POWER SWITCH
*3	INSTRUMENT PANEL FINISH PANEL END RH	*4	CENTER INSTRUMENT CLUSTER FINISH PANEL UPPER
