System Diagrams

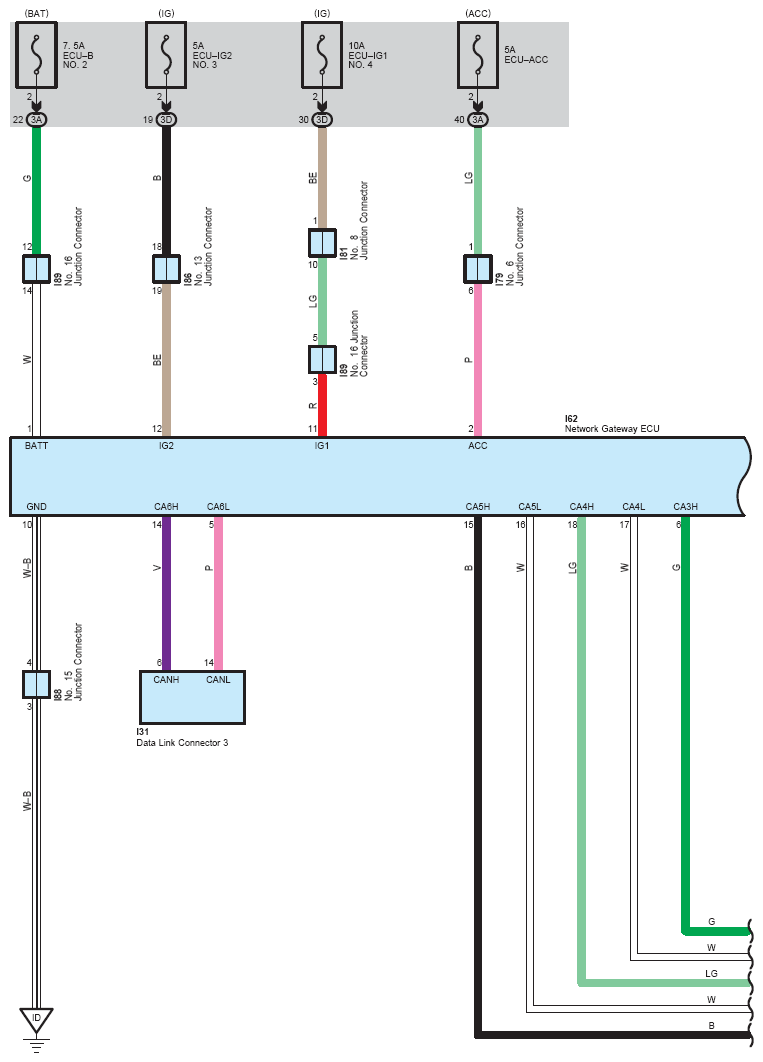

Fig 1: Multiplex Communication System (CAN) (1 Of 8)
G12210612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

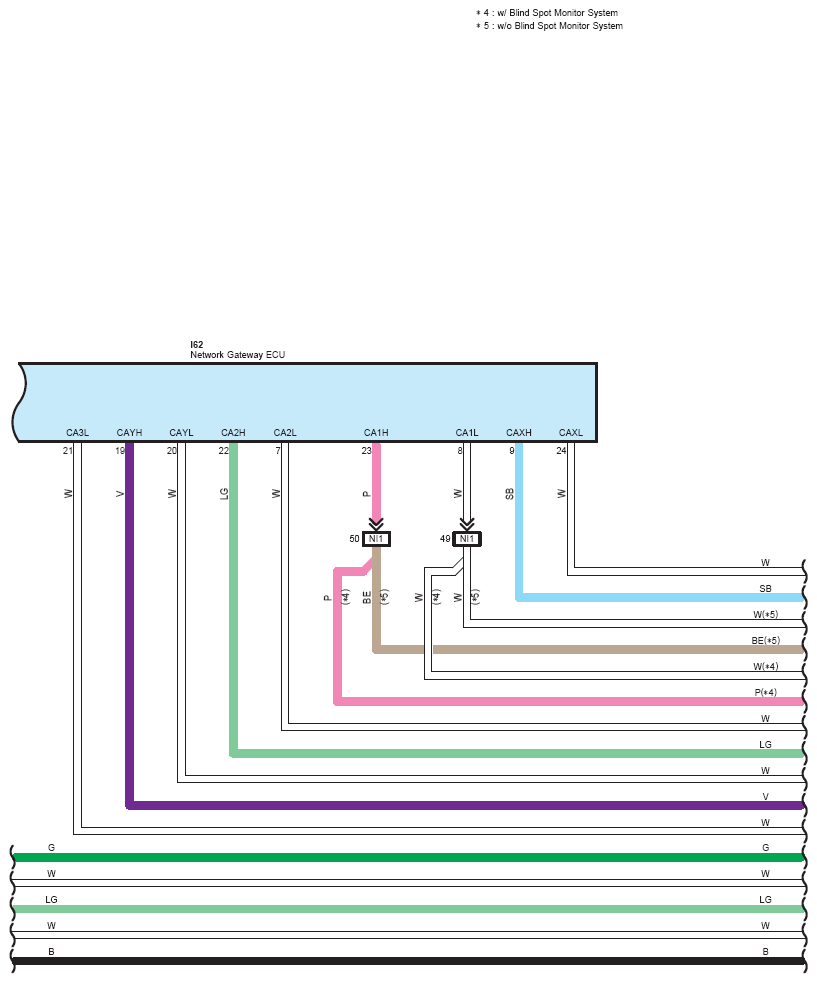

Fig 2: Multiplex Communication System (CAN) (2 Of 8)
G12210613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

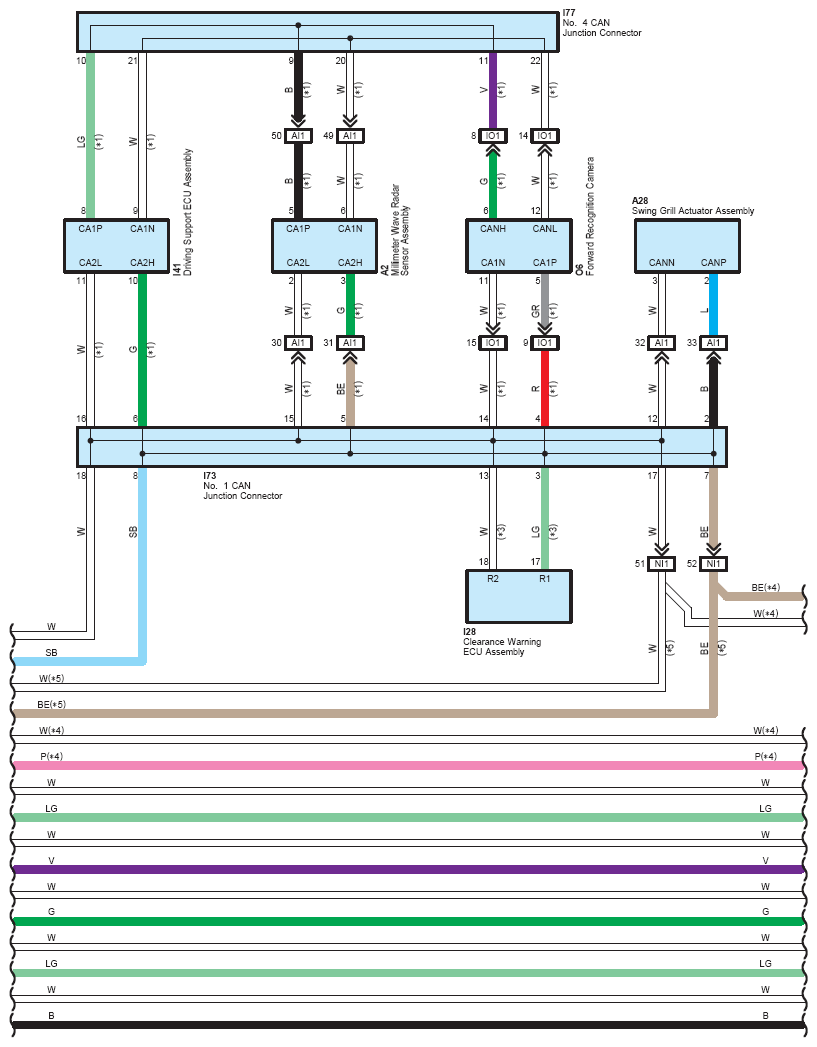

Fig 3: Multiplex Communication System (CAN) (3 Of 8)
G12210614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

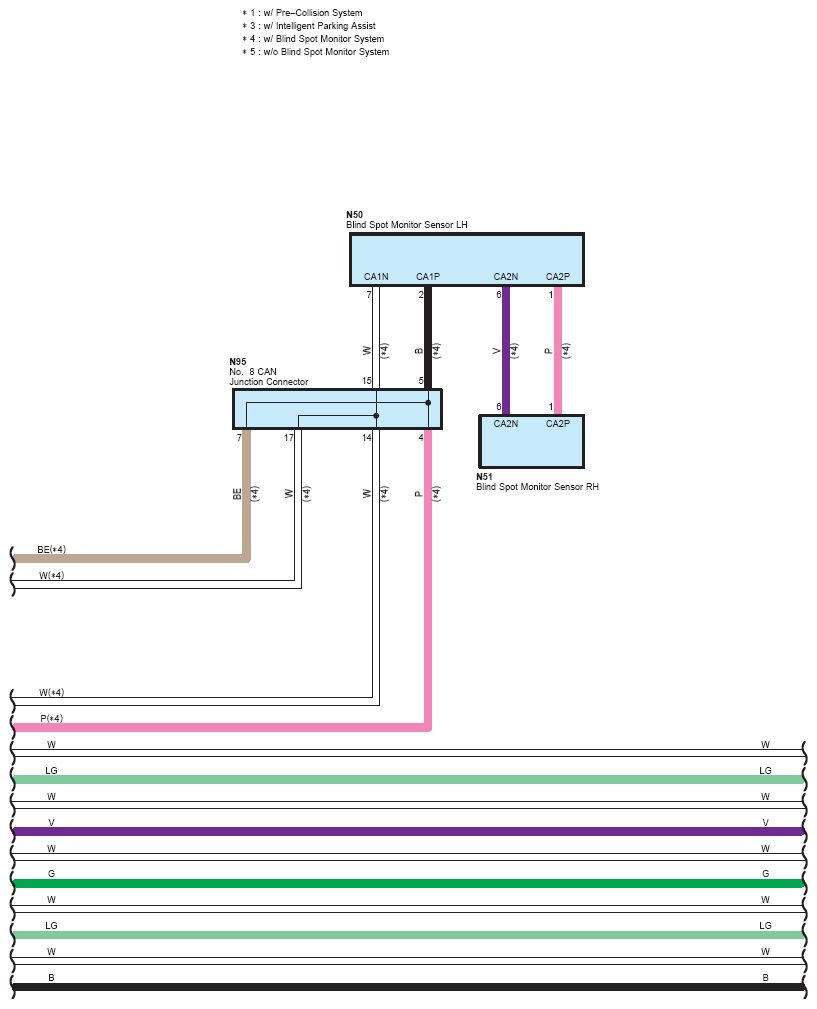

Fig 4: Multiplex Communication System (CAN) (4 Of 8)
G12210615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

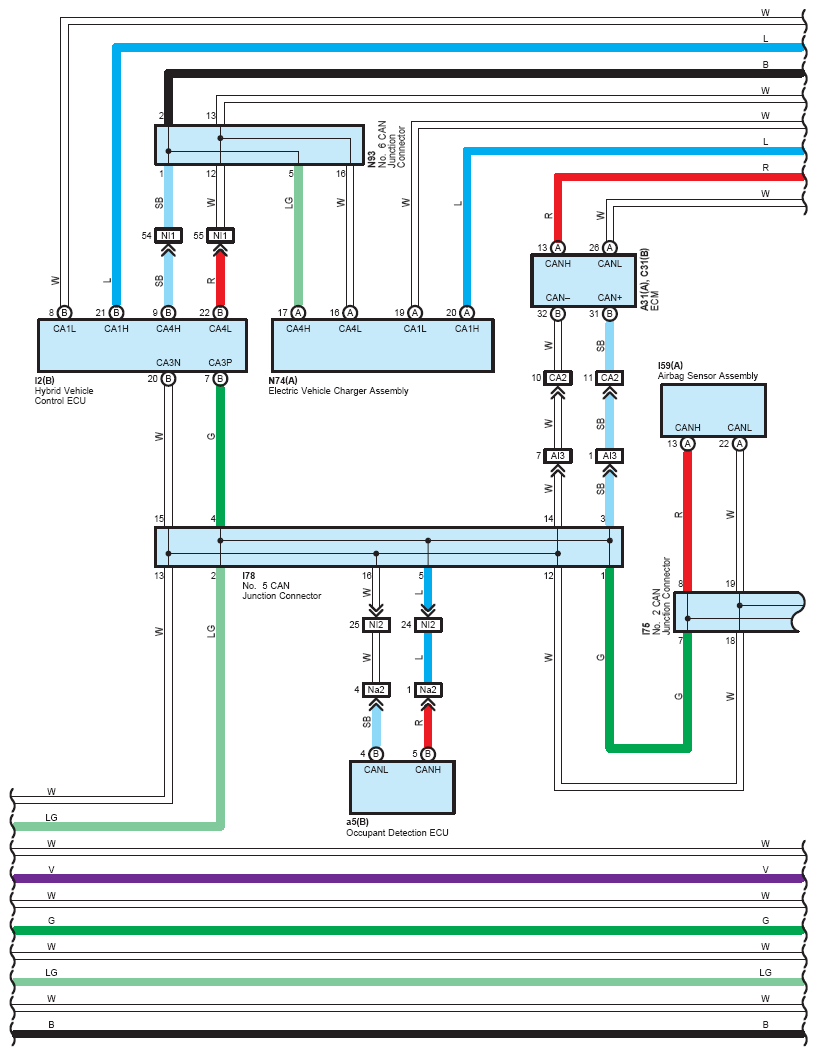

Fig 5: Multiplex Communication System (CAN) (5 Of 8)
G12210616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

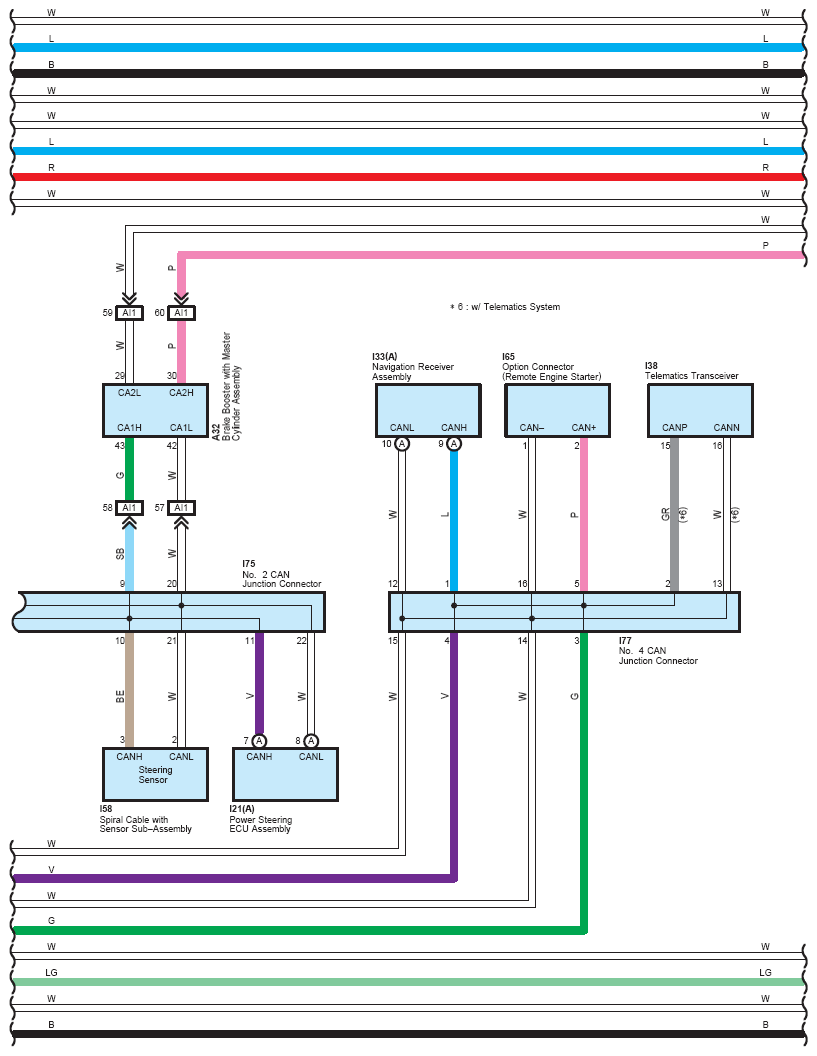

Fig 6: Multiplex Communication System (CAN) (6 Of 8)
G12210617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

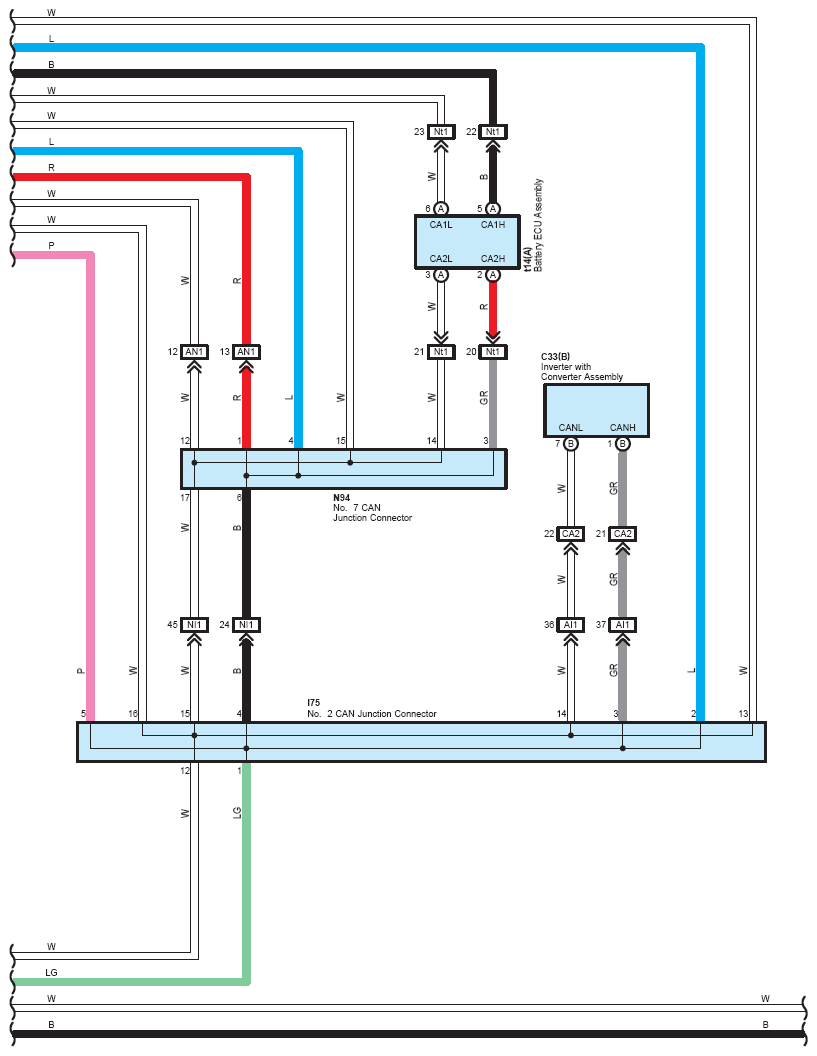

Fig 7: Multiplex Communication System (CAN) (7 Of 8)
G12210618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Multiplex Communication System (CAN) (8 Of 8)
G12210619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
