System Diagrams

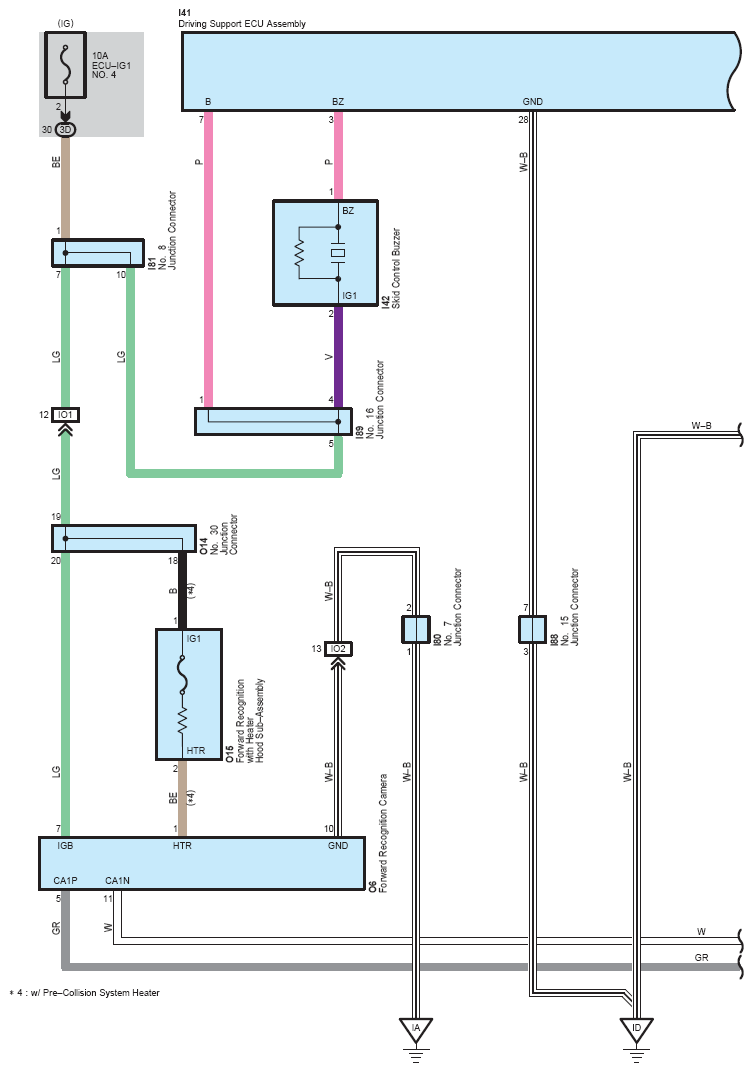

Fig 1: Lane Departure Alert (1 Of 6)
G12210598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

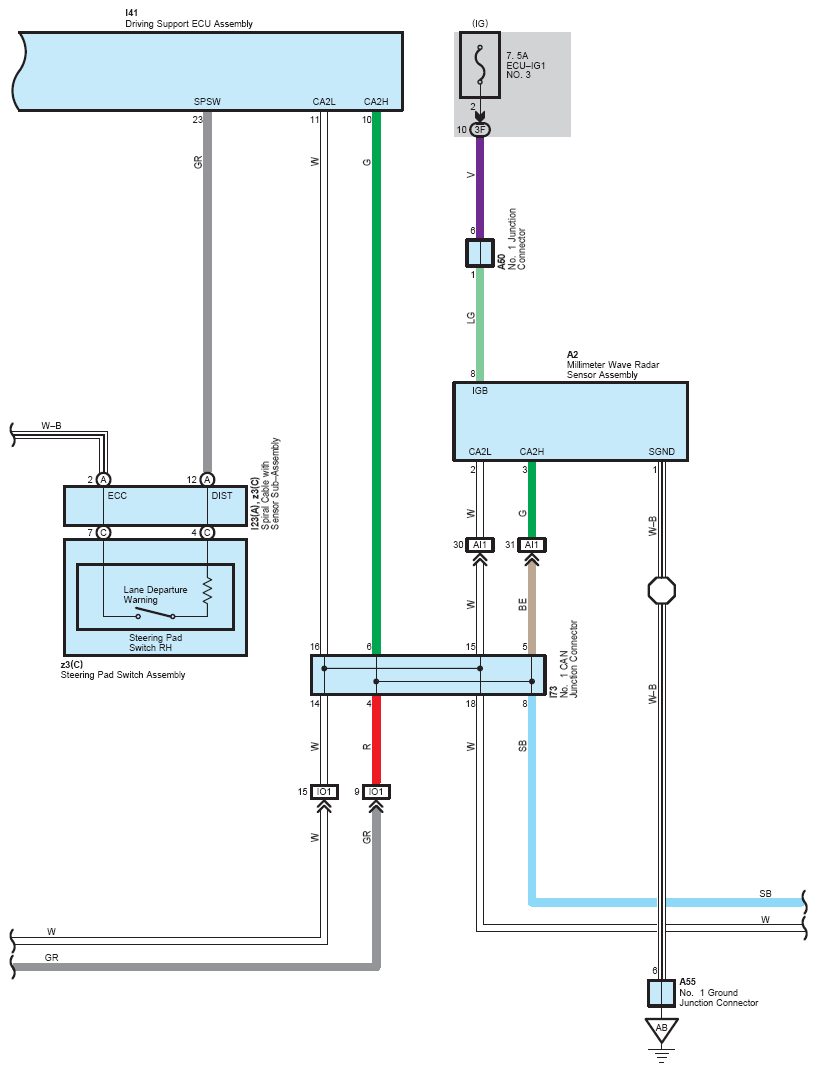

Fig 2: Lane Departure Alert (2 Of 6)
G12210599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

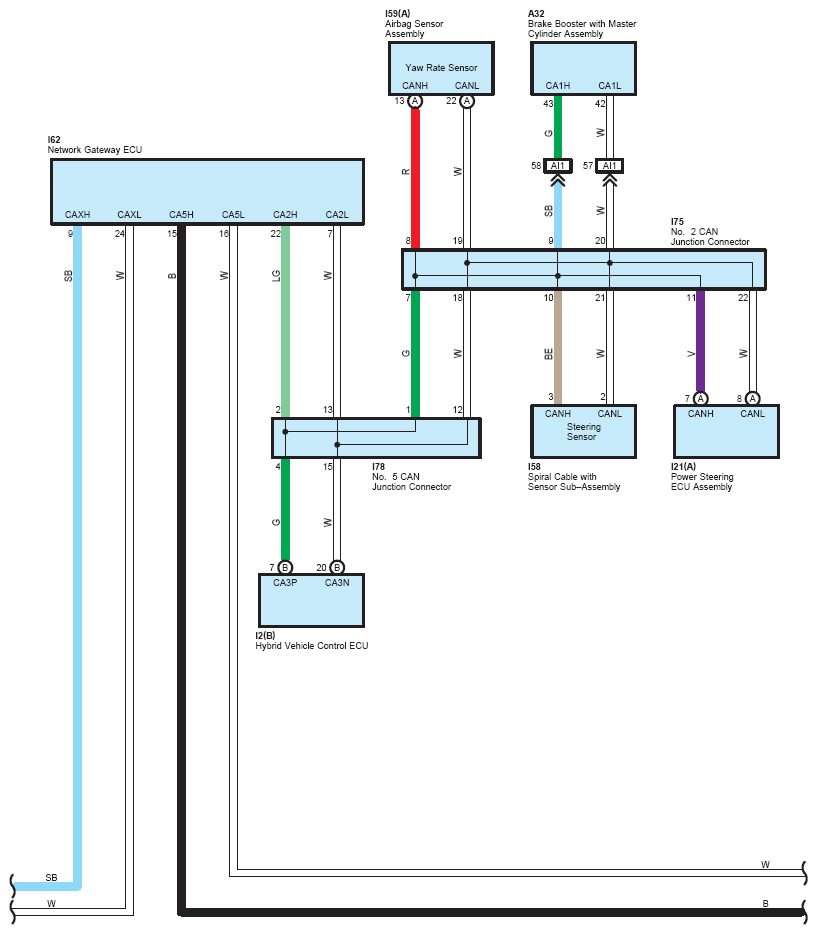

Fig 3: Lane Departure Alert (3 Of 6)
G12210600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Lane Departure Alert (4 Of 6)
G12210601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

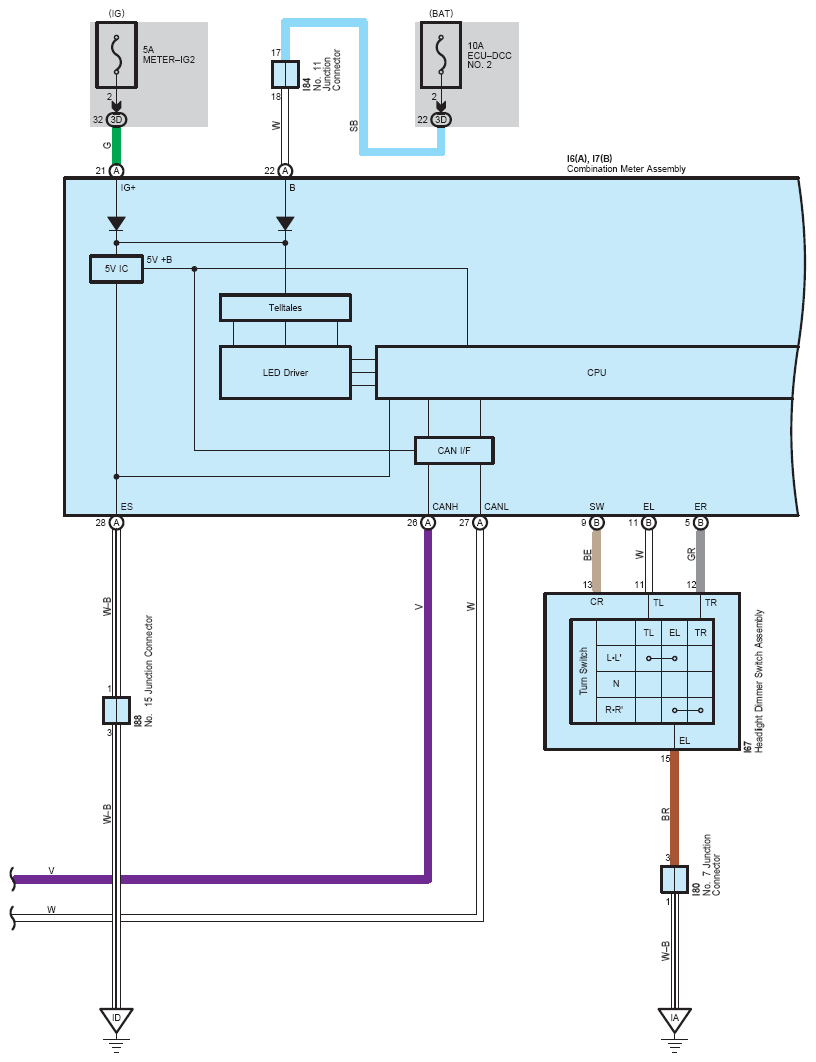

Fig 5: Lane Departure Alert (5 Of 6)
G12210602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

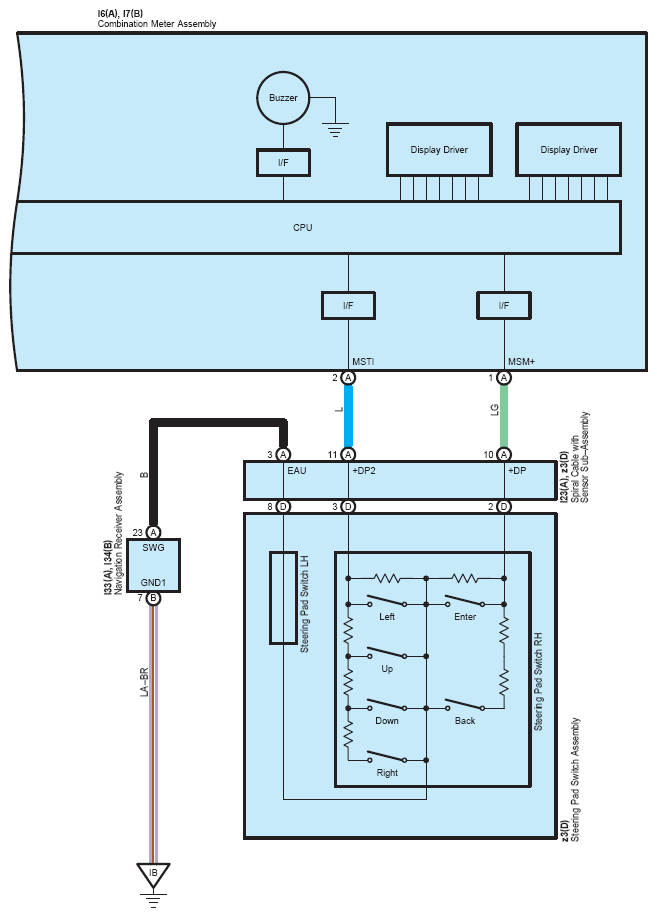

Fig 6: Lane Departure Alert (6 Of 6)
G12210603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
