System Diagrams

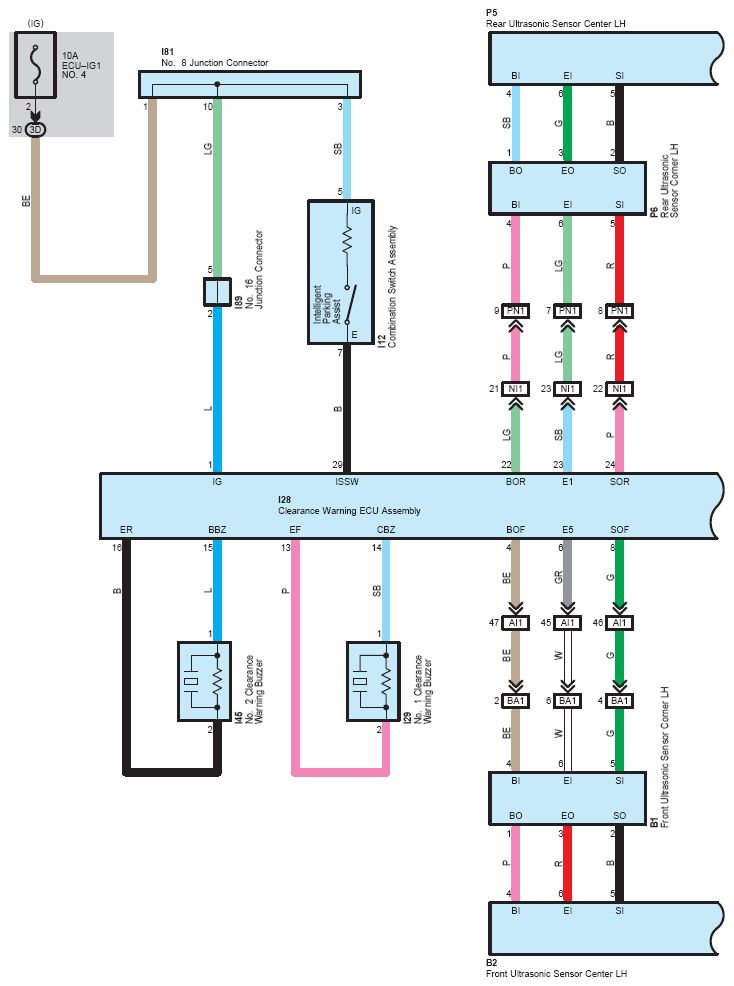

Fig 1: Intelligent Parking Assist (1 Of 6)
G12210583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

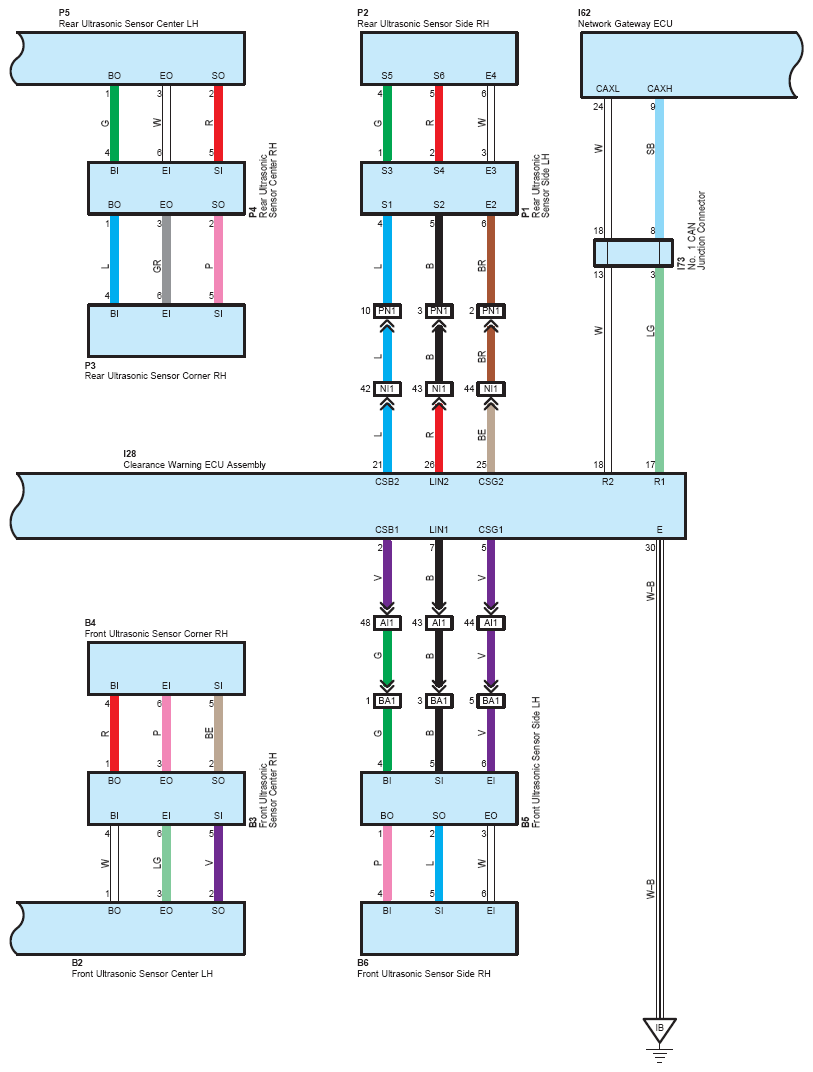

Fig 2: Intelligent Parking Assist (2 Of 6)
G12210584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

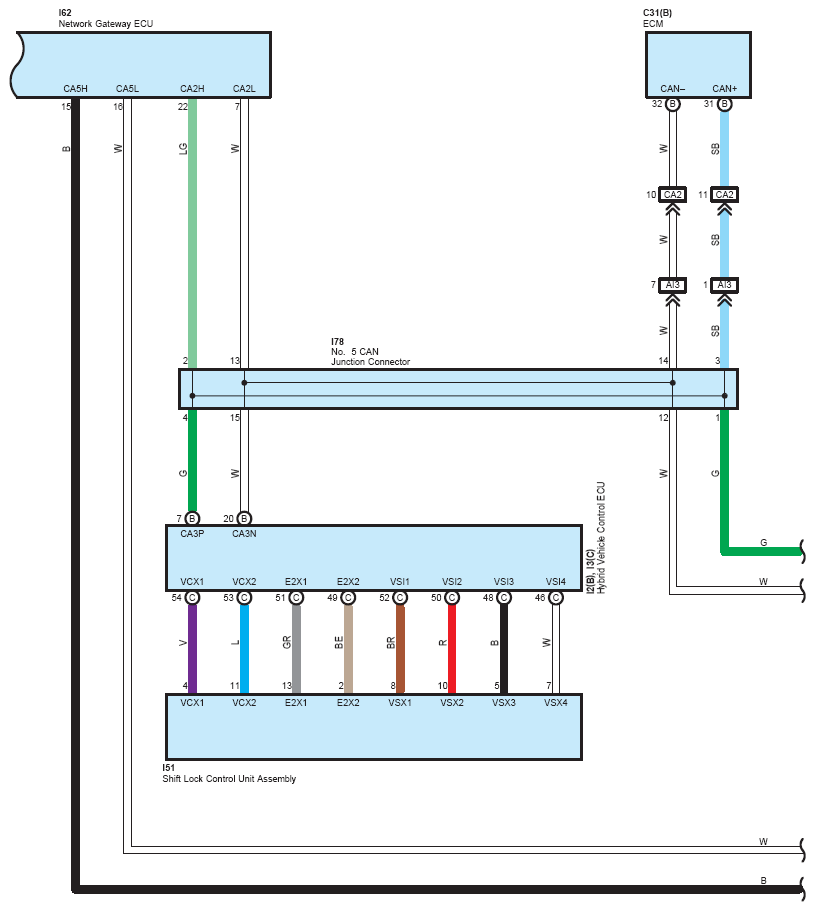

Fig 3: Intelligent Parking Assist (3 Of 6)
G12210585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

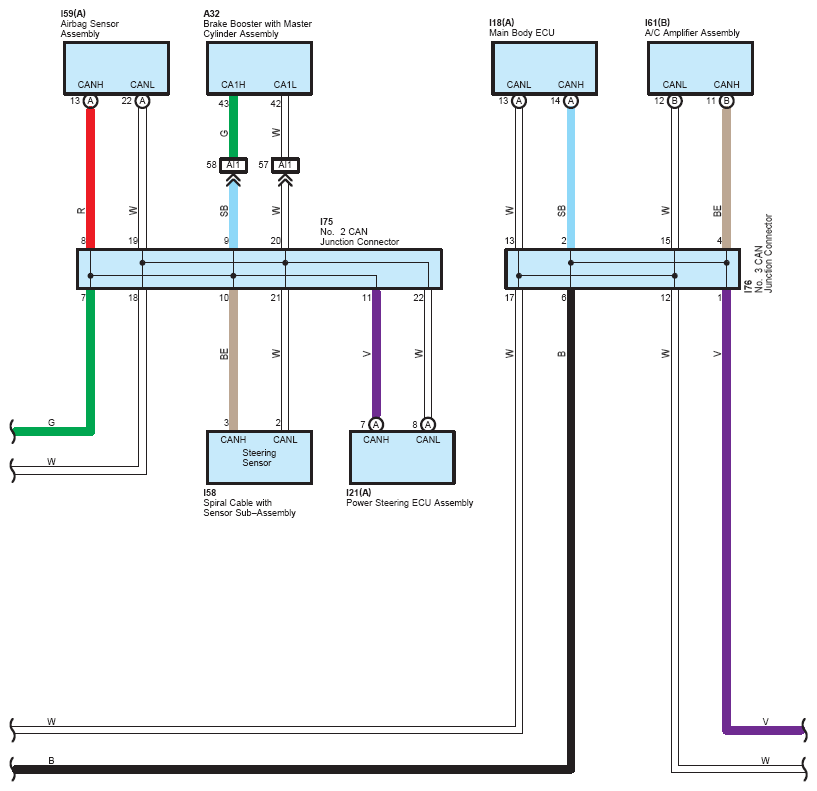

Fig 4: Intelligent Parking Assist (4 Of 6)
G12210586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

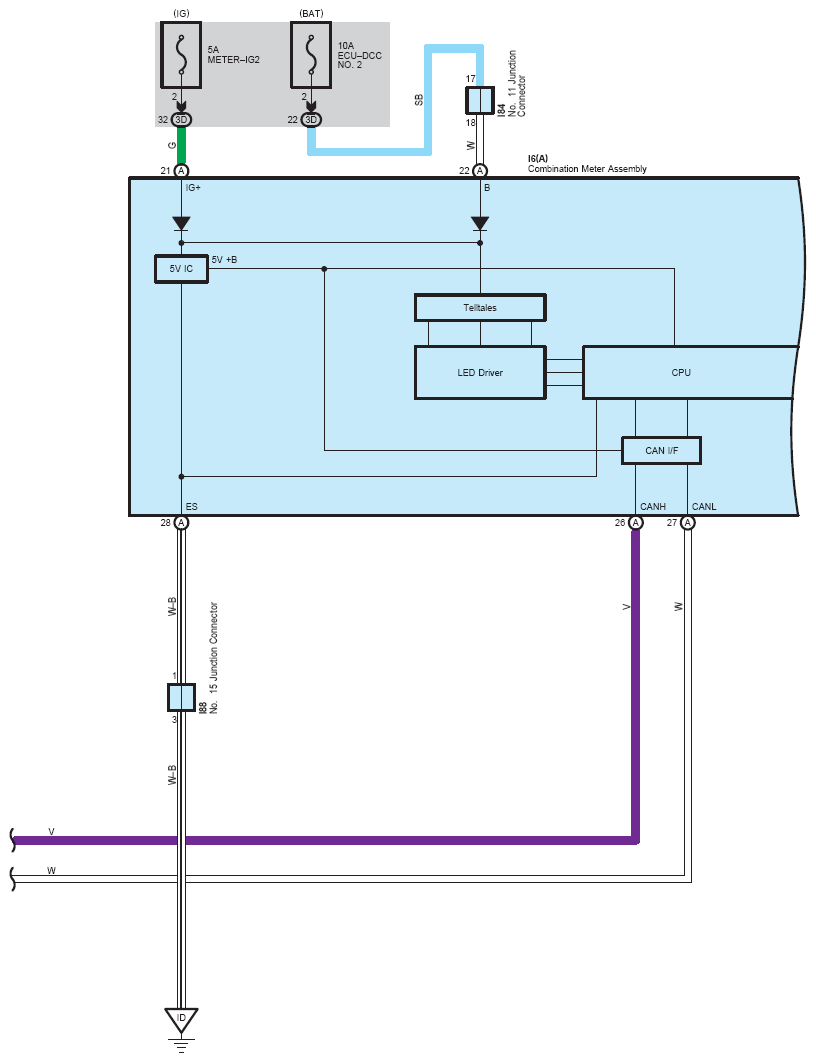

Fig 5: Intelligent Parking Assist (5 Of 6)
G12210587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

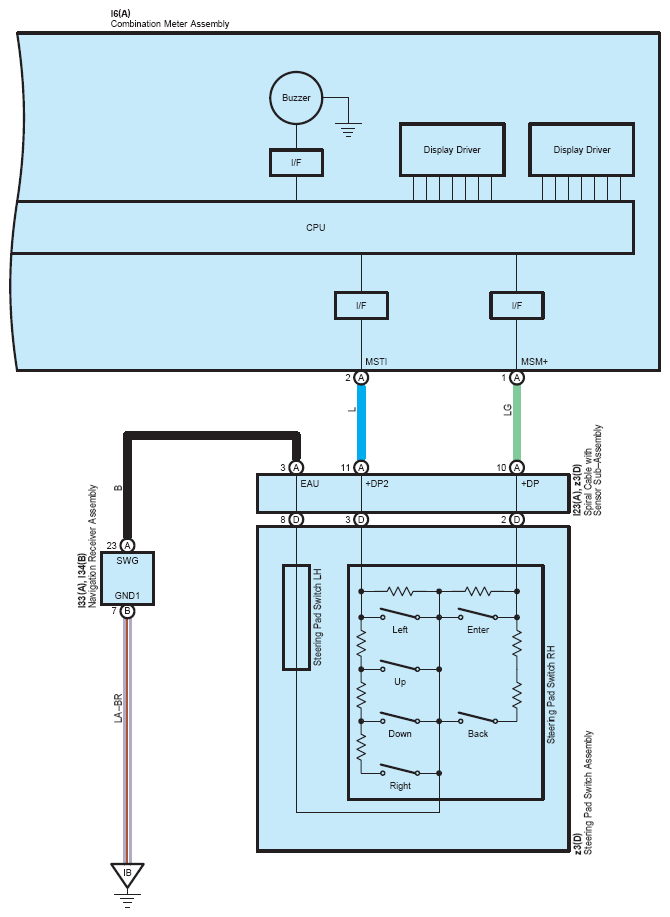

Fig 6: Intelligent Parking Assist (6 Of 6)
G12210588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
