System Diagrams

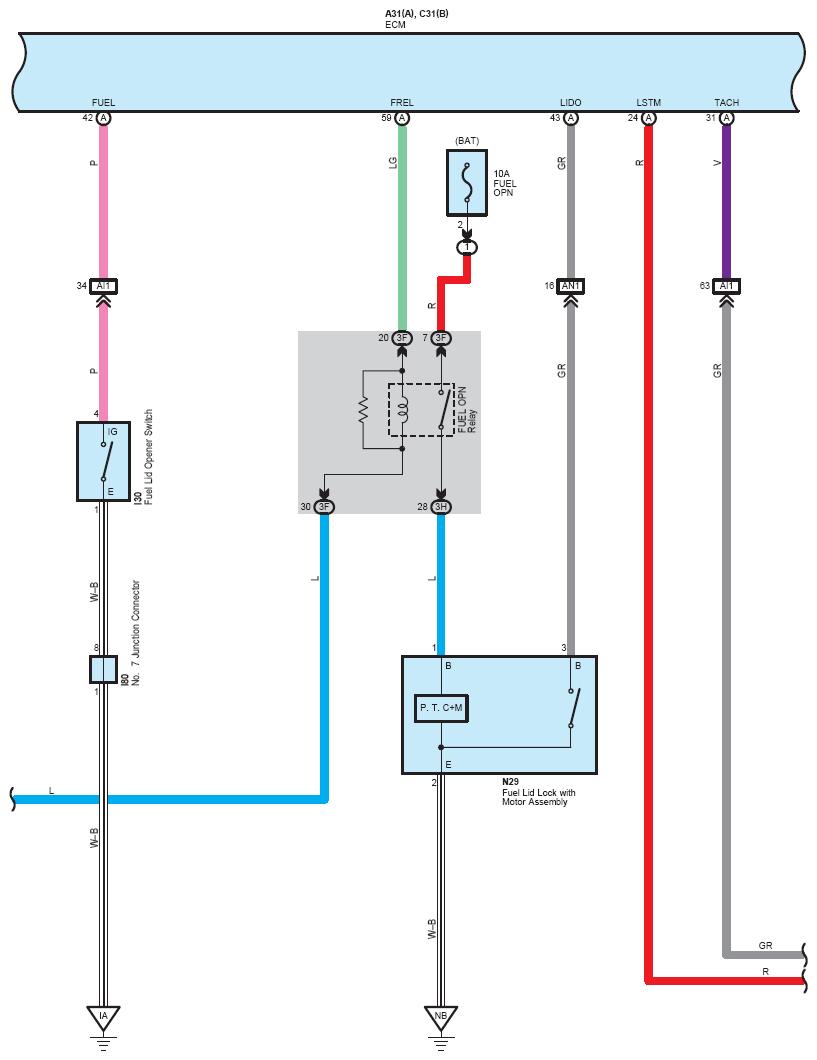

Fig 1: Engine Control, Fuel Lid Opener (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

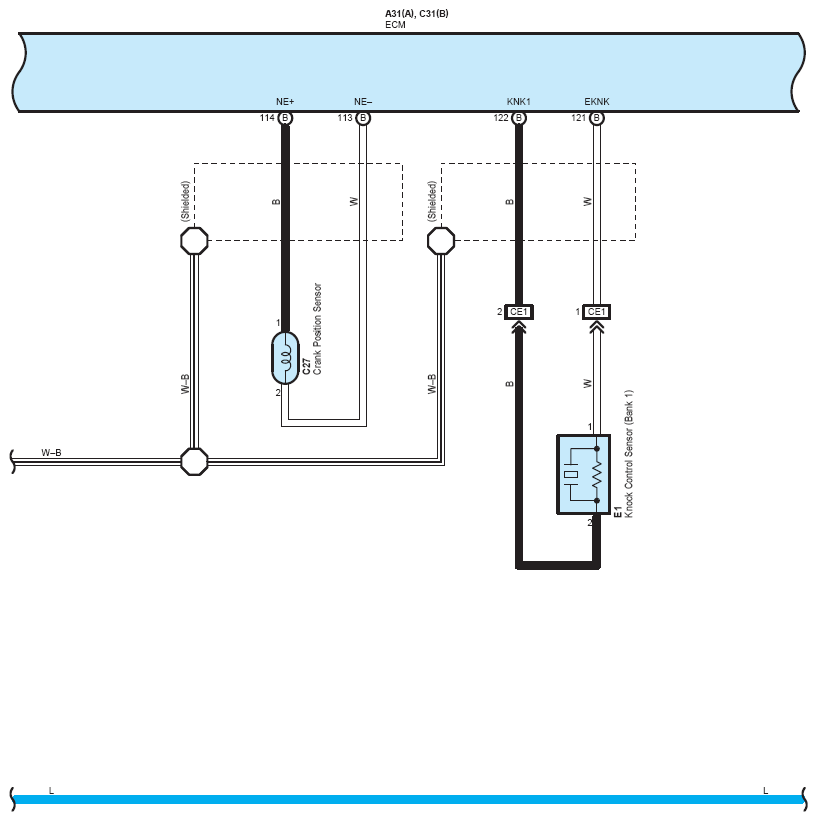

Fig 2: Engine Control, Fuel Lid Opener (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

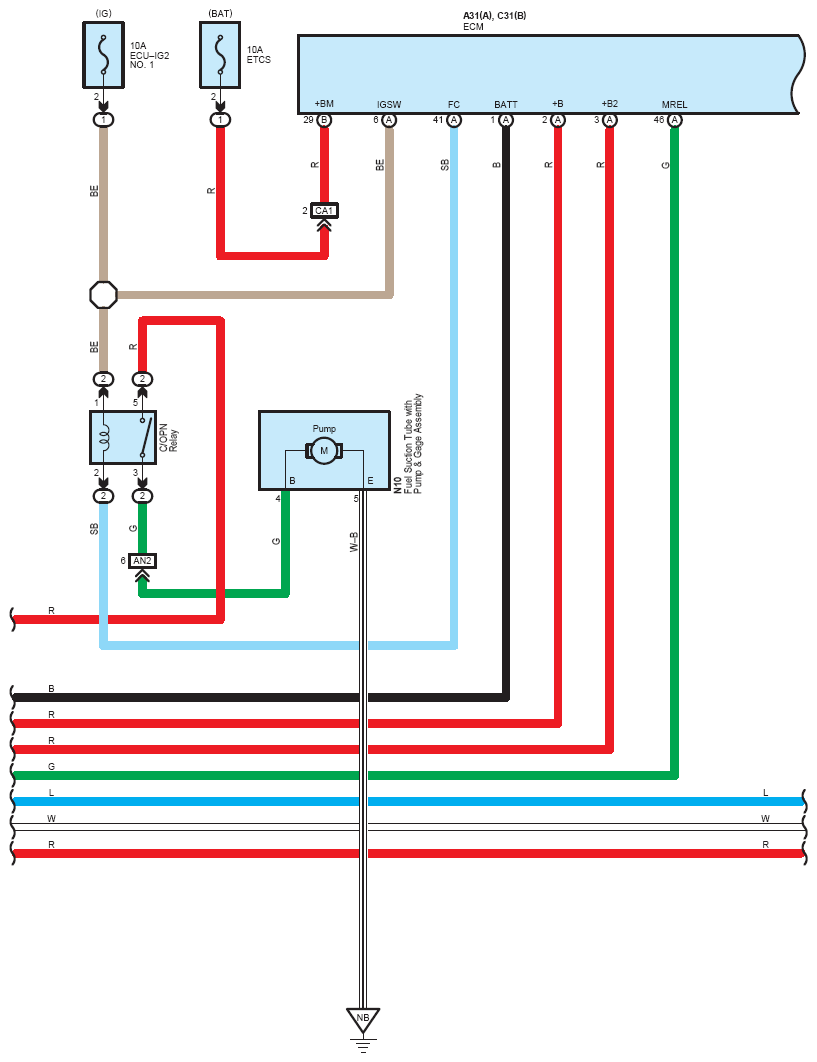

Fig 3: Engine Control, Fuel Lid Opener (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

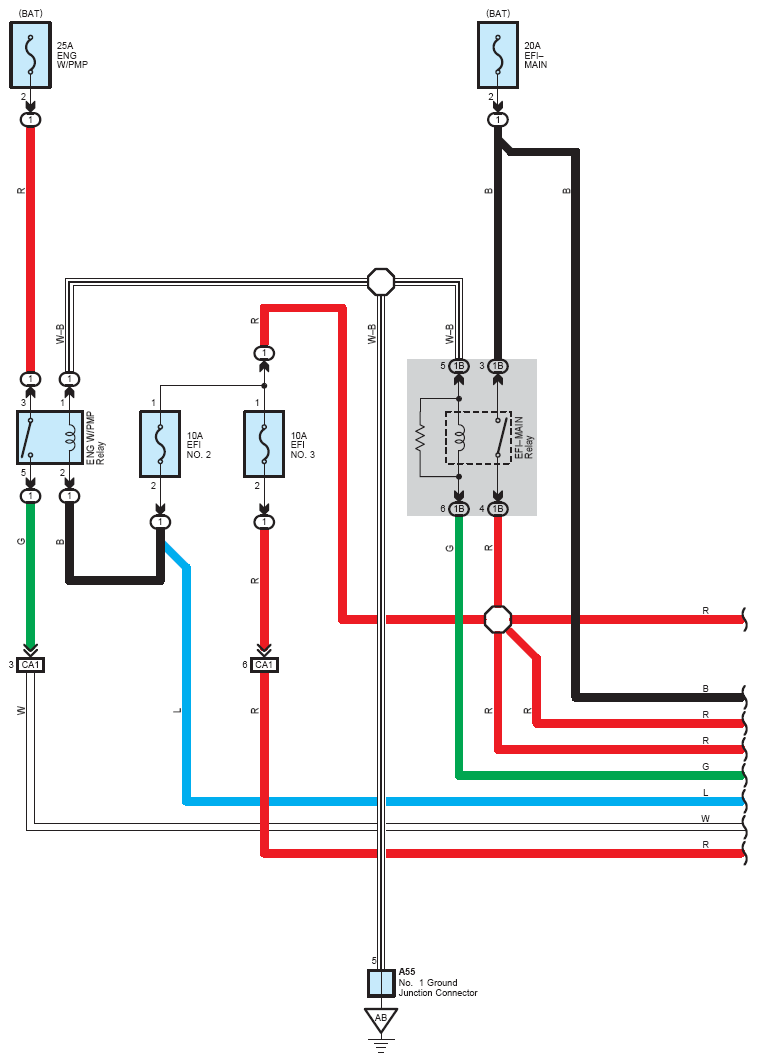

Fig 4: Engine Control, Fuel Lid Opener (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

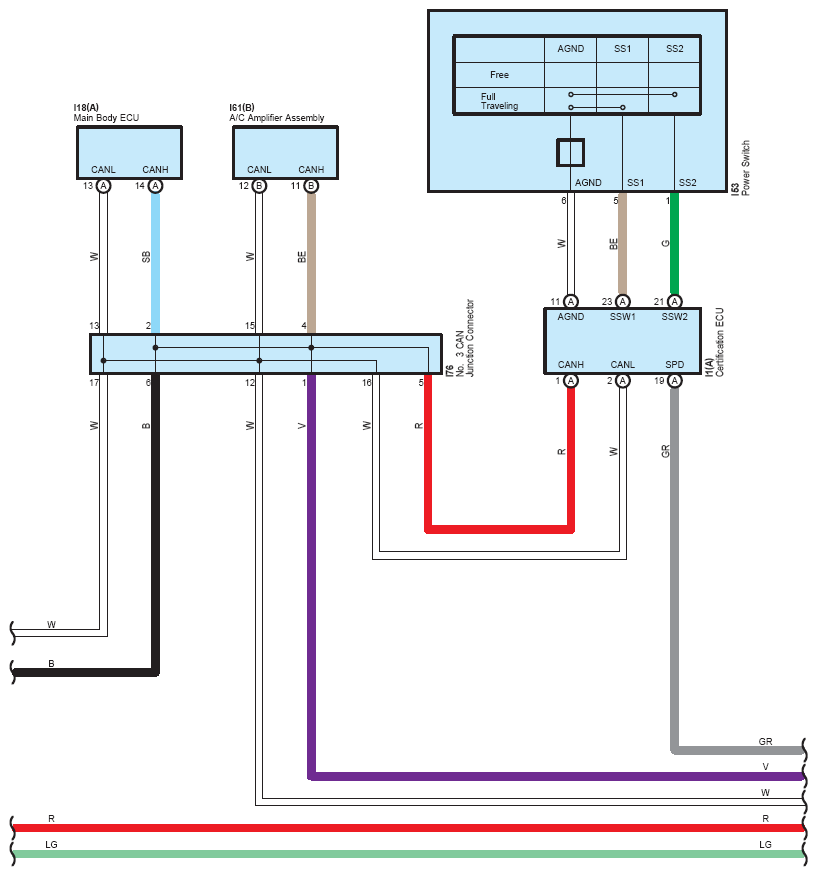

Fig 5: Engine Control, Fuel Lid Opener (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

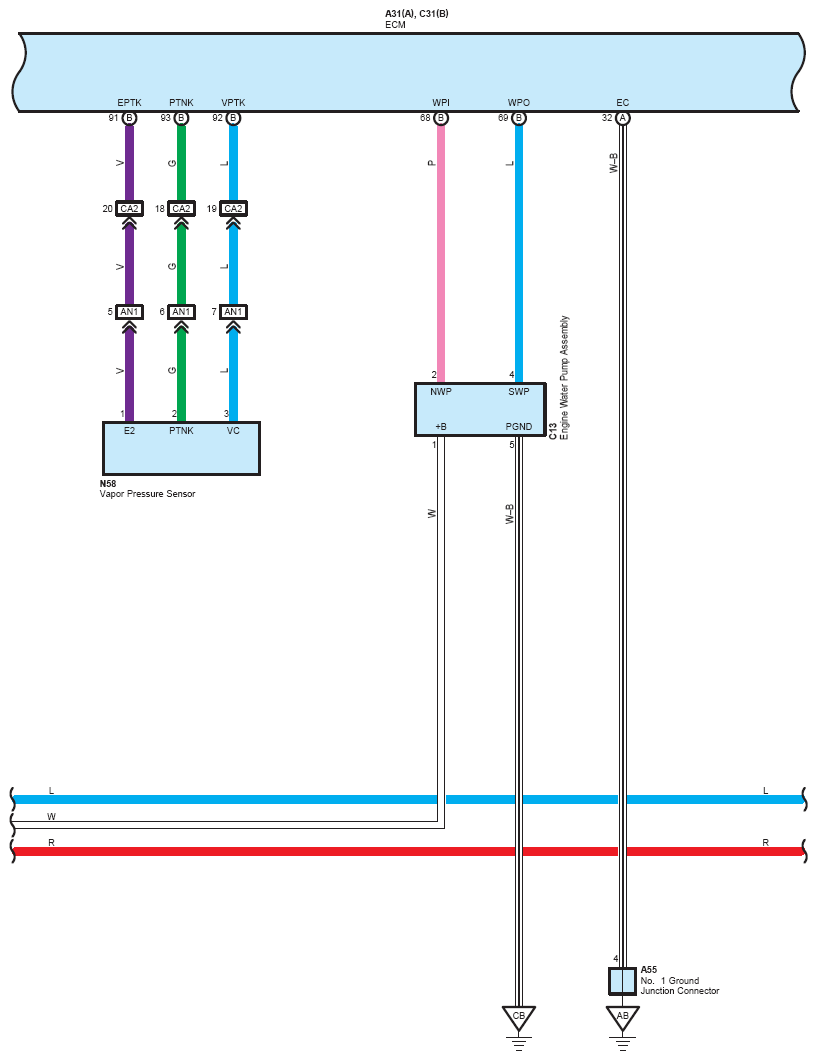

Fig 6: Engine Control, Fuel Lid Opener (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

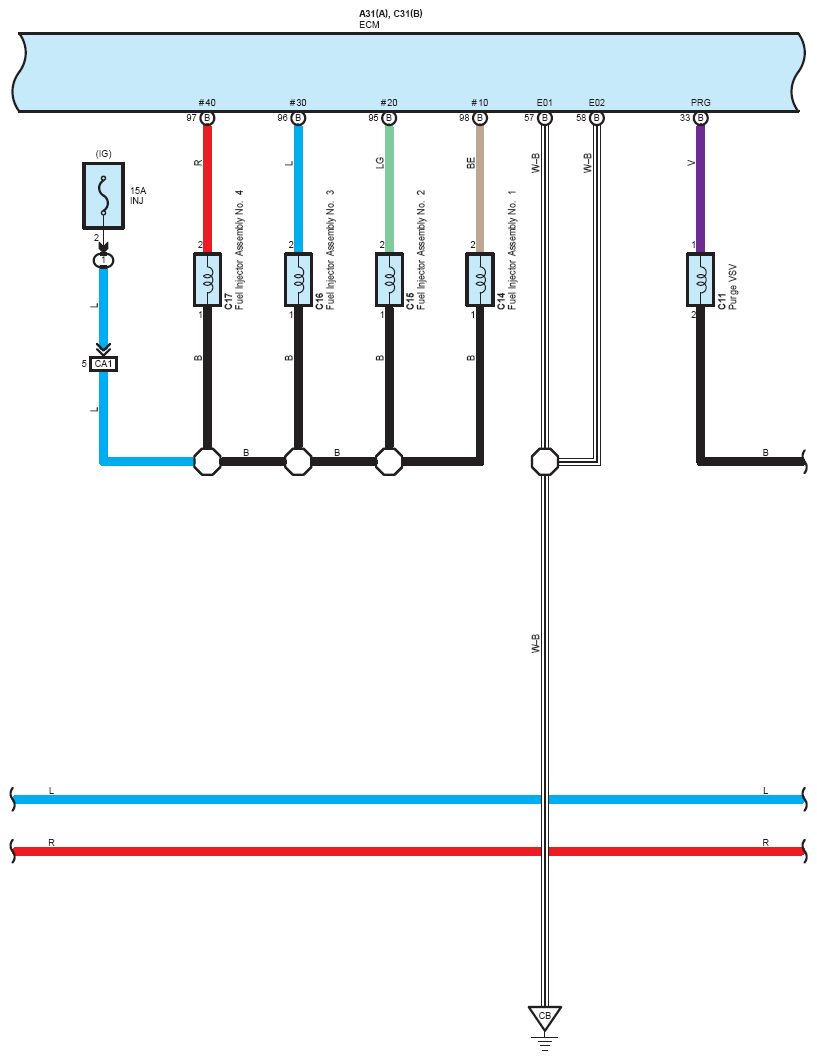

Fig 7: Engine Control, Fuel Lid Opener (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

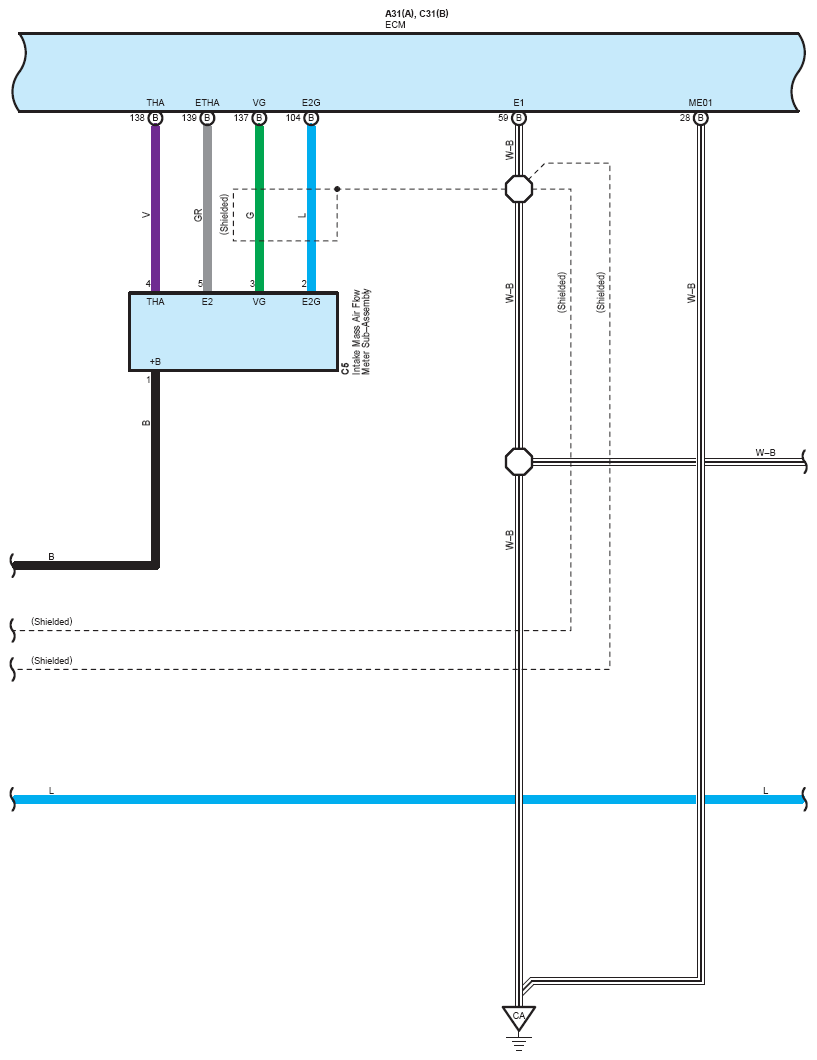

Fig 8: Engine Control, Fuel Lid Opener (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

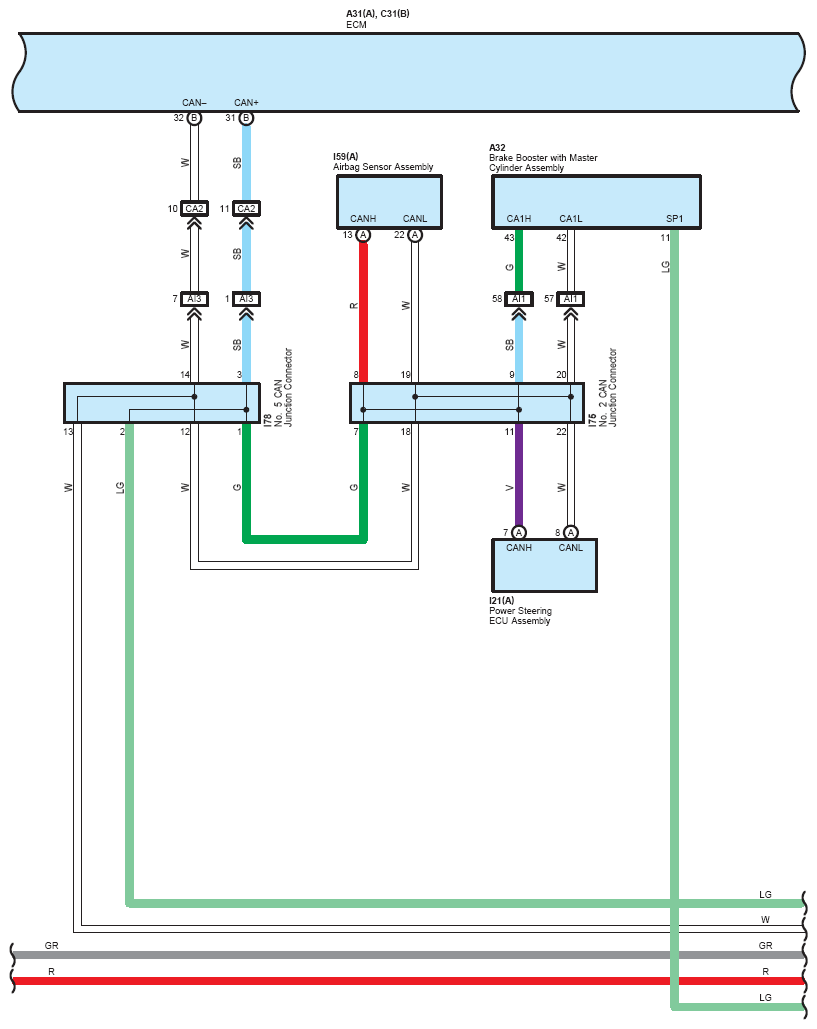

Fig 9: Engine Control, Fuel Lid Opener (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

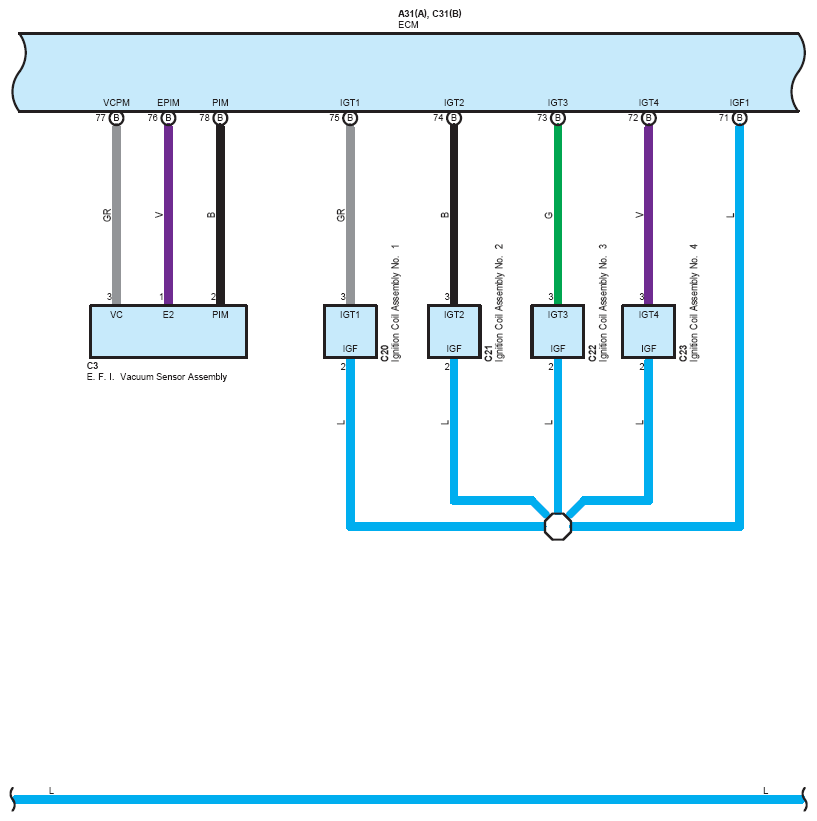

Fig 10: Engine Control, Fuel Lid Opener (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

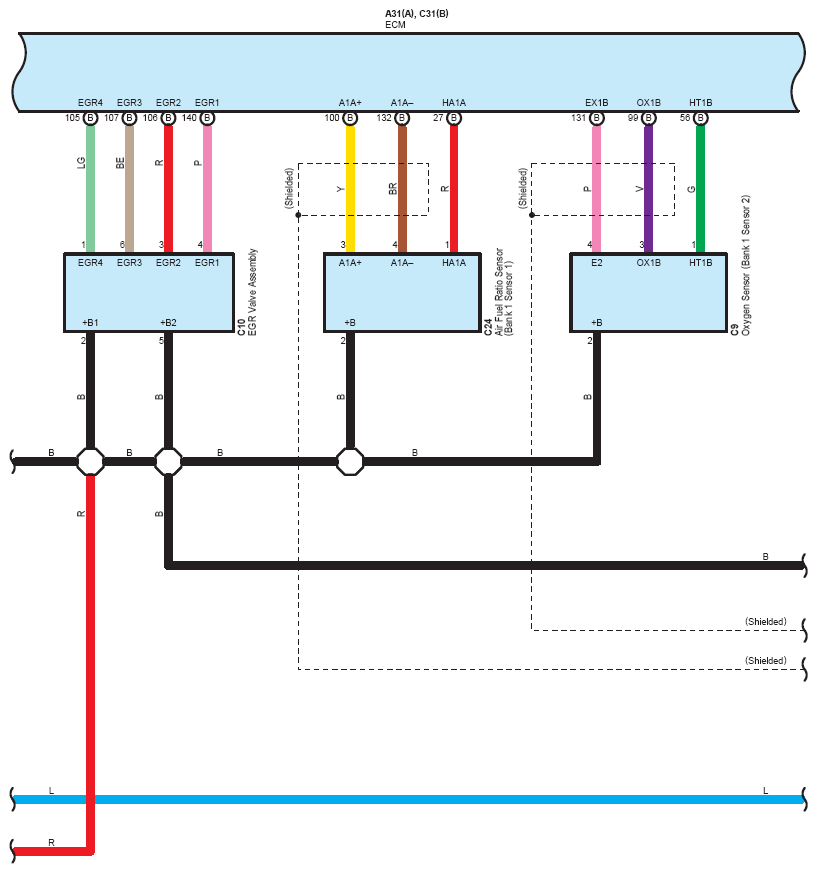

Fig 11: Engine Control, Fuel Lid Opener (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

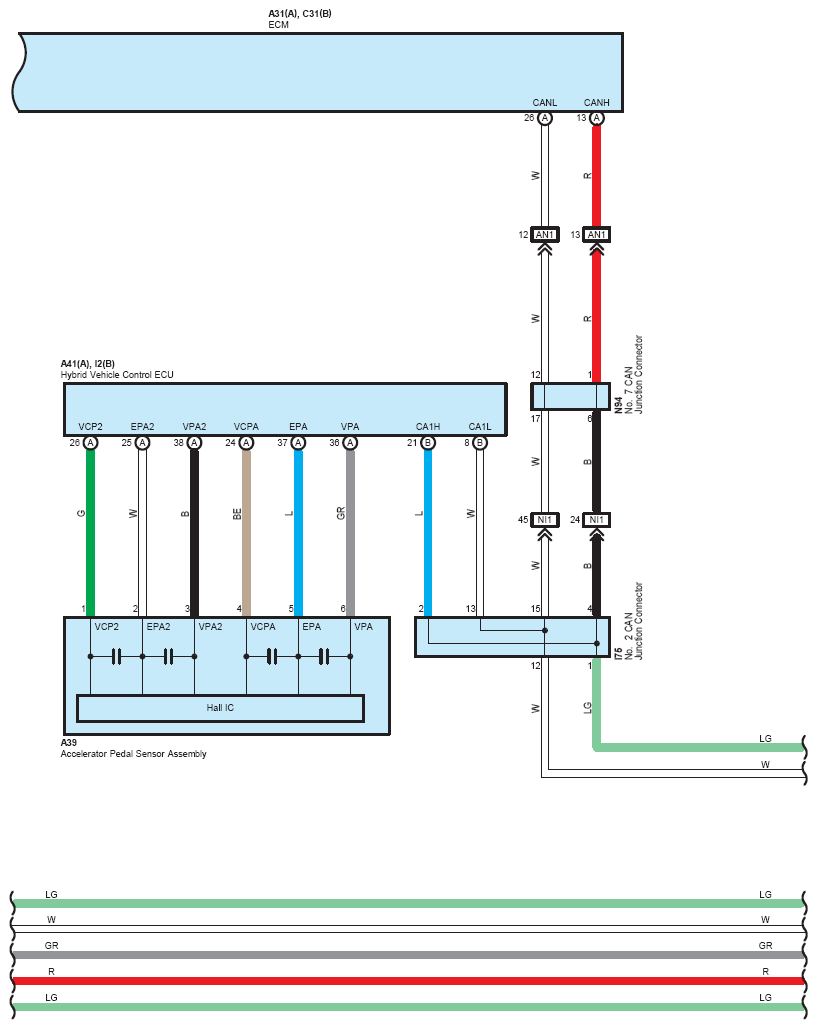

Fig 12: Engine Control, Fuel Lid Opener (12 Of 17)

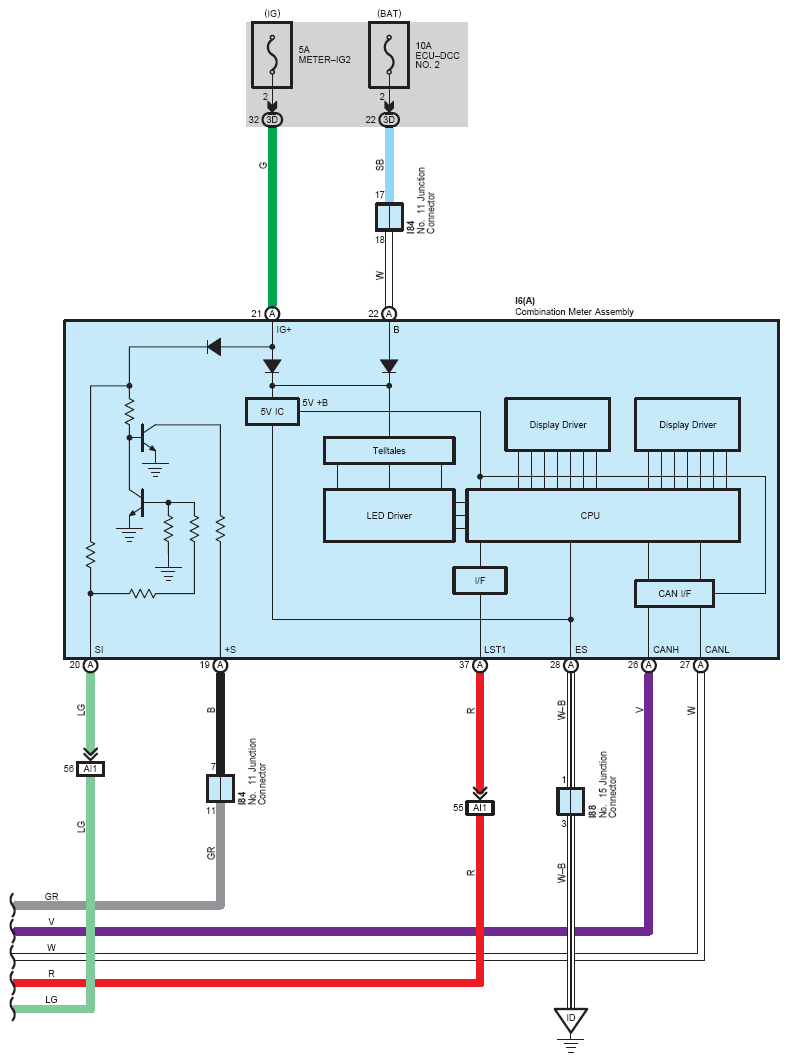

Fig 13: Engine Control, Fuel Lid Opener (13 Of 17)

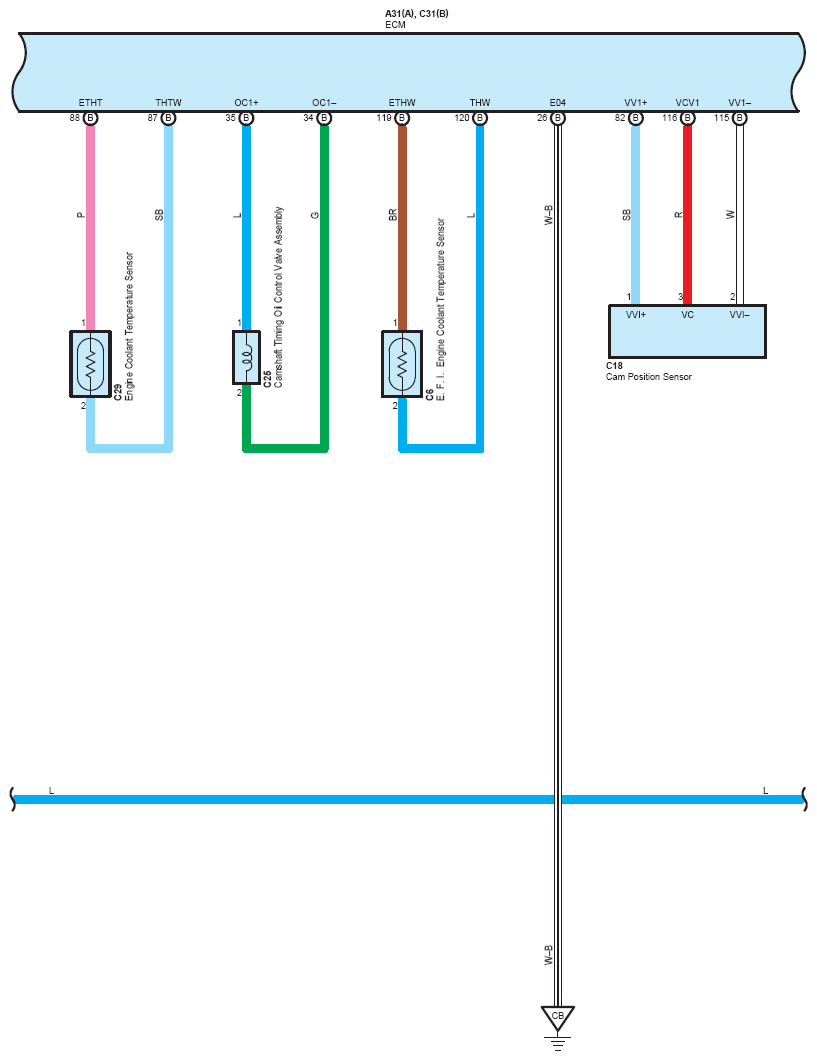

Fig 14: Engine Control, Fuel Lid Opener (14 Of 17)

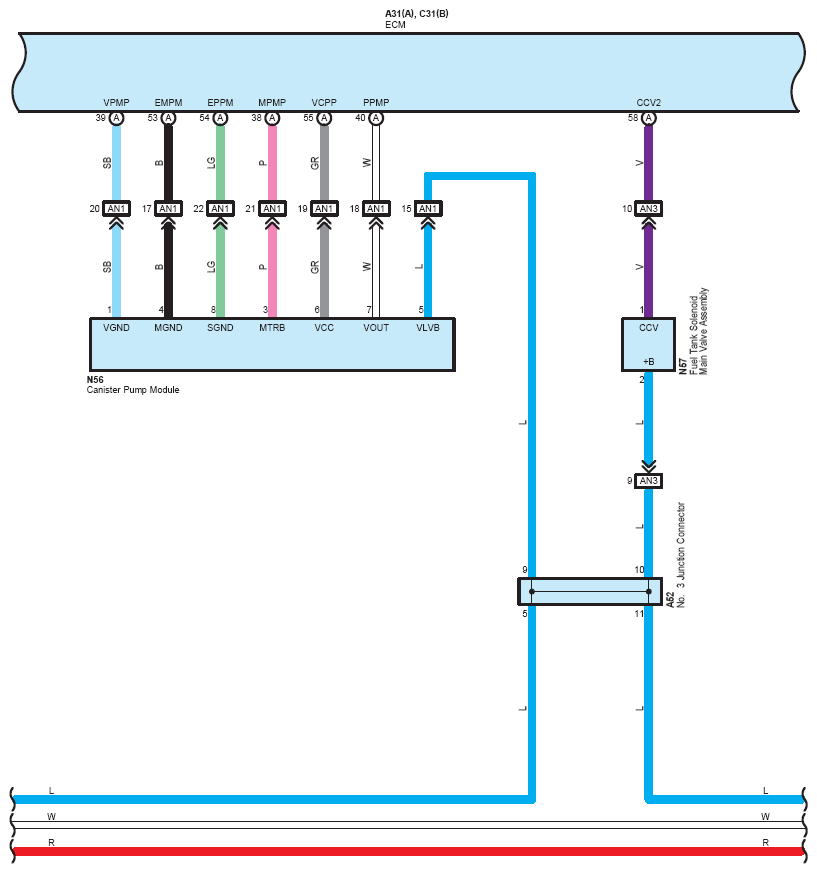

Fig 15: Engine Control, Fuel Lid Opener (15 Of 17)

Fig 16: Engine Control, Fuel Lid Opener (16 Of 17)

Fig 17: Engine Control, Fuel Lid Opener (17 Of 17)
