Data Link Connector 3
>>
System Diagrams
System Diagrams

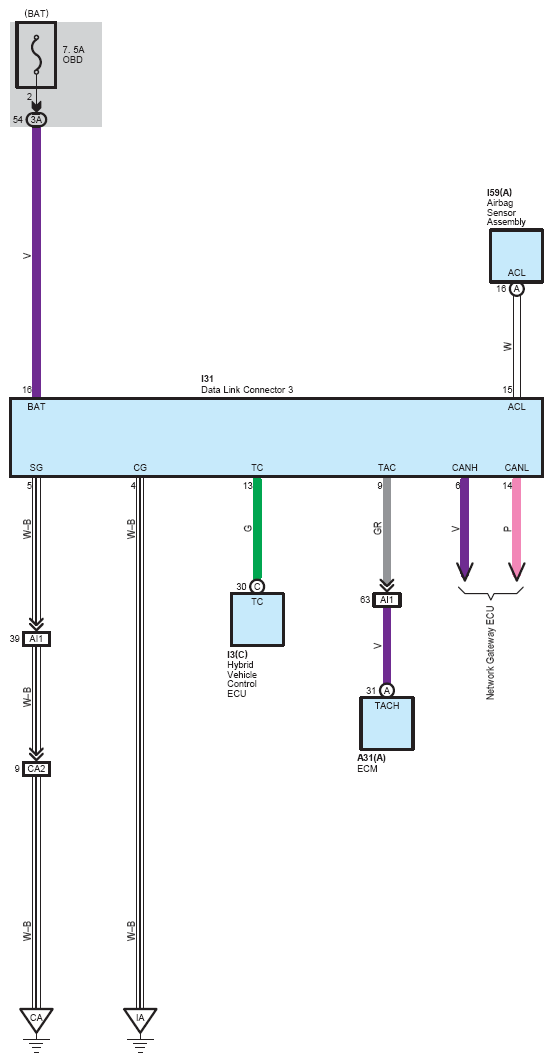

Fig 1: Data Link Connector 3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
