System Diagrams

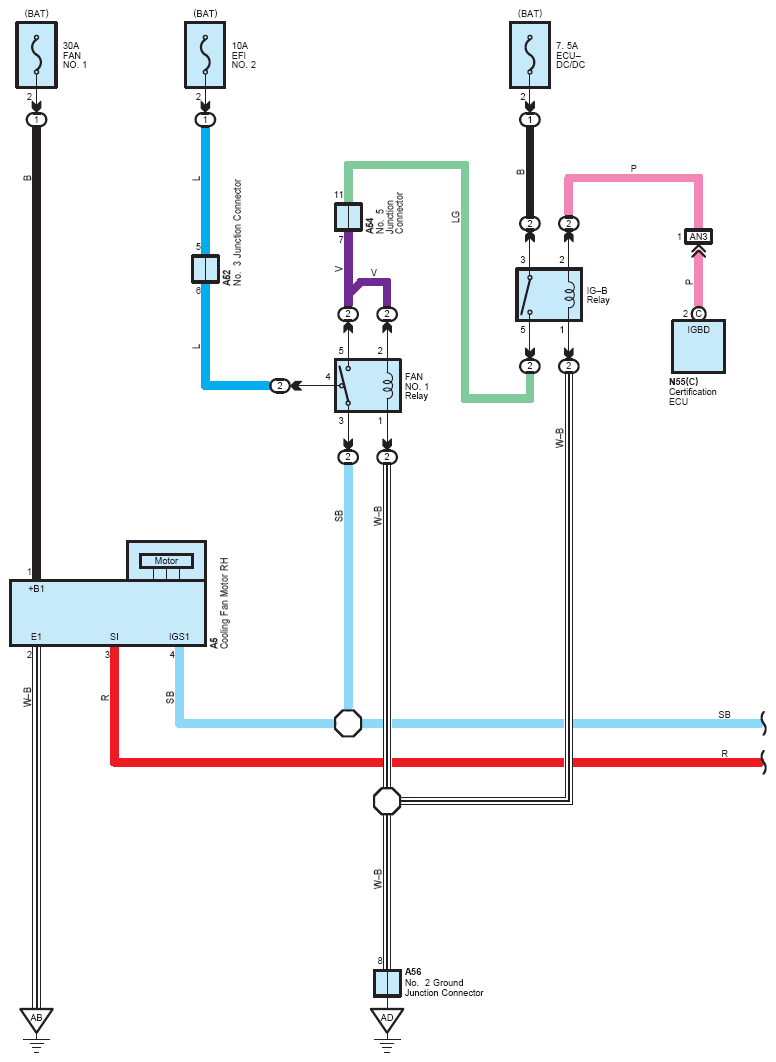

Fig 1: Cooling Fan (1 Of 4)
G12210326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

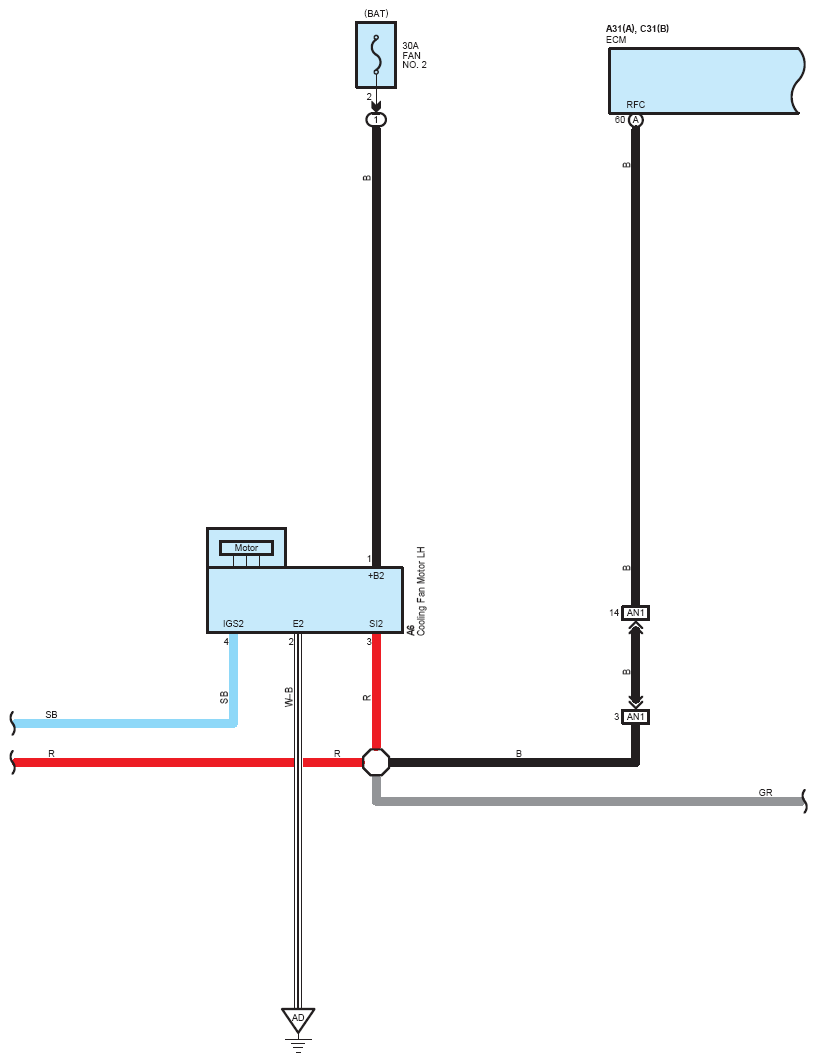

Fig 2: Cooling Fan (2 Of 4)
G12210327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

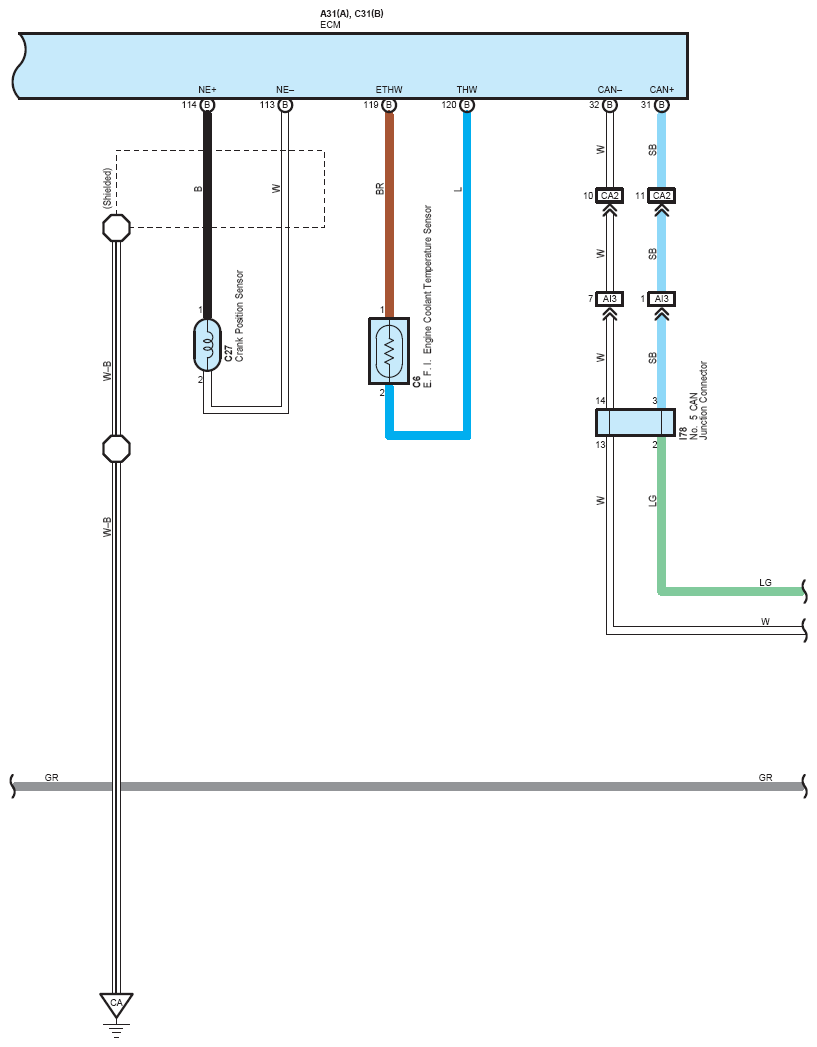

Fig 3: Cooling Fan (3 Of 4)
G12210328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

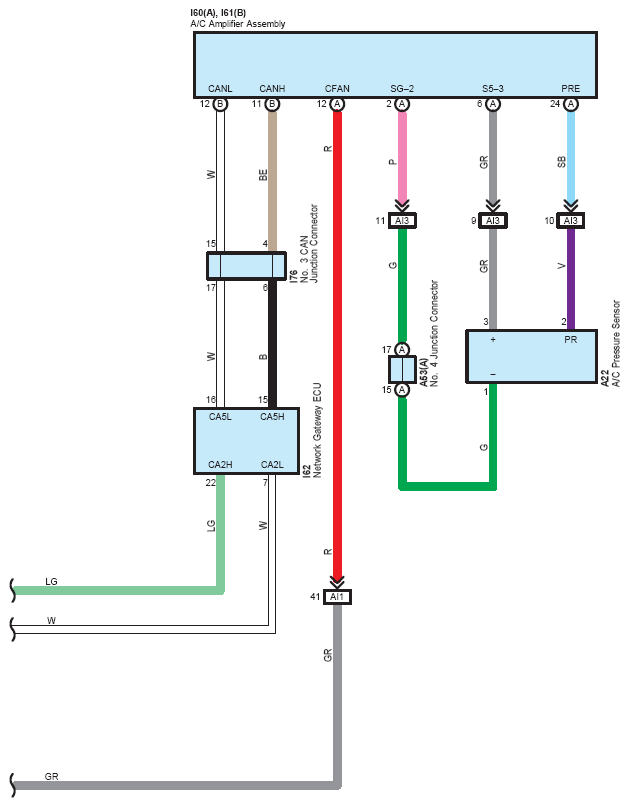

Fig 4: Cooling Fan (4 Of 4)
G12210329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
