Cooling Fan: Connectors

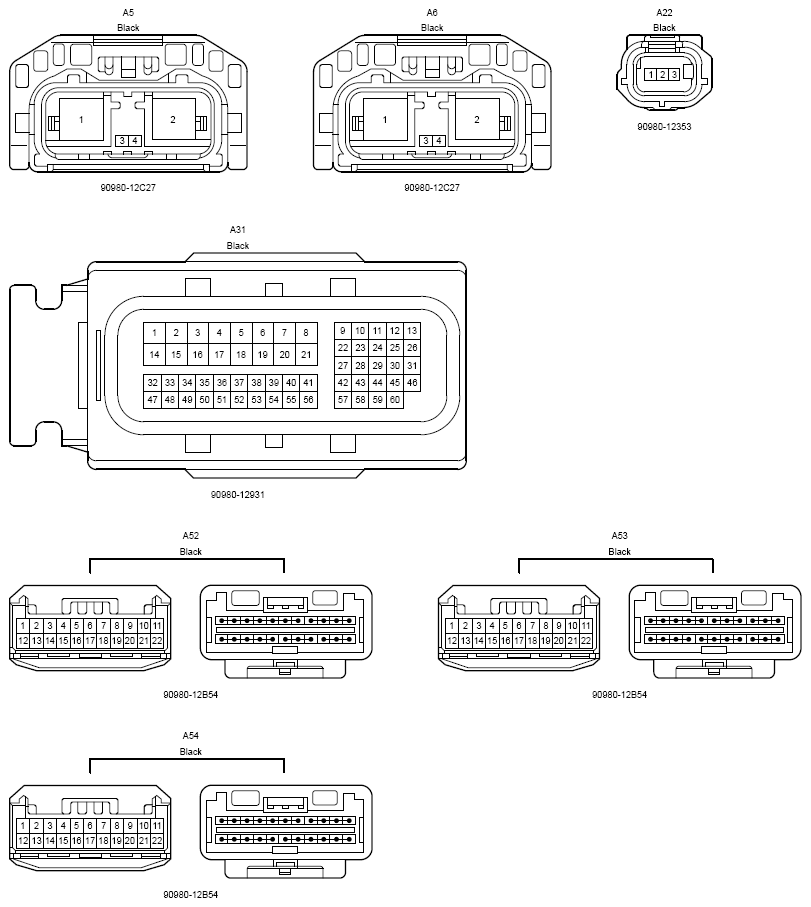

Fig 1: Connectors (1 Of 4)
G12210330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

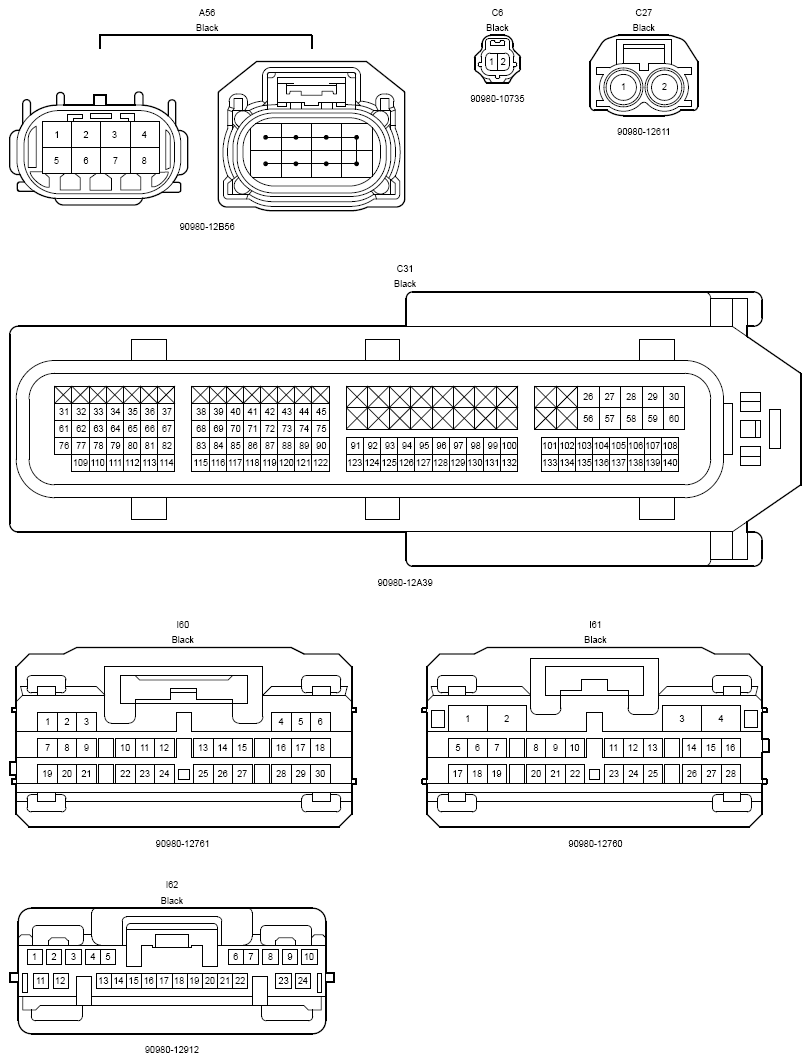

Fig 2: Connectors (2 Of 4)
G12210331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

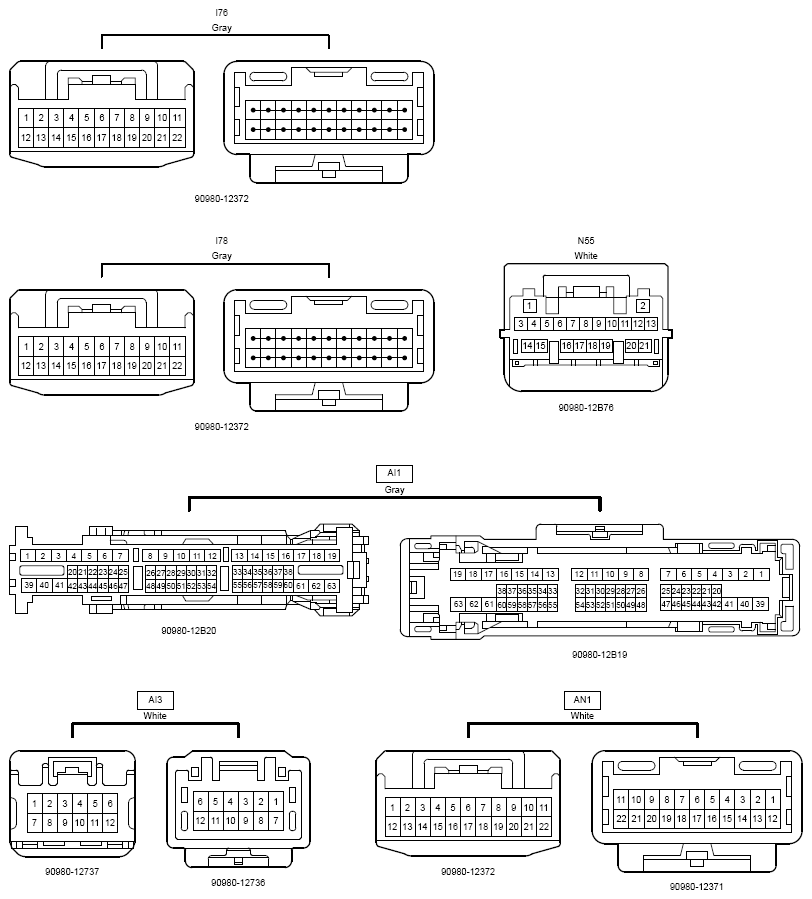

Fig 3: Connectors (3 Of 4)
G12210332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Connectors (4 Of 4)
G12210333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
