System Diagrams

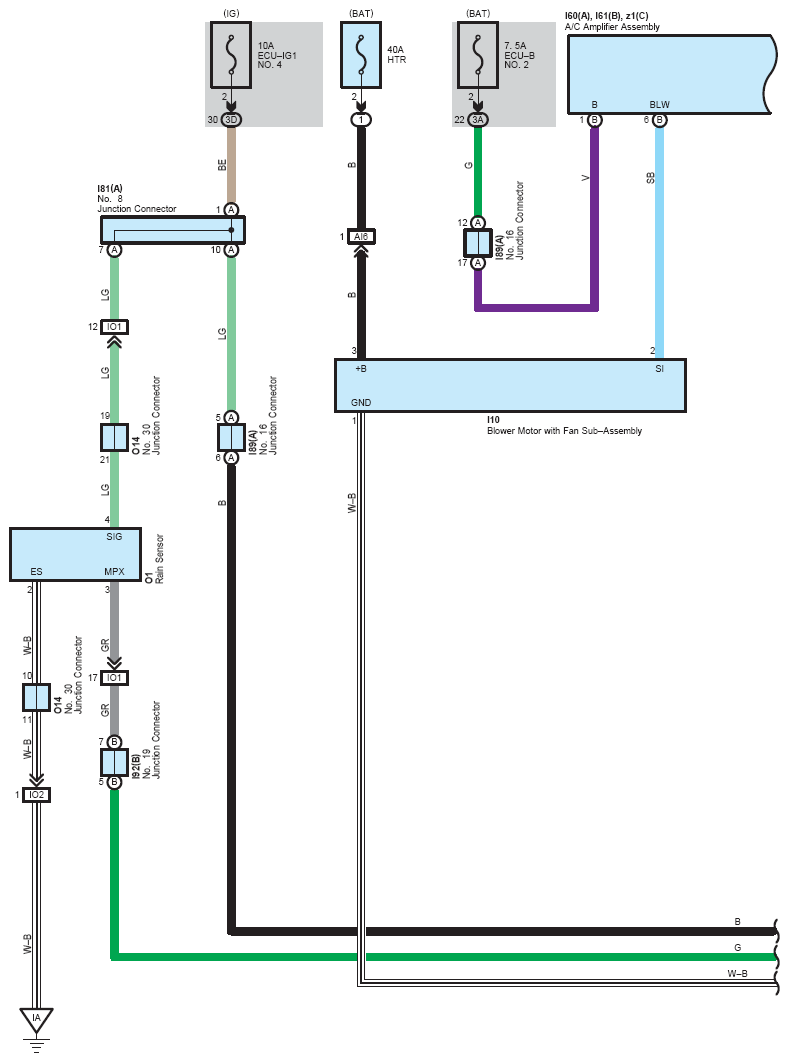

Fig 1: Air Conditioning, Remote Air Conditioning System (1 Of 40)

G12210209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

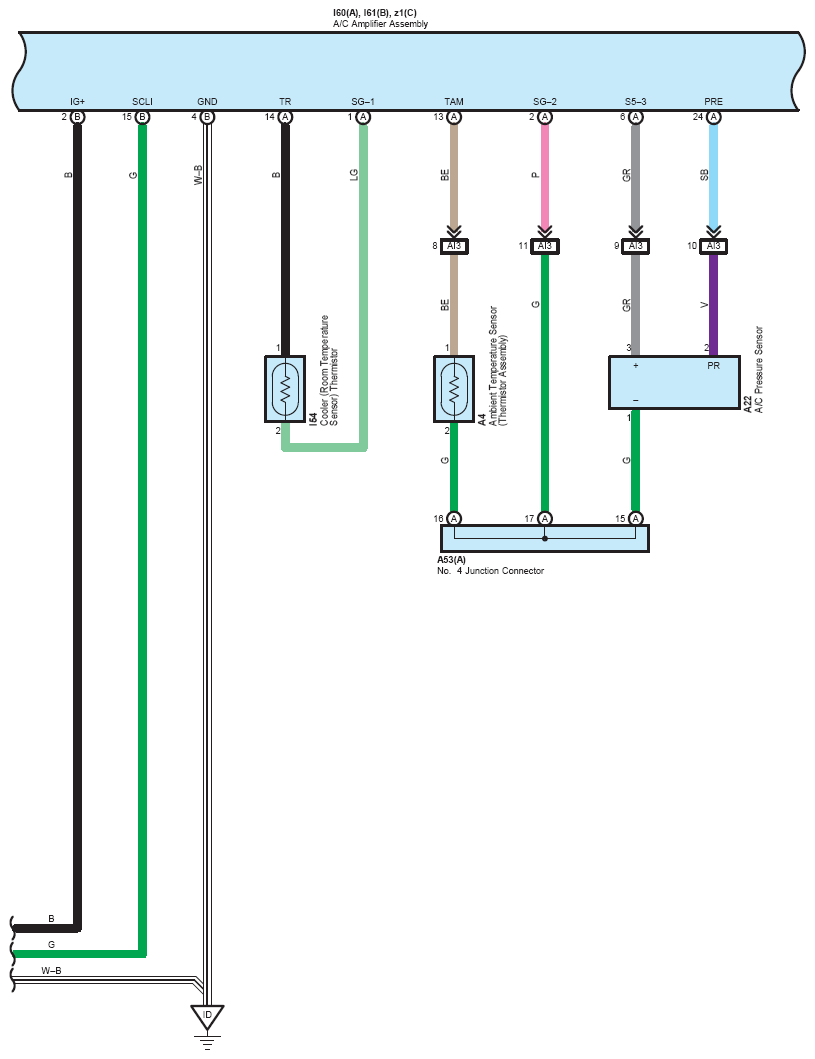

Fig 2: Air Conditioning, Remote Air Conditioning System (2 Of 40)

G12210210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

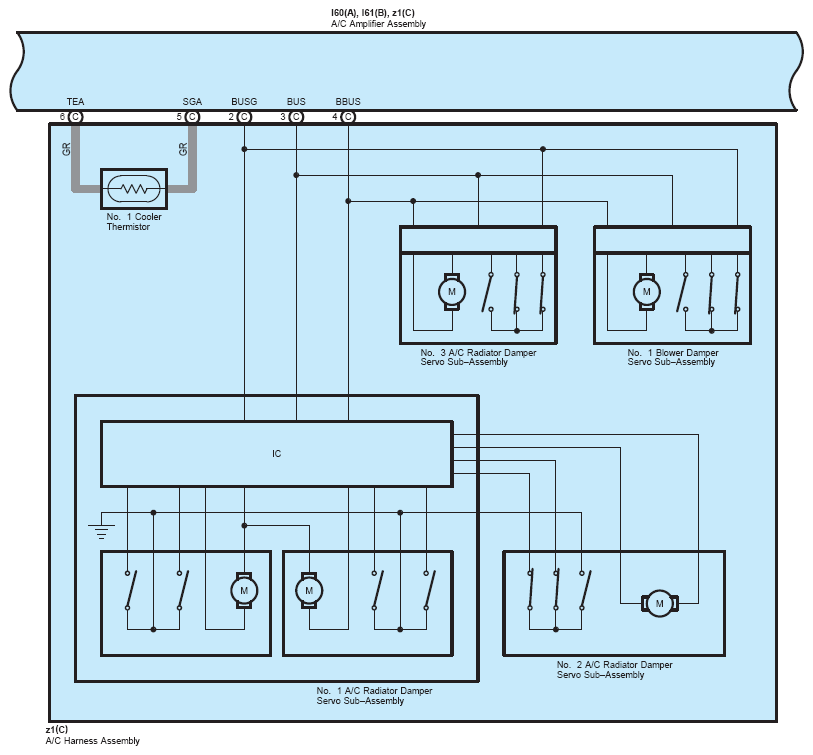

Fig 3: Air Conditioning, Remote Air Conditioning System (3 Of 40)

G12210211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

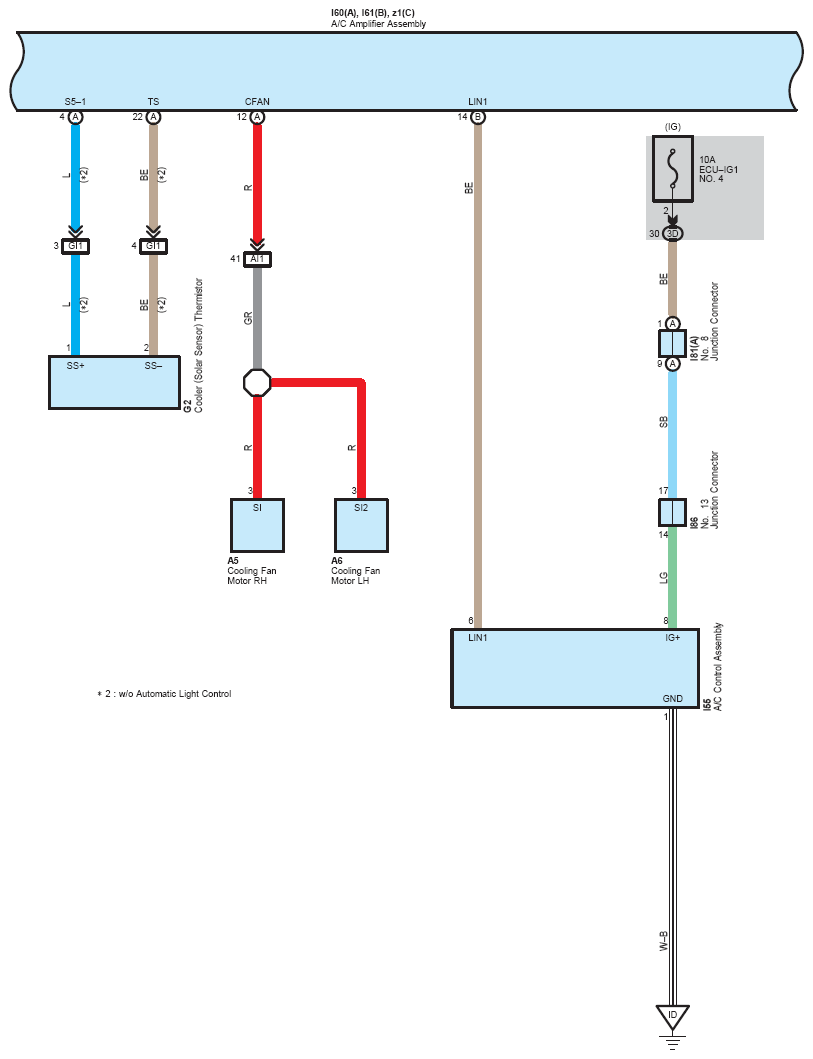

Fig 4: Air Conditioning, Remote Air Conditioning System (4 Of 40)

G12210212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

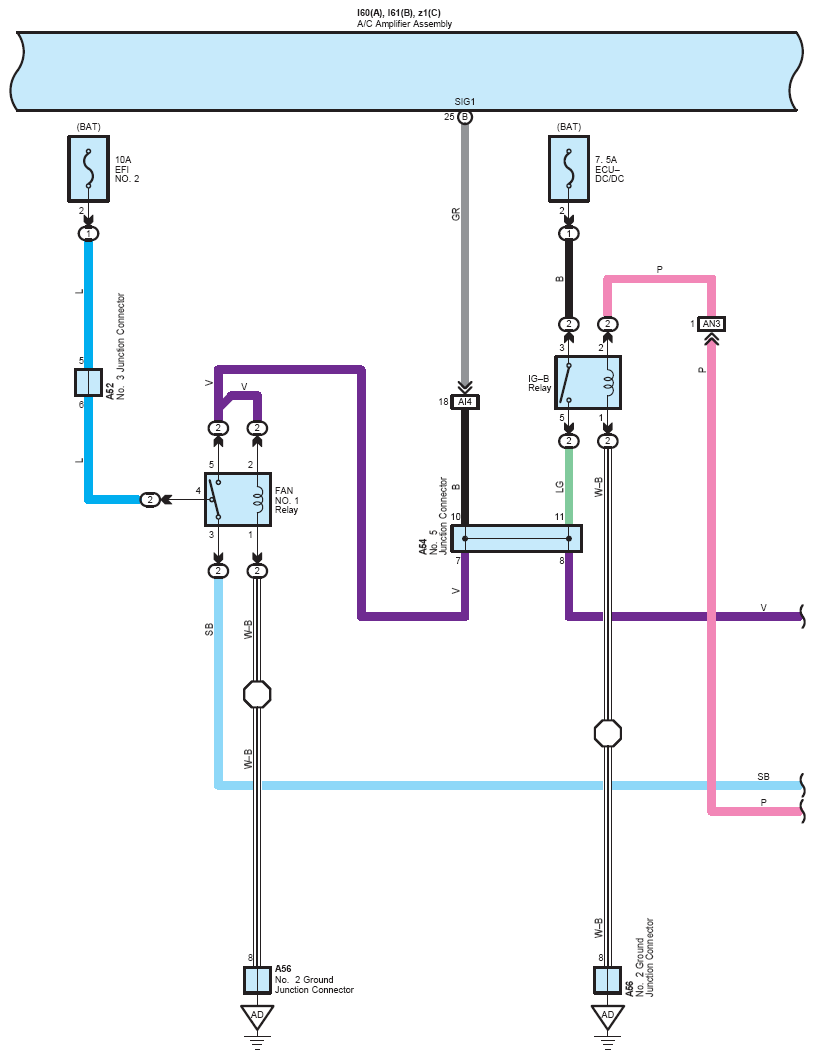

Fig 5: Air Conditioning, Remote Air Conditioning System (5 Of 40)

G12210213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

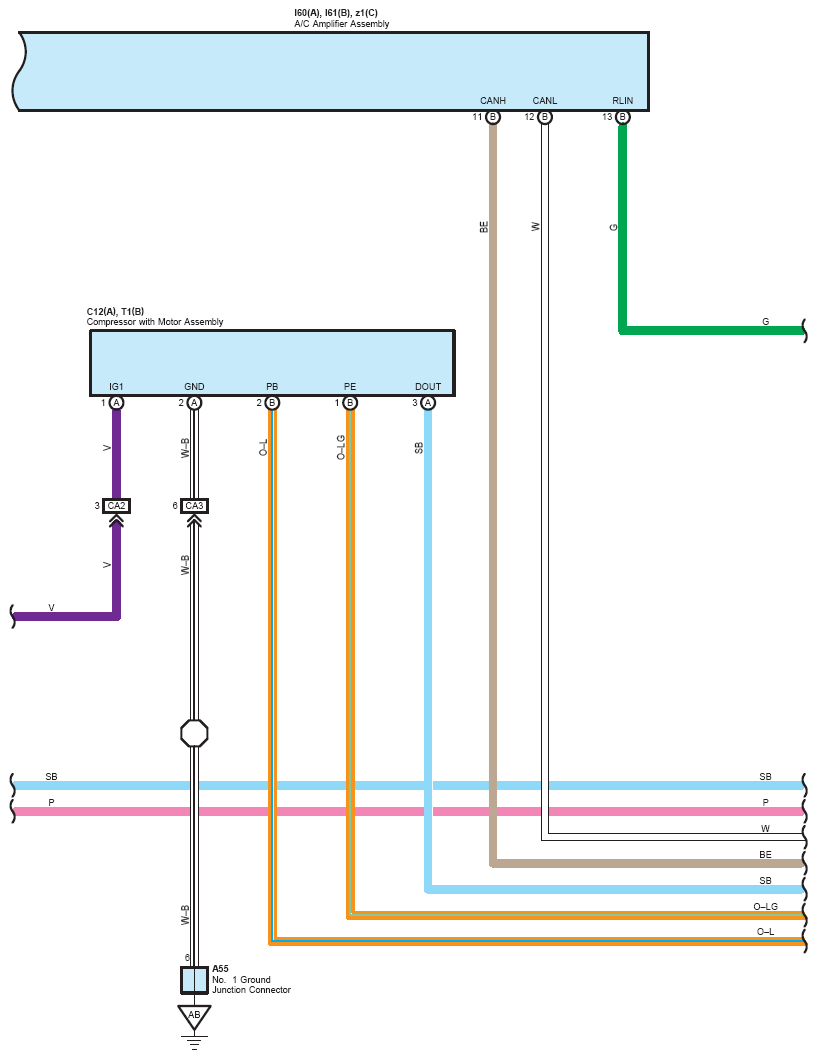

Fig 6: Air Conditioning, Remote Air Conditioning System (6 Of 40)

G12210214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

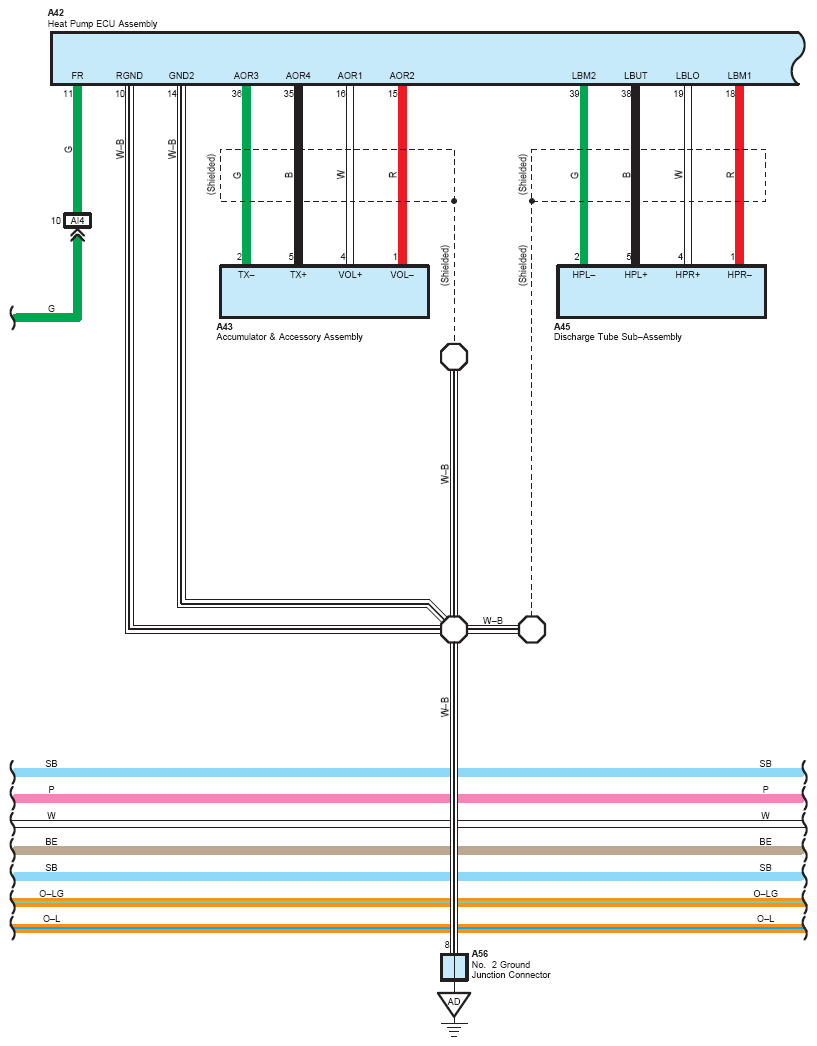

Fig 7: Air Conditioning, Remote Air Conditioning System (7 Of 40)

G12210215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

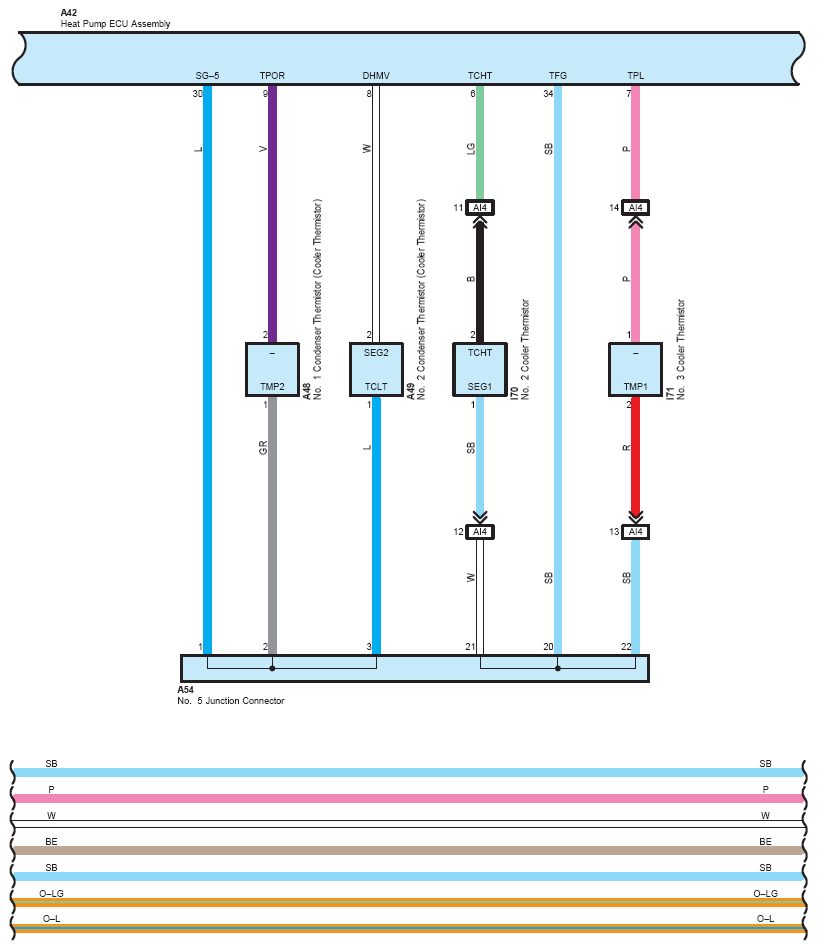

Fig 8: Air Conditioning, Remote Air Conditioning System (8 Of 40)

G12210216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

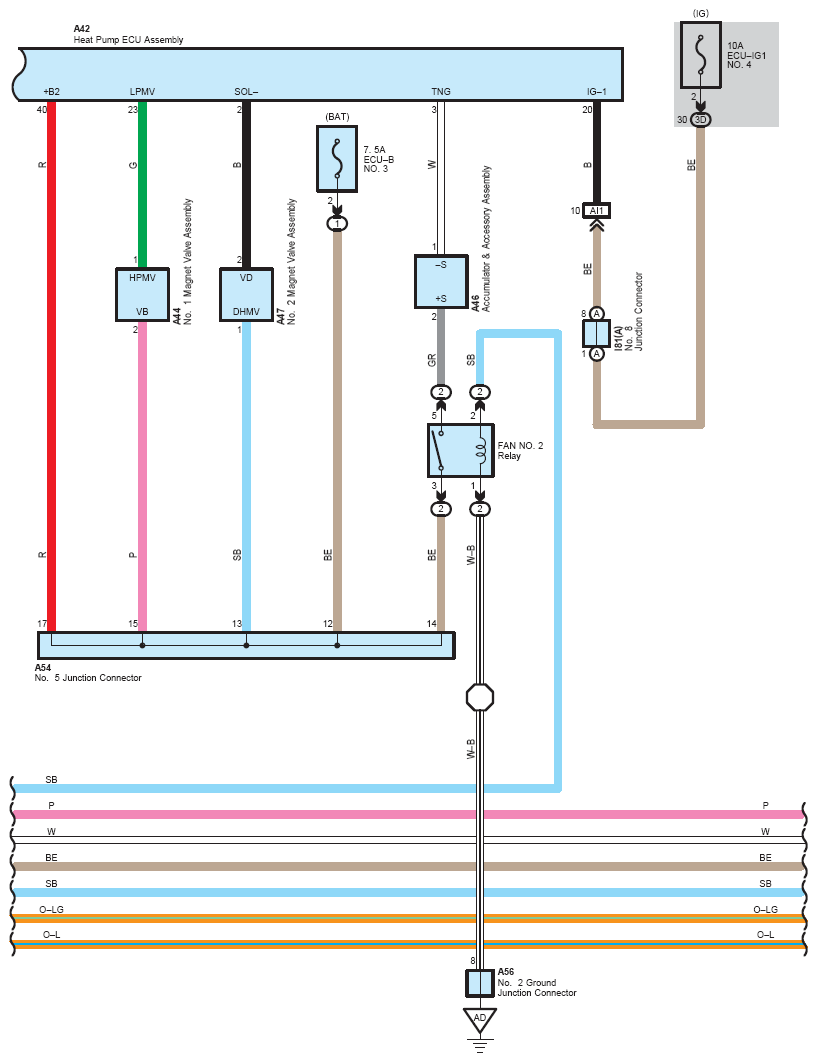

Fig 9: Air Conditioning, Remote Air Conditioning System (9 Of 40)

G12210217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

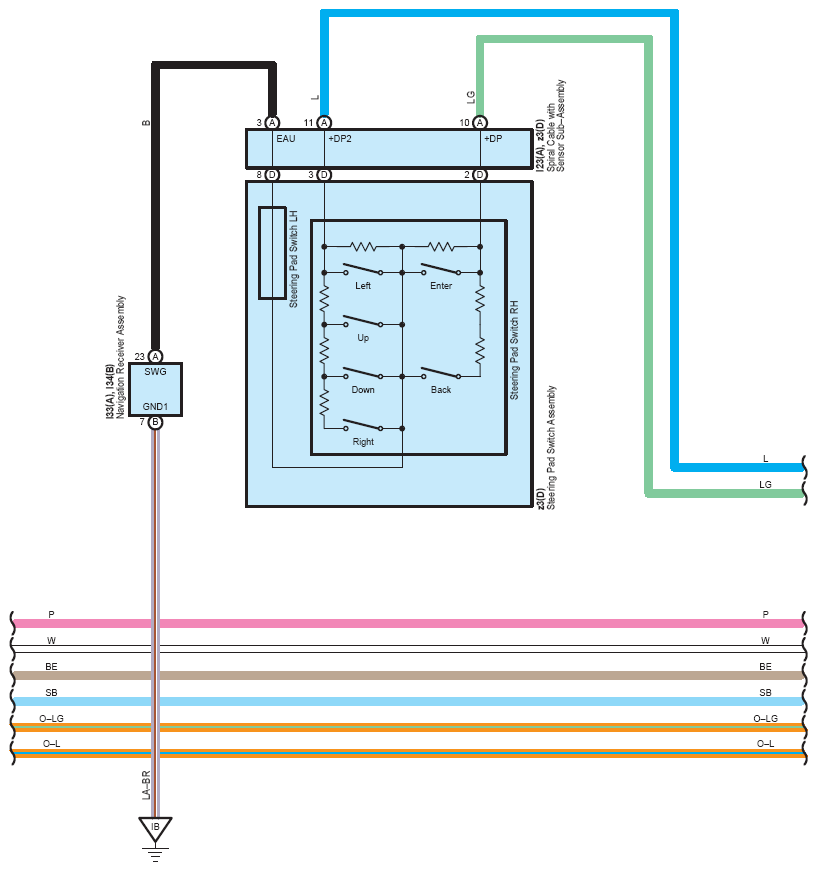

Fig 10: Air Conditioning, Remote Air Conditioning System (10 Of 40)

G12210218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

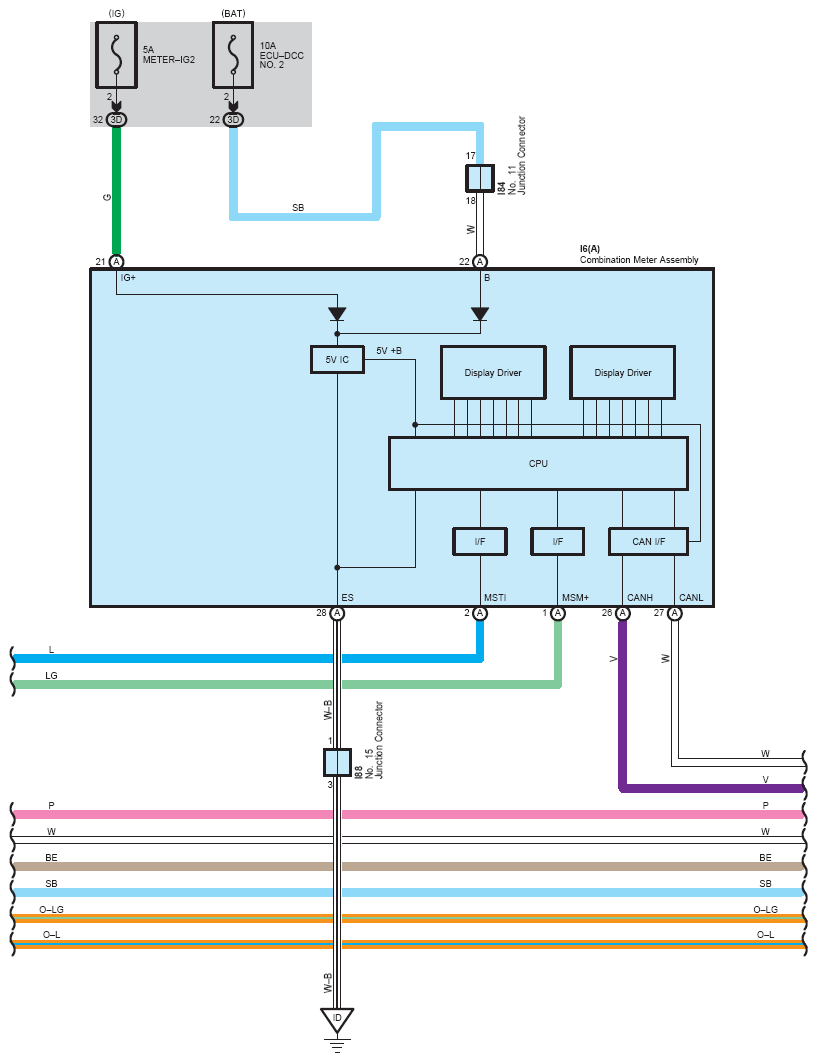

Fig 11: Air Conditioning, Remote Air Conditioning System (11 Of 40)

G12210219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

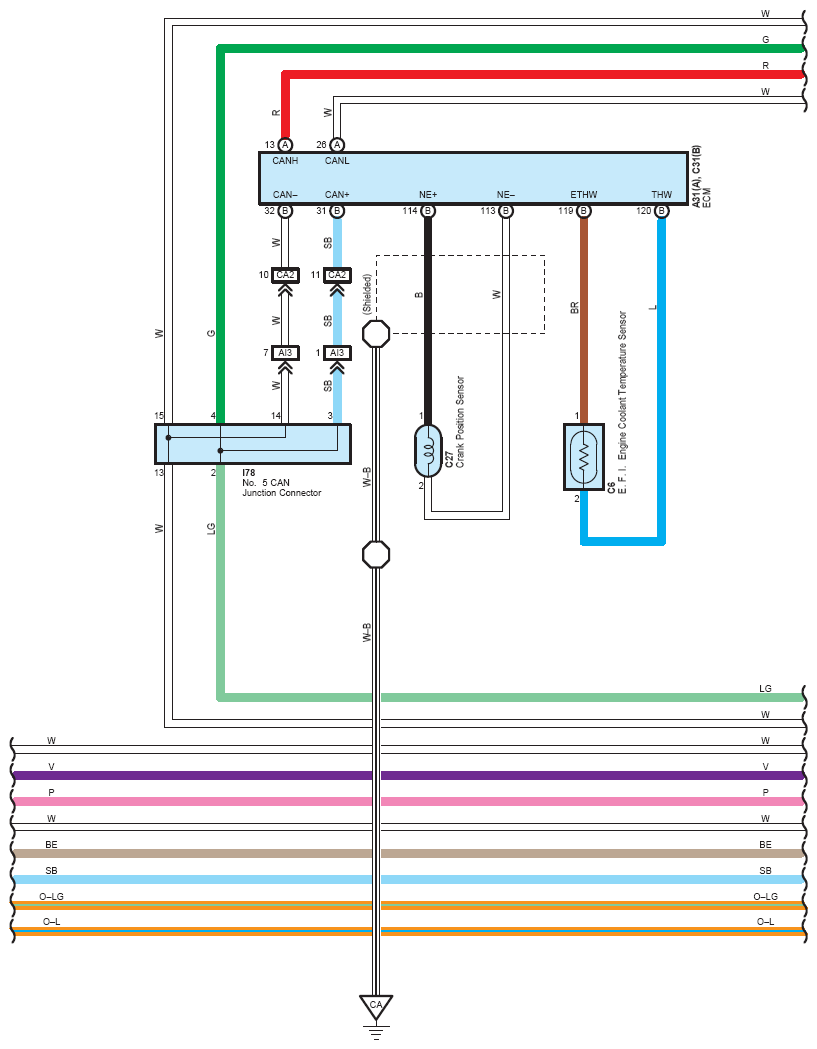

Fig 12: Air Conditioning, Remote Air Conditioning System (12 Of 40)

G12210220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Air Conditioning, Remote Air Conditioning System (13 Of 40)

G12210221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

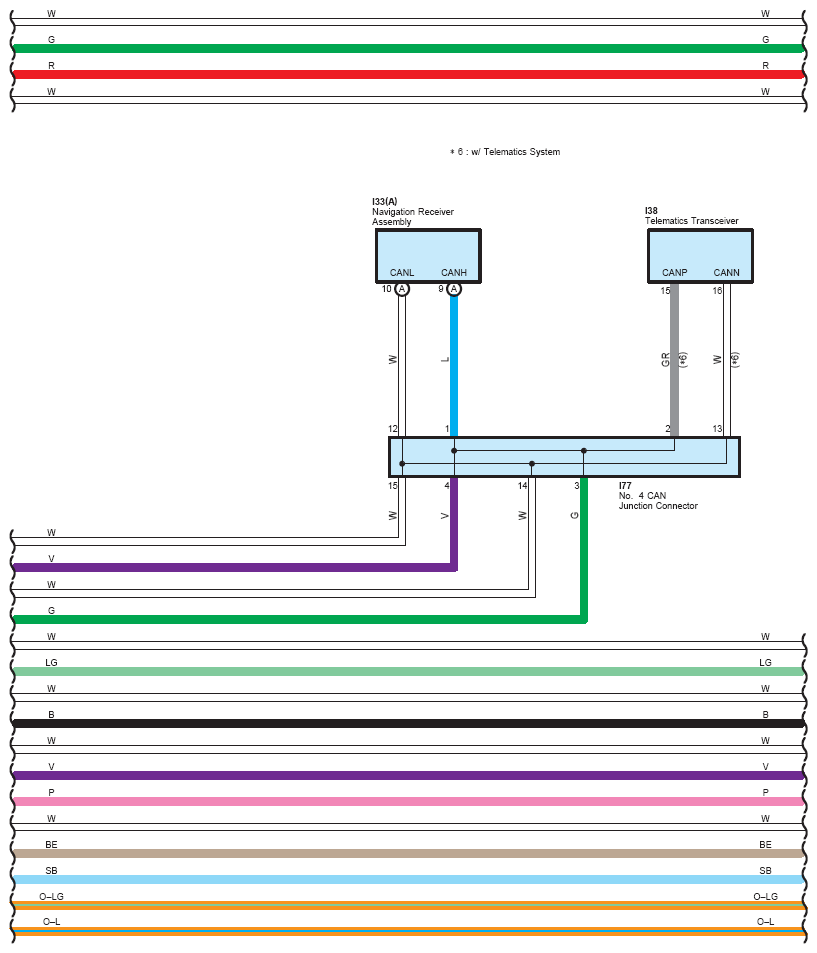

Fig 14: Air Conditioning, Remote Air Conditioning System (14 Of 40)

G12210222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

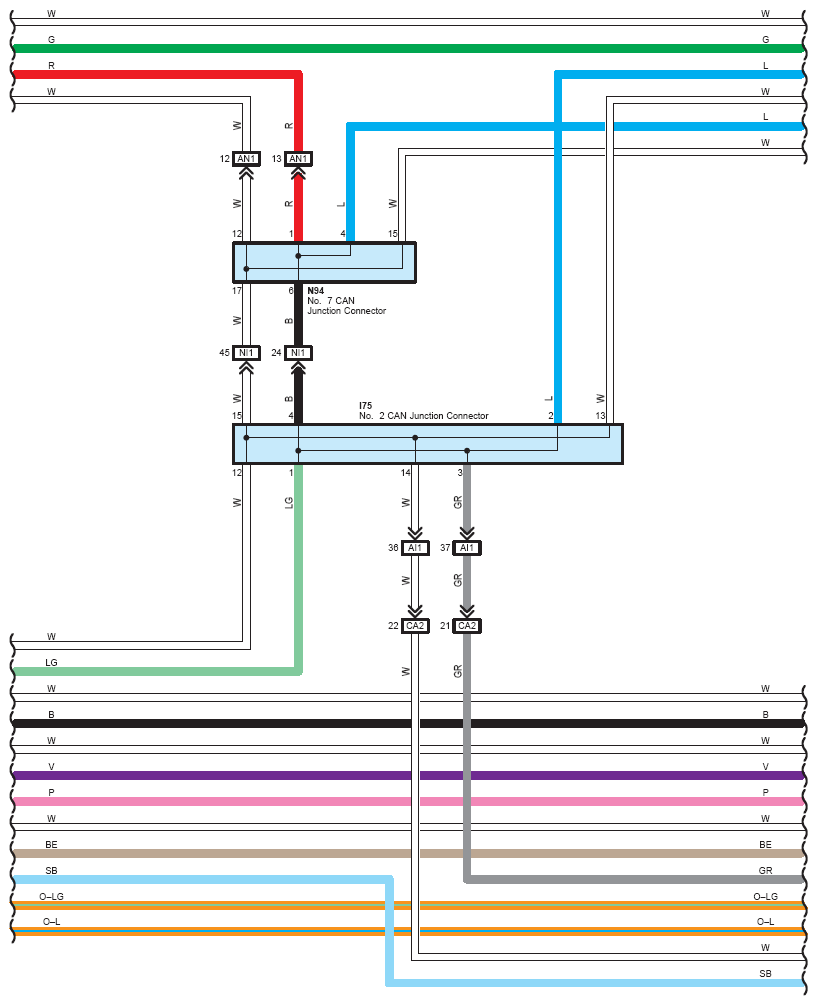

Fig 15: Air Conditioning, Remote Air Conditioning System (15 Of 40)

G12210223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

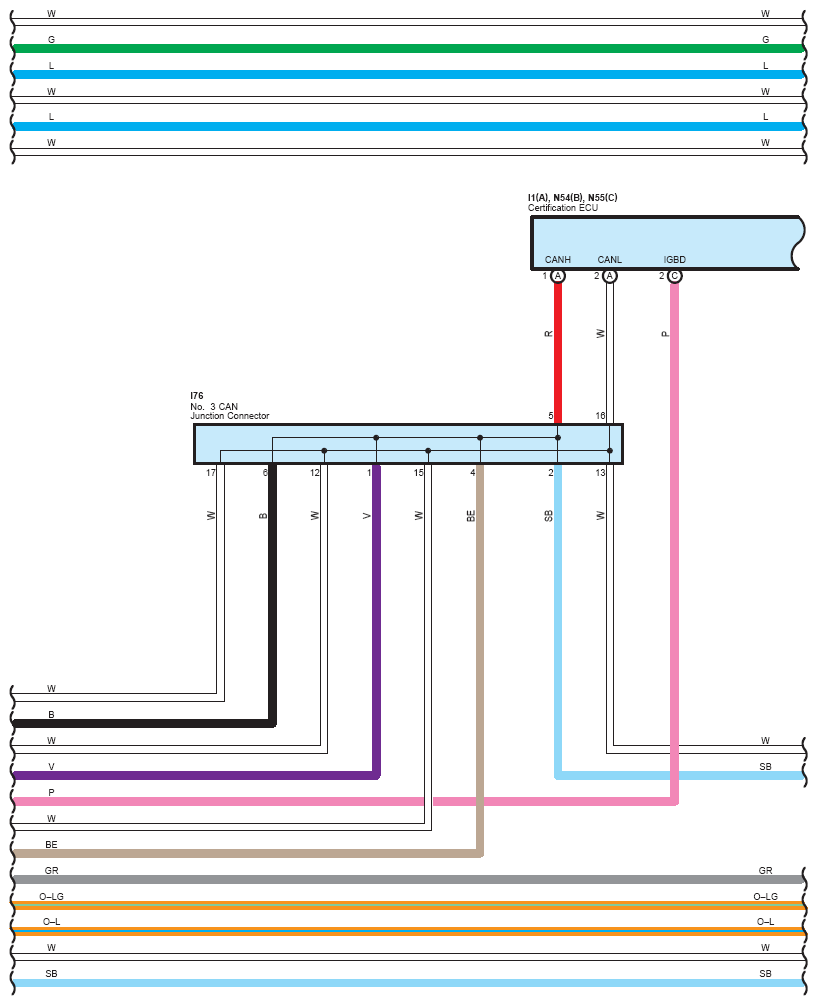

Fig 16: Air Conditioning, Remote Air Conditioning System (16 Of 40)

G12210224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

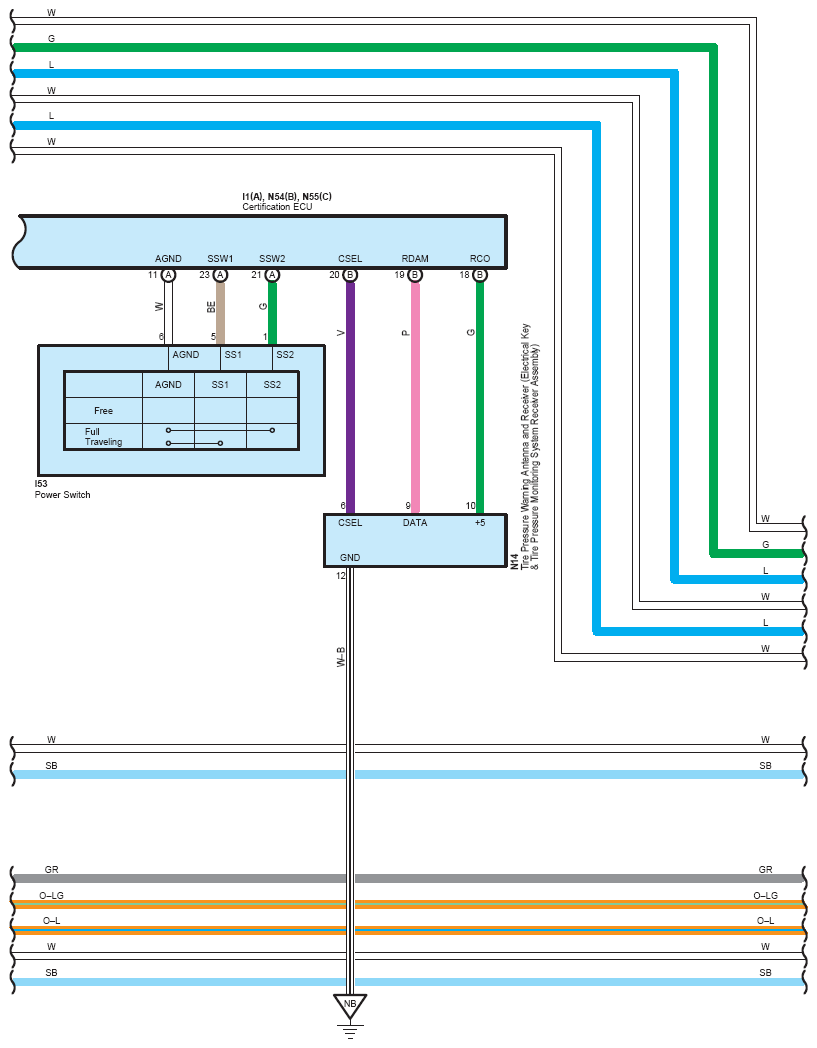

Fig 17: Air Conditioning, Remote Air Conditioning System (17 Of 40)

G12210225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

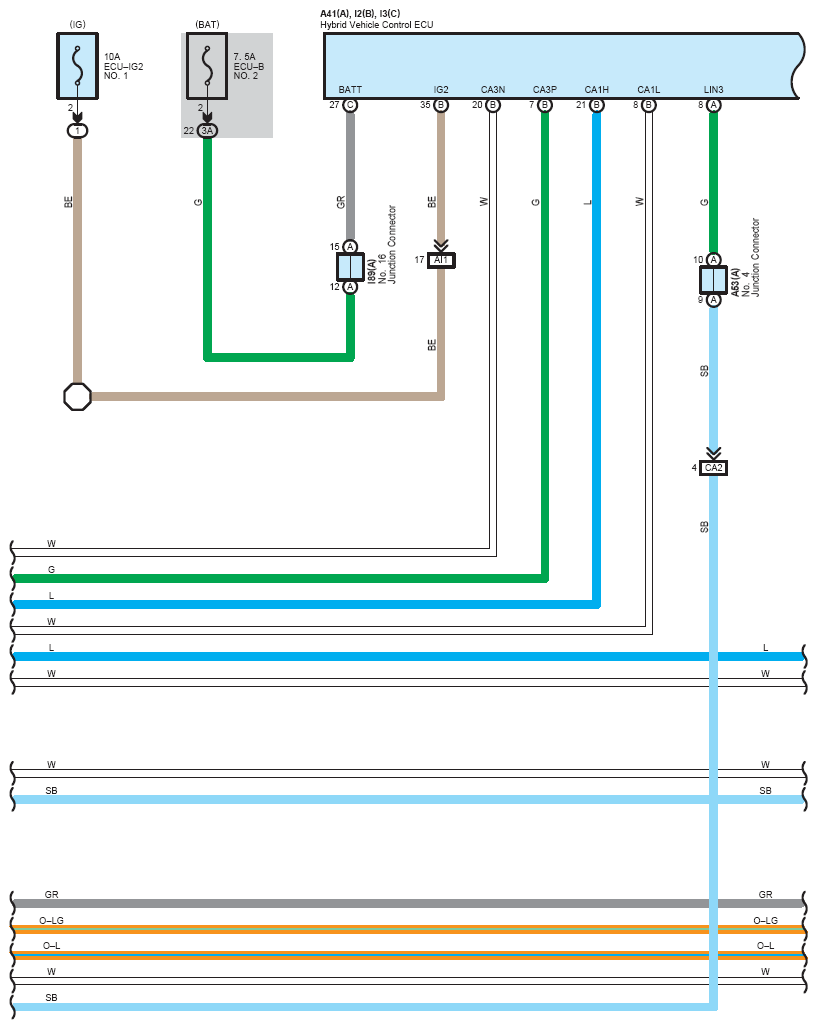

Fig 18: Air Conditioning, Remote Air Conditioning System (18 Of 40)

G12210226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

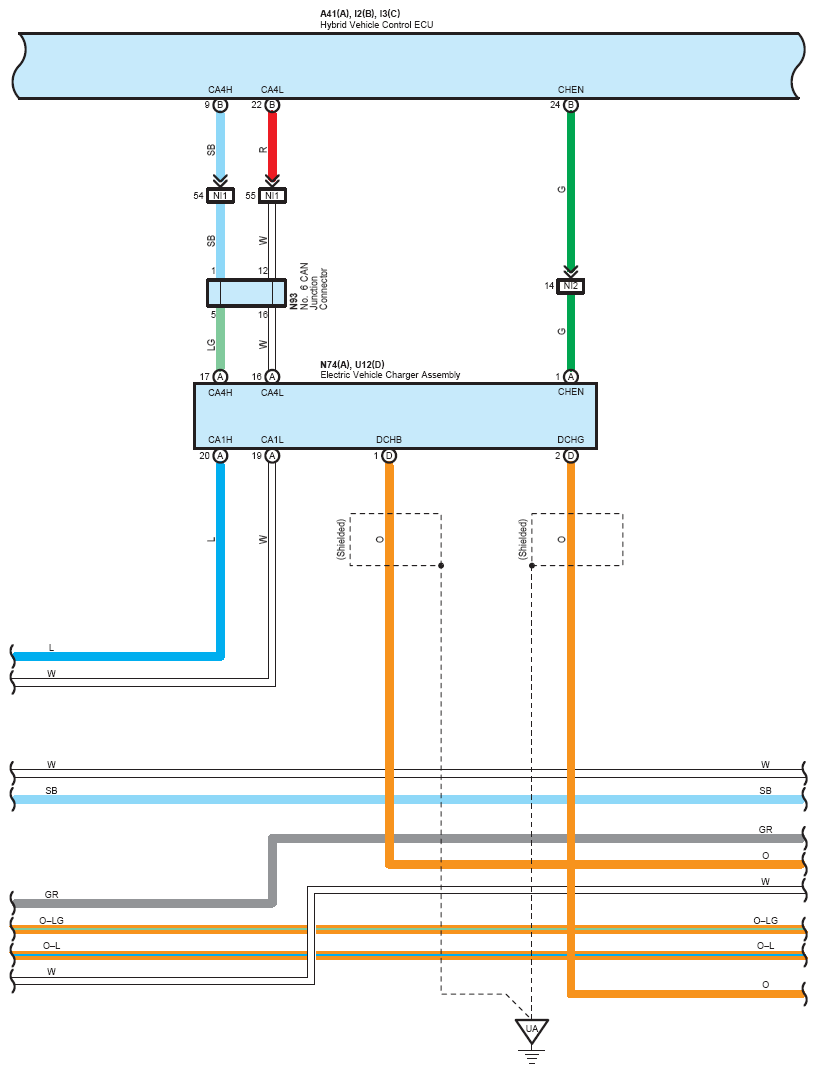

Fig 19: Air Conditioning, Remote Air Conditioning System (19 Of 40)

G12210227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

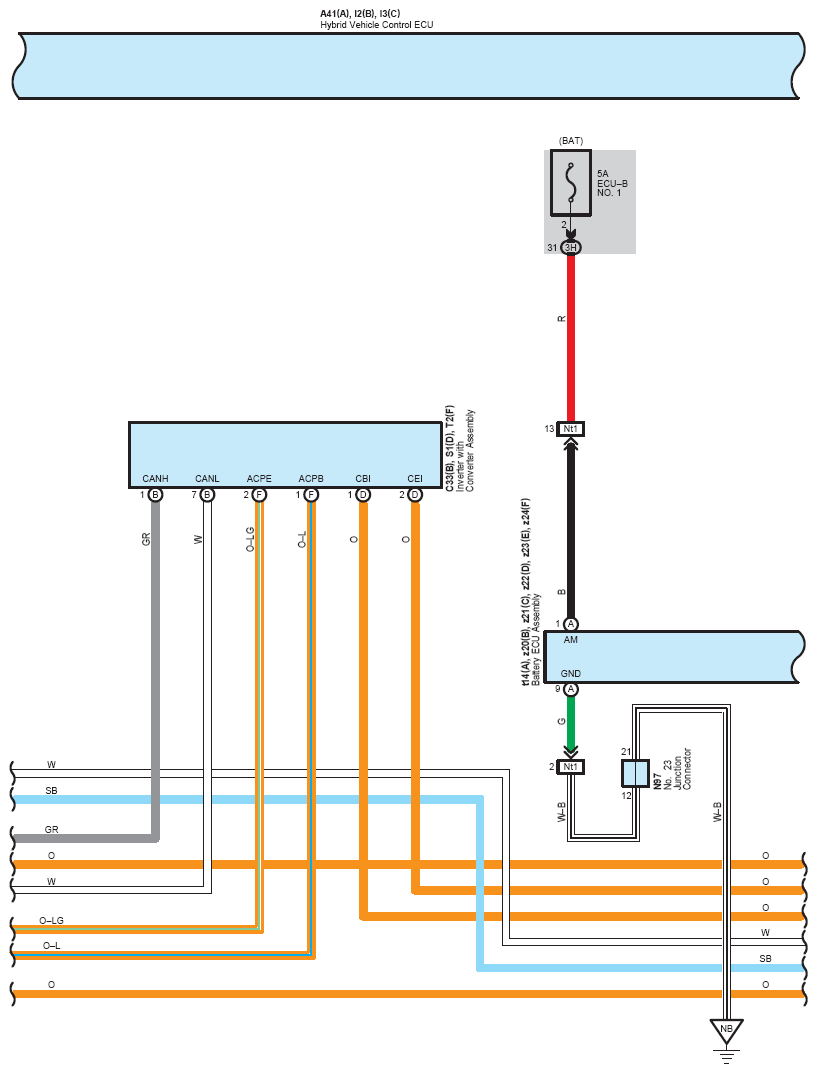

Fig 20: Air Conditioning, Remote Air Conditioning System (20 Of 40)

G12210228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

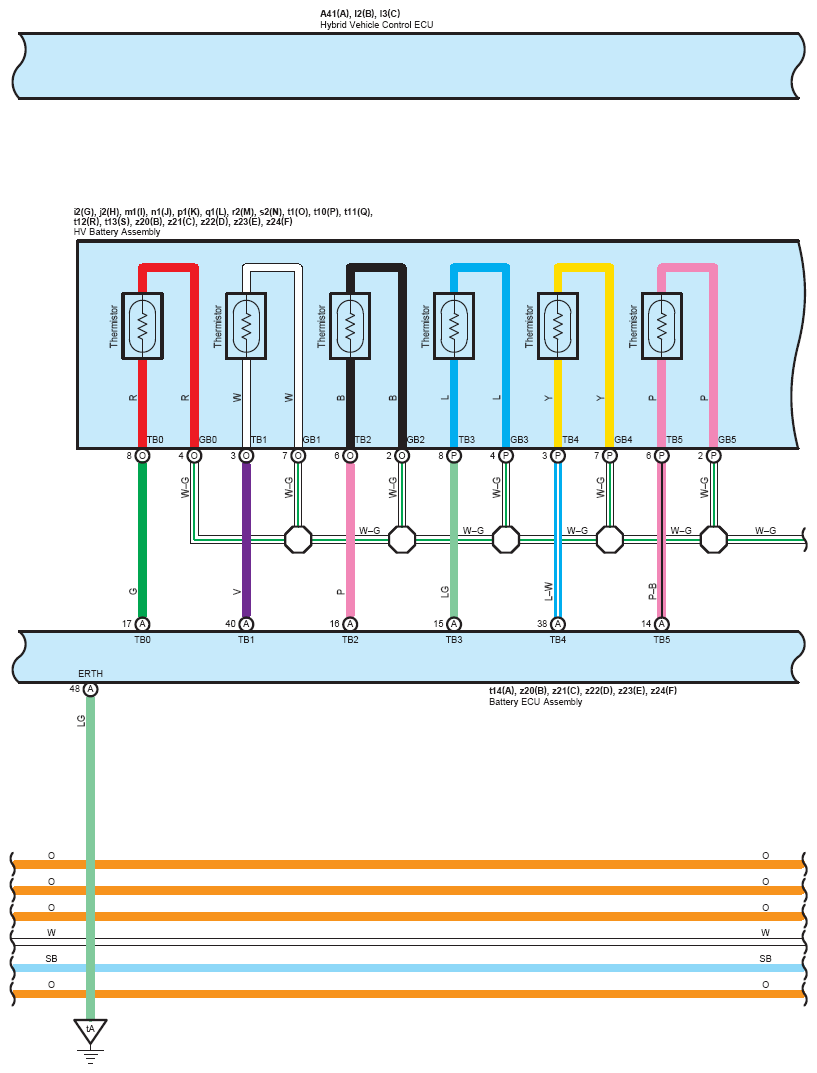

Fig 21: Air Conditioning, Remote Air Conditioning System (21 Of 40)

G12210229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

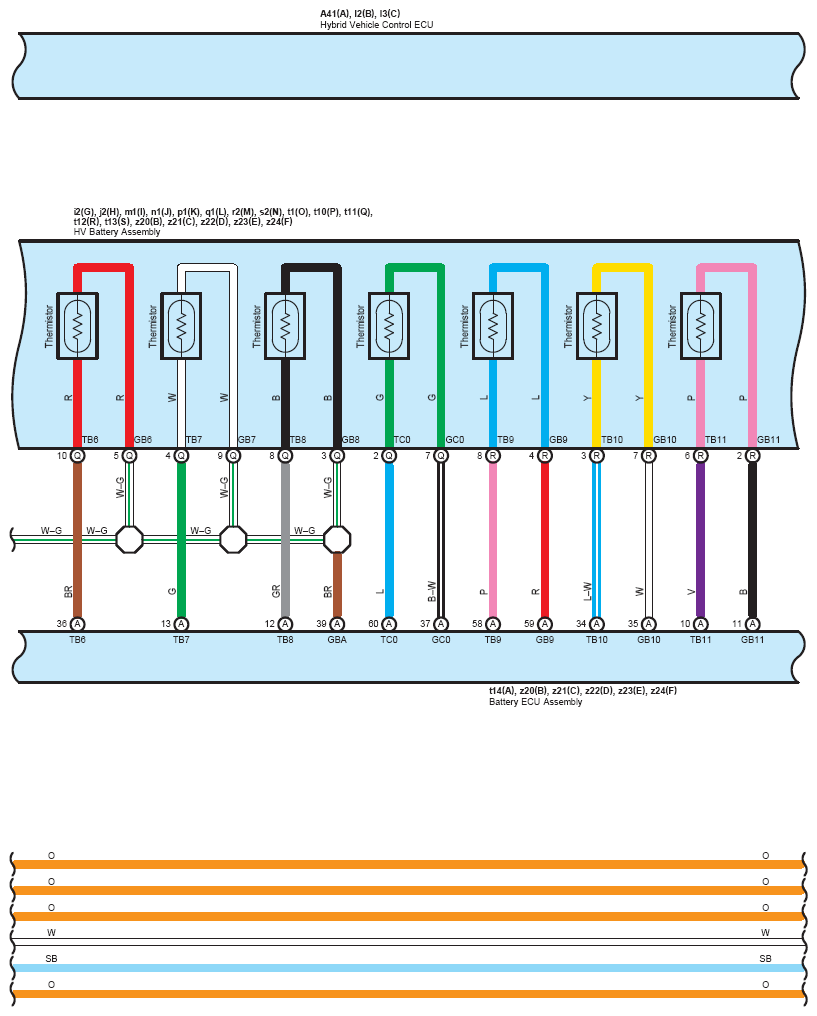

Fig 22: Air Conditioning, Remote Air Conditioning System (22 Of 40)

G12210230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

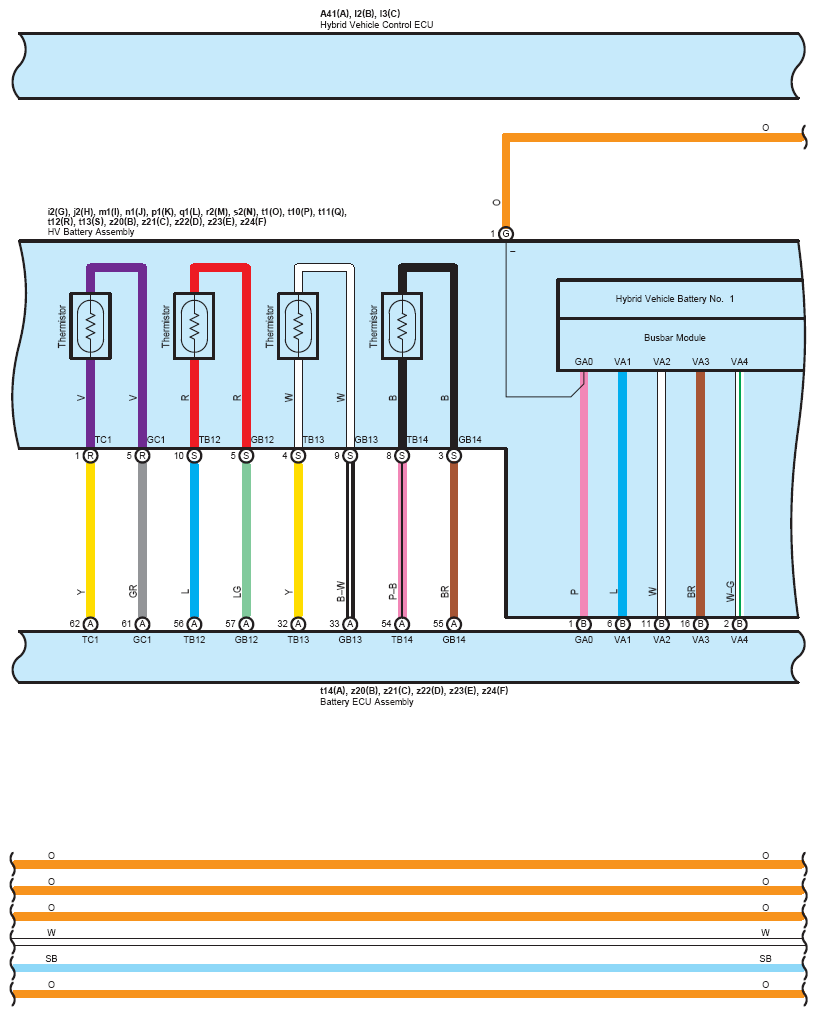

Fig 23: Air Conditioning, Remote Air Conditioning System (23 Of 40)

G12210231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

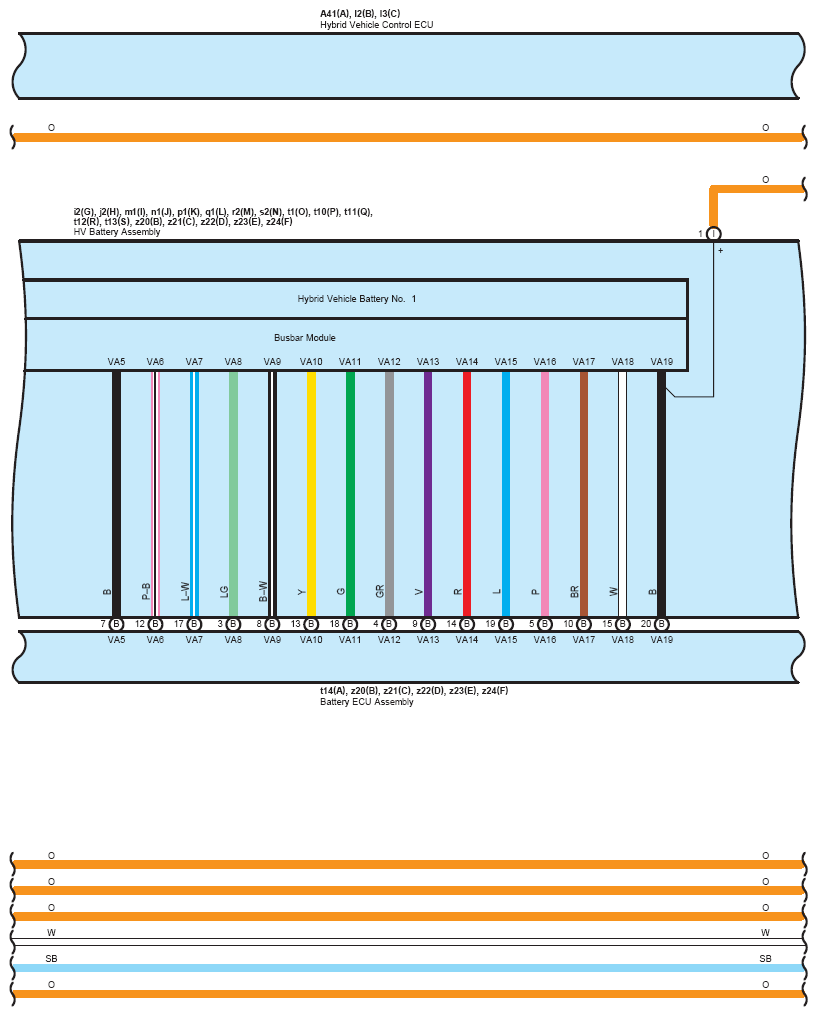

Fig 24: Air Conditioning, Remote Air Conditioning System (24 Of 40)

G12210232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

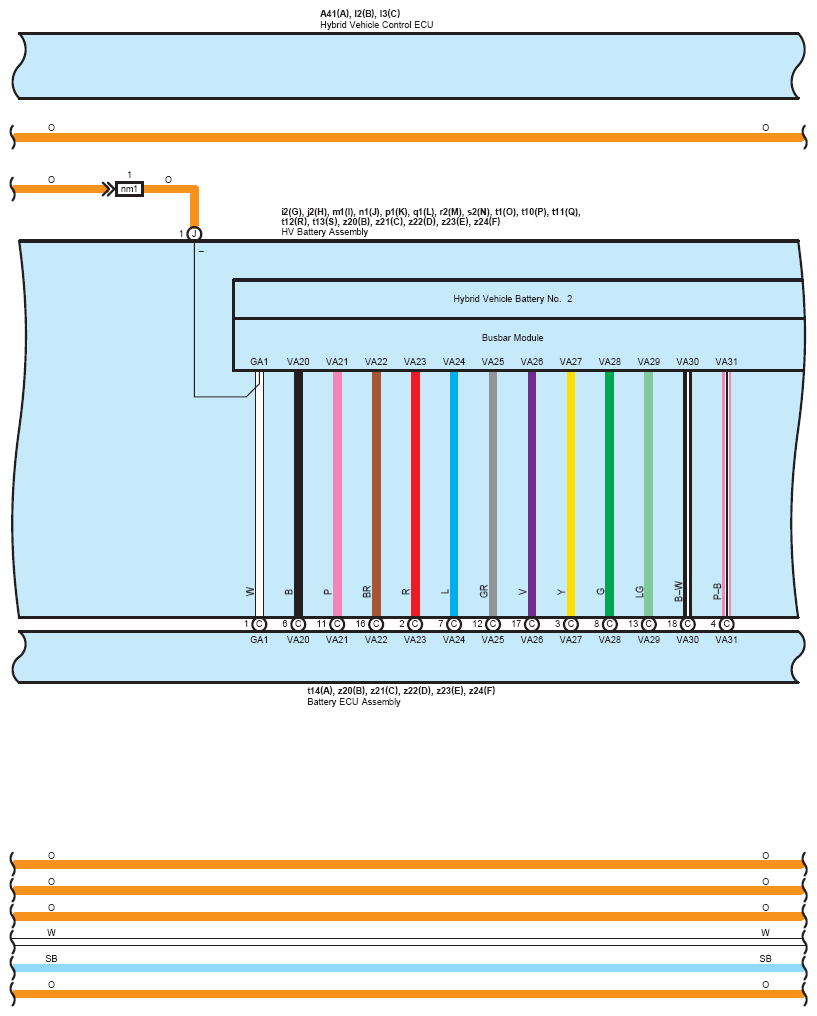

Fig 25: Air Conditioning, Remote Air Conditioning System (25 Of 40)

G12210233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

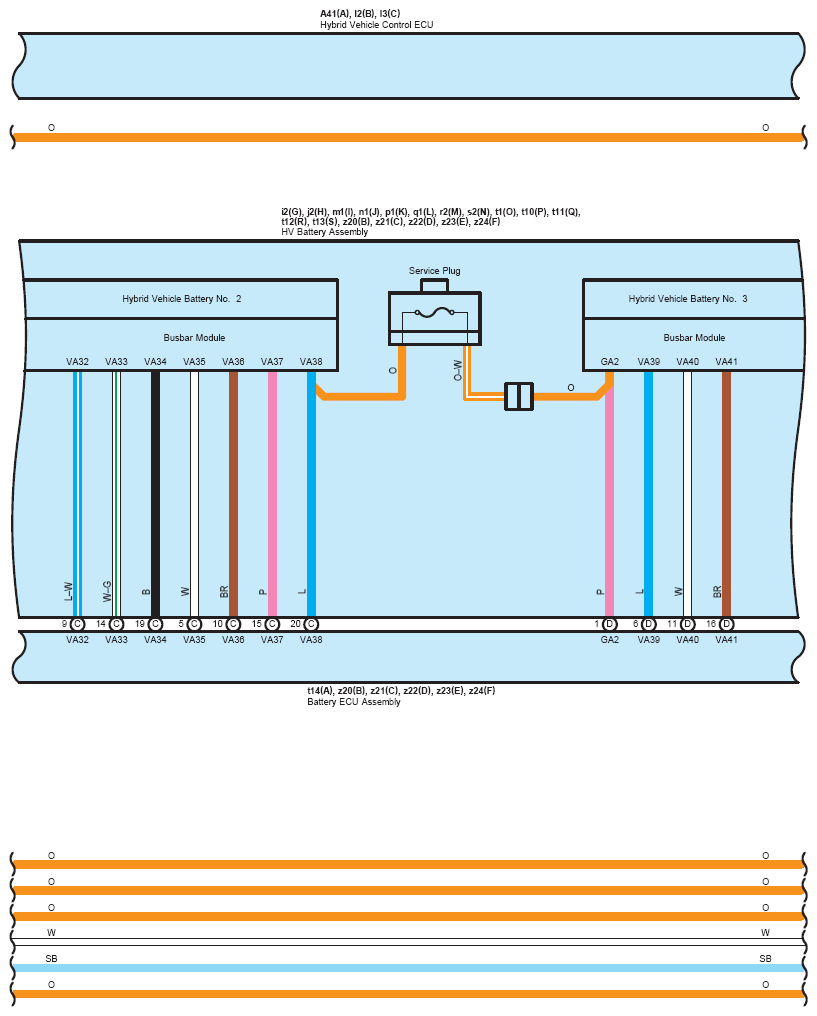

Fig 26: Air Conditioning, Remote Air Conditioning System (26 Of 40)

G12210234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

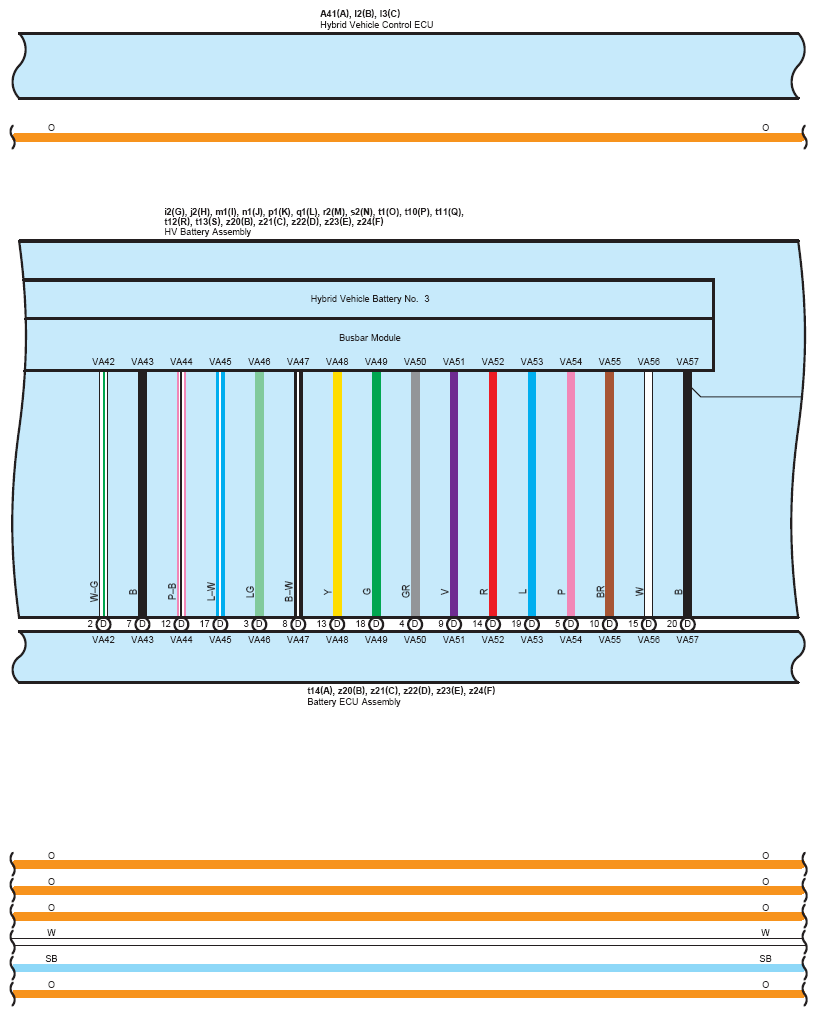

Fig 27: Air Conditioning, Remote Air Conditioning System (27 Of 40)

G12210235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

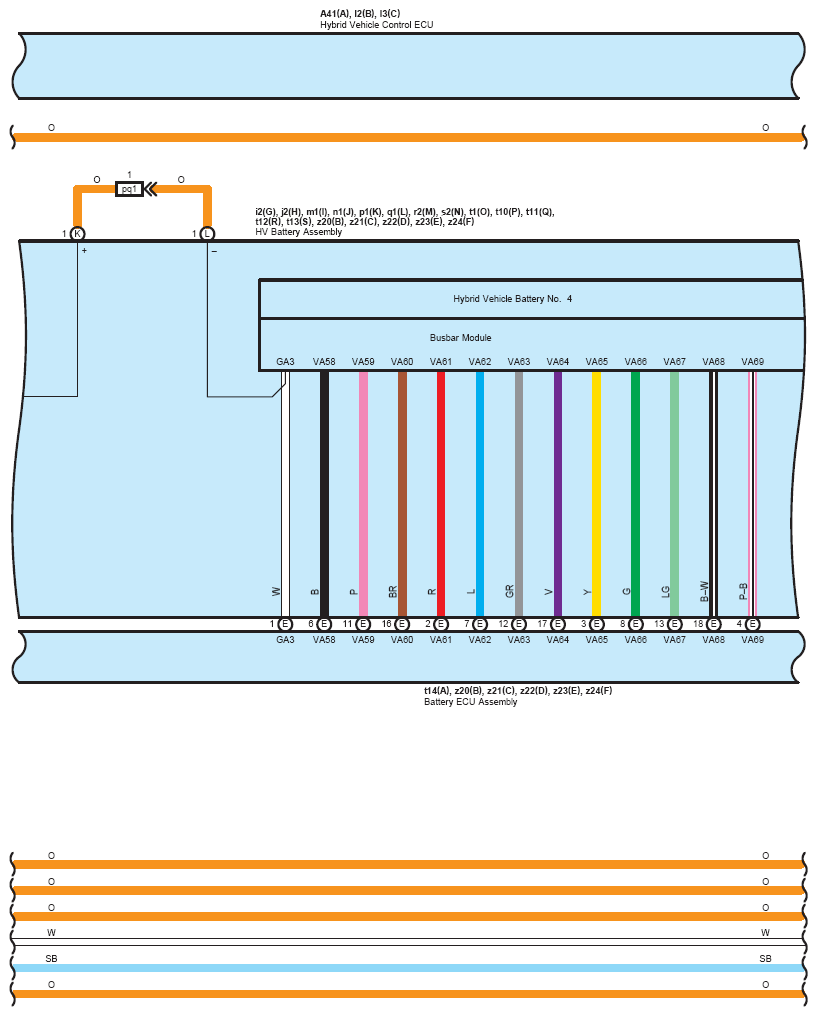

Fig 28: Air Conditioning, Remote Air Conditioning System (28 Of 40)

G12210236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

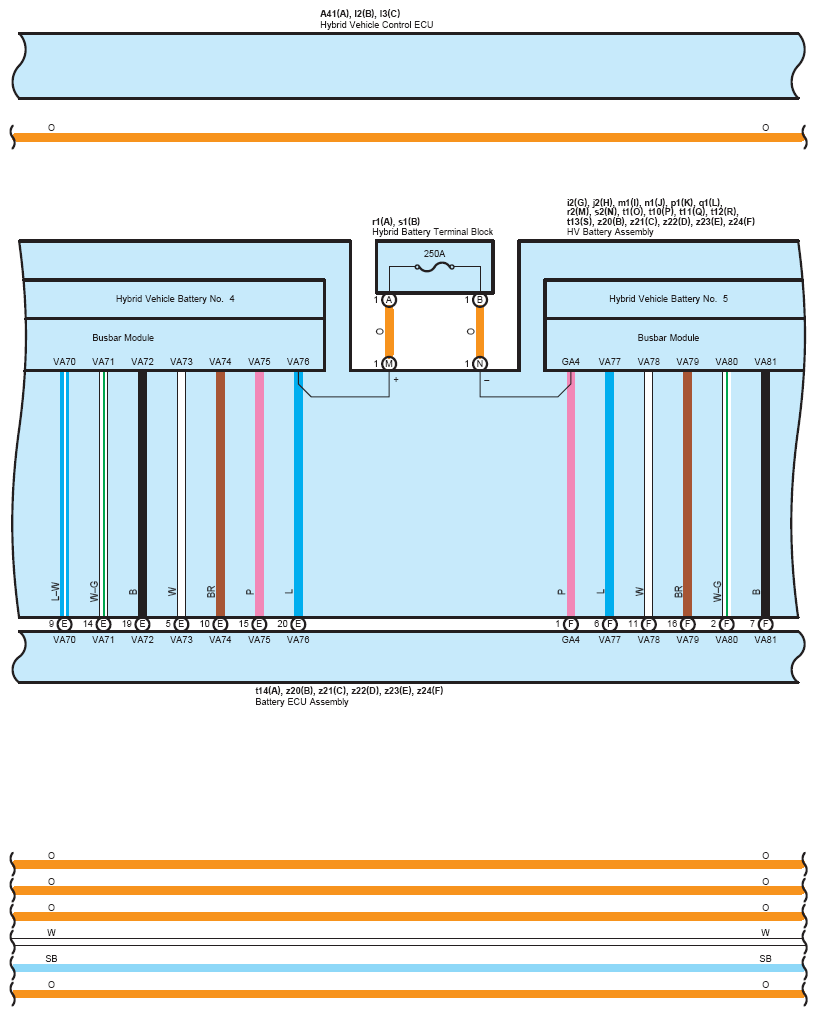

Fig 29: Air Conditioning, Remote Air Conditioning System (29 Of 40)

G12210237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

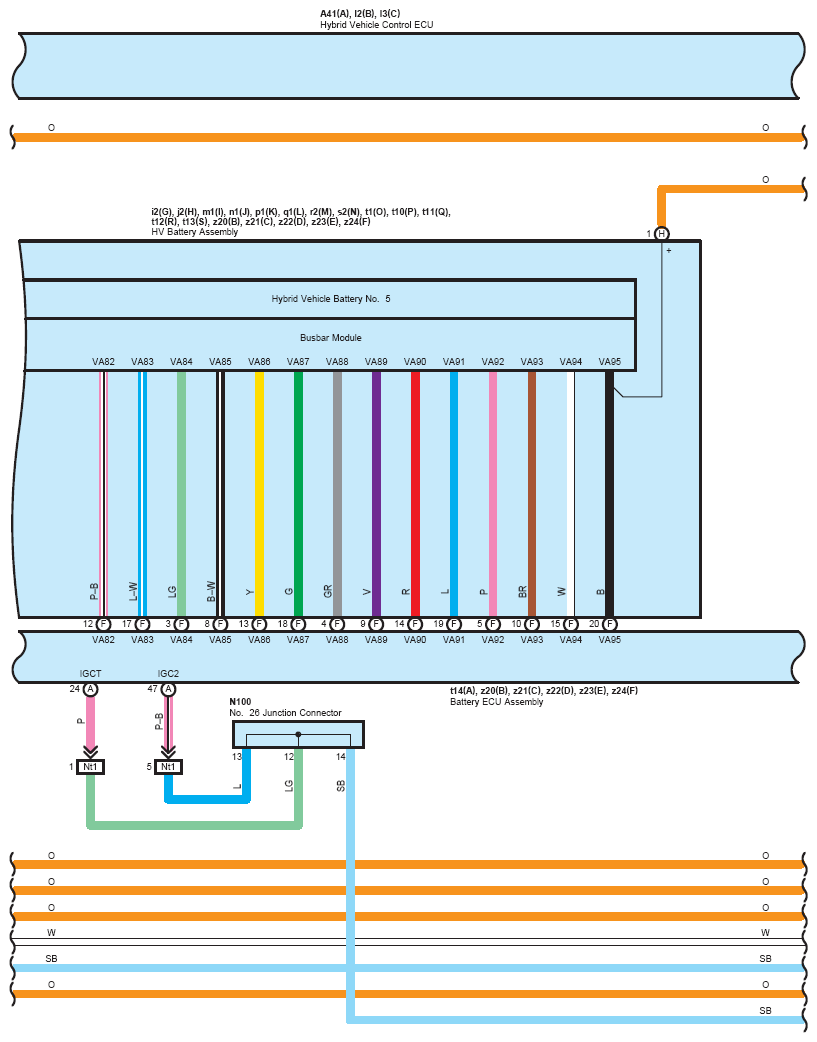

Fig 30: Air Conditioning, Remote Air Conditioning System (30 Of 40)

G12210238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

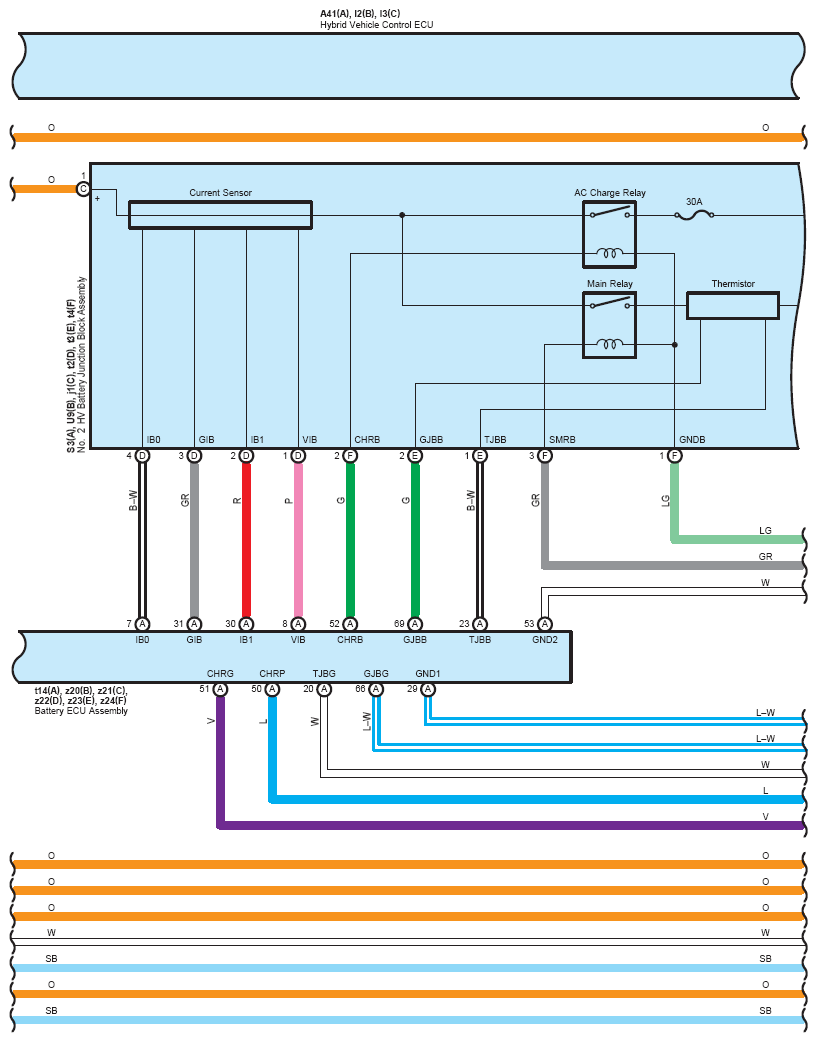

Fig 31: Air Conditioning, Remote Air Conditioning System (31 Of 40)

G12210239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

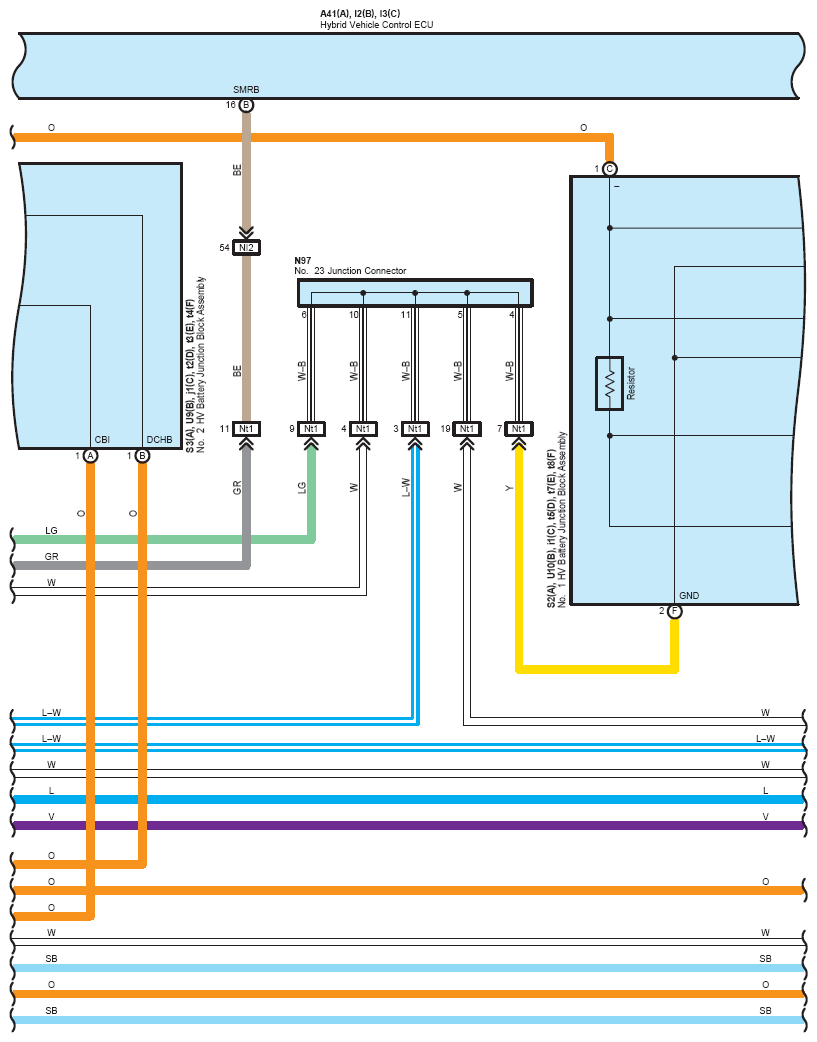

Fig 32: Air Conditioning, Remote Air Conditioning System (32 Of 40)

G12210240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

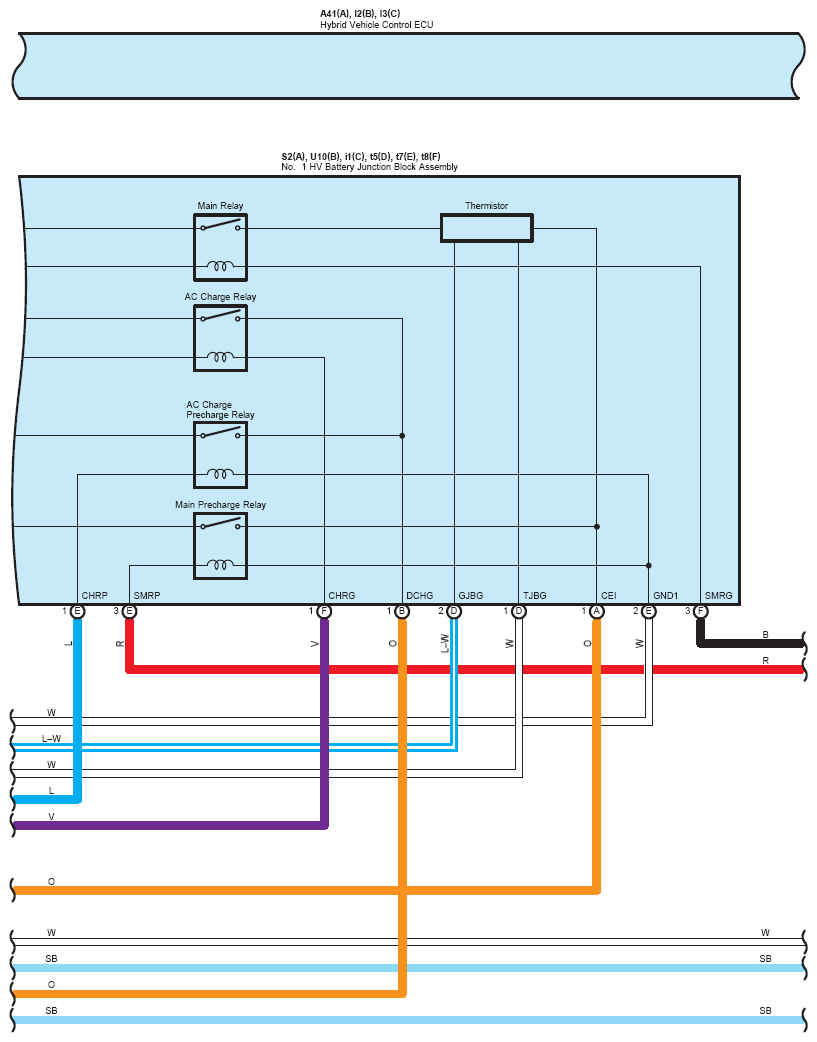

Fig 33: Air Conditioning, Remote Air Conditioning System (33 Of 40)

G12210241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

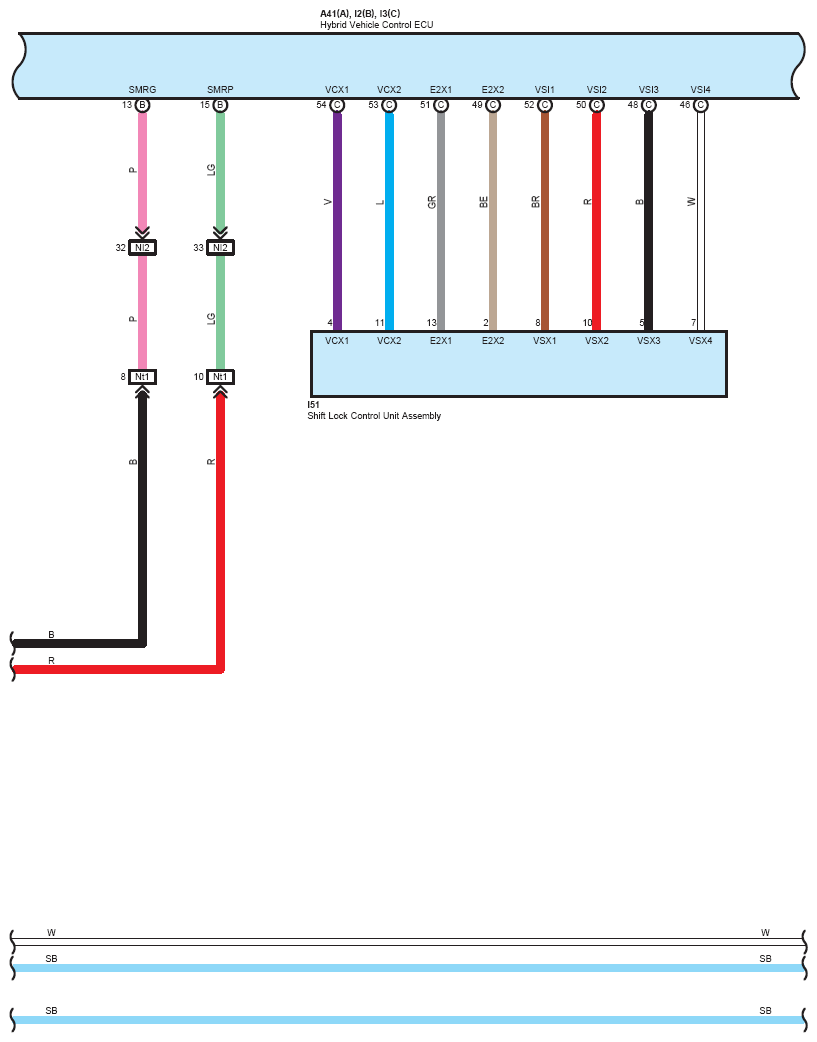

Fig 34: Air Conditioning, Remote Air Conditioning System (34 Of 40)

G12210242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

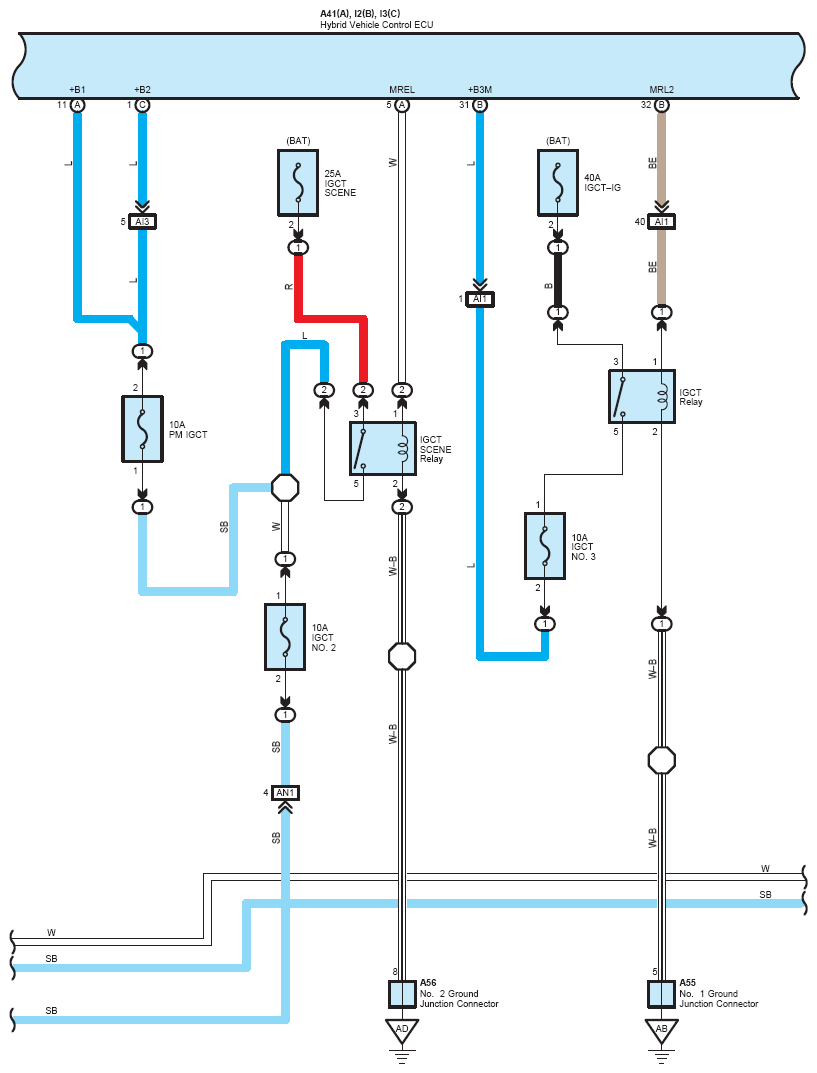

Fig 35: Air Conditioning, Remote Air Conditioning System (35 Of 40)

G12210243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

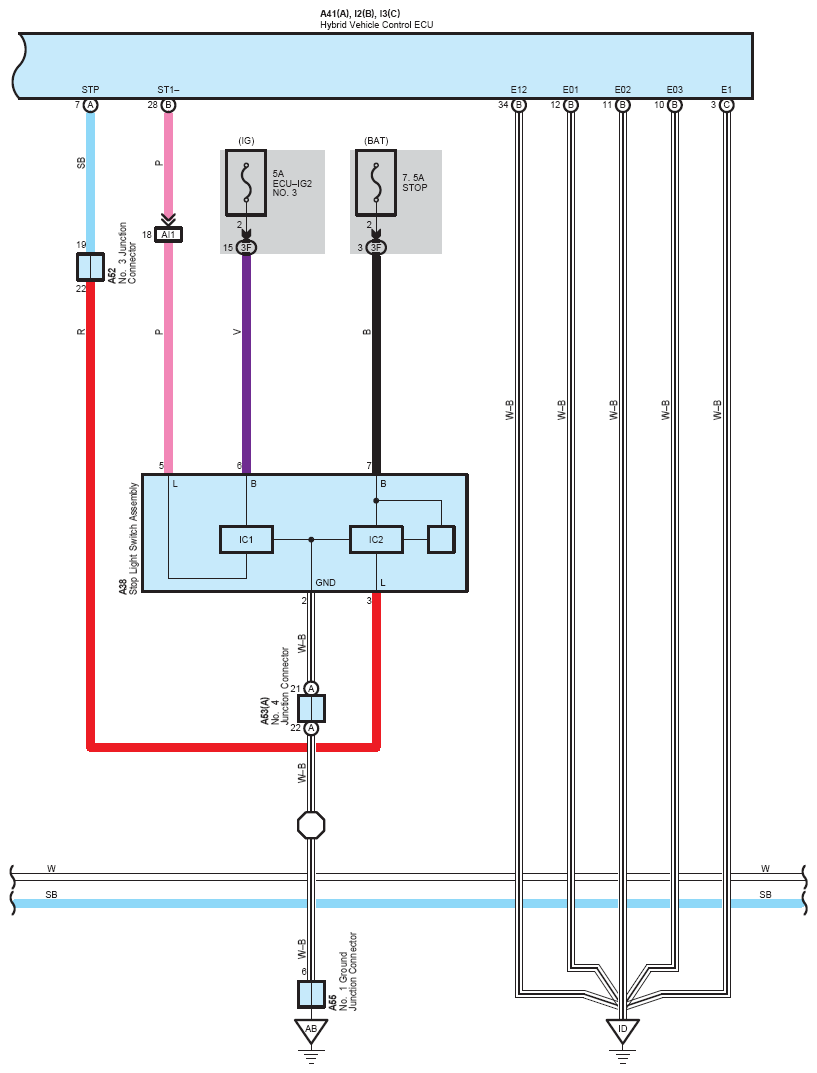

Fig 36: Air Conditioning, Remote Air Conditioning System (36 Of 40)

G12210244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 37: Air Conditioning, Remote Air Conditioning System (37 Of 40)

G12210245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

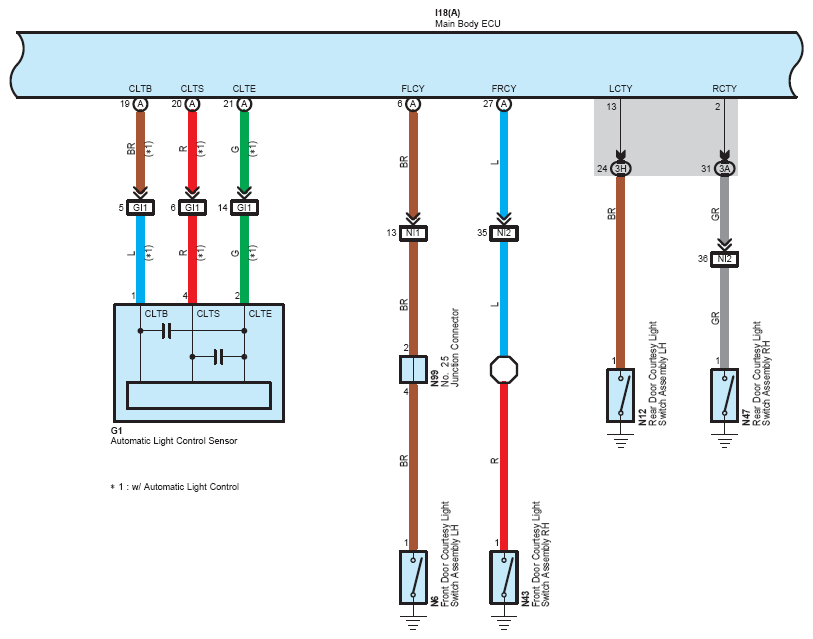

Fig 38: Air Conditioning, Remote Air Conditioning System (38 Of 40)

G12210246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

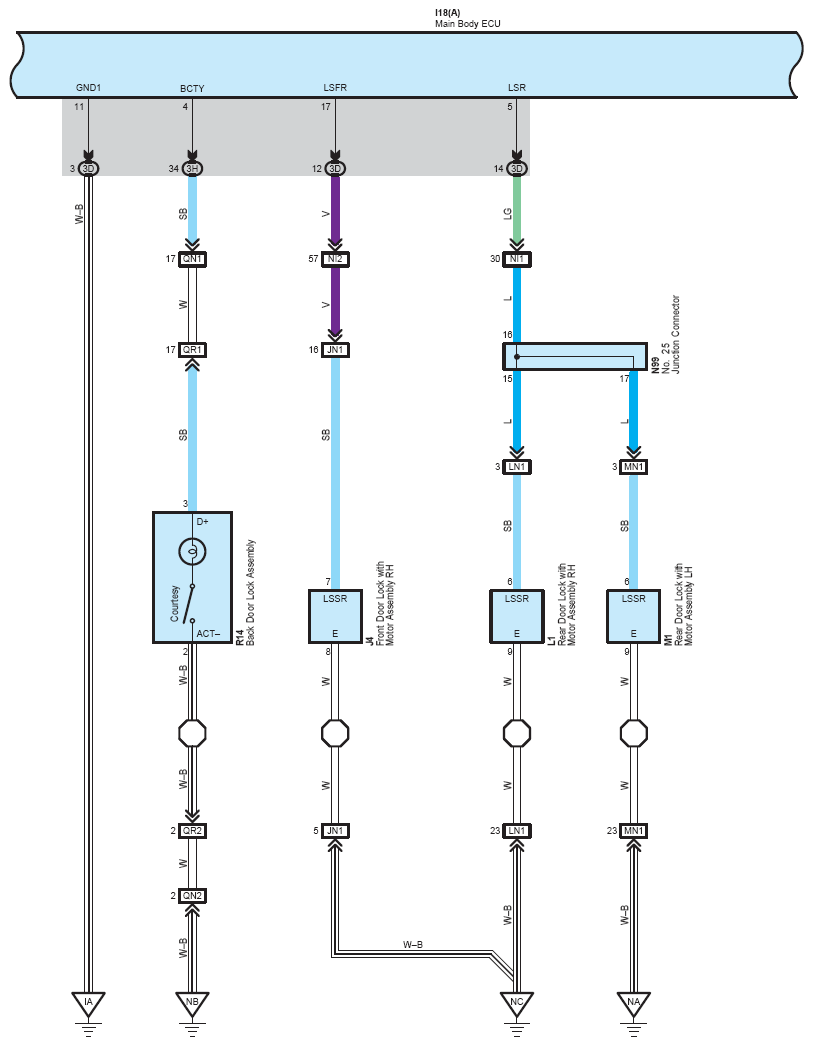

Fig 39: Air Conditioning, Remote Air Conditioning System (39 Of 40)

G12210247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

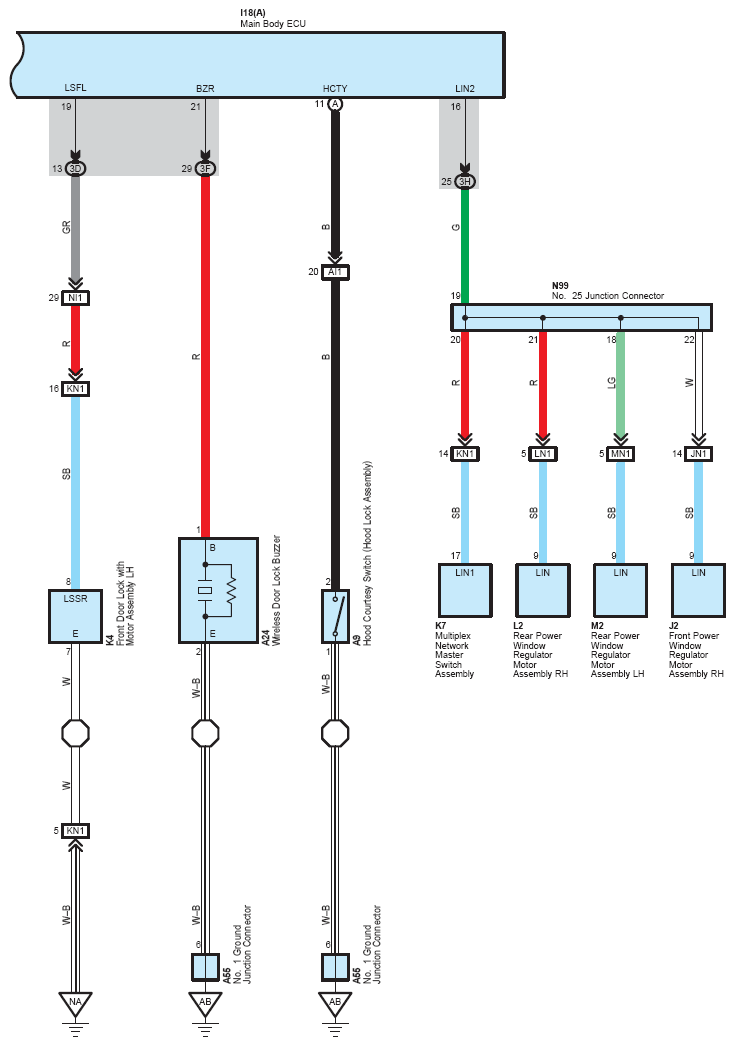

Fig 40: Air Conditioning, Remote Air Conditioning System (40 Of 40)

G12210248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
