System Diagrams

Fig 1: ABS, TRAC, VSC ABS, TRAC, VSC (1 Of 10)

G12210192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

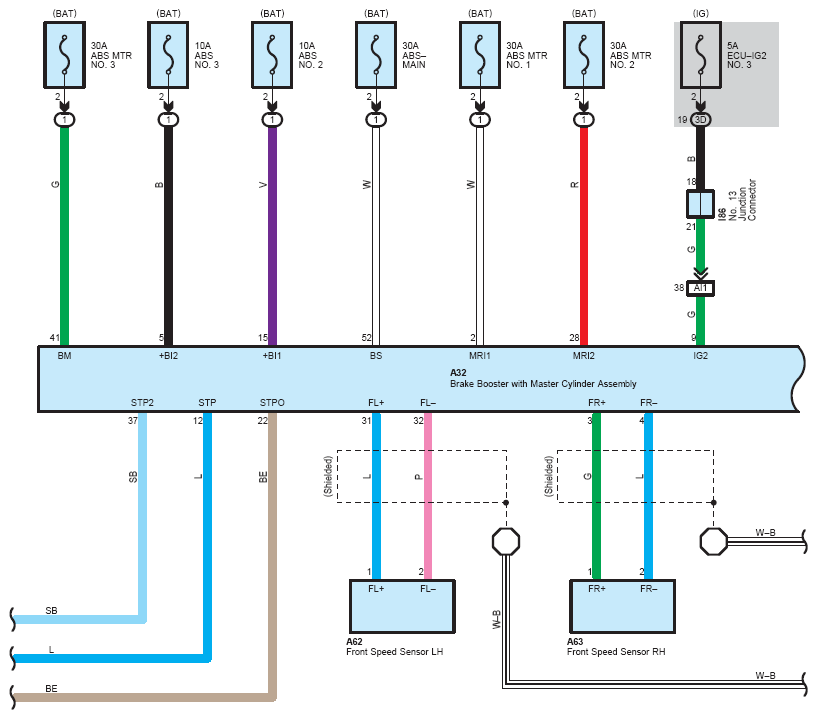

Fig 2: ABS, TRAC, VSC ABS, TRAC, VSC (2 Of 10)

G12210193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

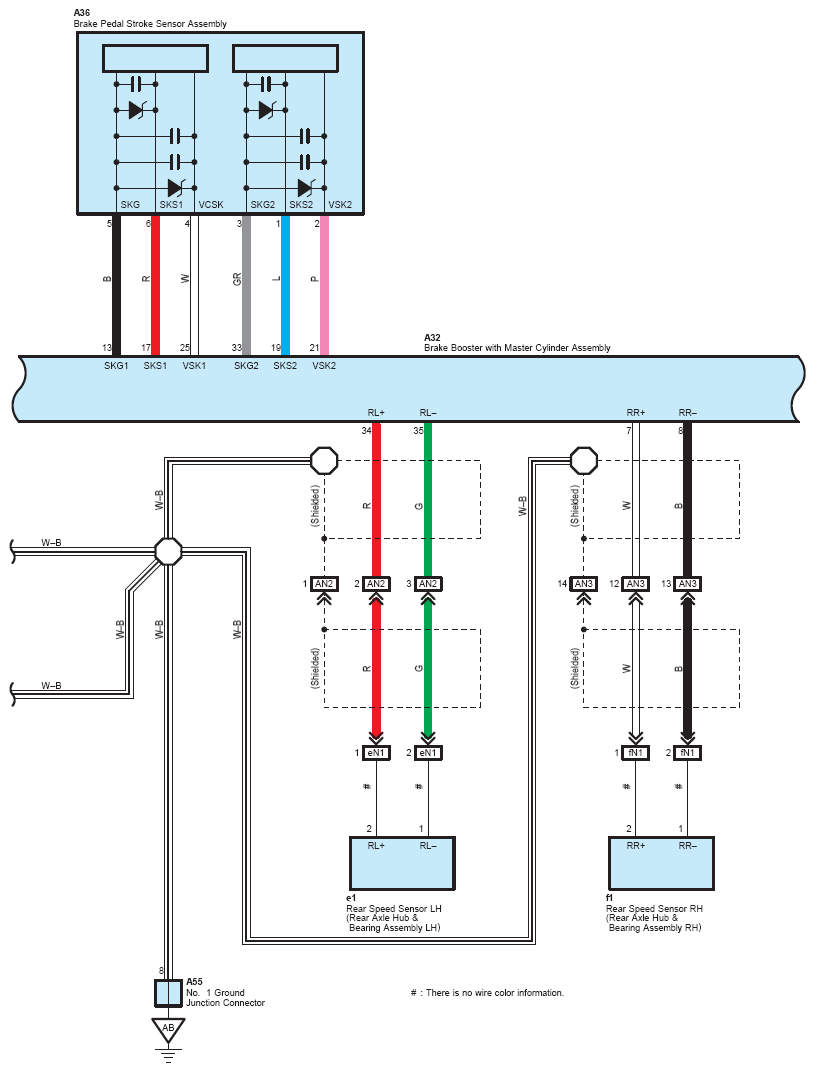

Fig 3: ABS, TRAC, VSC ABS, TRAC, VSC (3 Of 10)

G12210194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

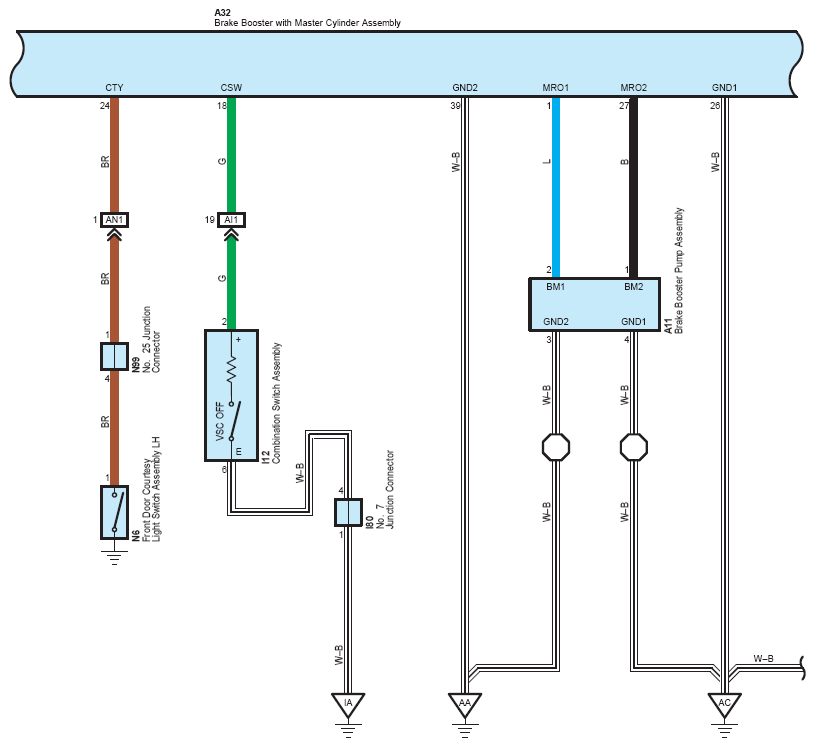

Fig 4: ABS, TRAC, VSC ABS, TRAC, VSC (4 Of 10)

G12210195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: ABS, TRAC, VSC ABS, TRAC, VSC (5 Of 10)

G12210196

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

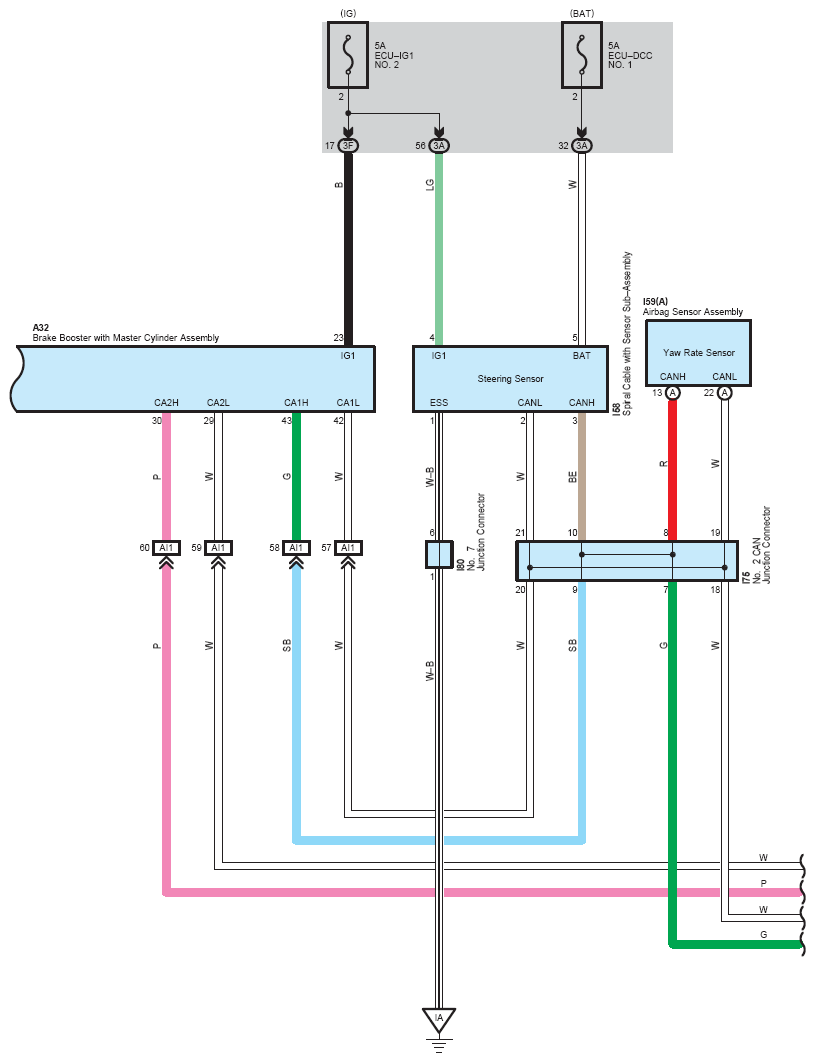

Fig 6: ABS, TRAC, VSC ABS, TRAC, VSC (6 Of 10)

G12210197

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

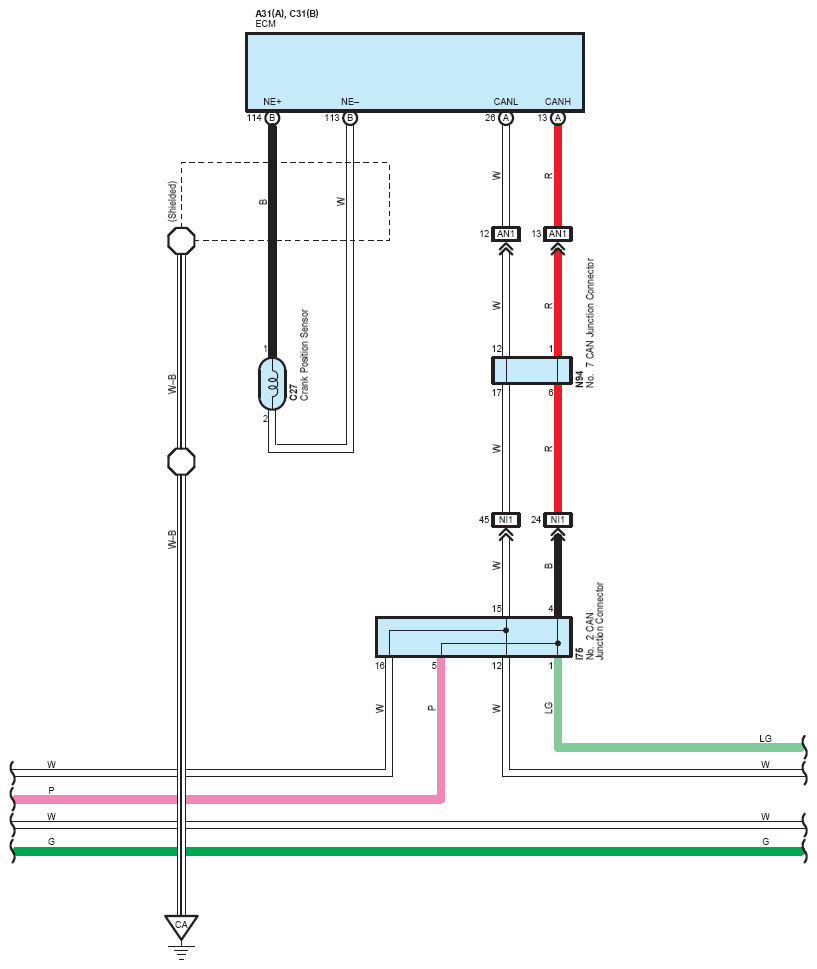

Fig 7: ABS, TRAC, VSC ABS, TRAC, VSC (7 Of 10)

G12210198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: ABS, TRAC, VSC ABS, TRAC, VSC (8 Of 10)

G12210199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: ABS, TRAC, VSC ABS, TRAC, VSC (9 Of 10)

G12210200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

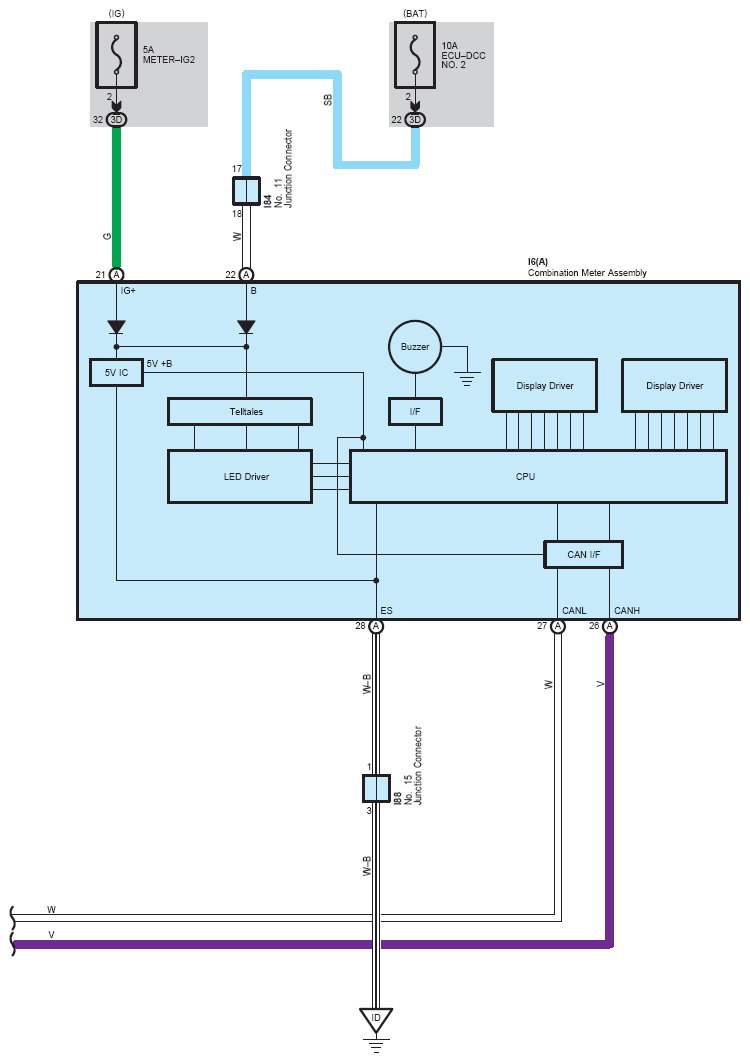

Fig 10: ABS, TRAC, VSC ABS, TRAC, VSC (10 Of 10)

G12210201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
