Door Lock System - Service Information
>>
Door Control Switch
>>
Components [09/2016 - ]
Components [09/2016 - ]

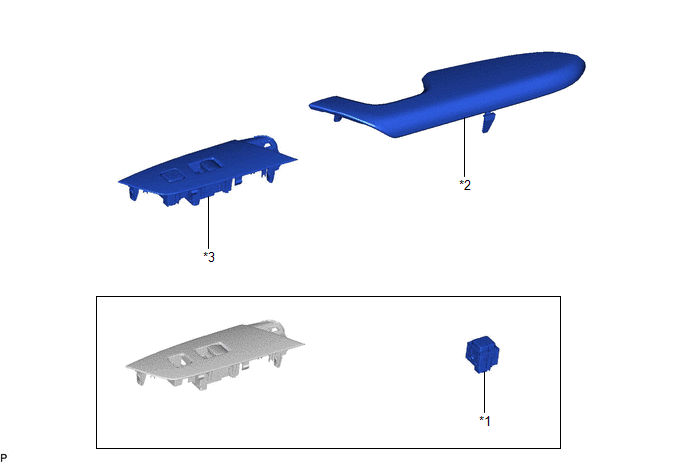

Fig 1: Door Control Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
DOOR CONTROL SWITCH ASSEMBLY
*2
FRONT ARMREST ASSEMBLY RH
*3
POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
-
-
