Components [09/2016 - 05/2019]

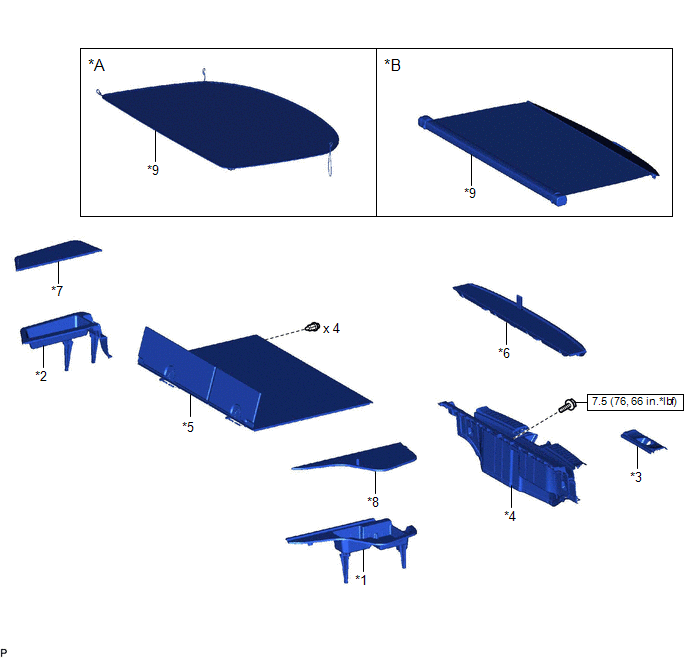

Fig 1: Door Control Receiver Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Garage Door Opener System	*B	w/ Garage Door Opener System
*1	DECK FLOOR BOX LH	*2	DECK FLOOR BOX RH
*3	DECK TRIM SERVICE HOLE COVER	*4	REAR DECK TRIM COVER
*5	REAR NO. 1 FLOOR BOARD	*6	REAR NO. 2 FLOOR BOARD
*7	REAR NO. 3 FLOOR BOARD	*8	REAR NO. 4 FLOOR BOARD
*9	TONNEAU COVER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

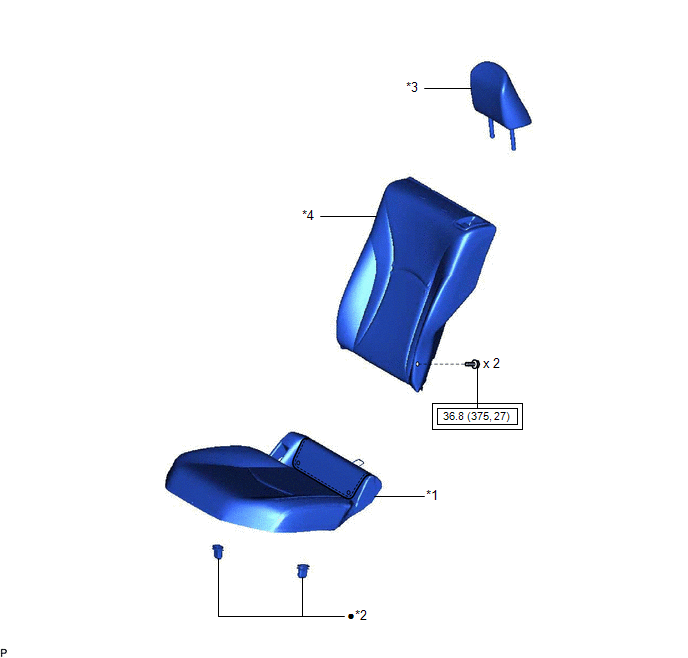

Fig 2: Door Control Receiver Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR SEAT CUSHION ASSEMBLY LH	*2	REAR SEAT CUSHION LOCK HOOK
*3	REAR SEAT HEADREST ASSEMBLY	*4	REAR SEATBACK ASSEMBLY LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	•	Non-reusable part

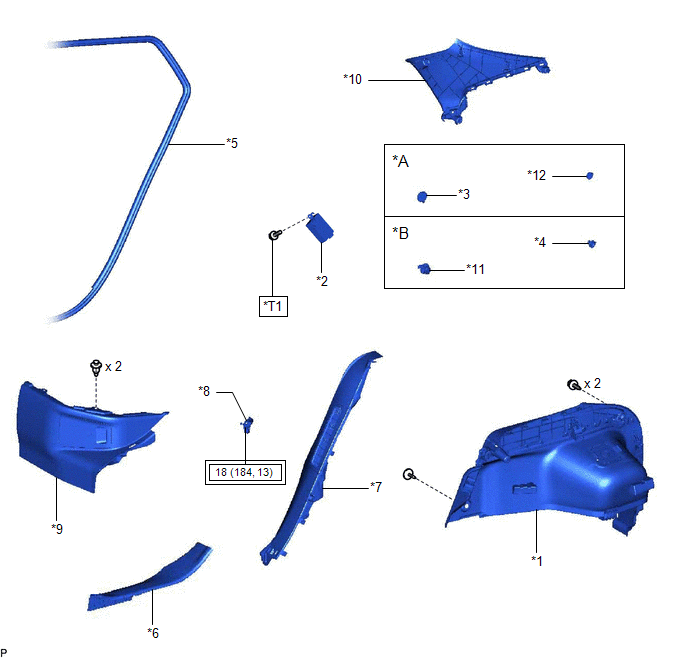

Fig 3: Door Control Receiver Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*A	w/ Garage Door Opener System	*B	w/o Garage Door Opener System
*1	DECK TRIM SIDE PANEL ASSEMBLY LH	*2	ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER
*3	NO. 1 TONNEAU COVER HOLDER CAP	*4	NO. 2 ROPE HOOK
*5	REAR DOOR OPENING TRIM WEATHERSTRIP LH	*6	REAR DOOR SCUFF PLATE LH
*7	REAR SEAT SIDE GARNISH LH	*8	REAR SEATBACK HINGE SUB-ASSEMBLY LH
*9	REAR UNDER SIDE COVER LH	*10	ROOF SIDE INNER GARNISH ASSEMBLY LH
*11	ROPE HOOK	*12	TONNEAU COVER HOOK A
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque
*T1	for Type A: 8.3 (85, 73 in.*lbf) for Type B: 10 (102, 7)	-	-
