Components [07/2020 - ]

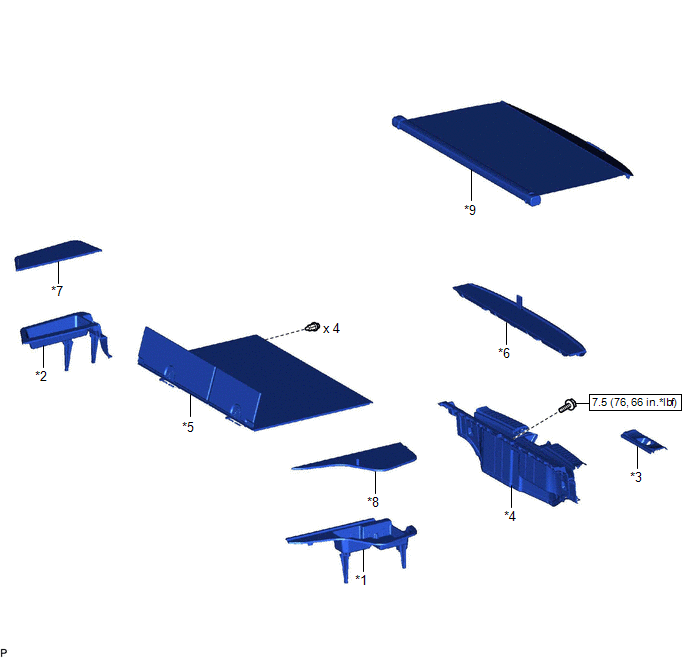

| Callout | Description | Callout | Description |
| *1 | DECK FLOOR BOX LH | *2 | DECK FLOOR BOX RH |
| *3 | DECK TRIM SERVICE HOLE COVER | *4 | REAR DECK TRIM COVER |
| *5 | REAR NO. 1 FLOOR BOARD | *6 | REAR NO. 2 FLOOR BOARD |
| *7 | REAR NO. 3 FLOOR BOARD | *8 | REAR NO. 4 FLOOR BOARD |
| *9 | TONNEAU COVER ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

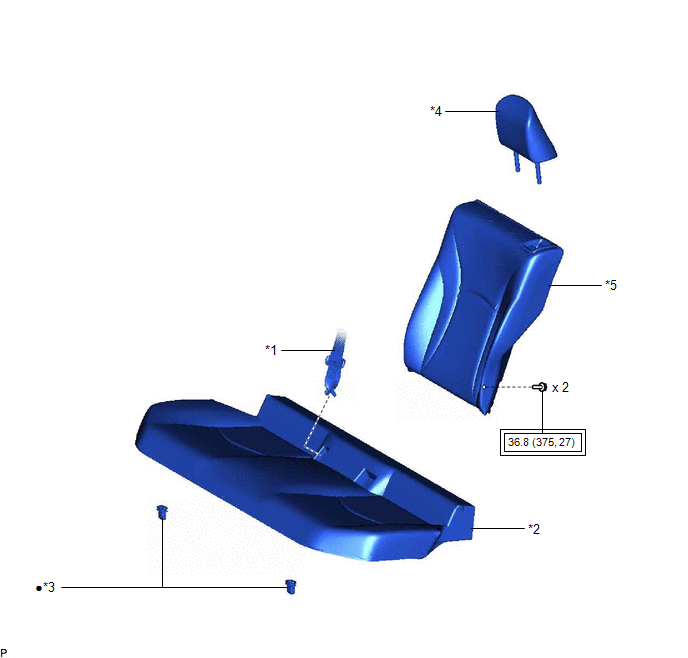

| Callout | Description | Callout | Description |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR SEAT CUSHION ASSEMBLY |
| *3 | REAR SEAT CUSHION LOCK HOOK | *4 | REAR SEAT HEADREST ASSEMBLY |
| *5 | REAR SEATBACK ASSEMBLY LH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

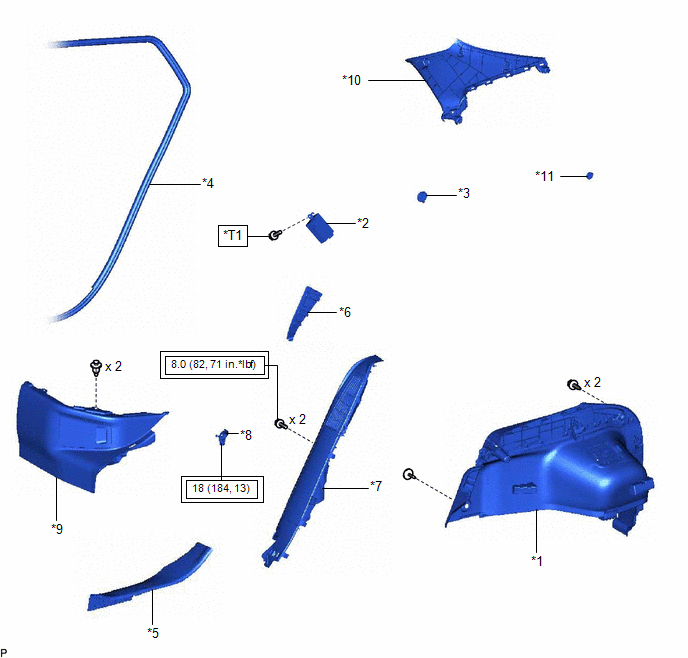

| Callout | Description | Callout | Description |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER |
| *3 | NO. 1 TONNEAU COVER HOLDER CAP | *4 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *5 | REAR DOOR SCUFF PLATE LH | *6 | REAR PILLAR COVER LH |
| *7 | REAR SEAT SIDE GARNISH LH | *8 | REAR SEATBACK HINGE SUB-ASSEMBLY LH |
| *9 | REAR UNDER SIDE COVER LH | *10 | ROOF SIDE INNER GARNISH ASSEMBLY LH |
| *11 | TONNEAU COVER HOOK A | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| *T1 | for Type A: 8.3 (85, 73 in.*lbf) for Type B: 10 (102, 7) |
- | - |
