System Diagrams

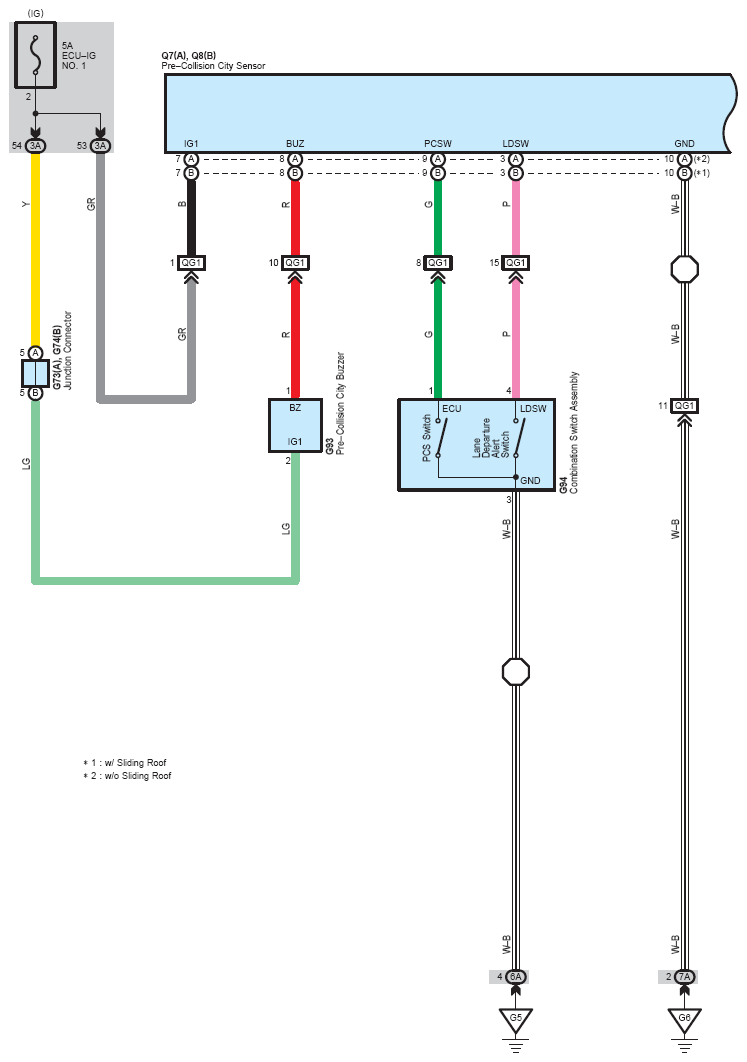

Fig 1: Lane Departure Alert, Pre-Collision System (1 Of 6)
G12211351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

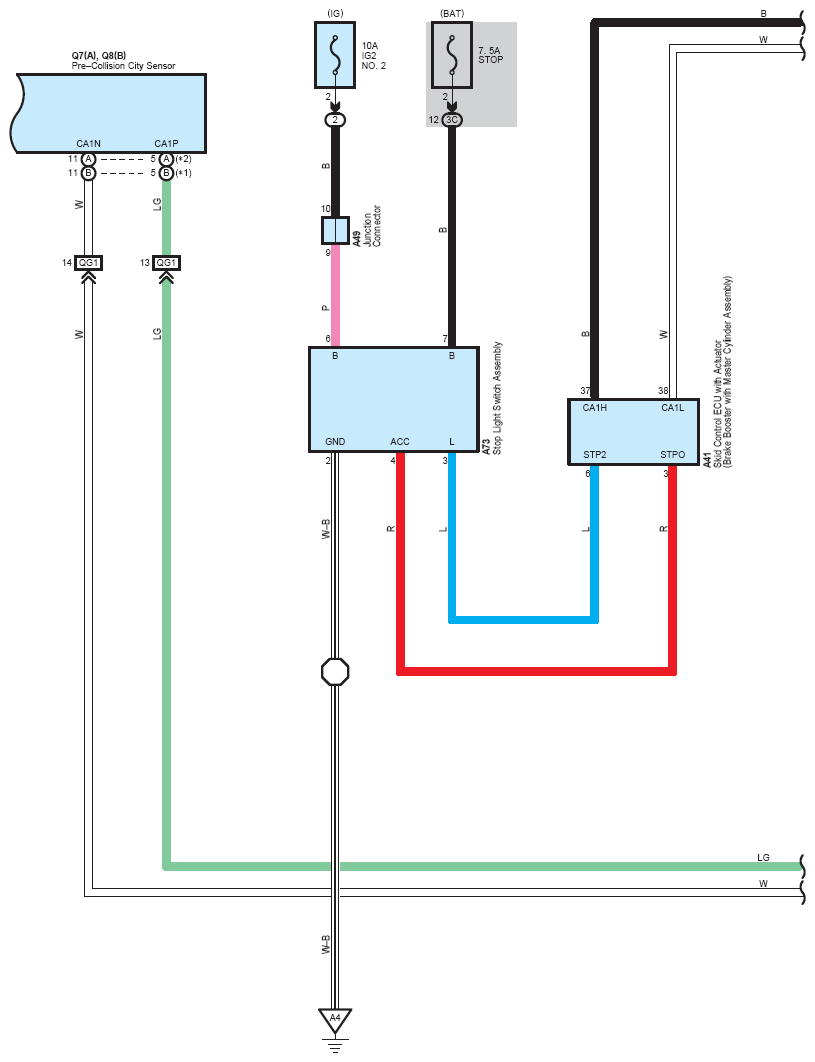

Fig 2: Lane Departure Alert, Pre-Collision System (2 Of 6)
G12211352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

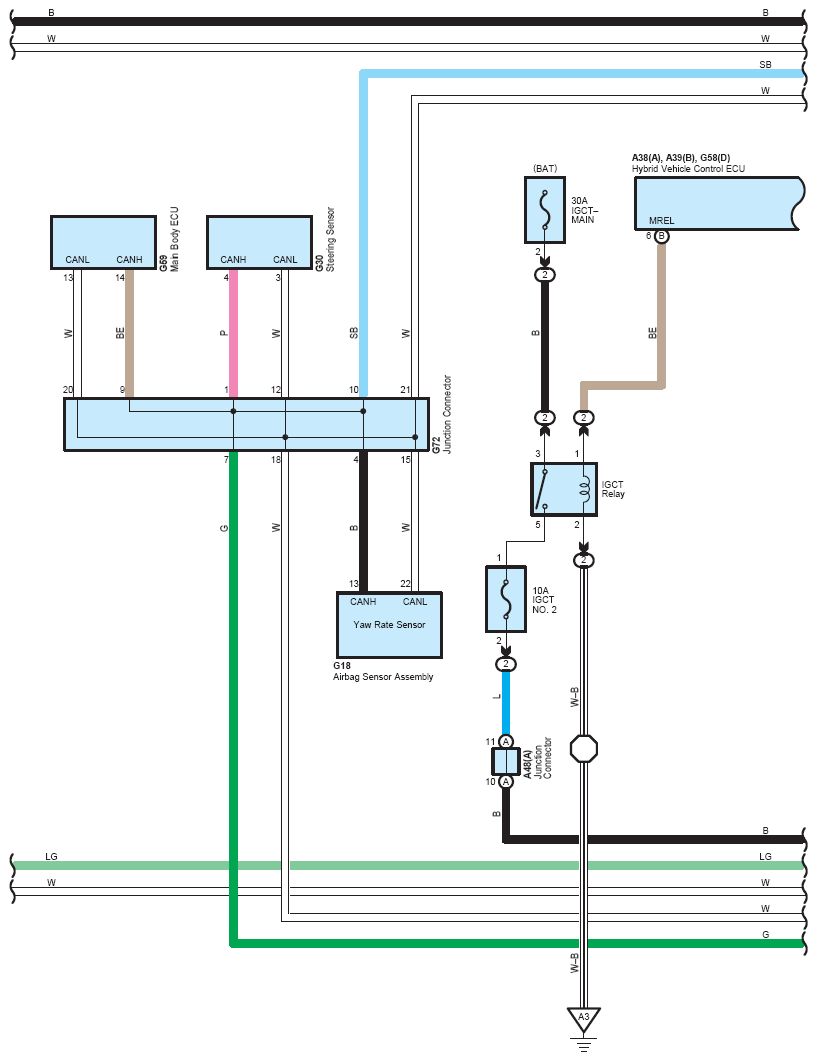

Fig 3: Lane Departure Alert, Pre-Collision System (3 Of 6)
G12211353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

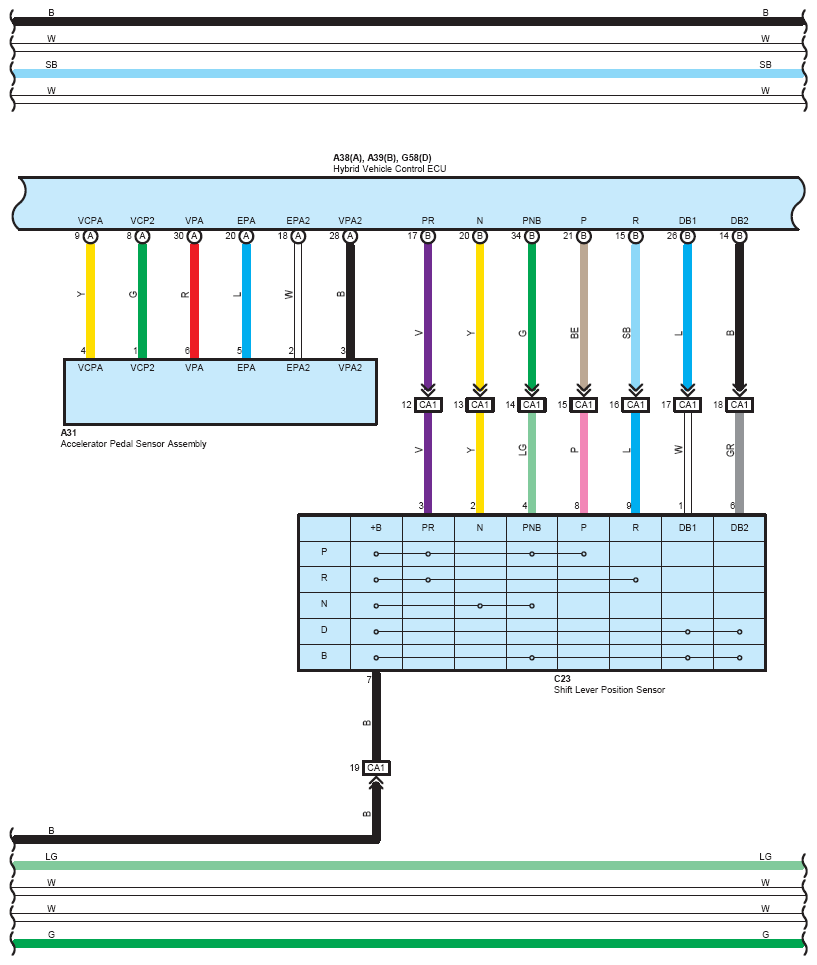

Fig 4: Lane Departure Alert, Pre-Collision System (4 Of 6)
G12211354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Lane Departure Alert, Pre-Collision System (5 Of 6)
G12211355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

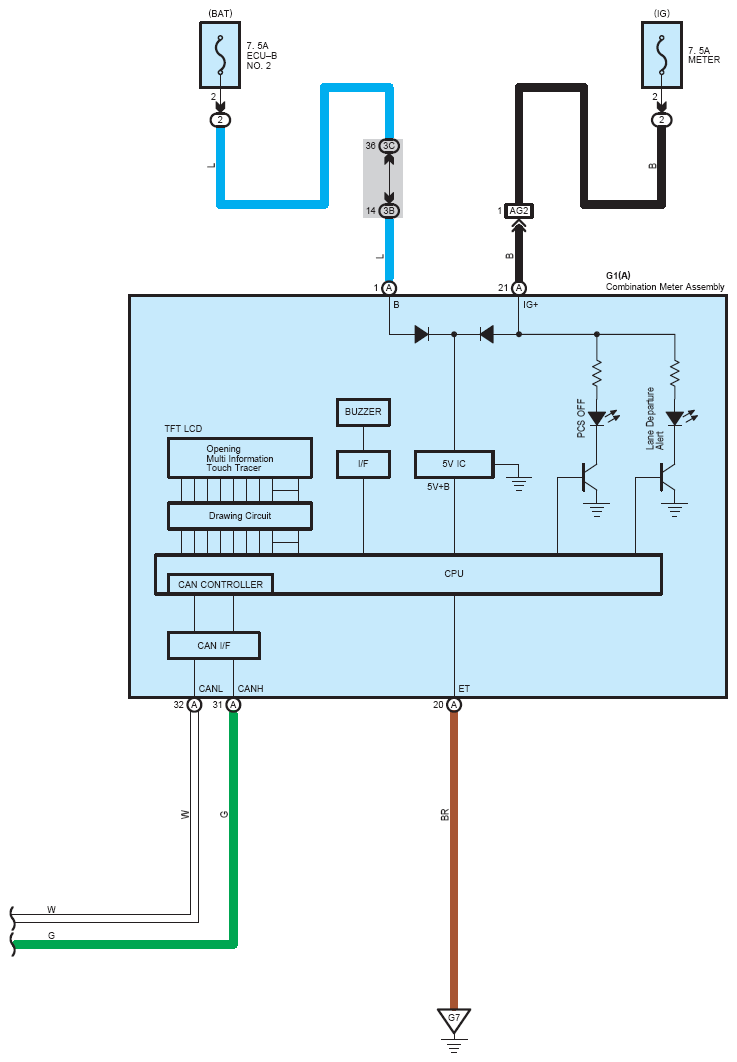

Fig 6: Lane Departure Alert, Pre-Collision System (6 Of 6)
G12211356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
