Home >> Toyota >> 2017 >> Prius C Two >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Key Reminder (W/O Smart Key System), Light Reminder >> System Diagrams

System Diagrams

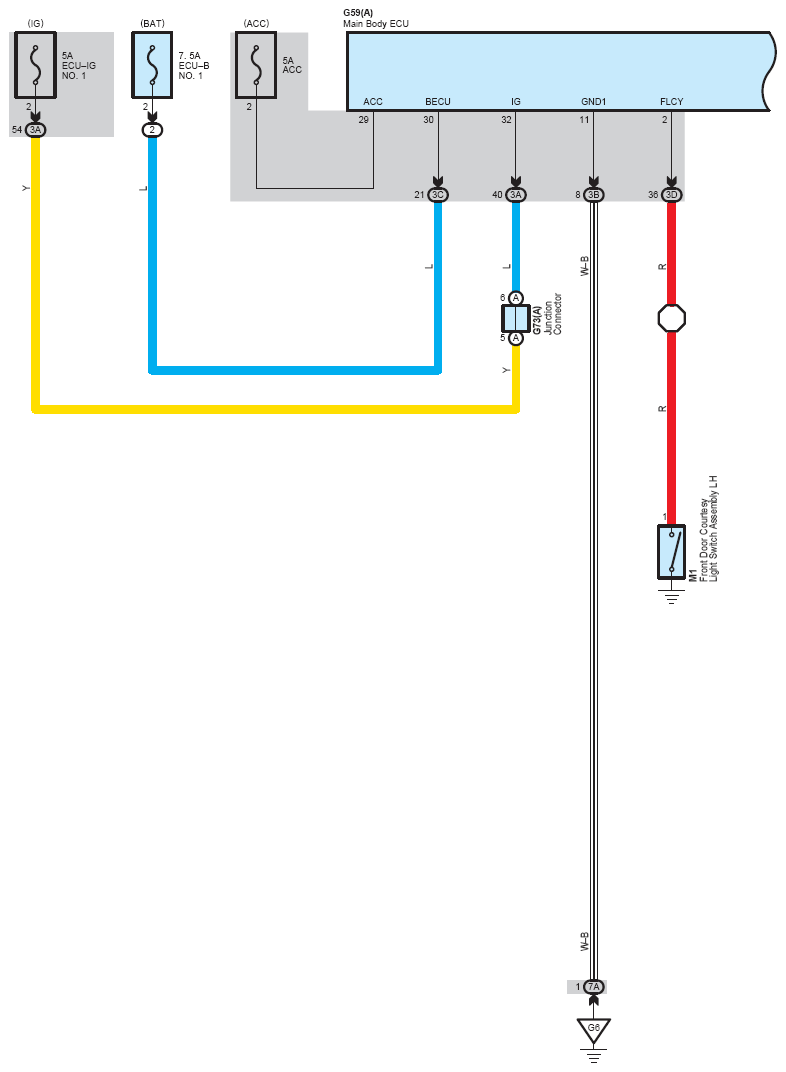

Fig 1: Key Reminder (W/O Smart Key System), Light Reminder (1 Of 3)
G12211334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

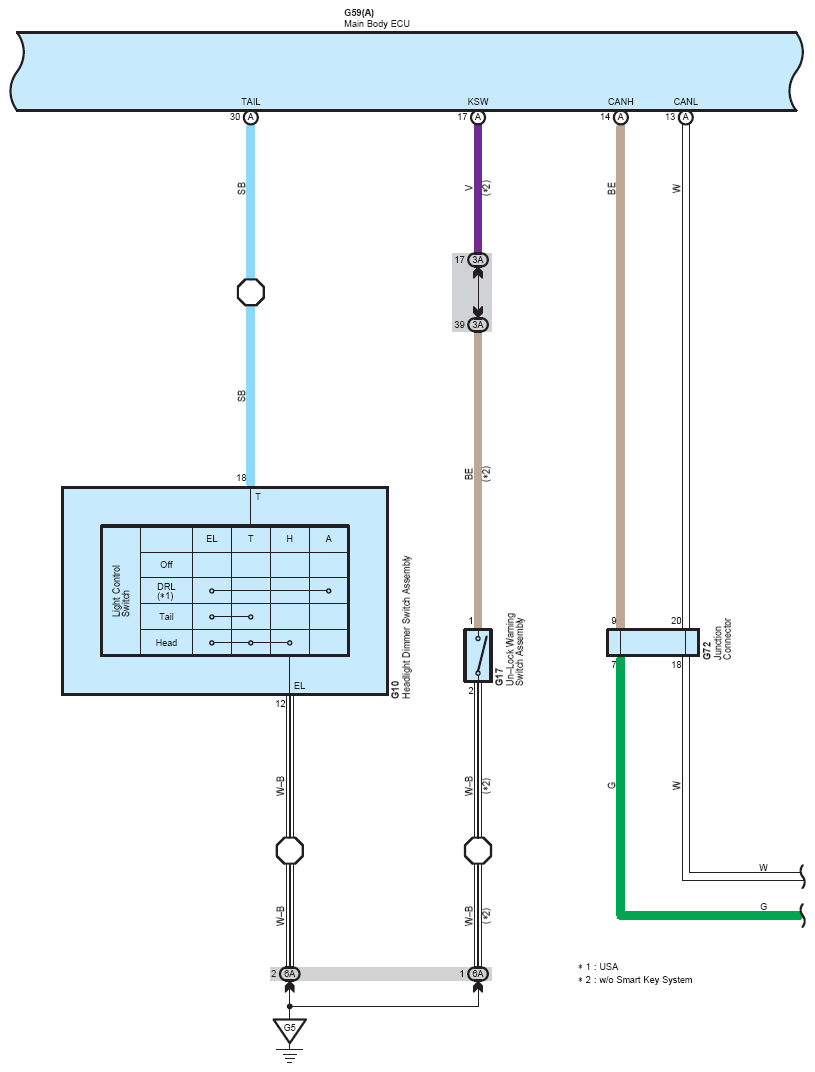

Fig 2: Key Reminder (W/O Smart Key System), Light Reminder (2 Of 3)
G12211335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

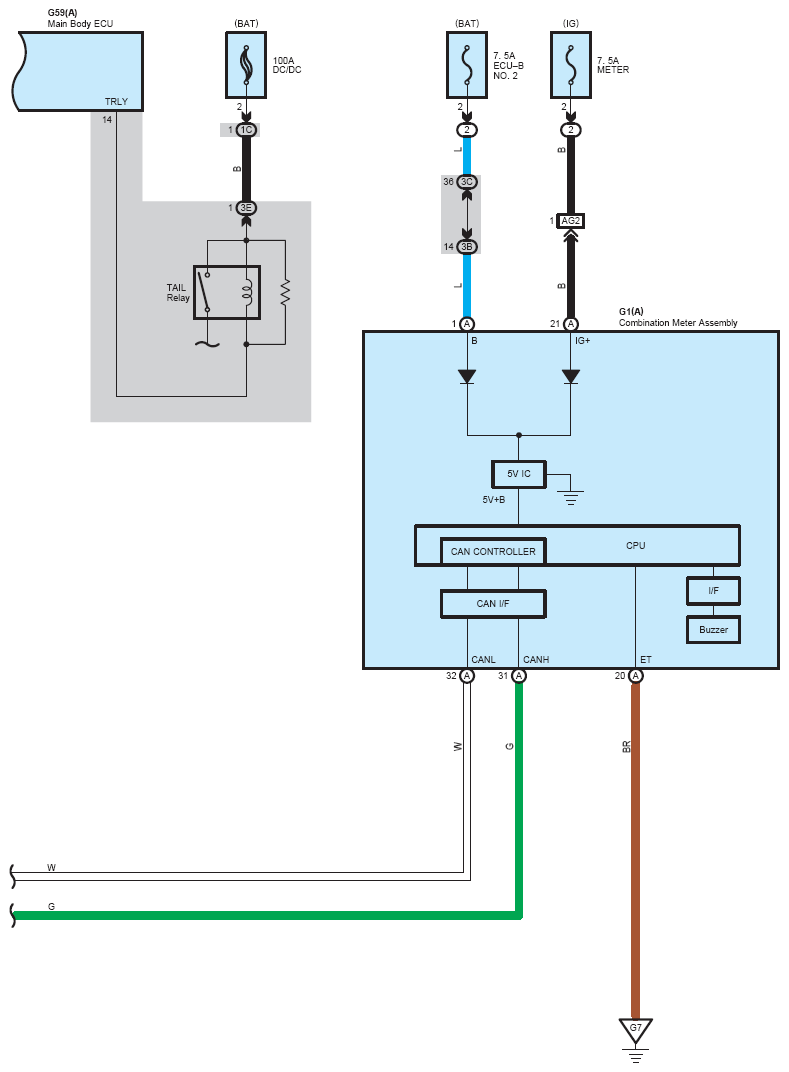

Fig 3: Key Reminder (W/O Smart Key System), Light Reminder (3 Of 3)
G12211336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
