Home >> Toyota >> 2017 >> Prius C Two >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Front Fog Light >> System Diagrams

System Diagrams

Fig 1: Front Fog Light (1 Of 4)
G12211265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

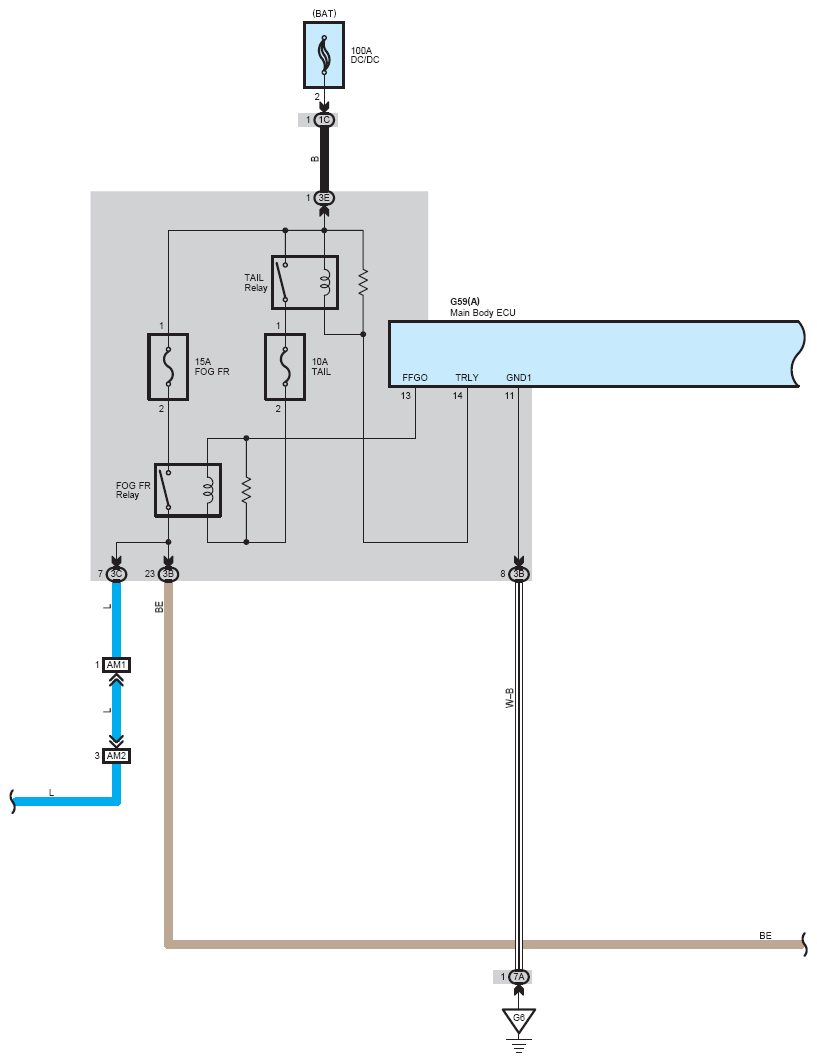

Fig 2: Front Fog Light (2 Of 4)
G12211266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

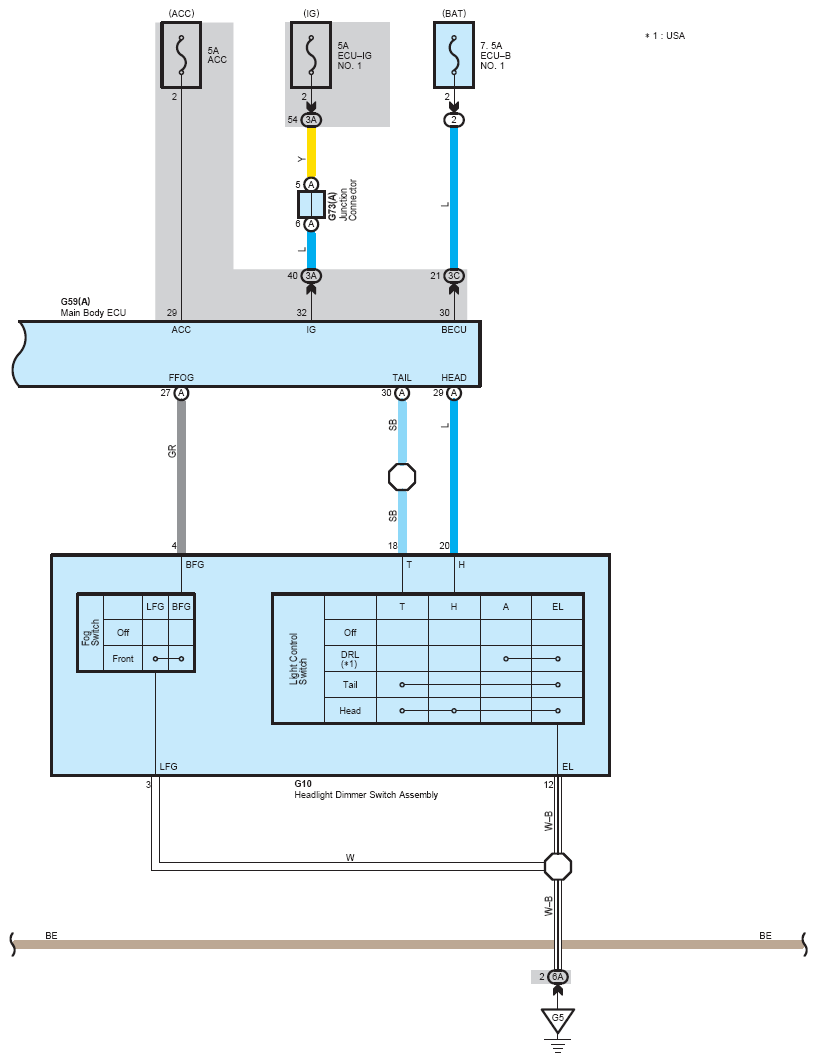

Fig 3: Front Fog Light (3 Of 4)
G12211267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Front Fog Light (4 Of 4)
G12211268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
