System Diagrams

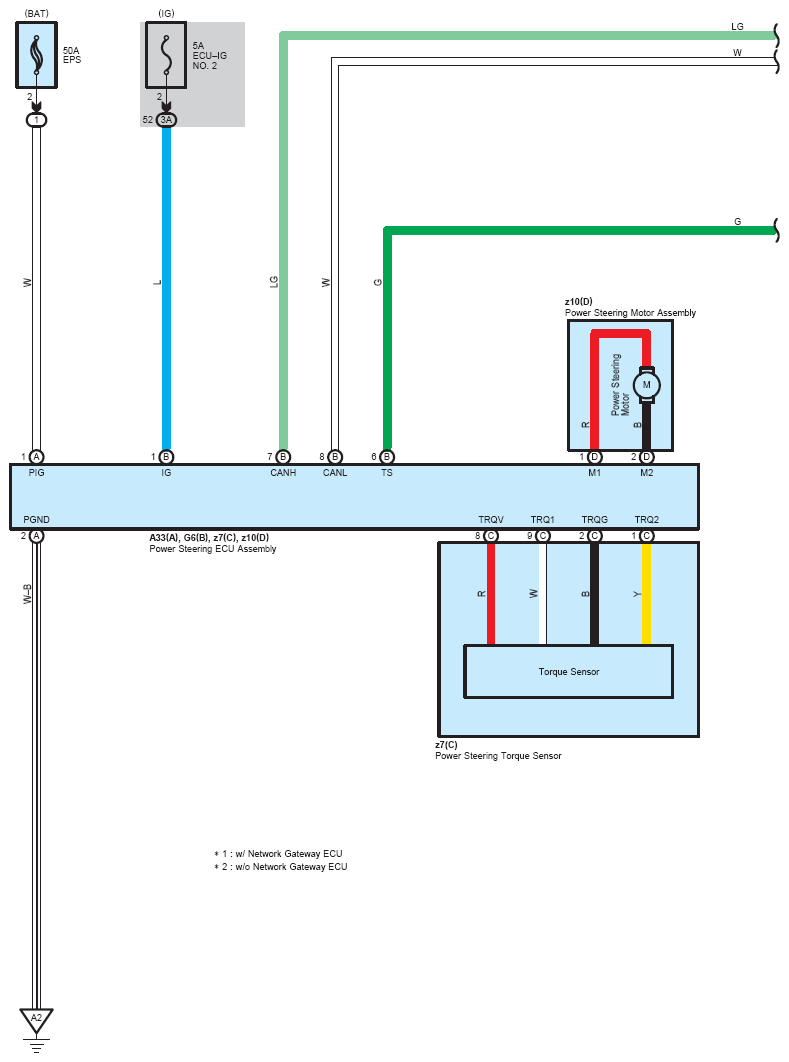

Fig 1: EPS (1 Of 4)
G12211258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

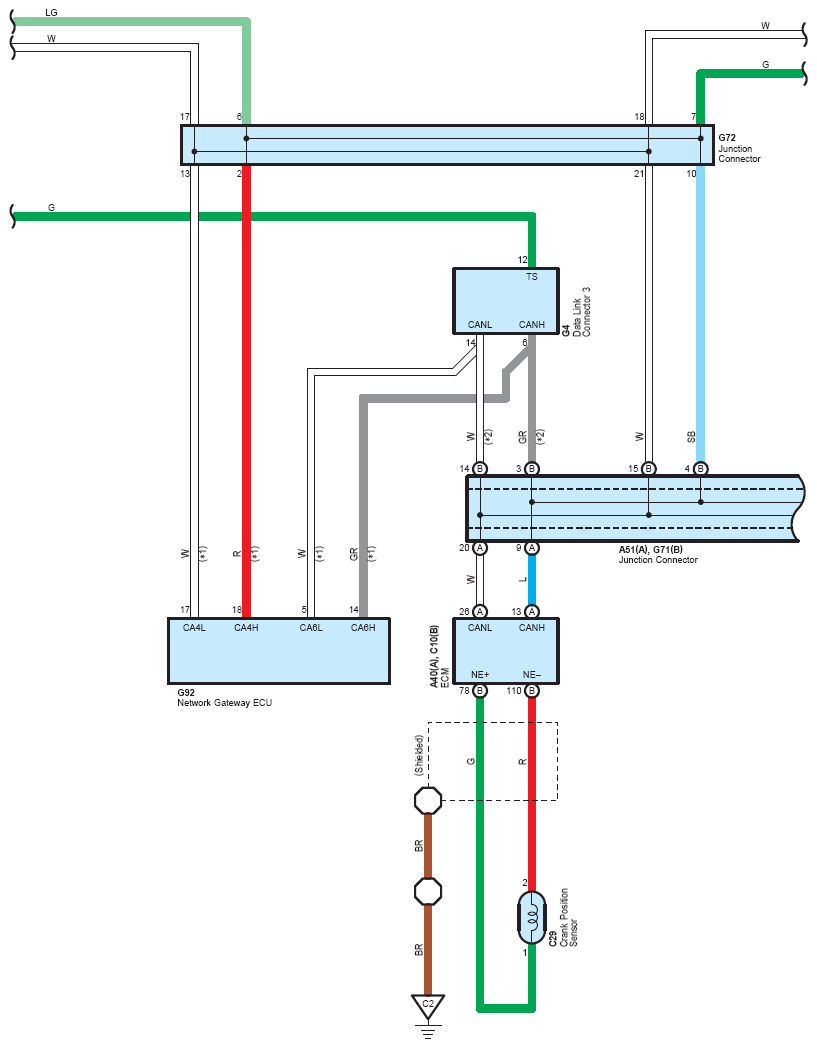

Fig 2: EPS (2 Of 4)
G12211259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

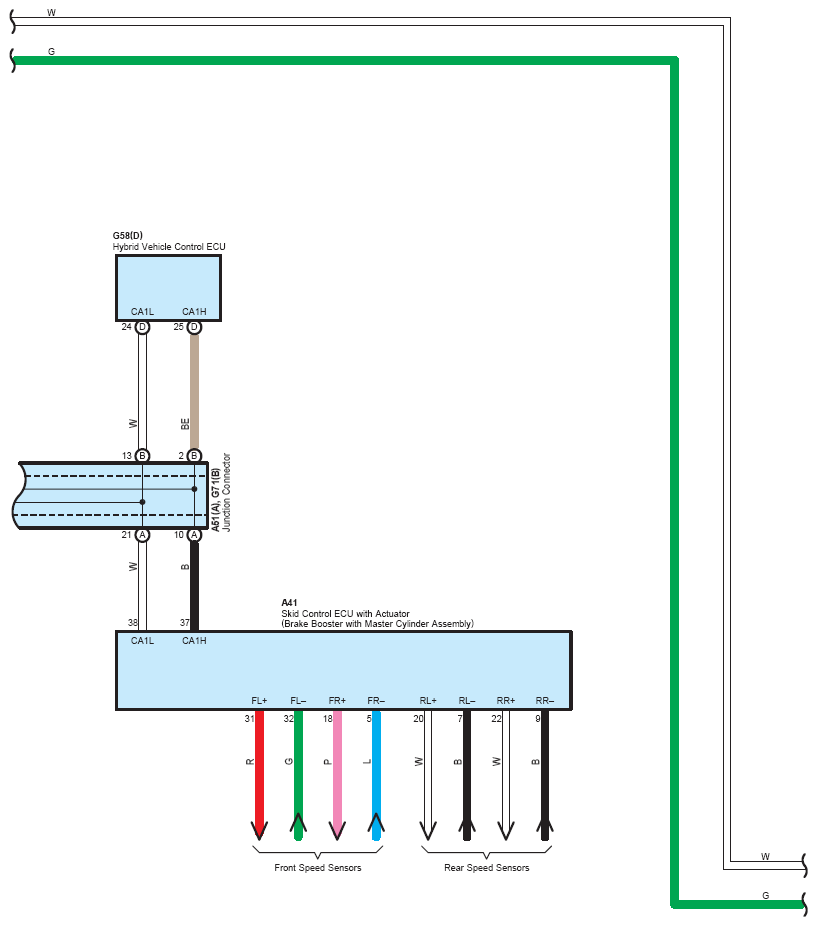

Fig 3: EPS (3 Of 4)
G12211260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

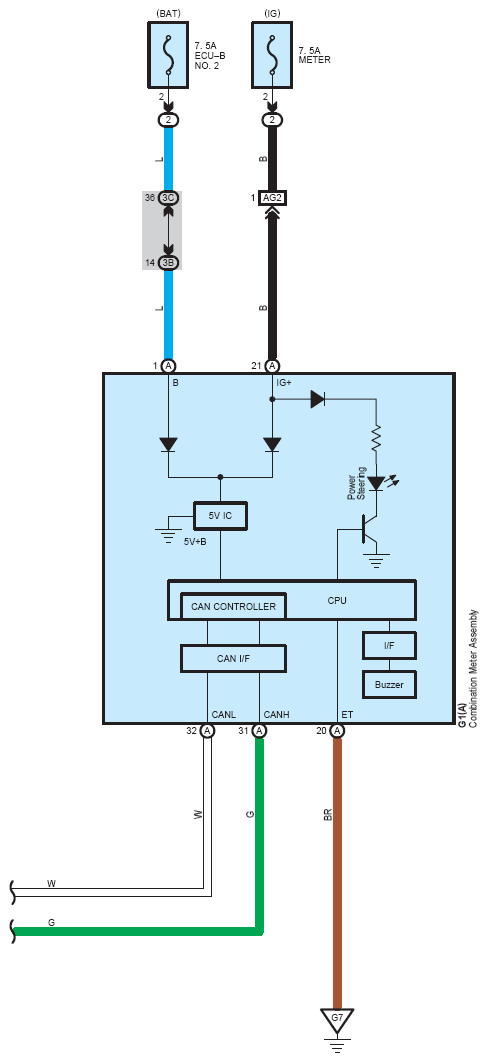

Fig 4: EPS (4 Of 4)
G12211261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
