Removal [11/2015 - ]: Procedure

PRECAUTION
NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work (Refer to PRECAUTION [11/2015 - 06/2017] , or refer to PRECAUTION [06/2017 - ] ).
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
(Refer to REMOVAL [11/2015 - 06/2017] , or refer to REMOVAL [06/2017 - ] )
REMOVE FRONT FENDER LINER
HINT:

Use the same procedure for the LH side and RH side (Refer to REMOVAL [11/2015 - ] ).

REMOVE FRONT SPEED SENSOR

Disengage the clamp from the body.

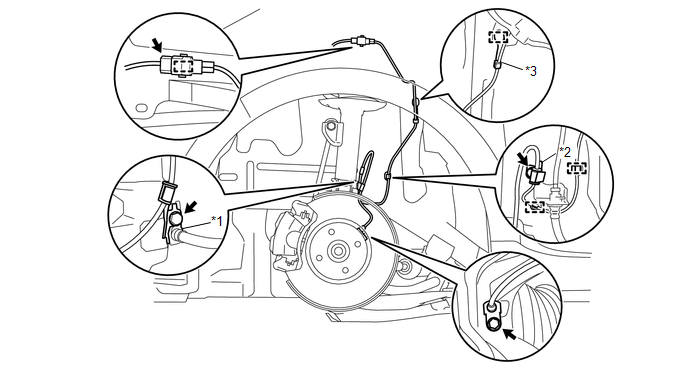

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

TEXT IN ILLUSTRATION

*1	No. 1 Clamp	*2	No. 2 Clamp
*3	No. 3 Clamp	-	-

Disconnect the front speed sensor connector.
Remove the No. 3 clamp from the body.
Disengage the 2 clamps from the body.
Remove the bolt and separate the No. 2 clamp from the body.
Remove the bolt and separate the No. 1 clamp from the shock absorber.
Remove the bolt and front speed sensor from the steering knuckle.
NOTE:
- Keep the front speed sensor tip and installation portion free of foreign matter.
- Remove the front speed sensor without turning it from its original installation angle.
