System Diagrams

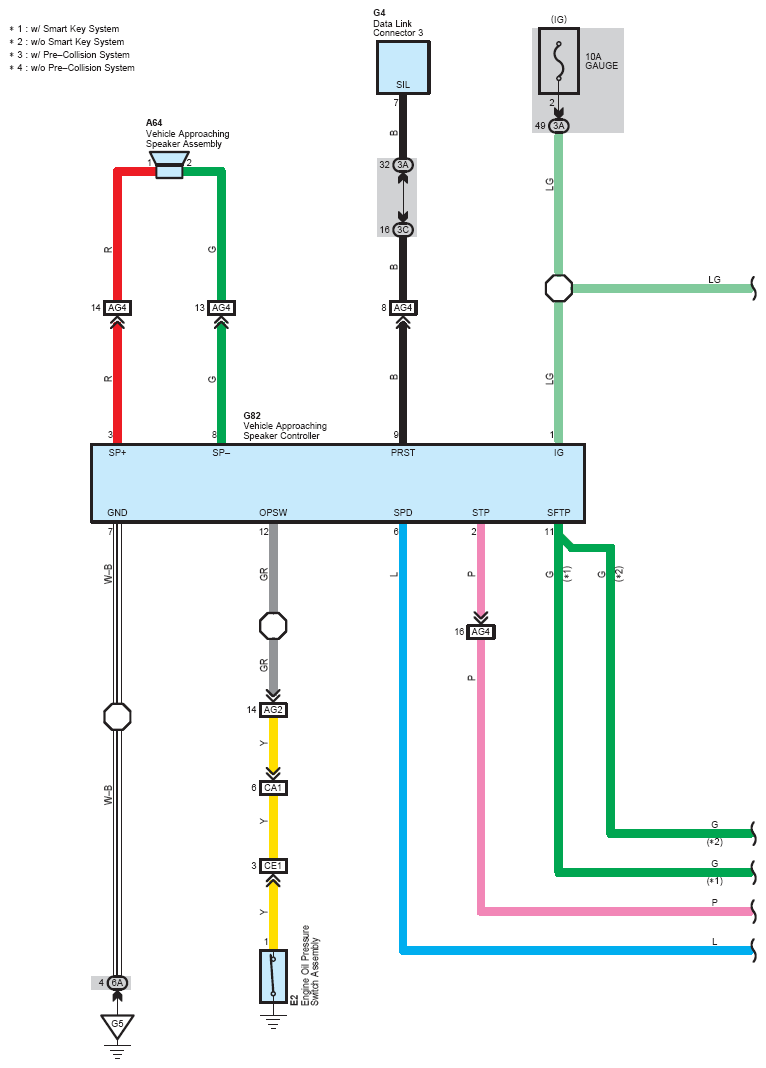

Fig 1: Vehicle Proximity Notification System (1 Of 4)
G12211454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

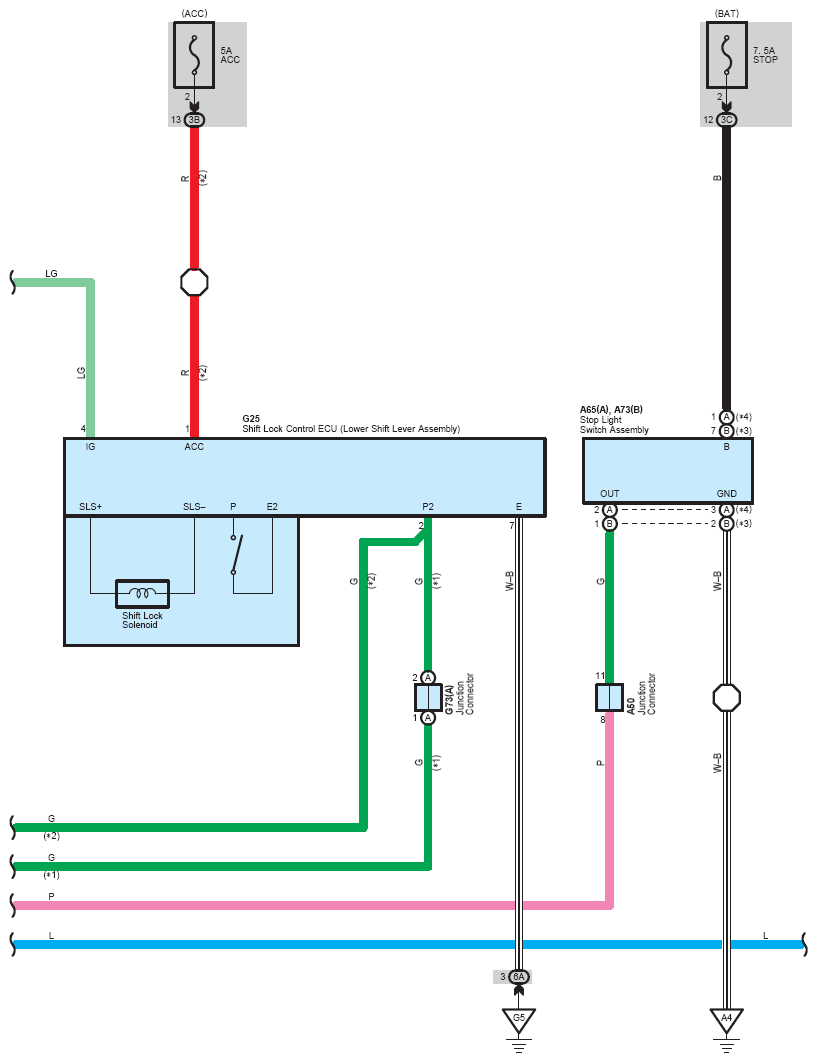

Fig 2: Vehicle Proximity Notification System (2 Of 4)
G12211455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Vehicle Proximity Notification System (3 Of 4)
G12211456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

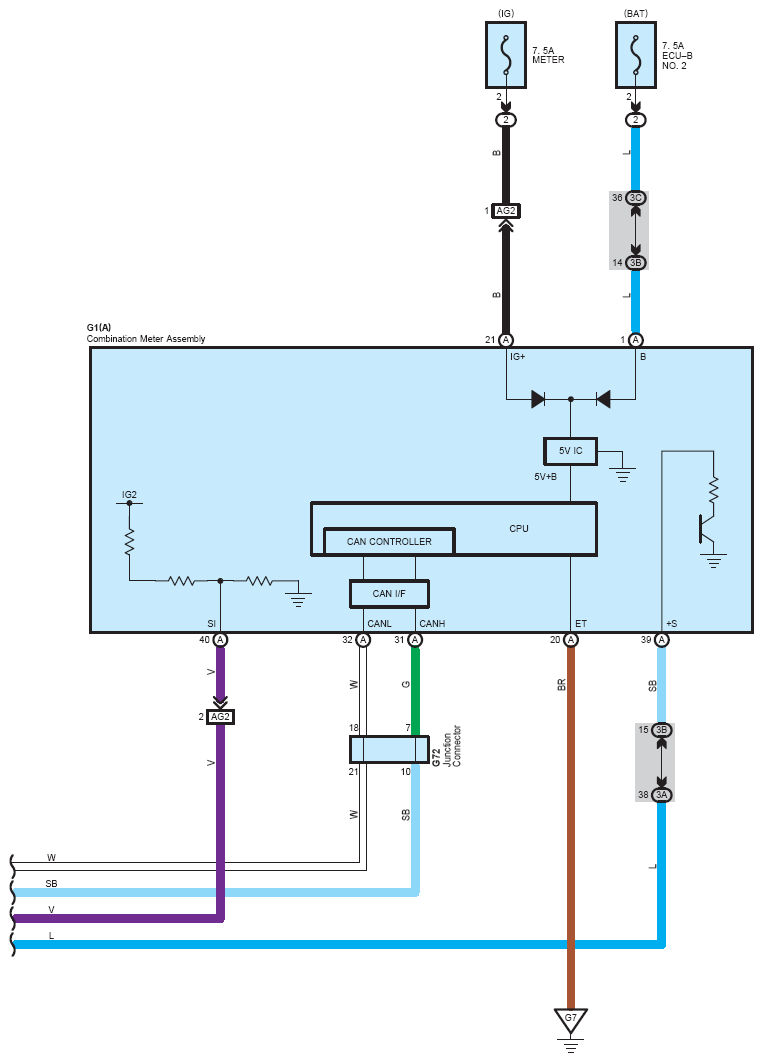

Fig 4: Vehicle Proximity Notification System (4 Of 4)
G12211457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
