Laser Sensor Inspection [11/2015 - ]: Procedure

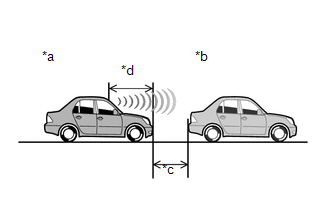

1. Position this vehicle and another vehicle as shown in the illustration, and then measure the distance between this vehicle and the preceding vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	This Vehicle
   *b	Preceding Vehicle
   *c	1.5 m (4.92 ft.)
   *d	1.5 m (4.92 ft.)

   NOTE:

   Perform the measurement indoors in an area where sunlight will not shine directly on the pre-collision city sensor.

   HINT:

   • The distance between the pre-collision city sensor (laser sensor) and the rear bumper of the preceding vehicle should be approximately 3 m (9.84 ft.).
   • The distance between the pre-collision city sensor (laser sensor) and the front bumper of this vehicle is 1.5 m (4.92 ft.).
   • The distance between the pre-collision city sensor (laser sensor) and the preceding vehicle is displayed in the Data List.
   • Do not use a modified car as a preceding vehicle.
2. Connect the Techstream to the DLC3.
3. Turn the power switch on (IG).
4. Turn the Techstream on.
5. Enter the following menus: Chassis / PCS/LDA/RSA/LVN / Data List.
6. Read the Data List according to the display on the Techstream.
   CHASSIS > PCS/LDA/RSA/LVN > DATA LIST



   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   Lidar Detect Target Distance	Displays distance of the highest priority object which is detected by Lidar.	0 to 51.0 m	Distance between the vehicle and a preceding vehicle	When no preceding vehicle is detected, "0 m" (0 ft.) is displayed

   HINT:

   If "0 m" (0 ft.) is displayed, the pre-collision city sensor (laser sensor) is malfunctioning.

   OK

   Distance displayed is within 3.0 m (9.84 ft.) +/- 0.5 m (1.64 ft.)

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Refer to PROBLEM SYMPTOMS TABLE [11/2015 - 06/2017] Refer to PROBLEM SYMPTOMS TABLE [06/2017 - ] )

Result:

NG

REPLACE PRE-COLLISION CITY SENSOR

Refer to COMPONENTS [11/2015 - ] )
