Components [06/2015 - ]

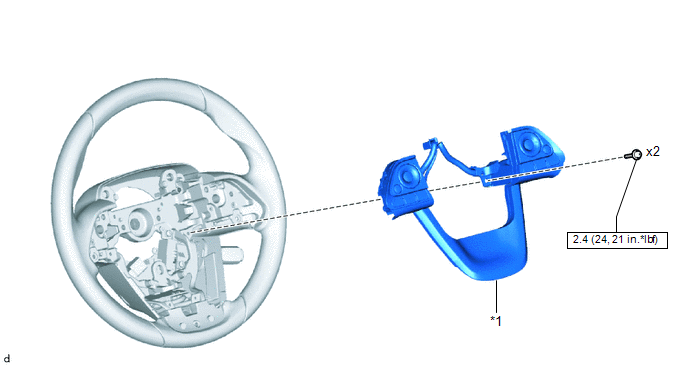

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications
GTY549588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 STEERING PAD SWITCH ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
