System Diagrams

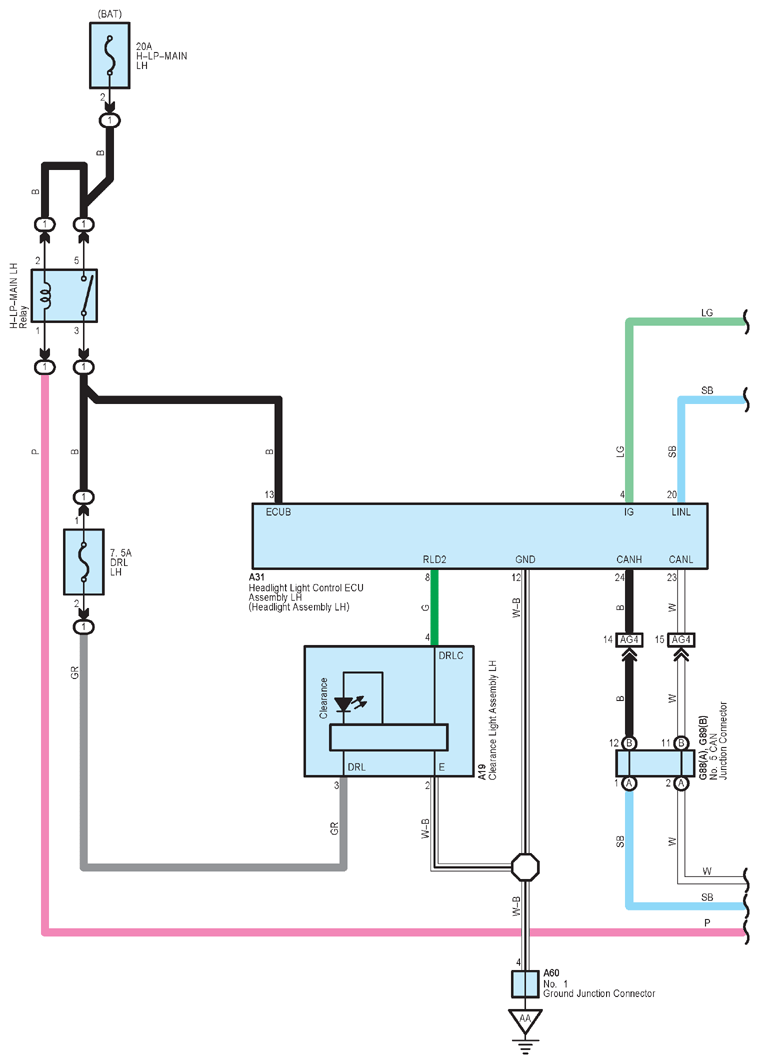

Fig 1: Taillight (1 Of 5)
G12204512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

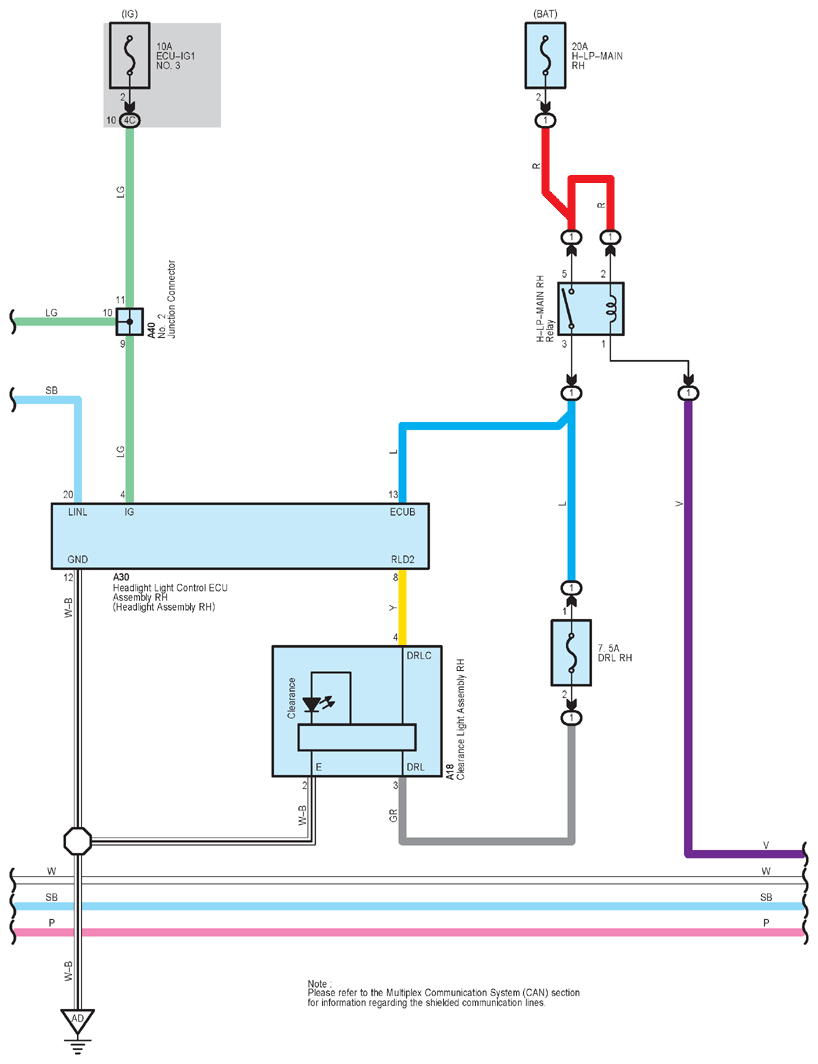

Fig 2: Taillight (2 Of 5)
G12204513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

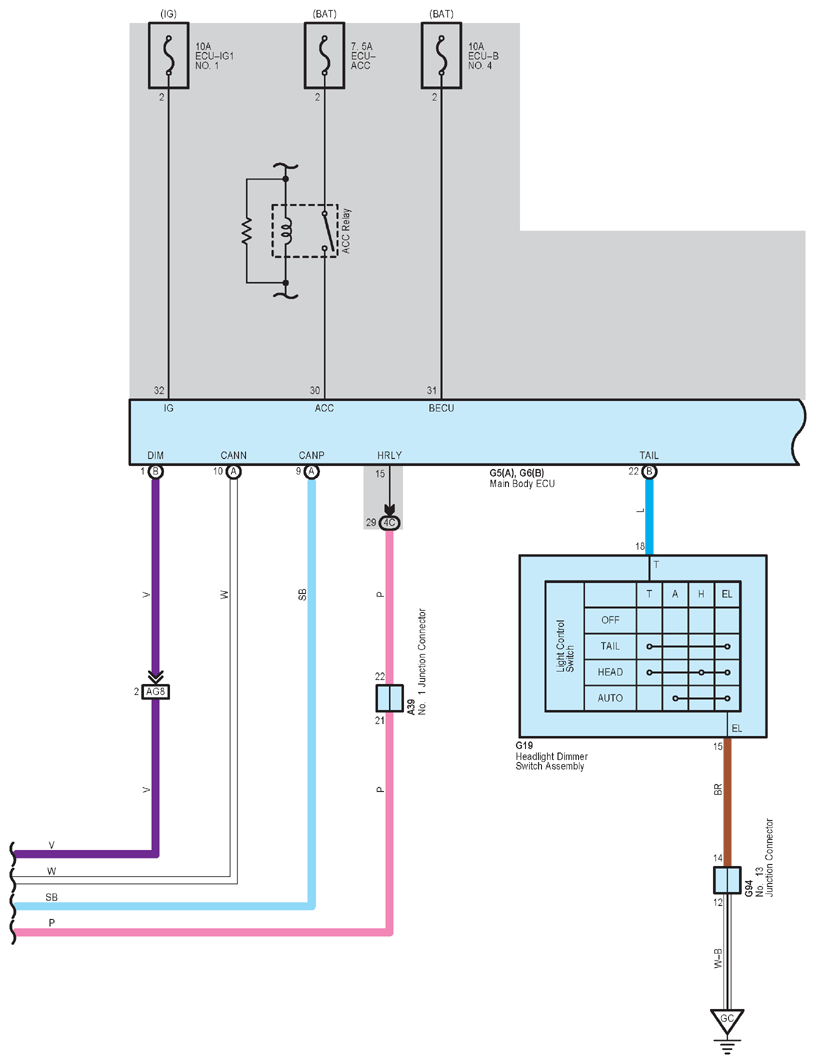

Fig 3: Taillight (3 Of 5)
G12204514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

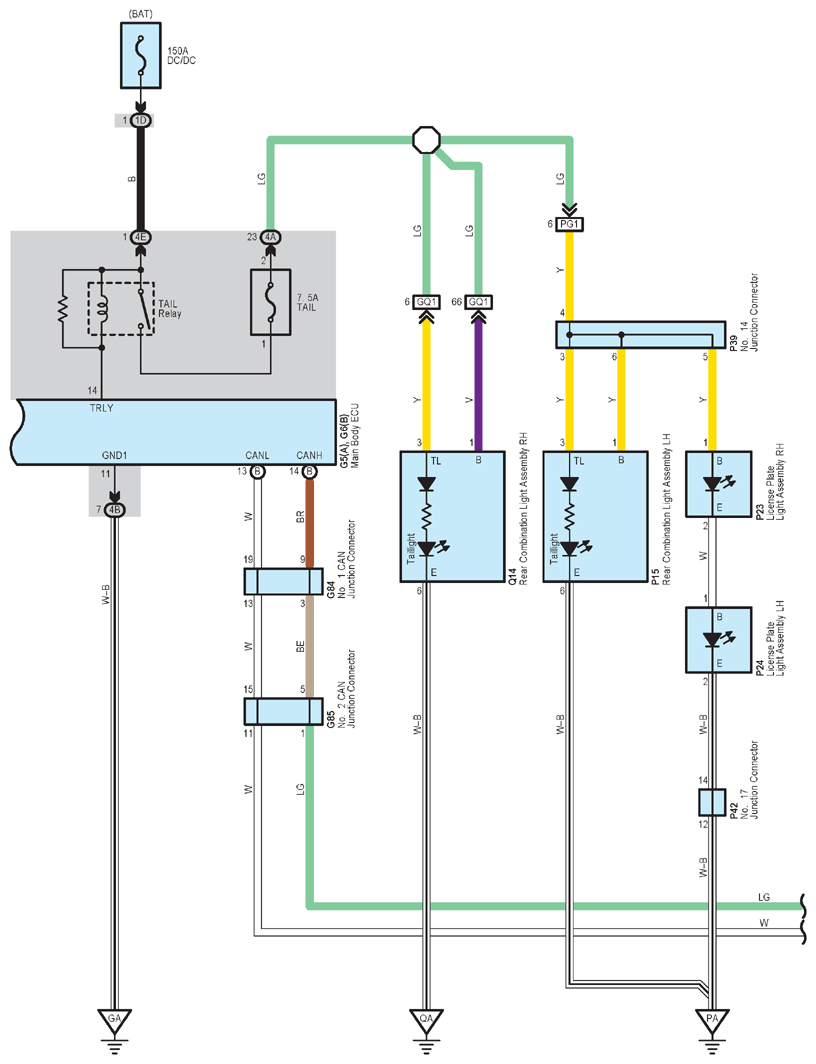

Fig 4: Taillight (4 Of 5)
G12204515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

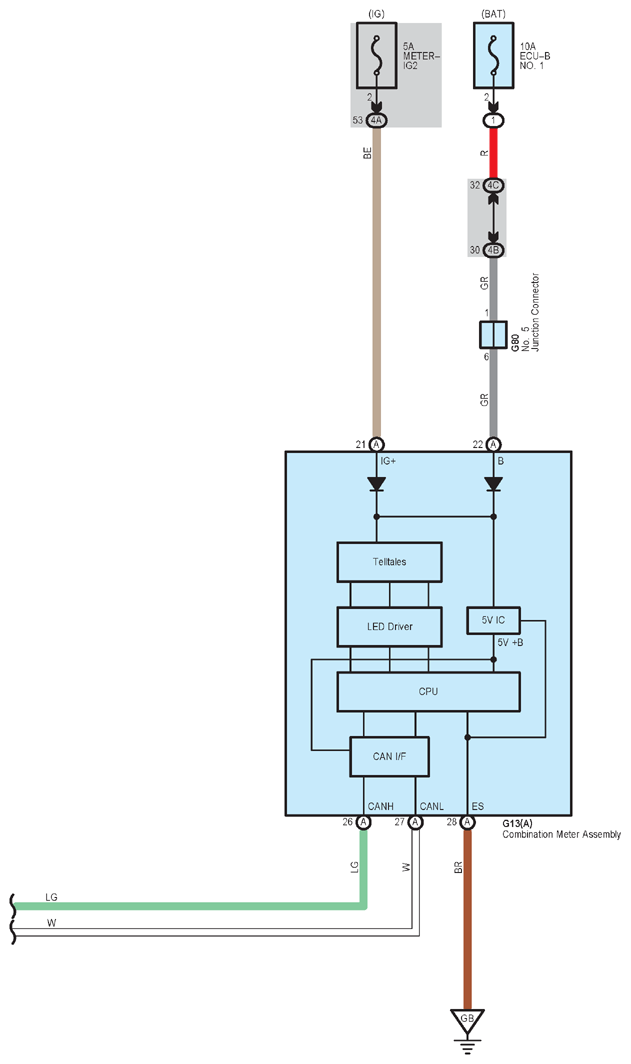

Fig 5: Taillight (5 Of 5)
G12204516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
