System Diagrams

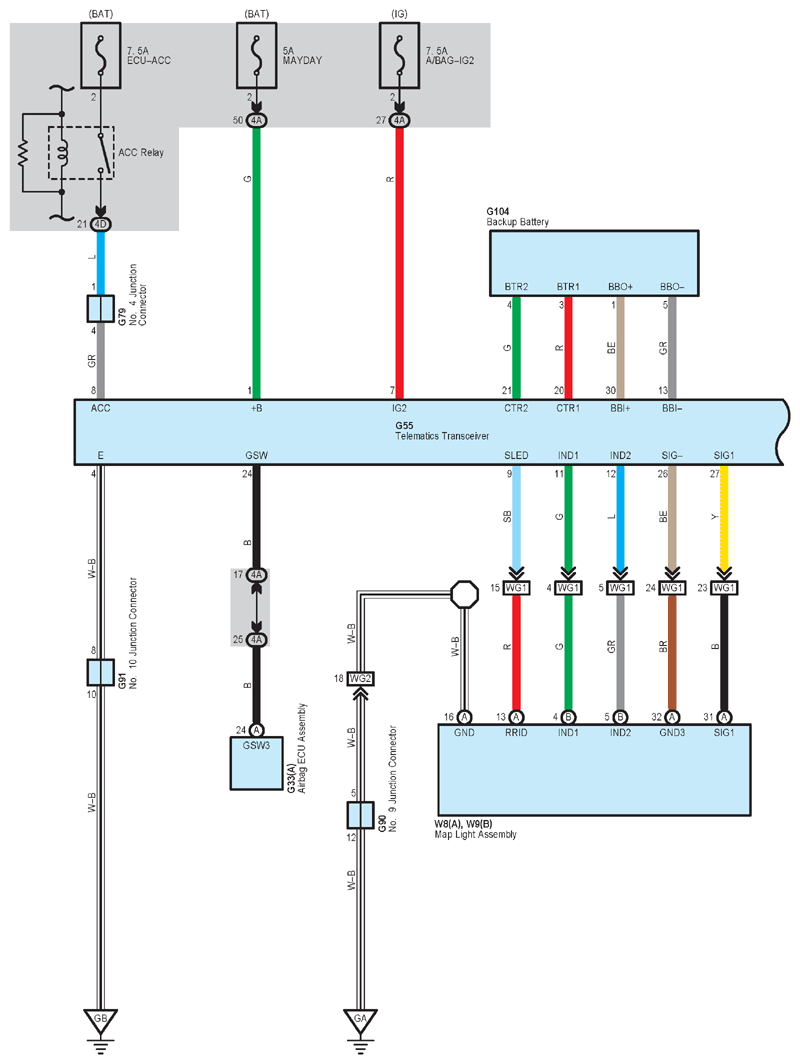

Fig 1: Safety Connect (1 Of 4)
G12204443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

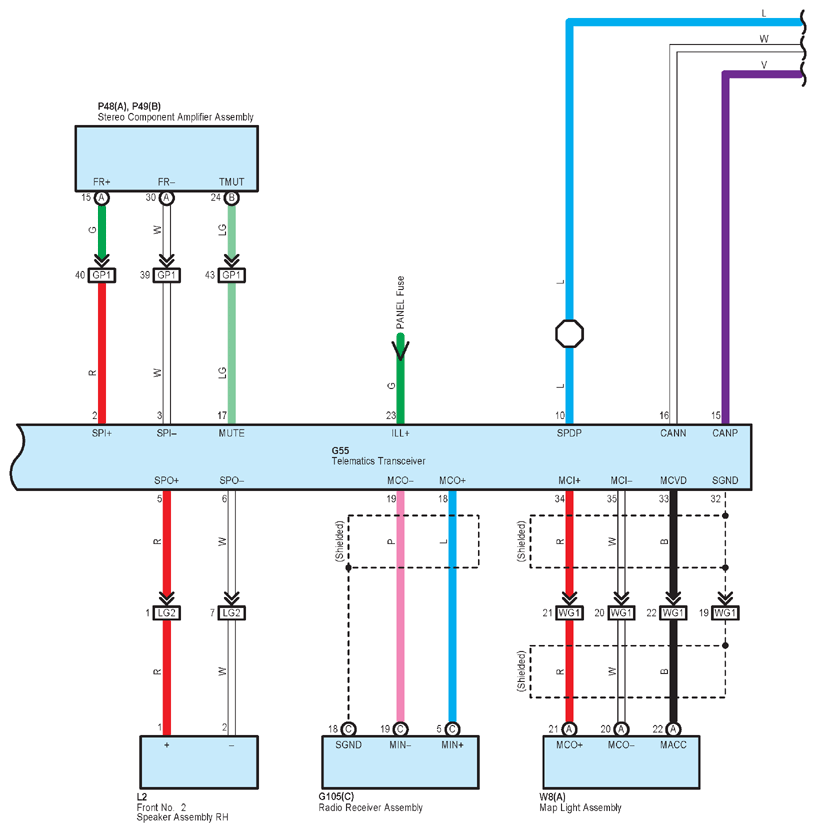

Fig 2: Safety Connect (2 Of 4)
G12204444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

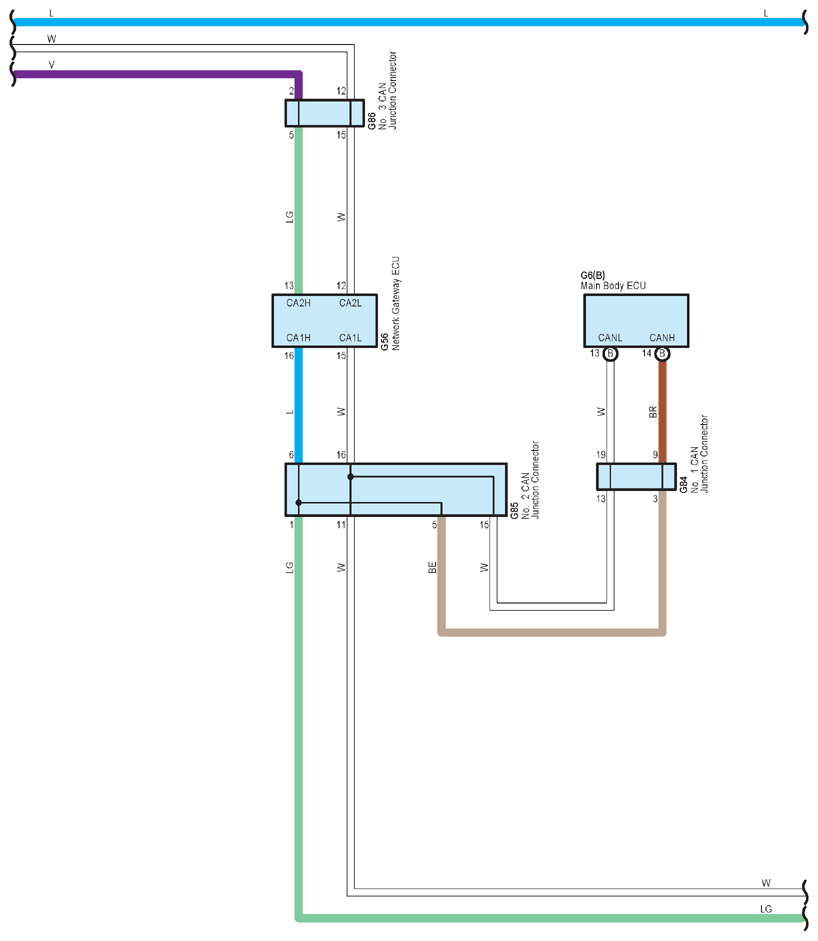

Fig 3: Safety Connect (3 Of 4)
G12204445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

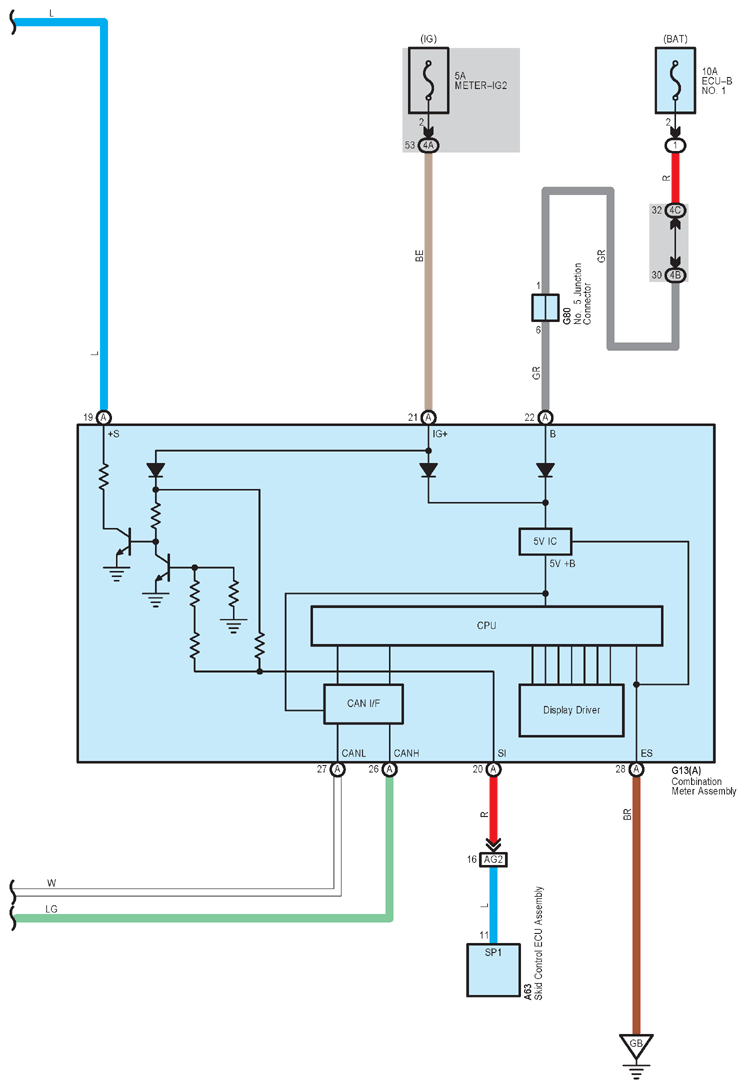

Fig 4: Safety Connect (4 Of 4)
G12204446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
