System Diagrams

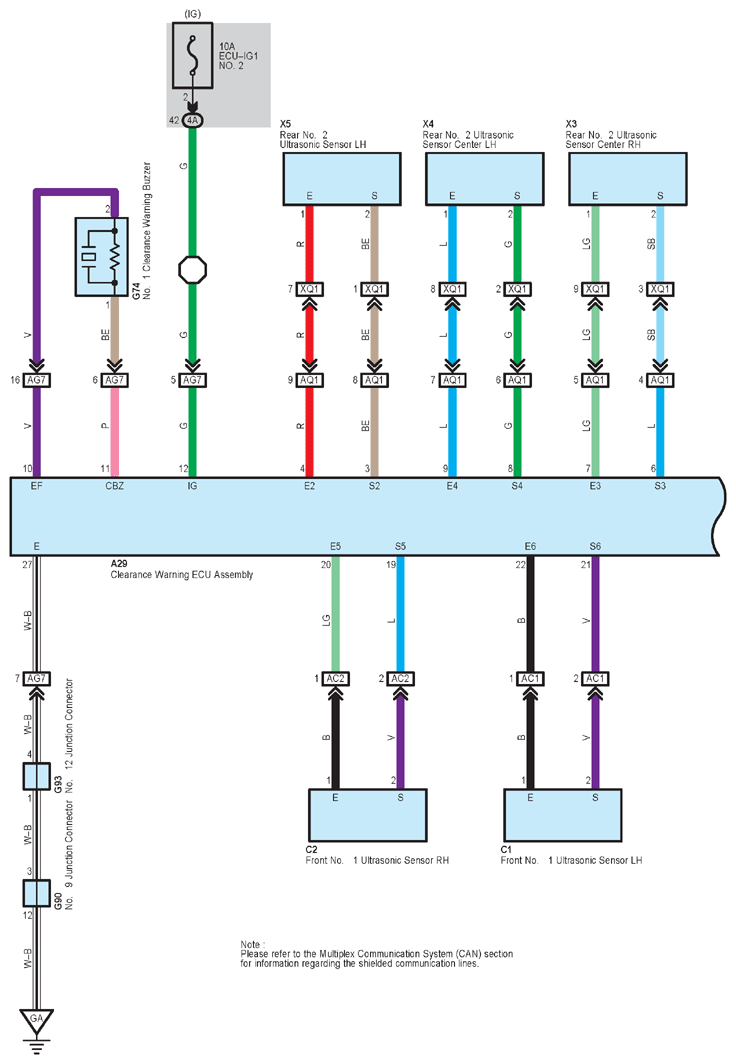

Fig 1: Intuitive Parking Assist System (1 Of 4)
G12204109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

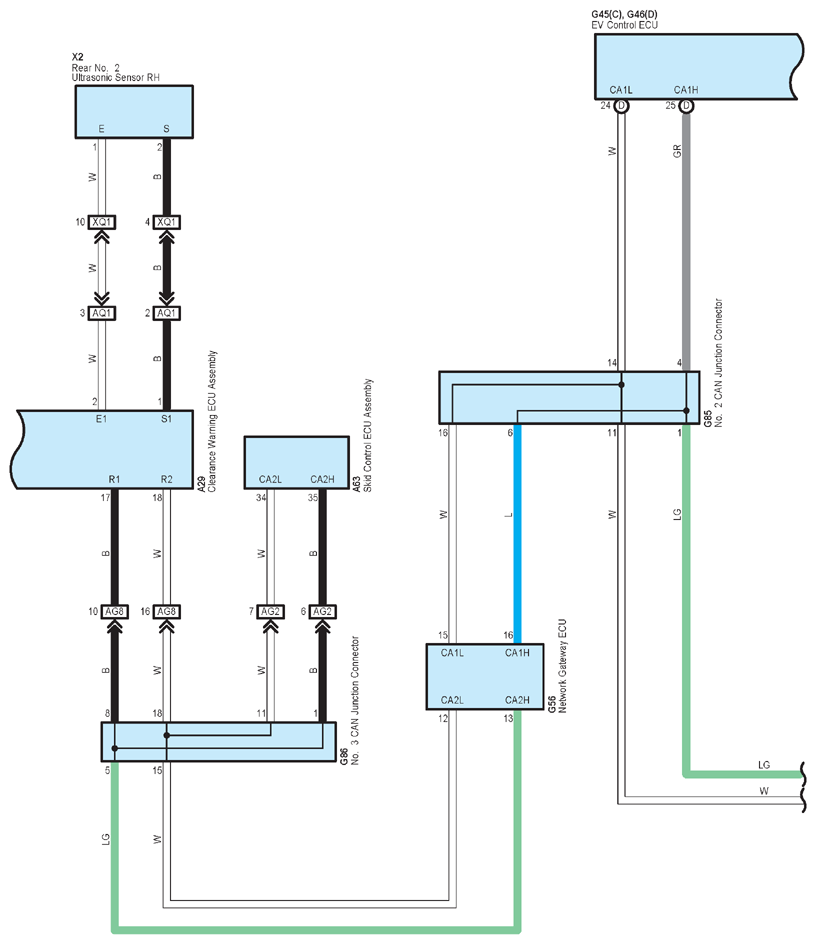

Fig 2: Intuitive Parking Assist System (2 Of 4)
G12204110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

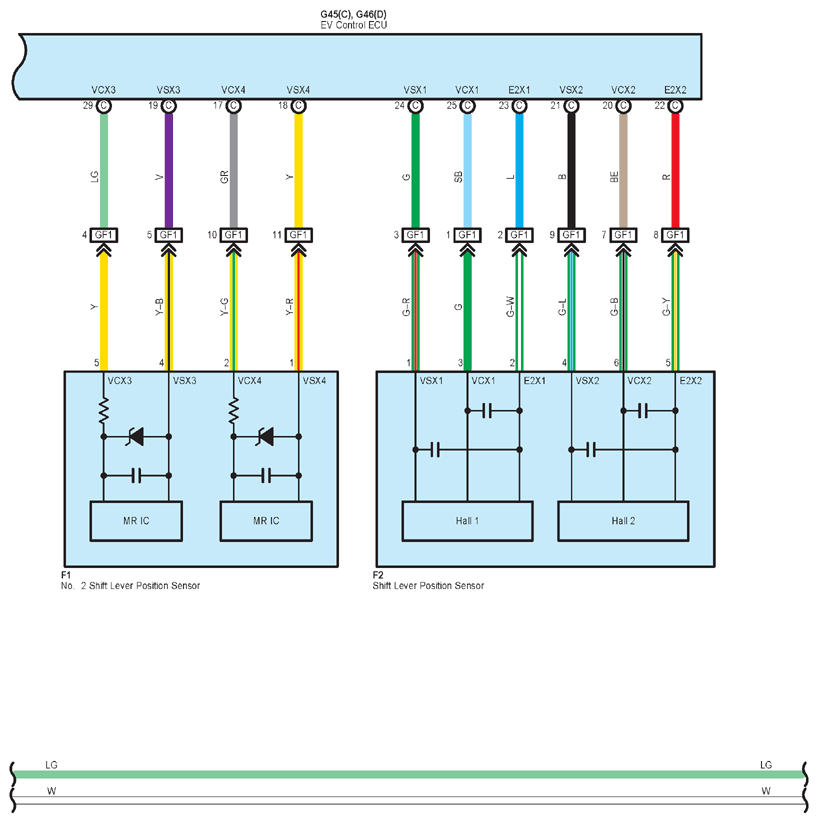

Fig 3: Intuitive Parking Assist System (3 Of 4)
G12204111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

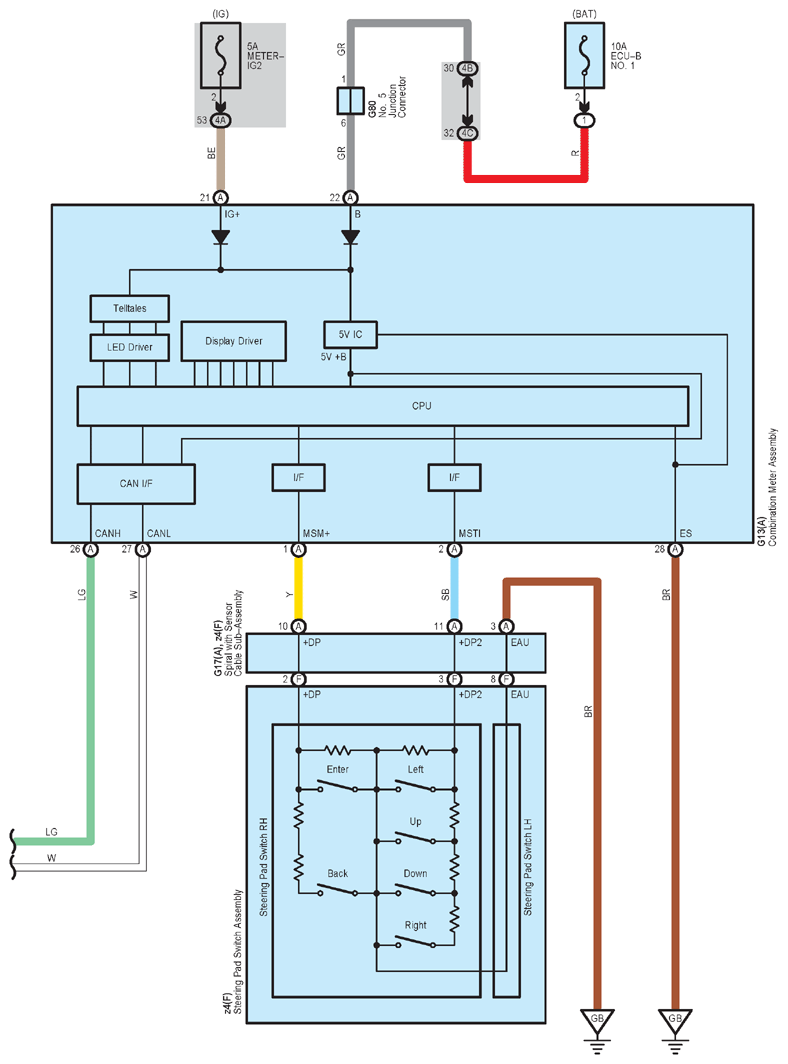

Fig 4: Intuitive Parking Assist System (4 Of 4)
G12204112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
