System Diagrams — 2017 Toyota Mirai Service Manual ~ LEMON Manuals

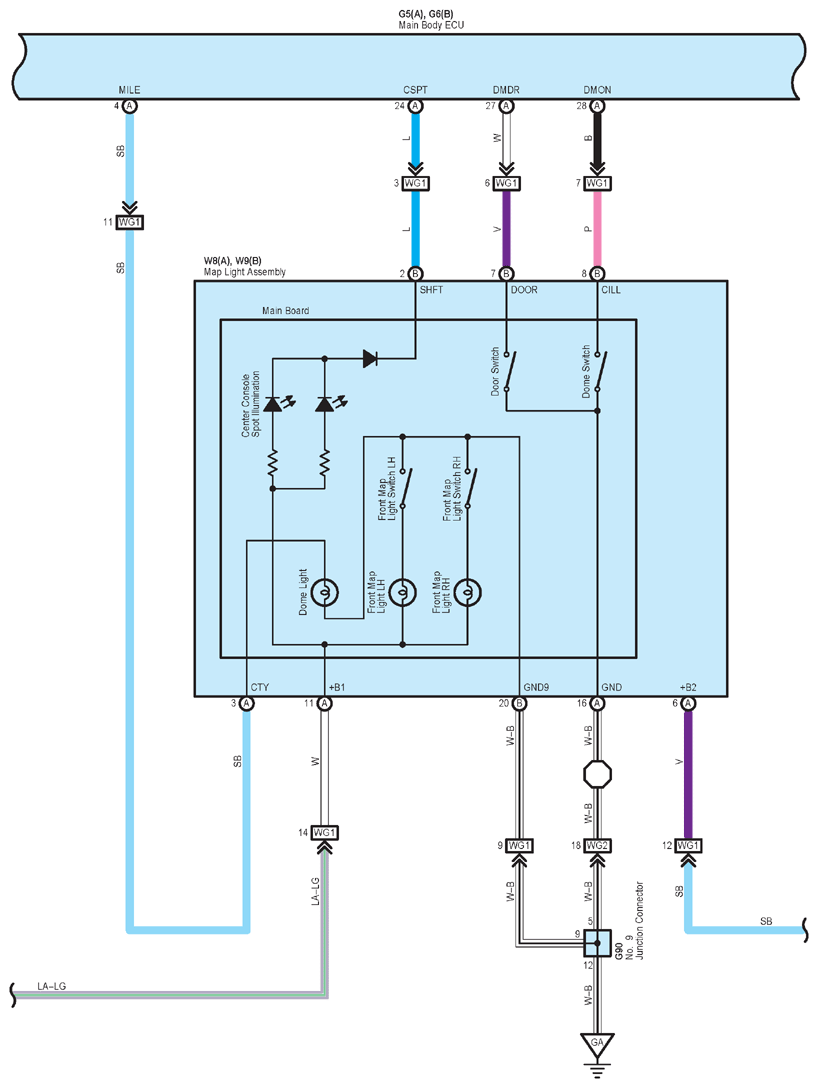

Fig 1: Interior Light (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

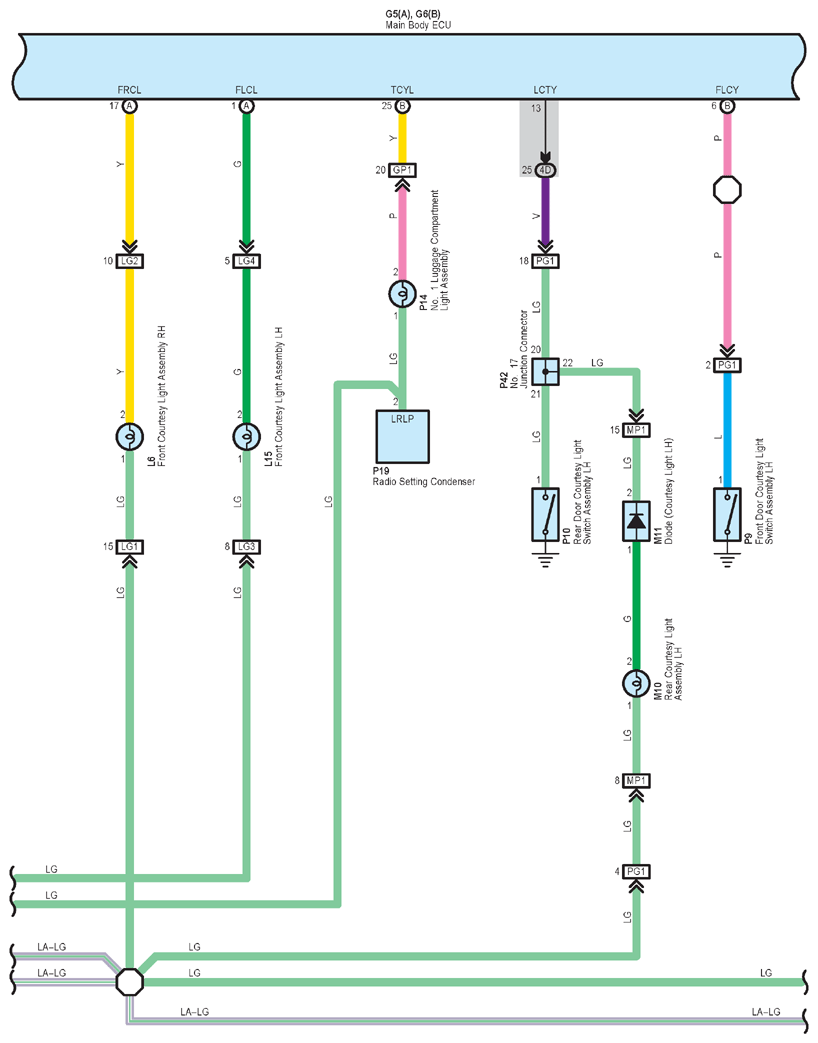

Fig 2: Interior Light (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

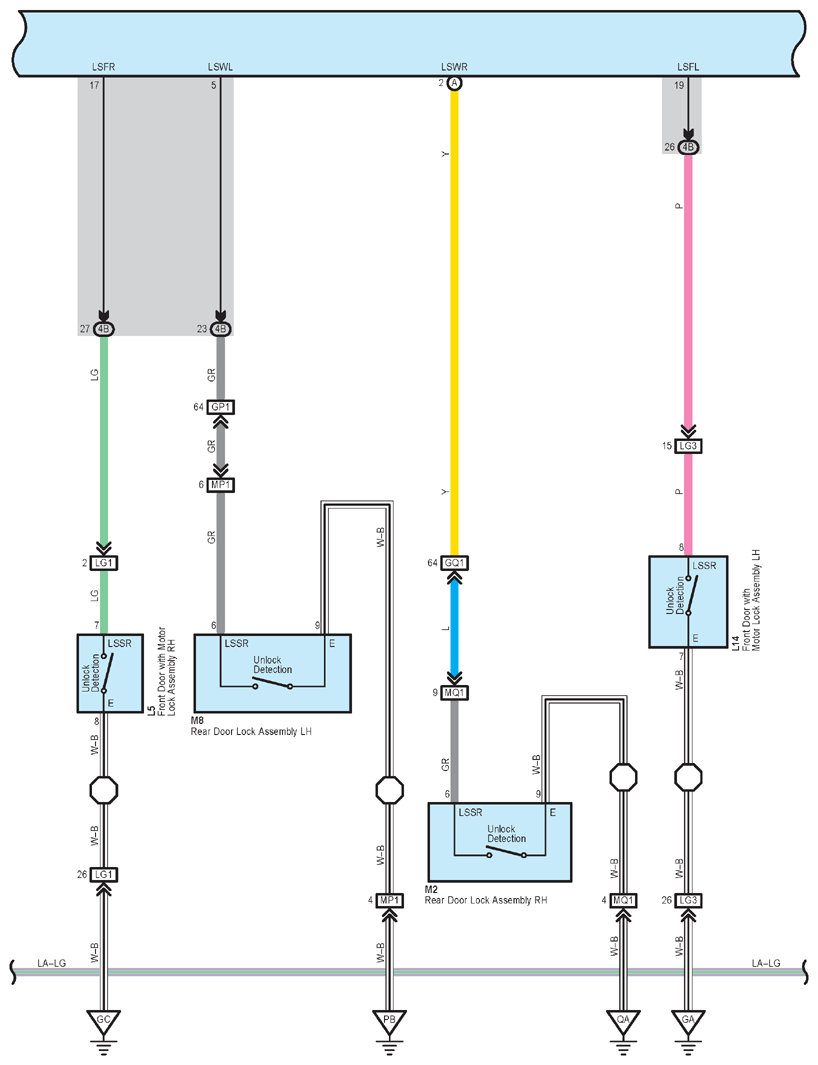

Fig 3: Interior Light (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

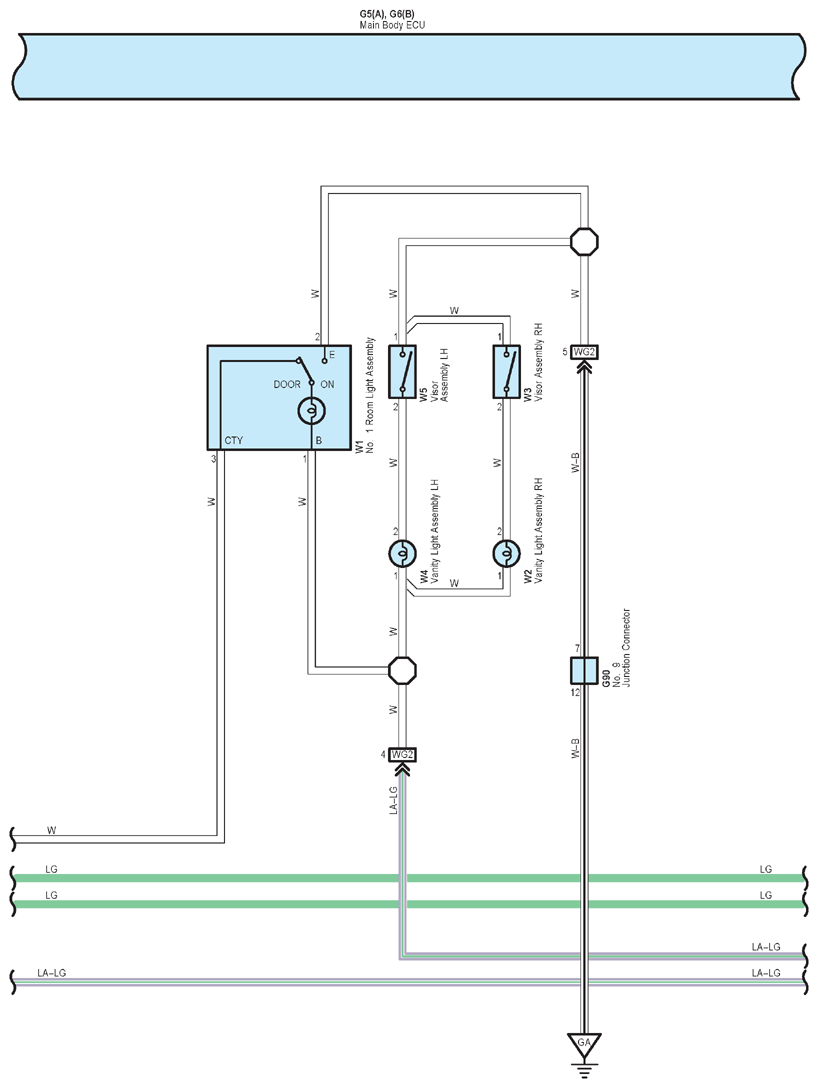

Fig 4: Interior Light (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

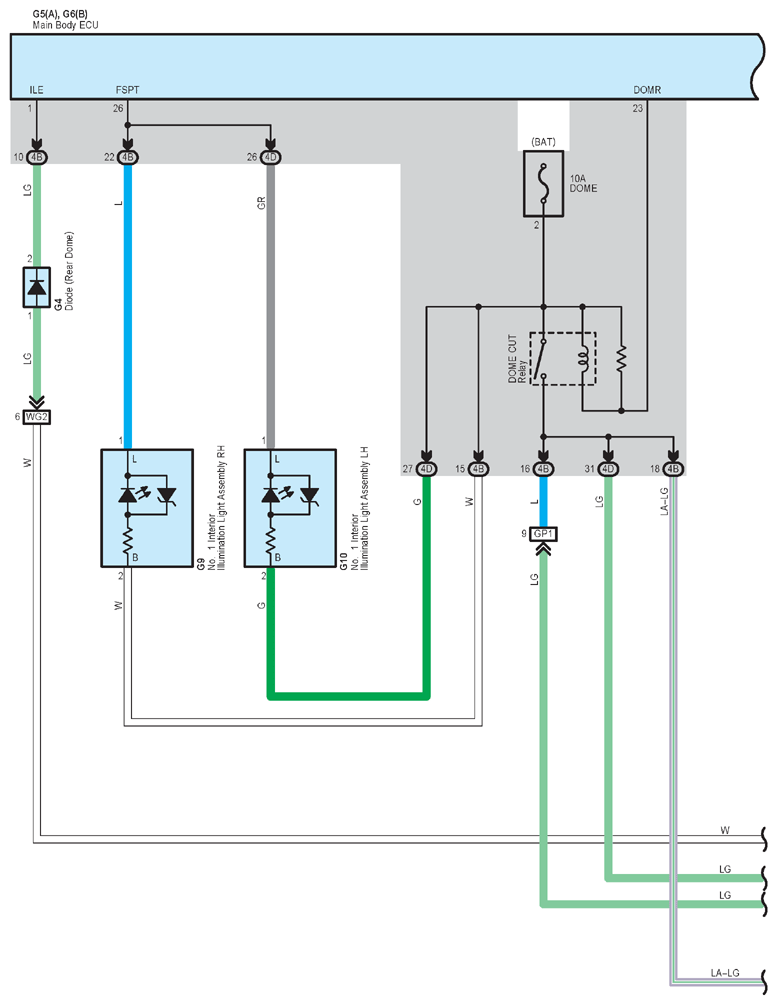

Fig 5: Interior Light (5 Of 7)

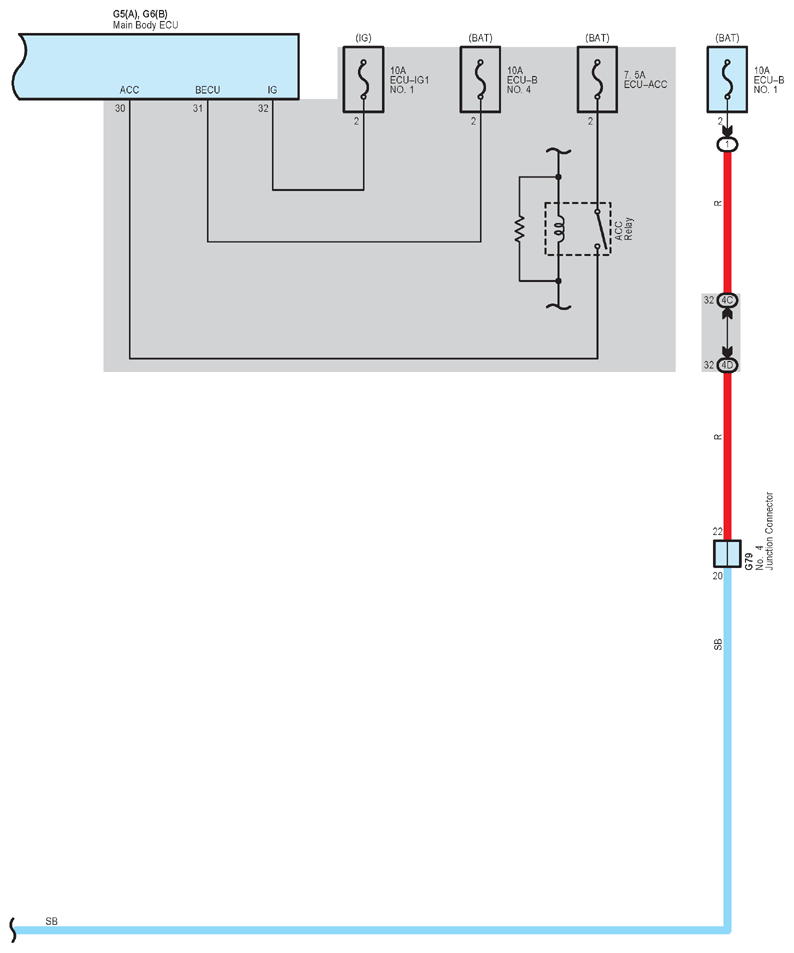

Fig 6: Interior Light (6 Of 7)

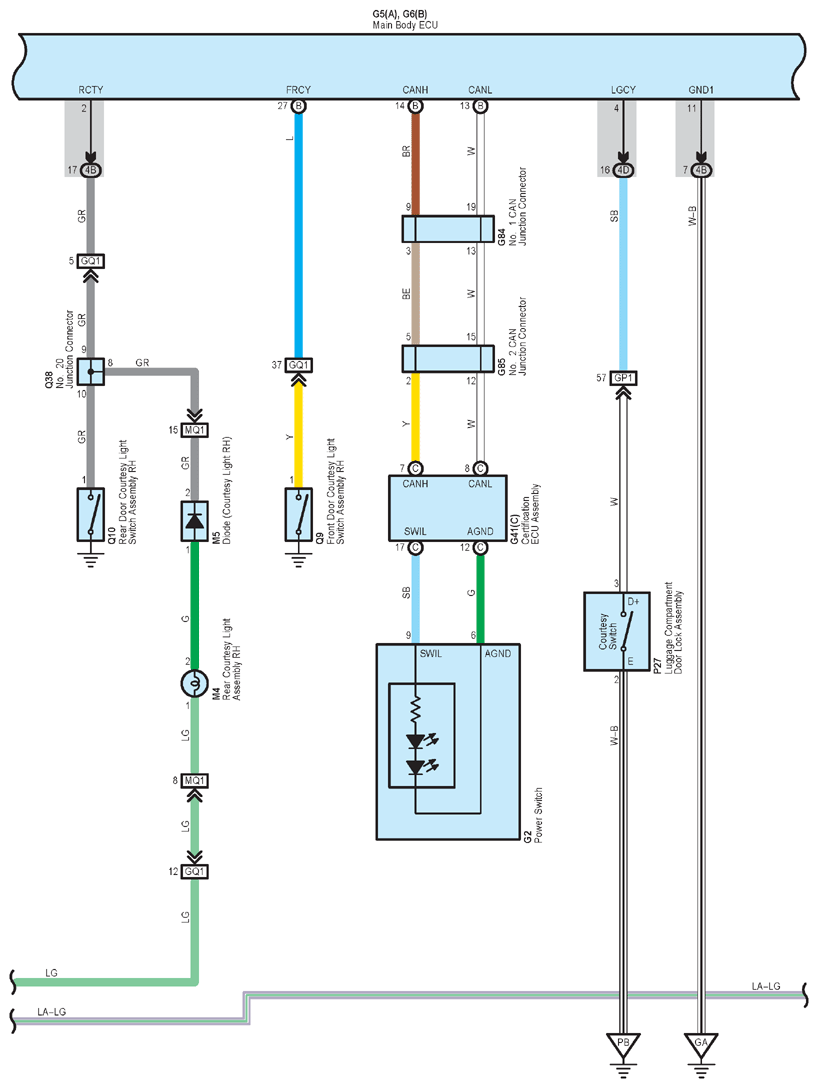

Fig 7: Interior Light (7 Of 7)
