Ground Point: Connectors

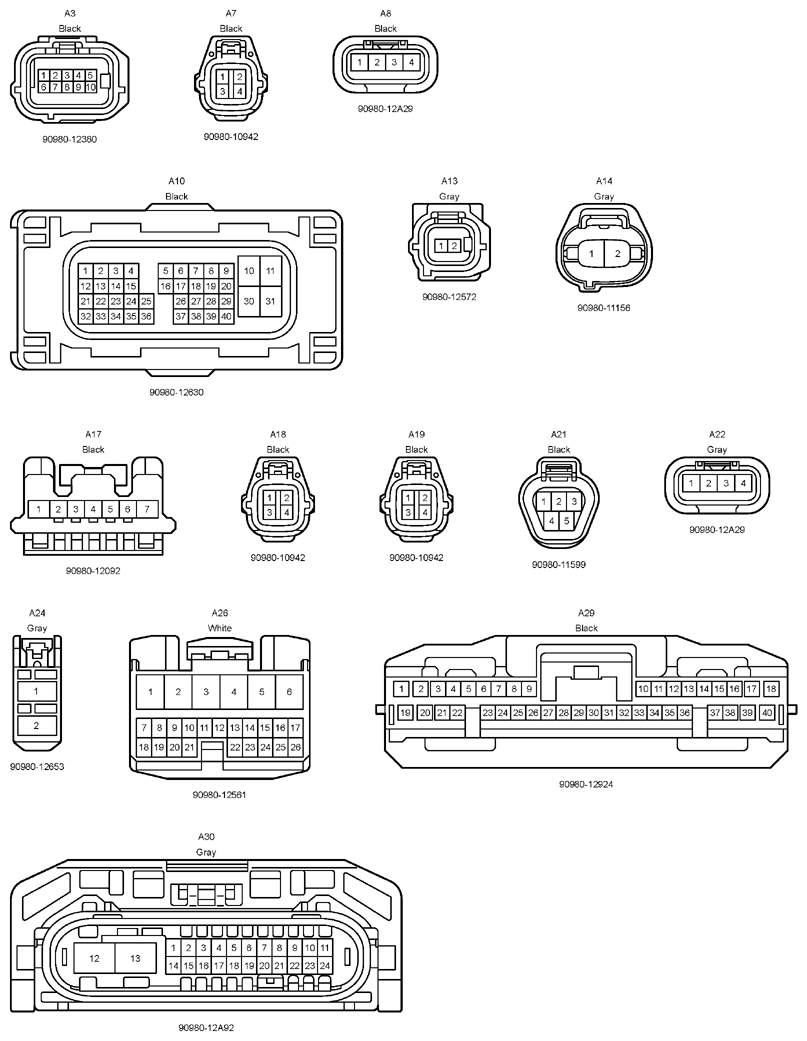

Fig 1: Connectors (1 Of 16)

G12204268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

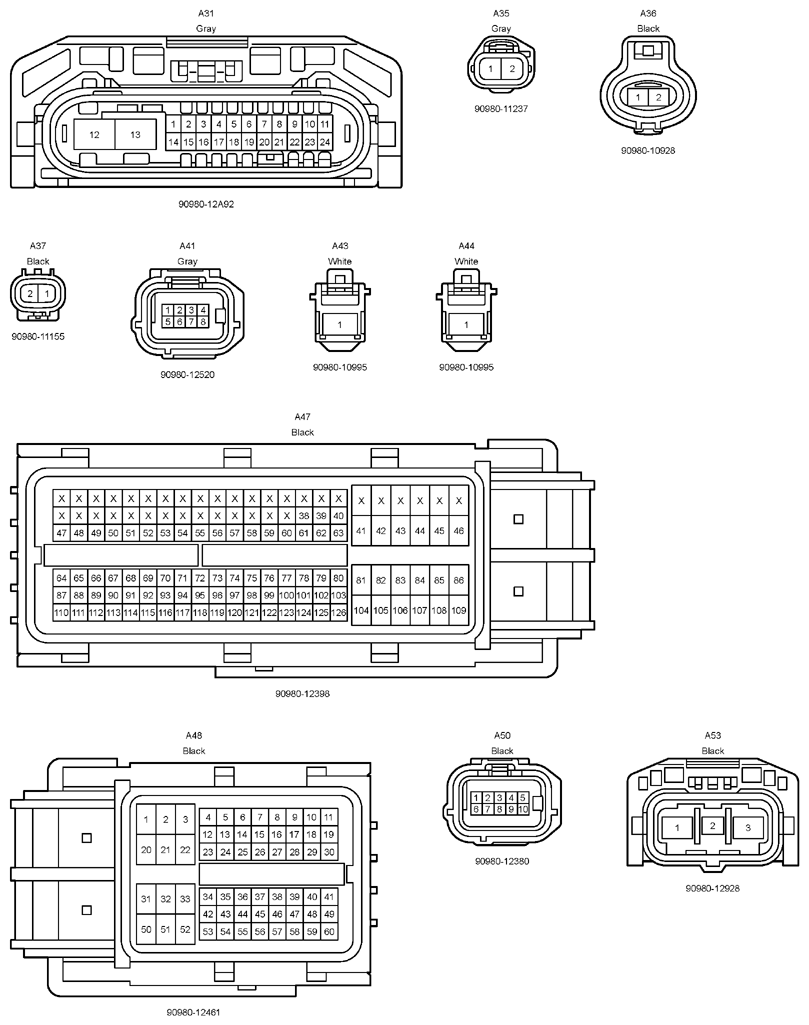

Fig 2: Connectors (2 Of 16)

G12204269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

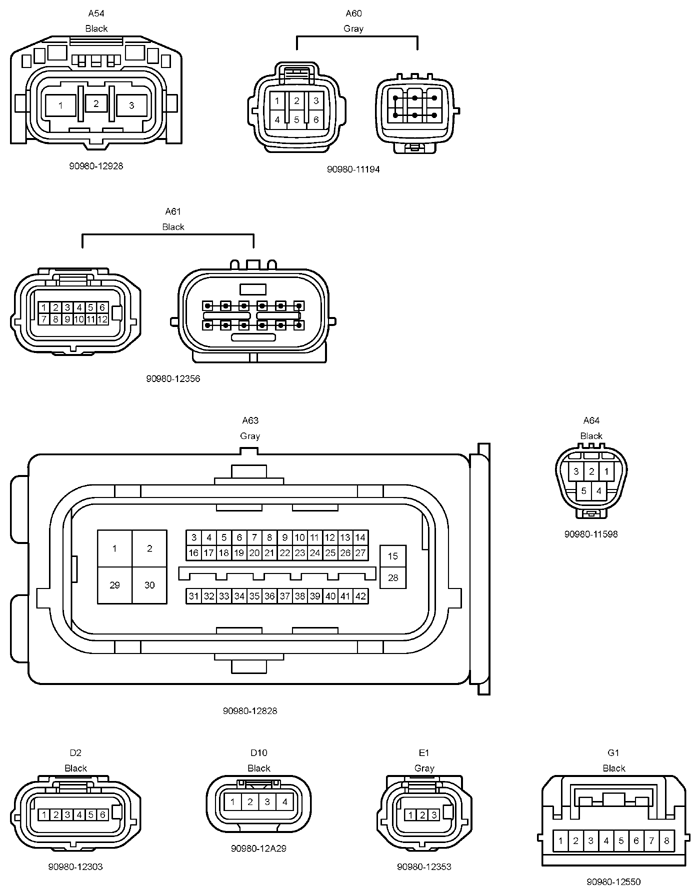

Fig 3: Connectors (3 Of 16)

G12204270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

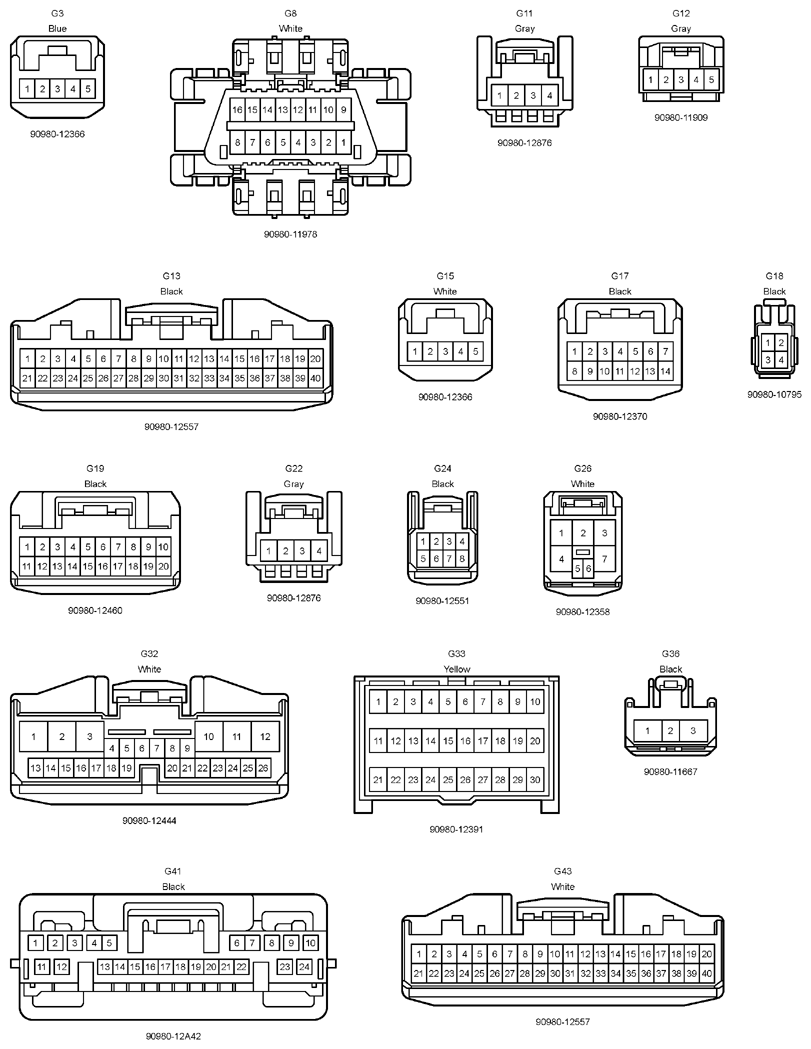

Fig 4: Connectors (4 Of 16)

G12204271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

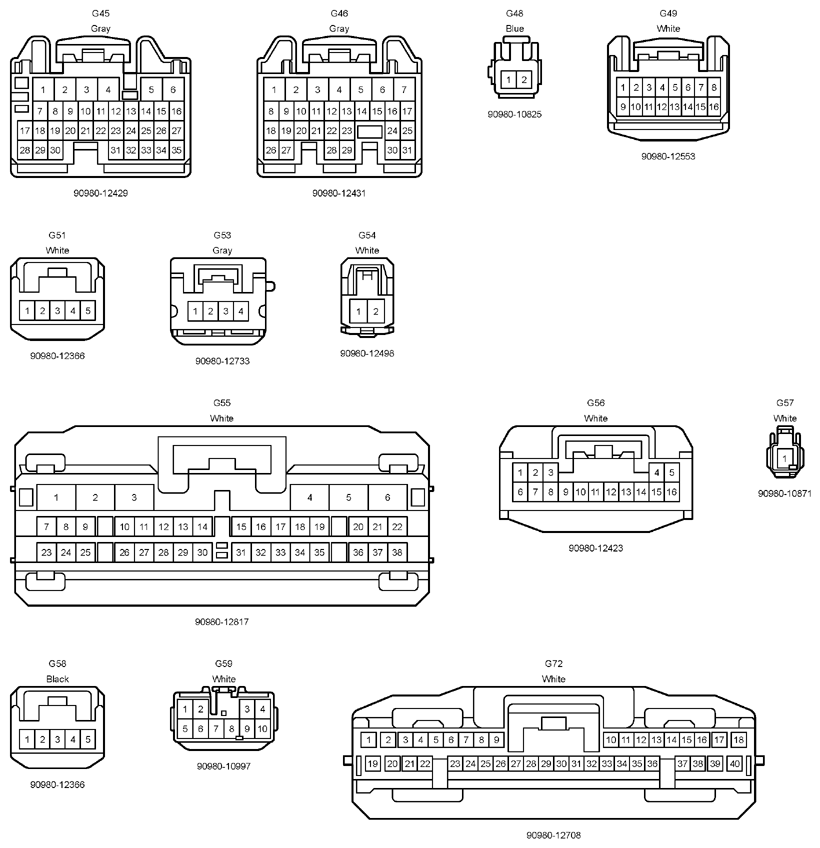

Fig 5: Connectors (5 Of 16)

G12204272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

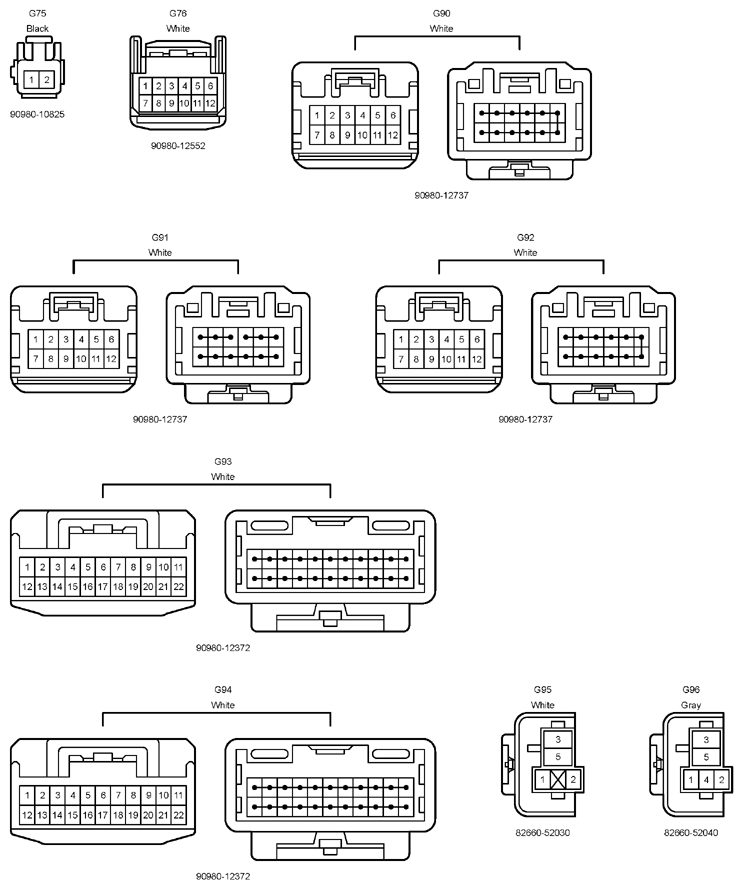

Fig 6: Connectors (6 Of 16)

G12204273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

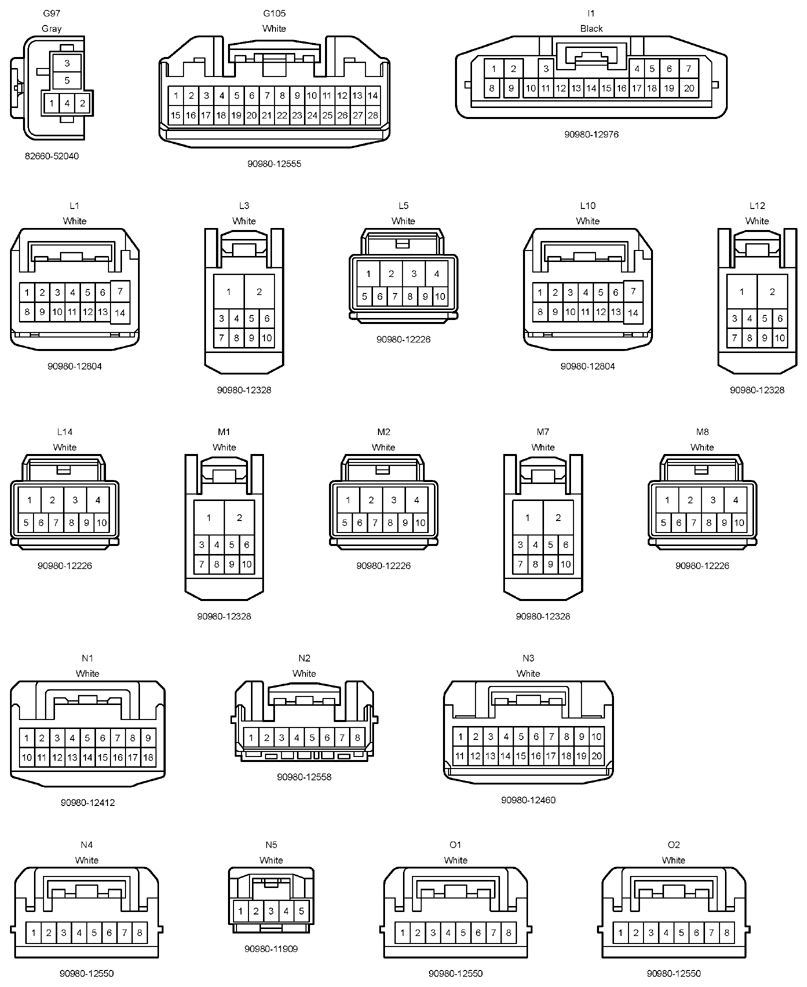

Fig 7: Connectors (7 Of 16)

G12204274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

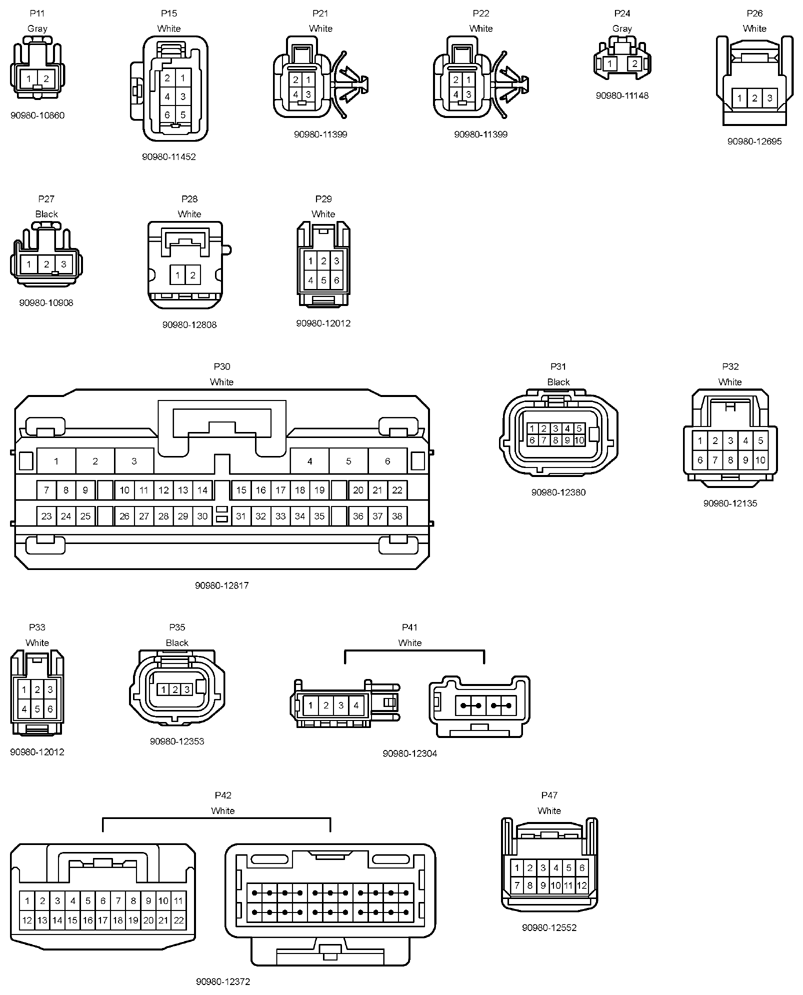

Fig 8: Connectors (8 Of 16)

G12204275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

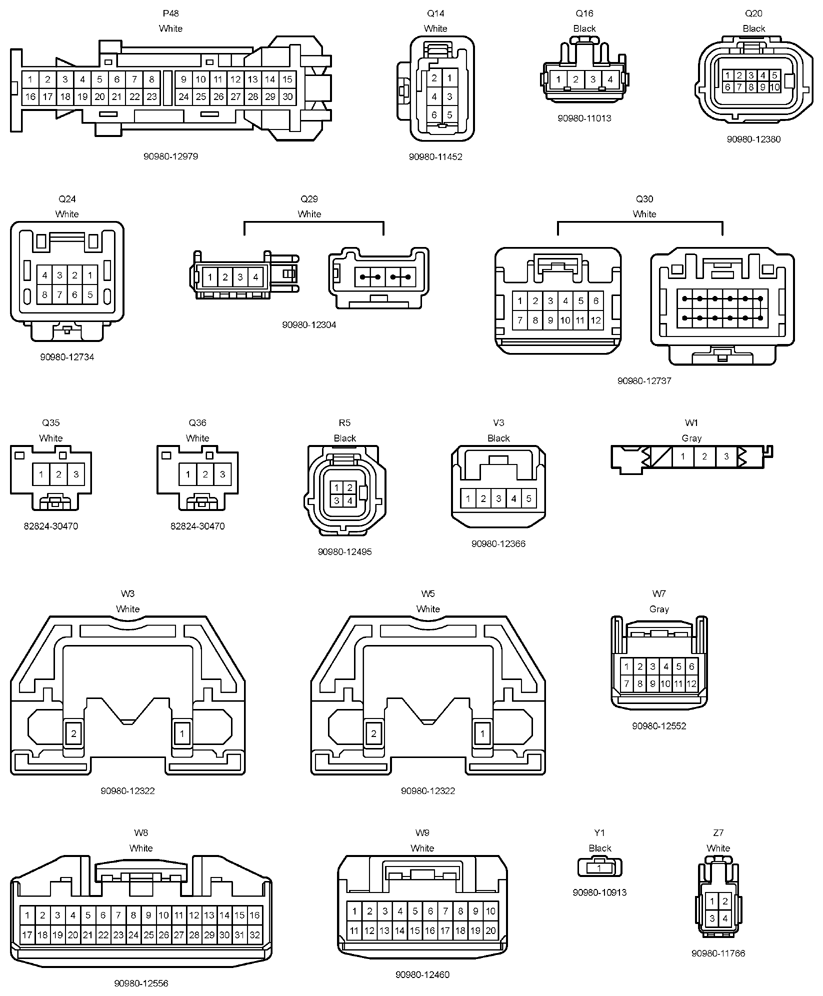

Fig 9: Connectors (9 Of 16)

G12204276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

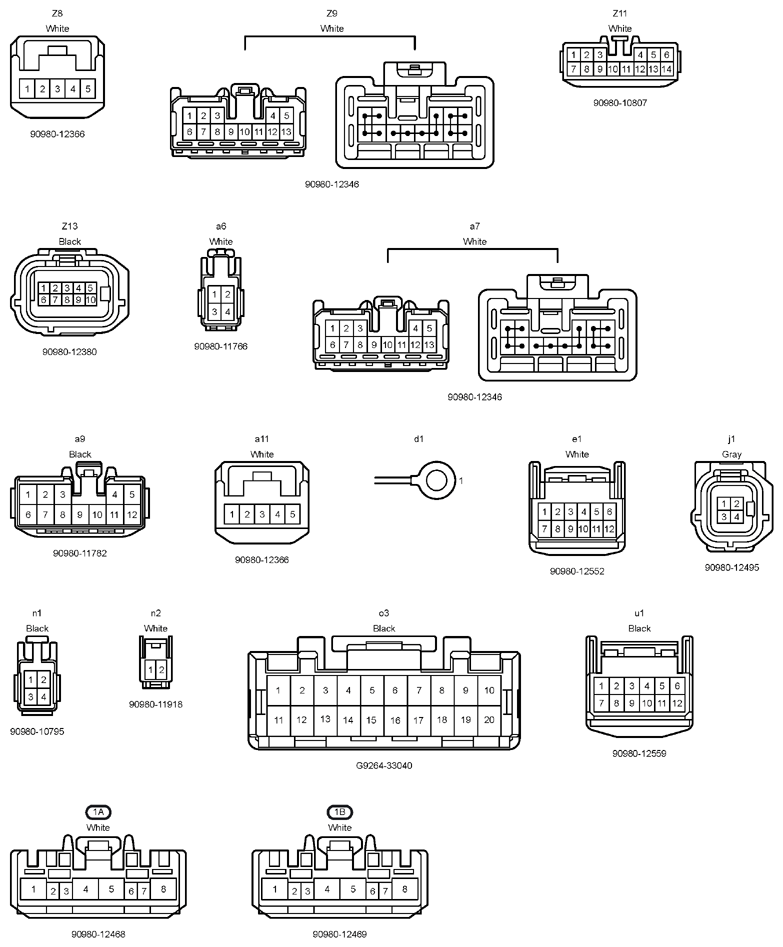

Fig 10: Connectors (10 Of 16)

G12204277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

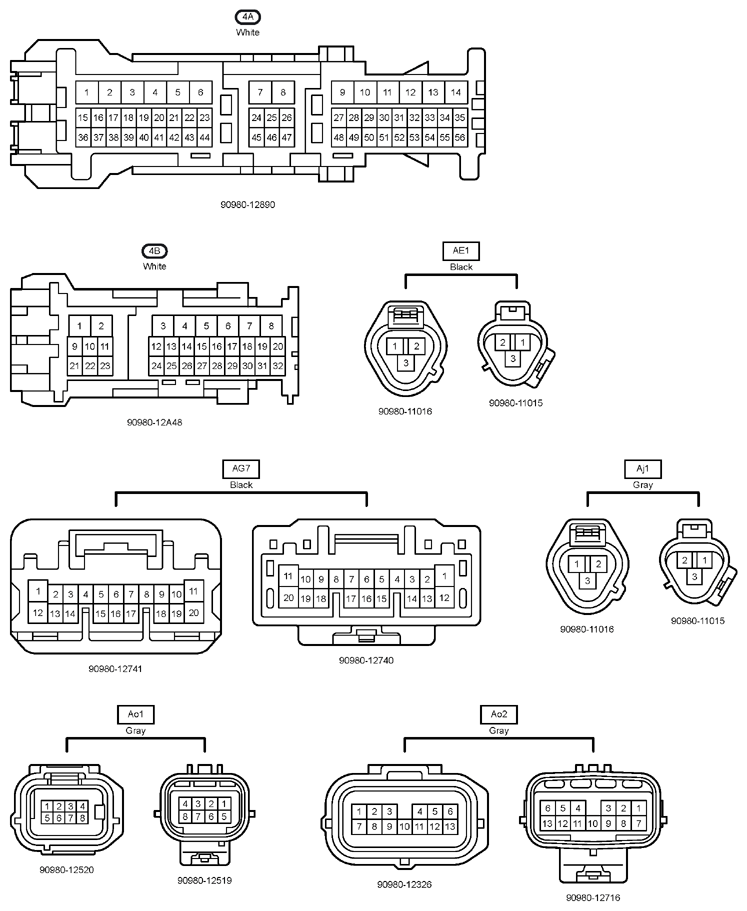

Fig 11: Connectors (11 Of 16)

G12204278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

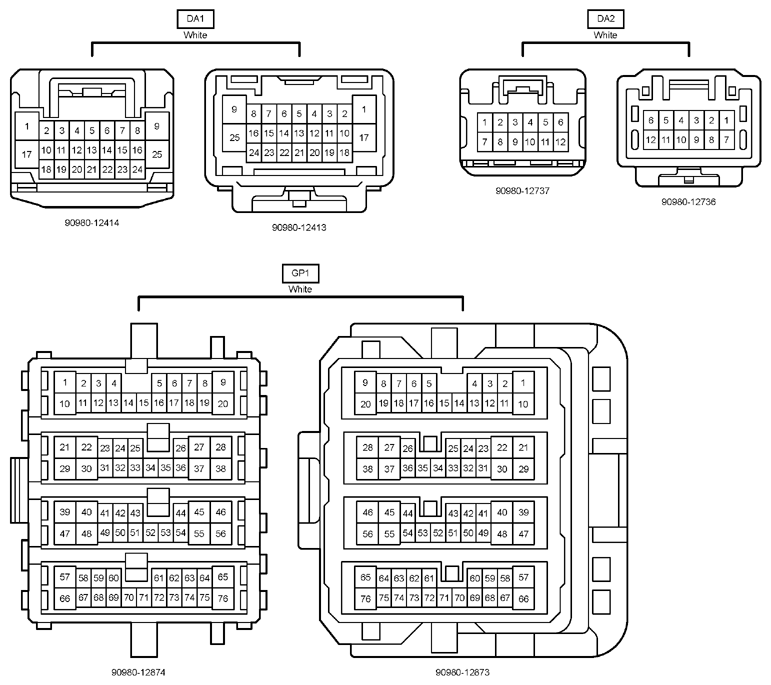

Fig 12: Connectors (12 Of 16)

G12204279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

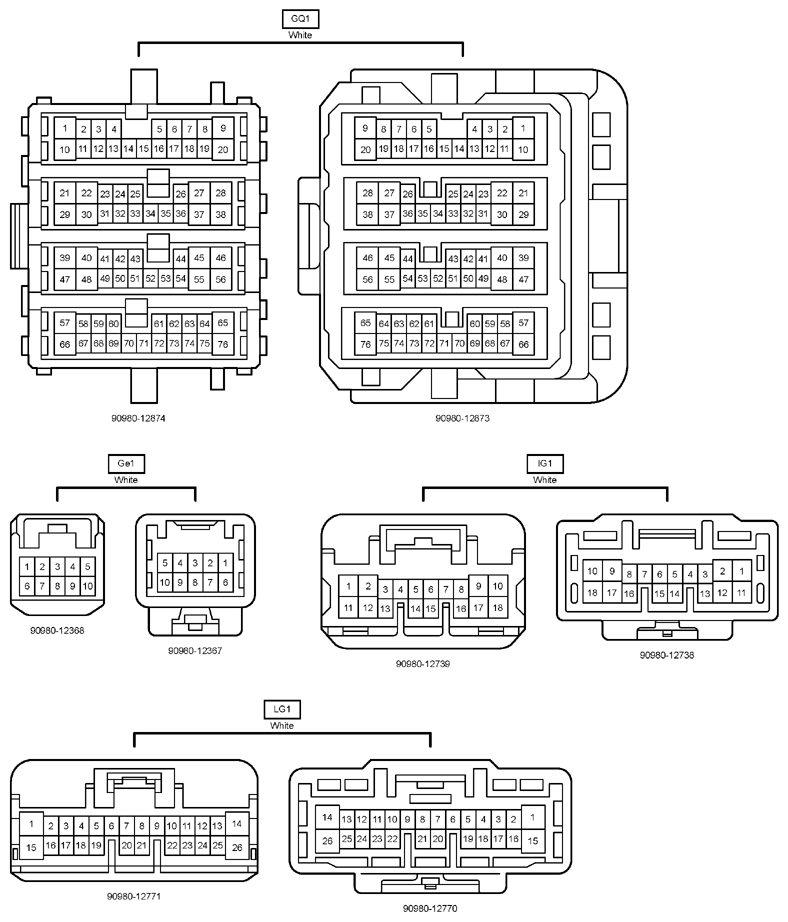

Fig 13: Connectors (13 Of 16)

G12204280

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

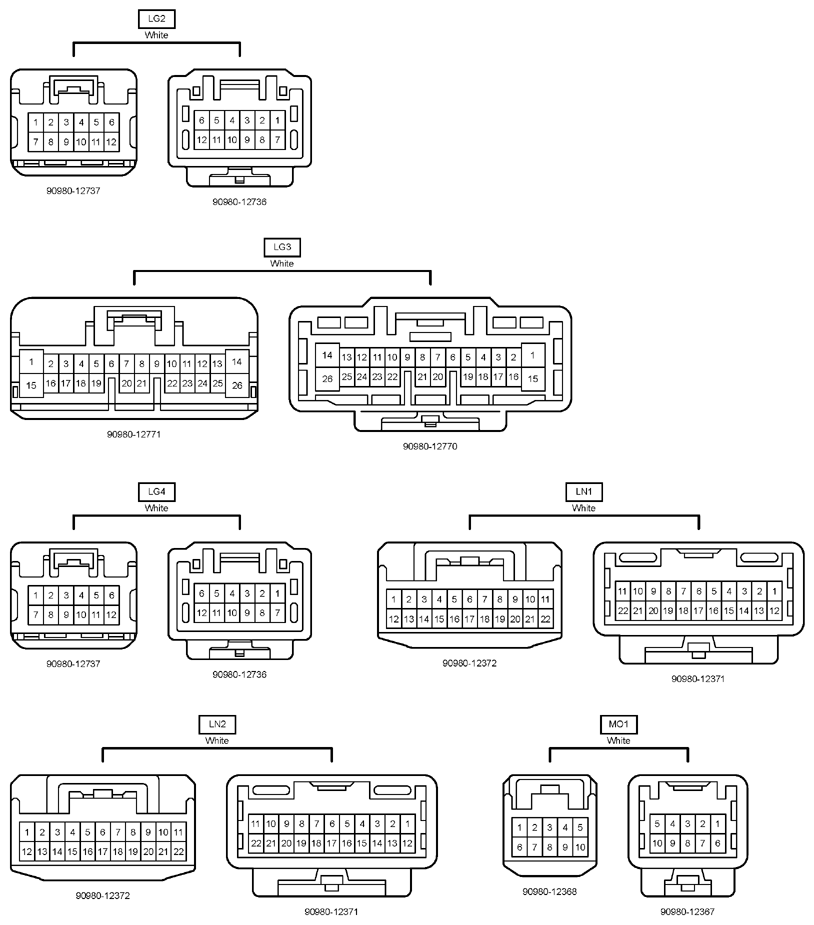

Fig 14: Connectors (14 Of 16)

G12204281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Connectors (15 Of 16)

G12204282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

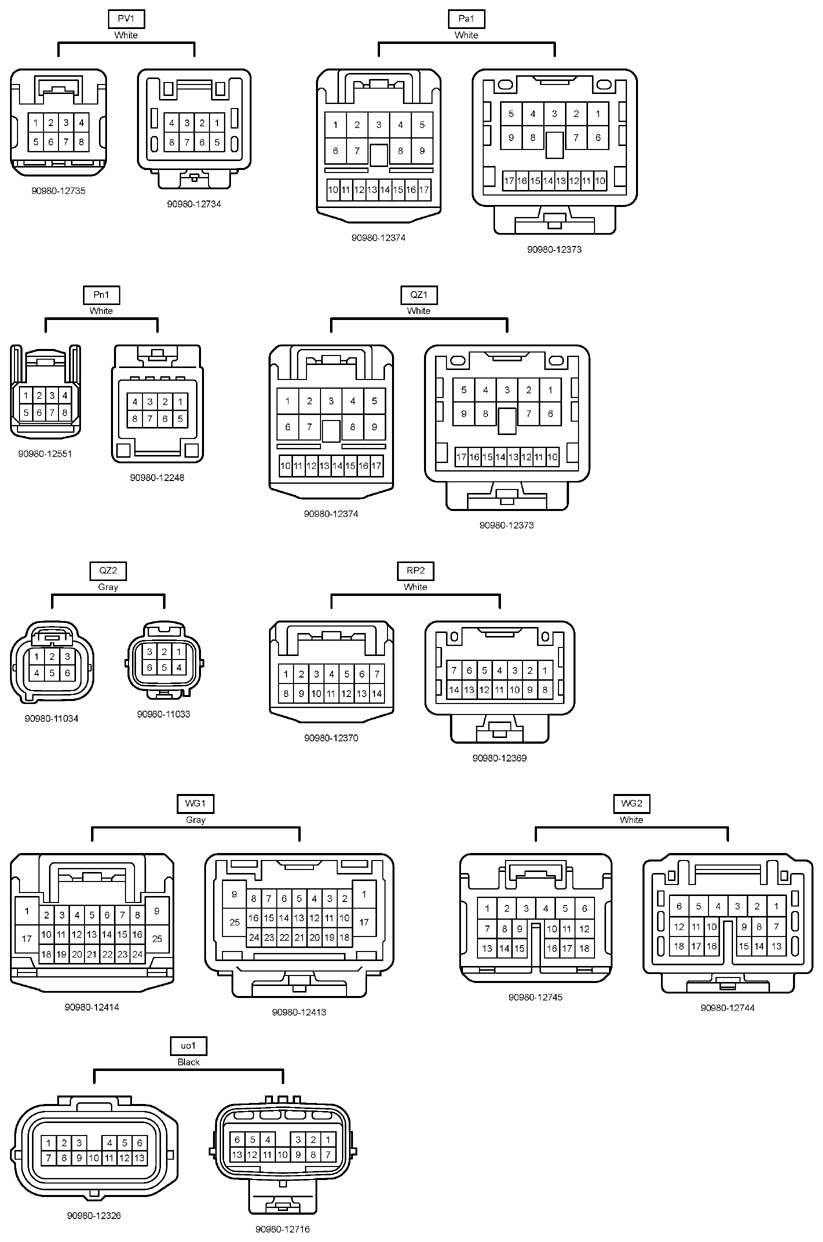

Fig 16: Connectors (16 Of 16)

G12204283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
