System Diagrams

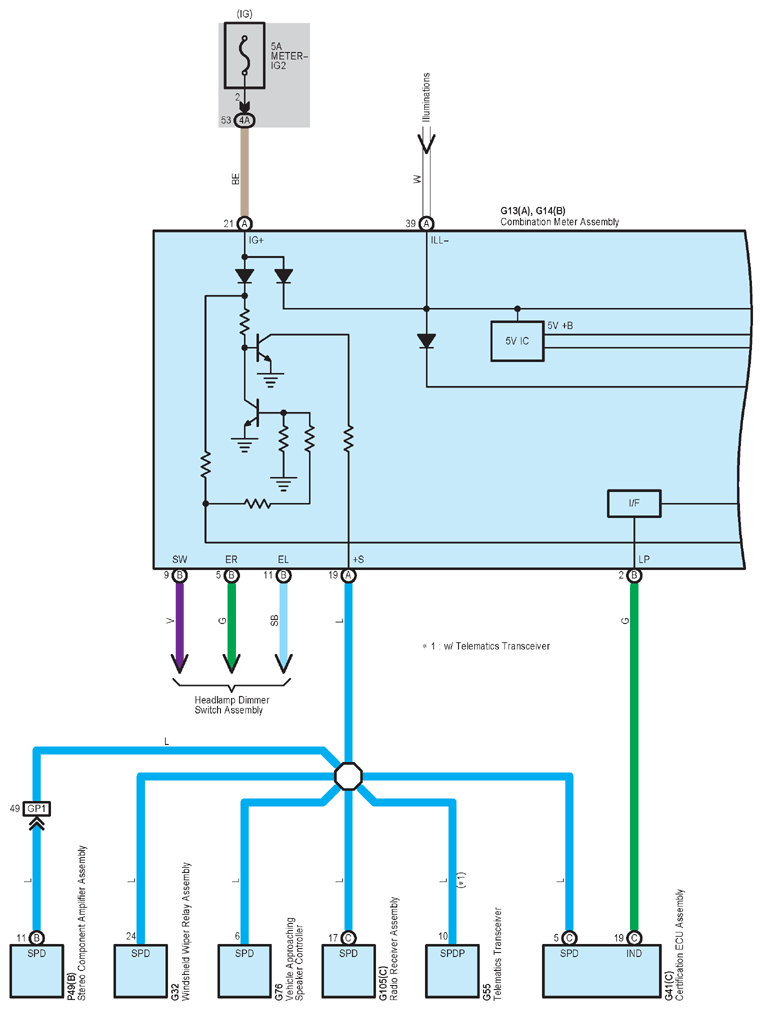

Fig 1: Combination Meter (1 Of 10)

G12204091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

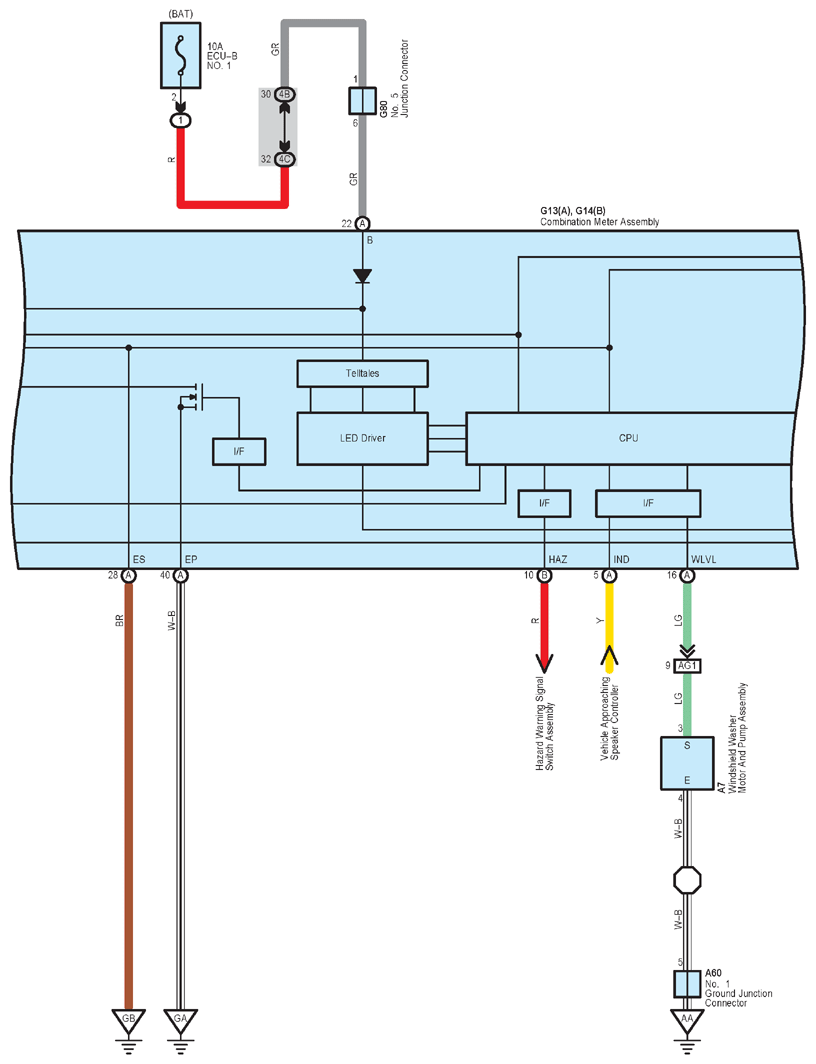

Fig 2: Combination Meter (2 Of 10)

G12204092

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

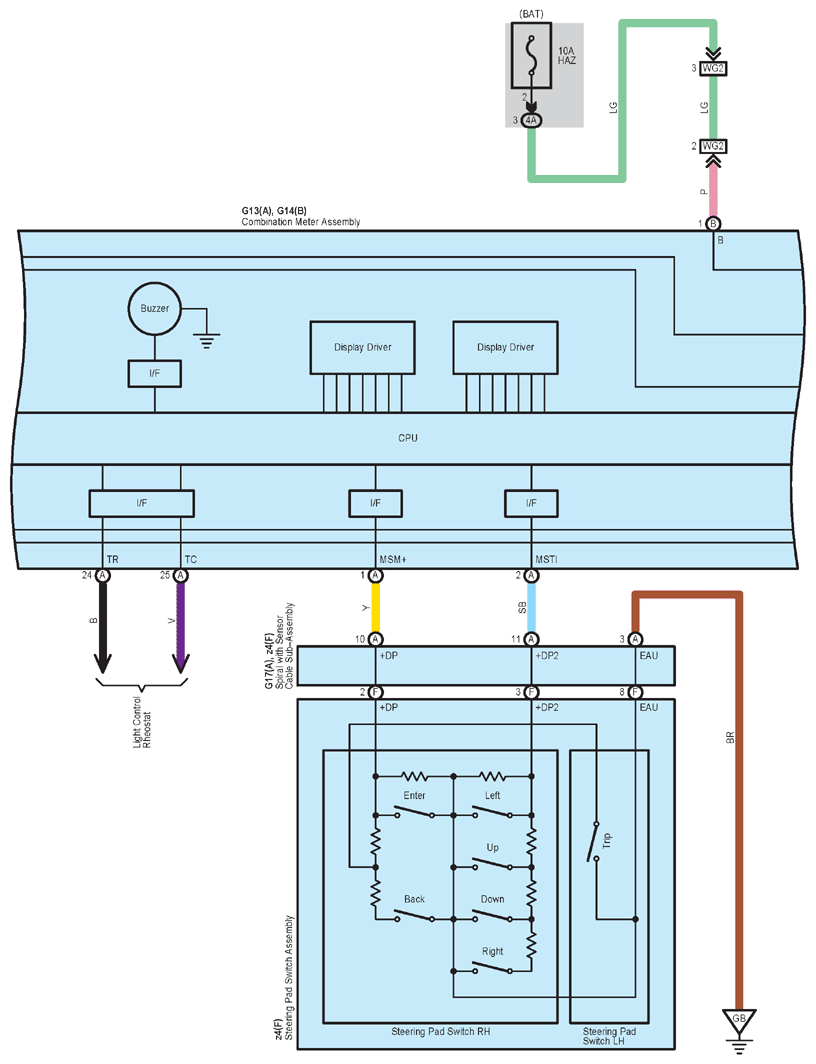

Fig 3: Combination Meter (3 Of 10)

G12204093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

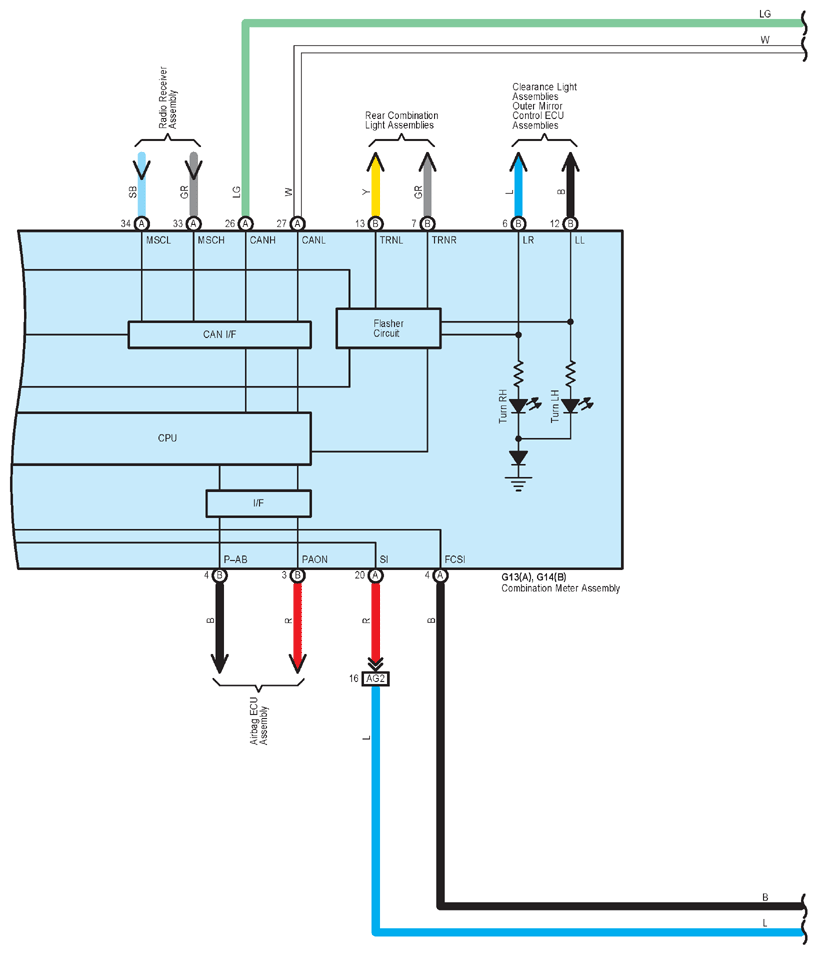

Fig 4: Combination Meter (4 Of 10)

G12204094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

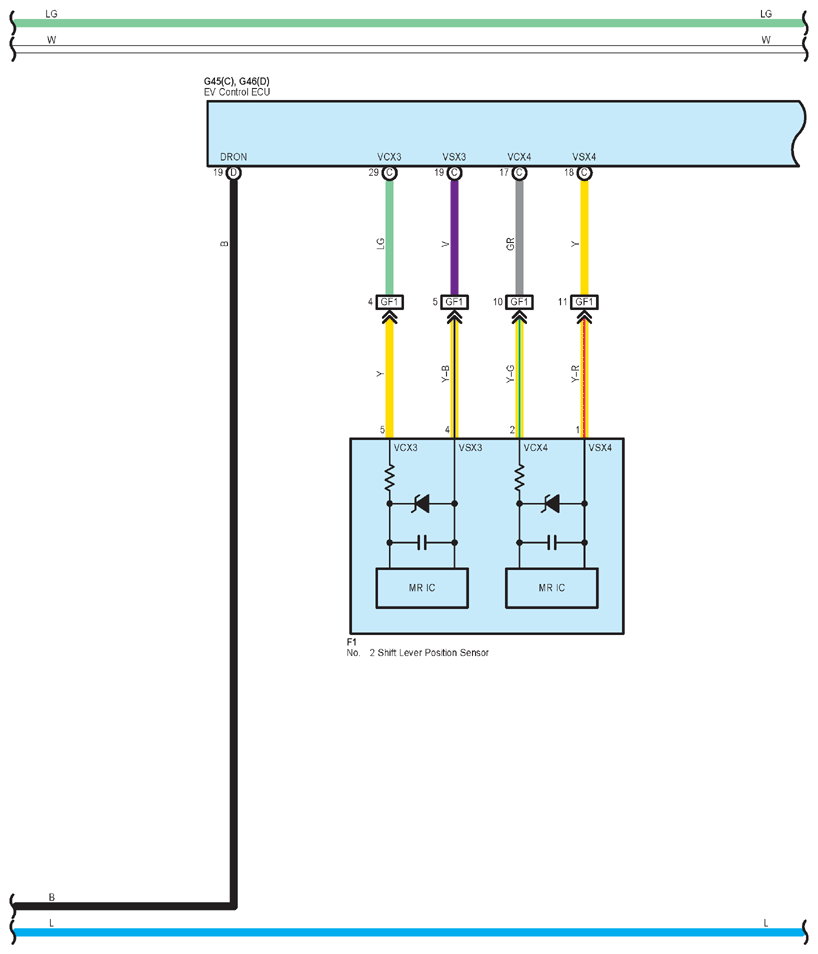

Fig 5: Combination Meter (5 Of 10)

G12204095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

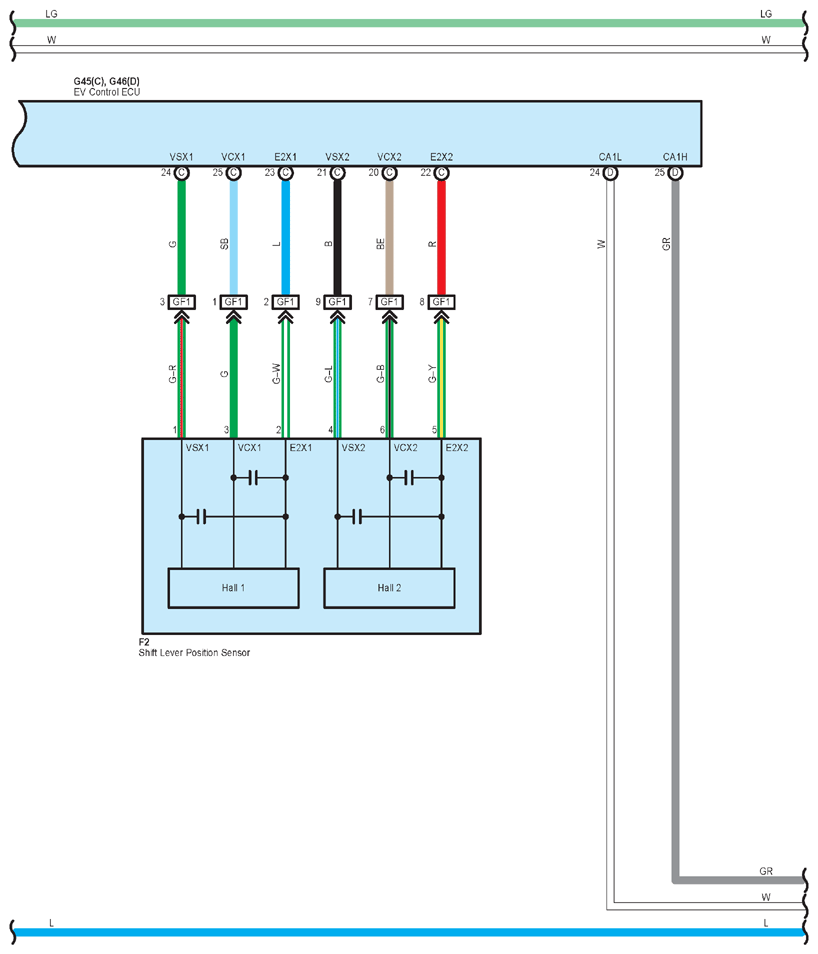

Fig 6: Combination Meter (6 Of 10)

G12204096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

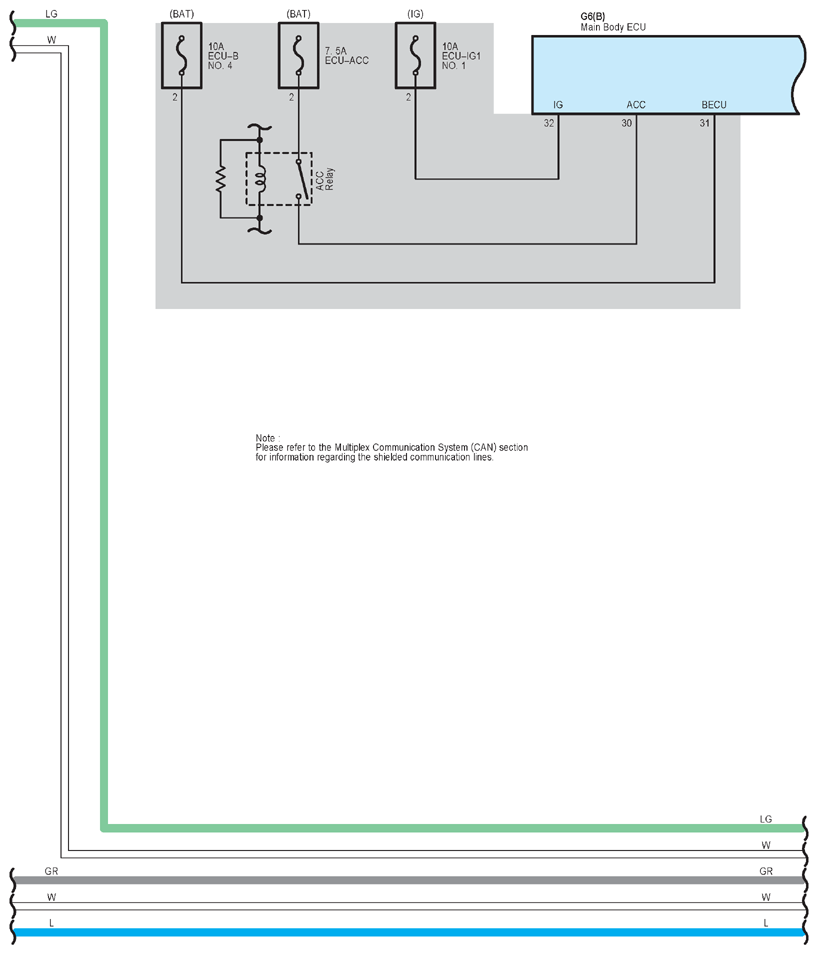

Fig 7: Combination Meter (7 Of 10)

G12204097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

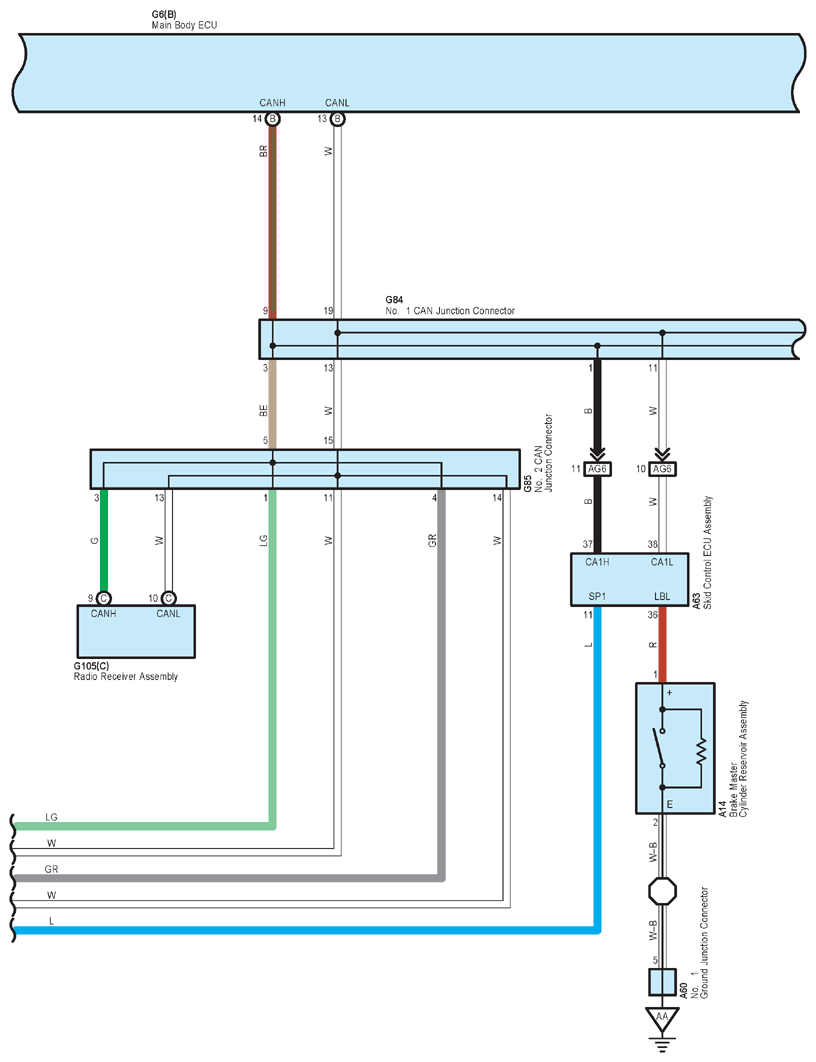

Fig 8: Combination Meter (8 Of 10)

G12204098

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

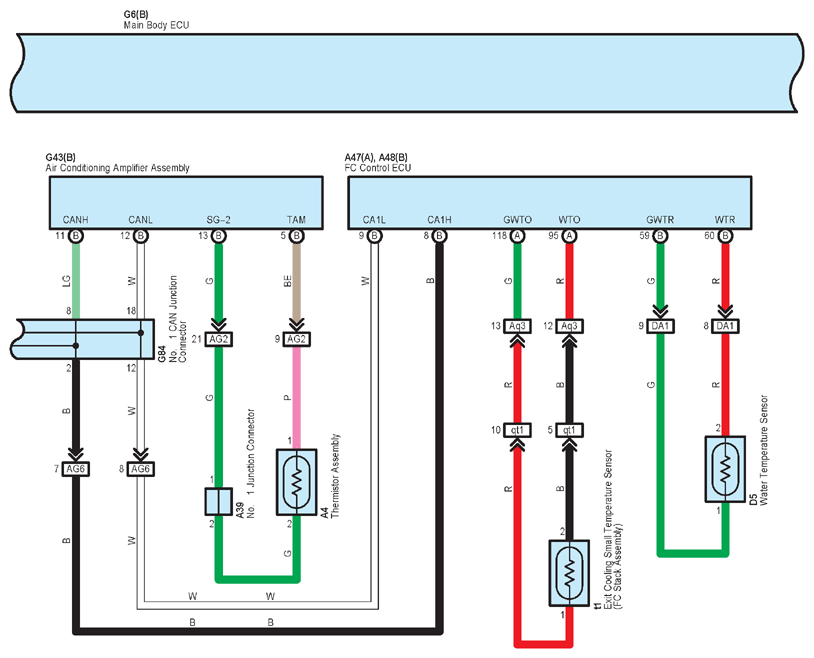

Fig 9: Combination Meter (9 Of 10)

G12204099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

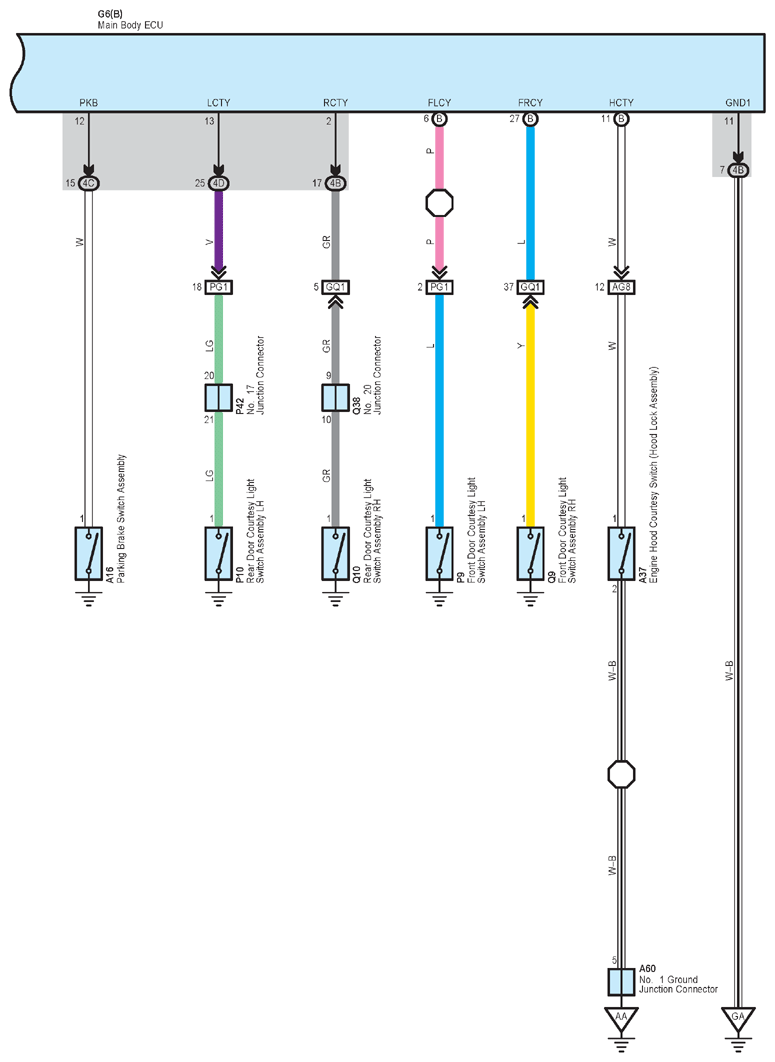

Fig 10: Combination Meter (10 Of 10)

G12204100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
