Removal [06/2015 - ]: Procedure

Refer to PROCEDURE - Step 1

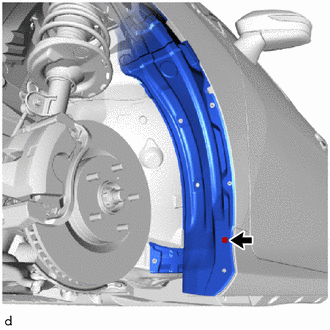

1. Using a 4 mm hexagon socket wrench, remove the 2 hexagon screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

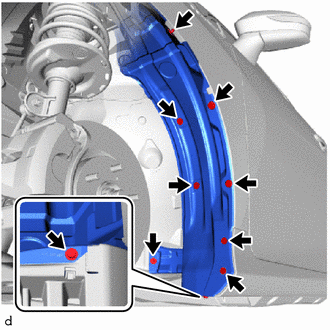

2. Remove the 4 screws and 3 clips.
3. Remove the grommet to separate the front fender splash shield sub-assembly from the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Turn back the front fender splash shield sub-assembly.
2. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

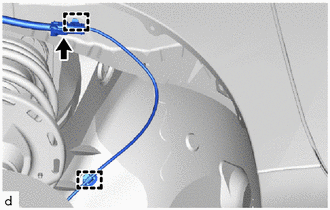

3. Disengage the 2 clamps to separate the front speed sensor from the vehicle body.

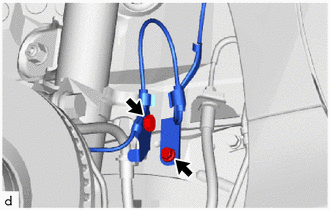

4. Remove the 2 bolts to separate the front speed sensor clamp from the front shock absorber assembly and vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Disengage the clamp from the front shock absorber assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

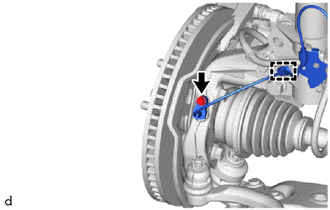

6. Remove the bolt and front speed sensor from the steering knuckle.
   NOTE:

   Prevent foreign matter from adhering to the front speed sensor tip.
