Land Cruiser
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Tire Pressure Warning System
>>
System Diagrams
System Diagrams

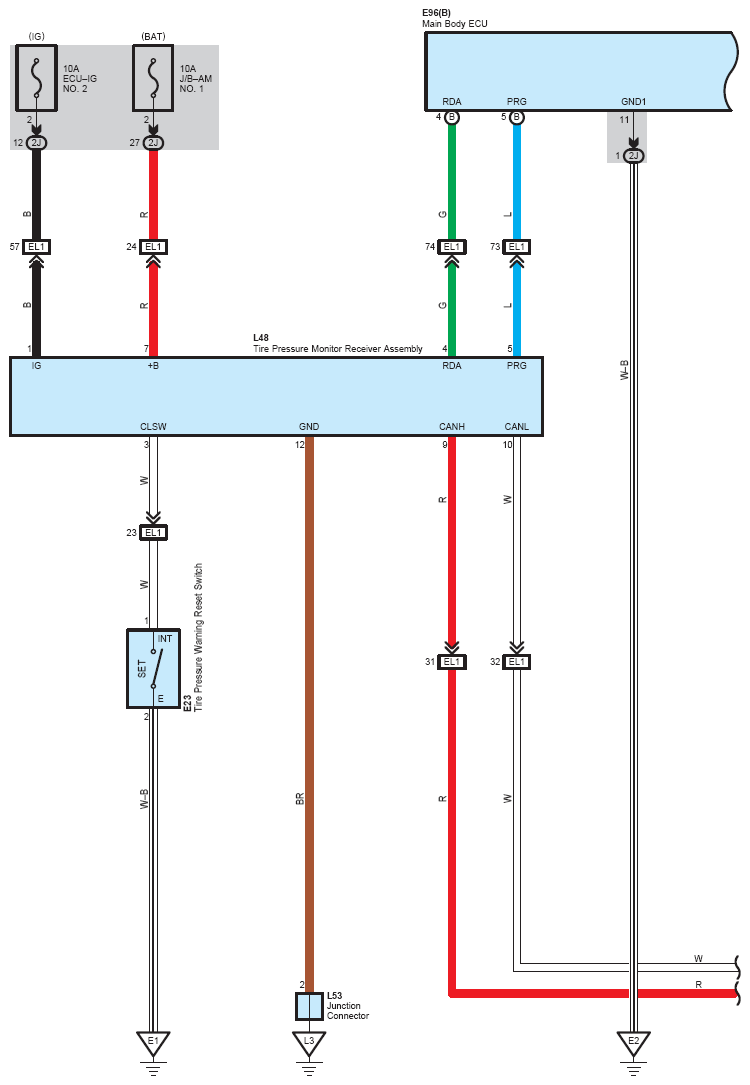

Fig 1: Tire Pressure Warning System (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

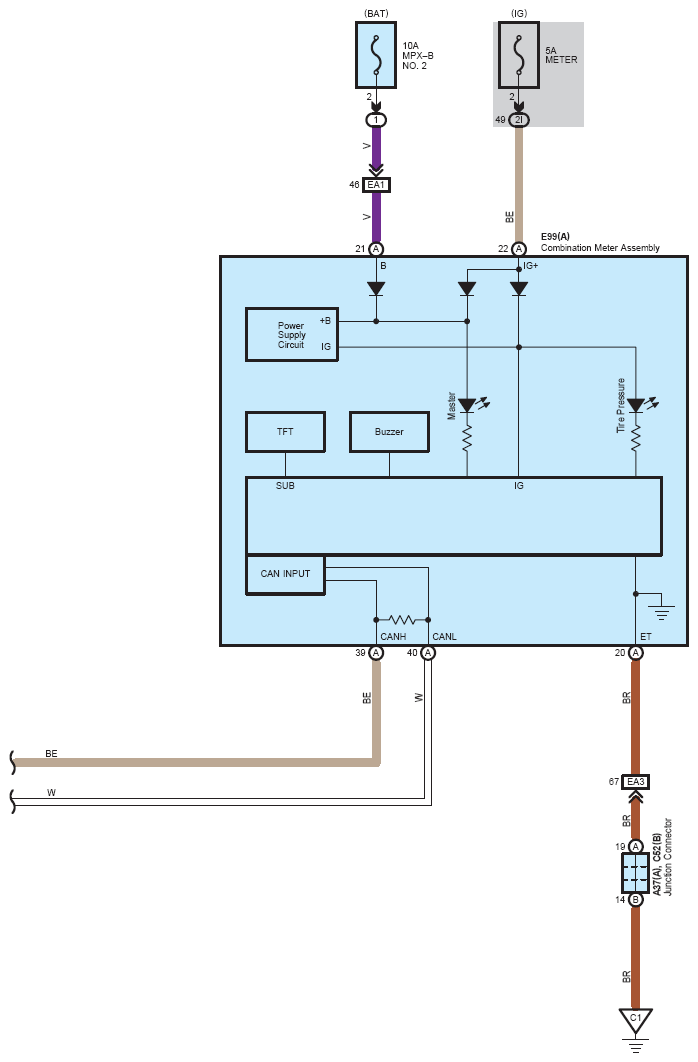

Fig 2: Tire Pressure Warning System (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

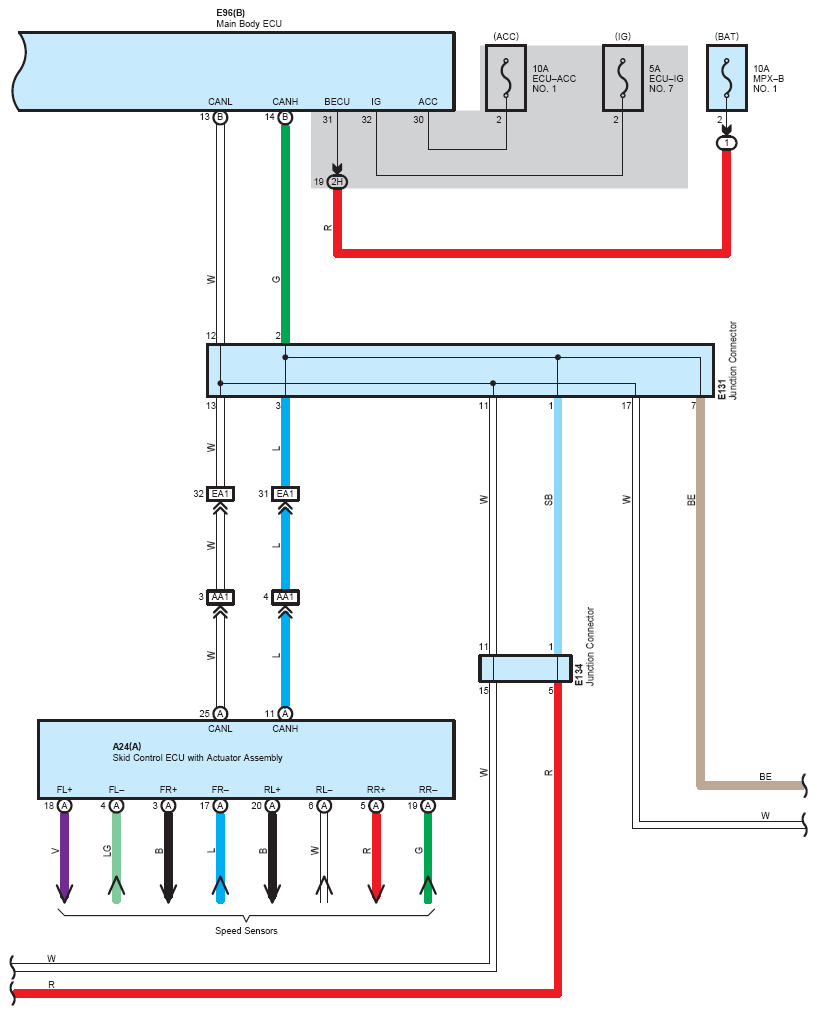

Fig 3: Tire Pressure Warning System (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
