System Diagrams

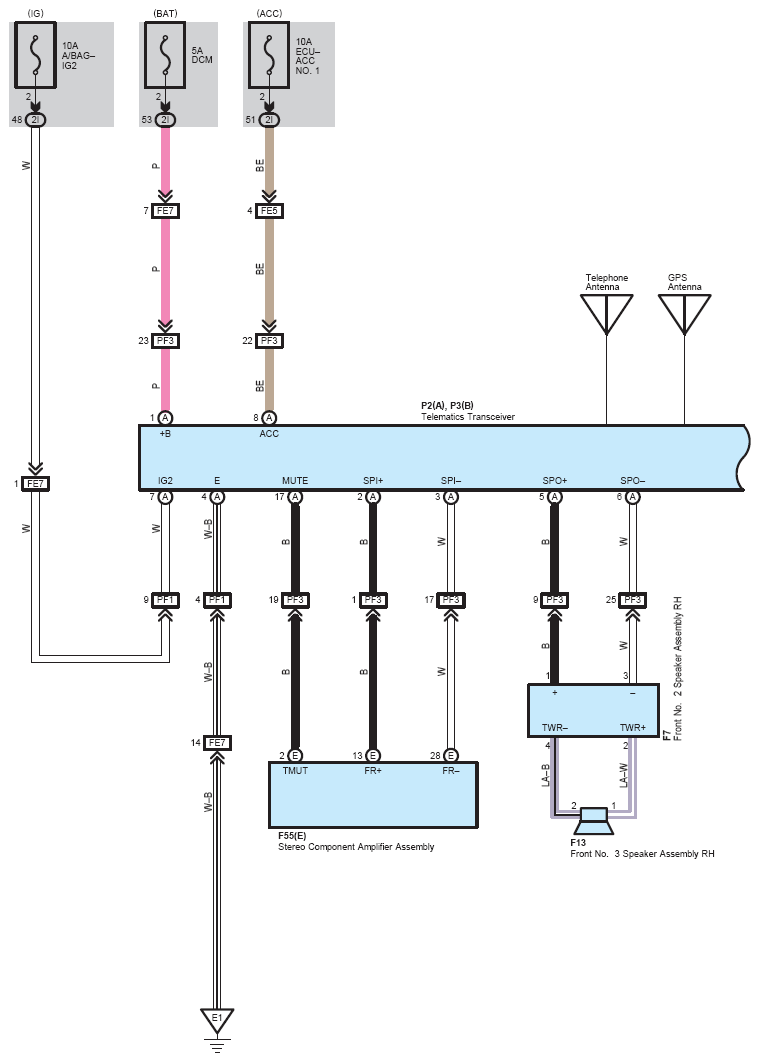

Fig 1: Safety Connect (1 Of 5)
G12206709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

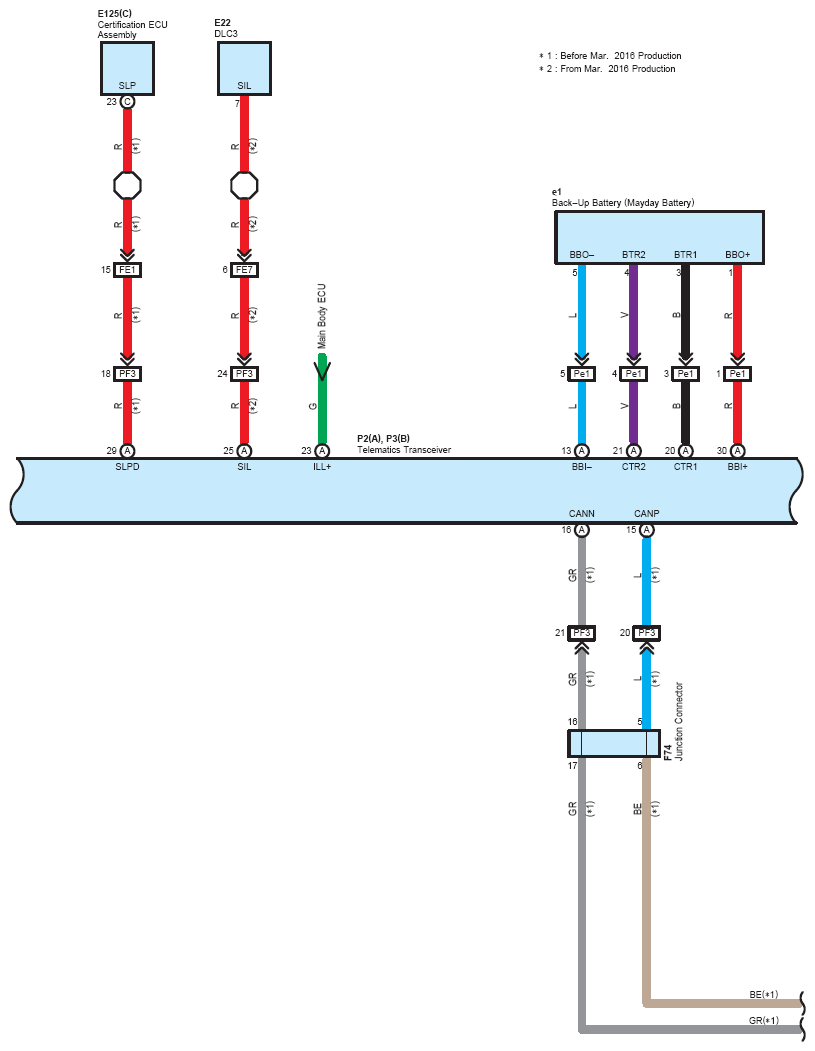

Fig 2: Safety Connect (2 Of 5)
G12206710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

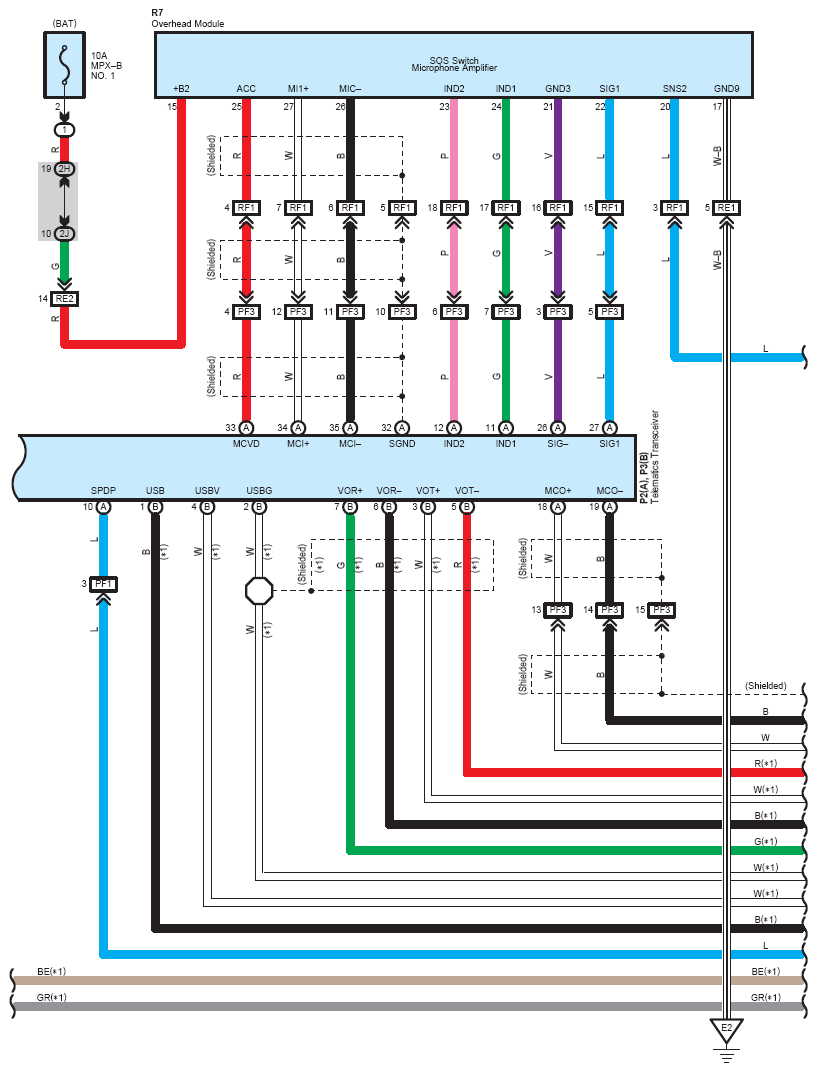

Fig 3: Safety Connect (3 Of 5)
G12206711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

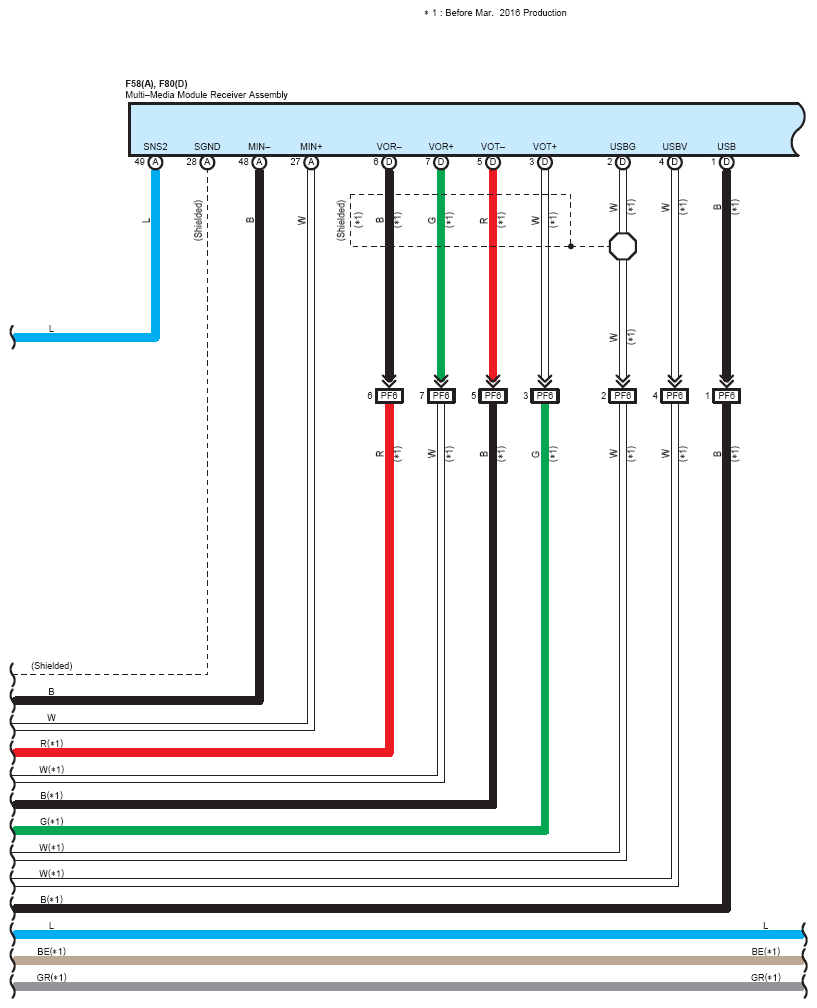

Fig 4: Safety Connect (4 Of 5)
G12206712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

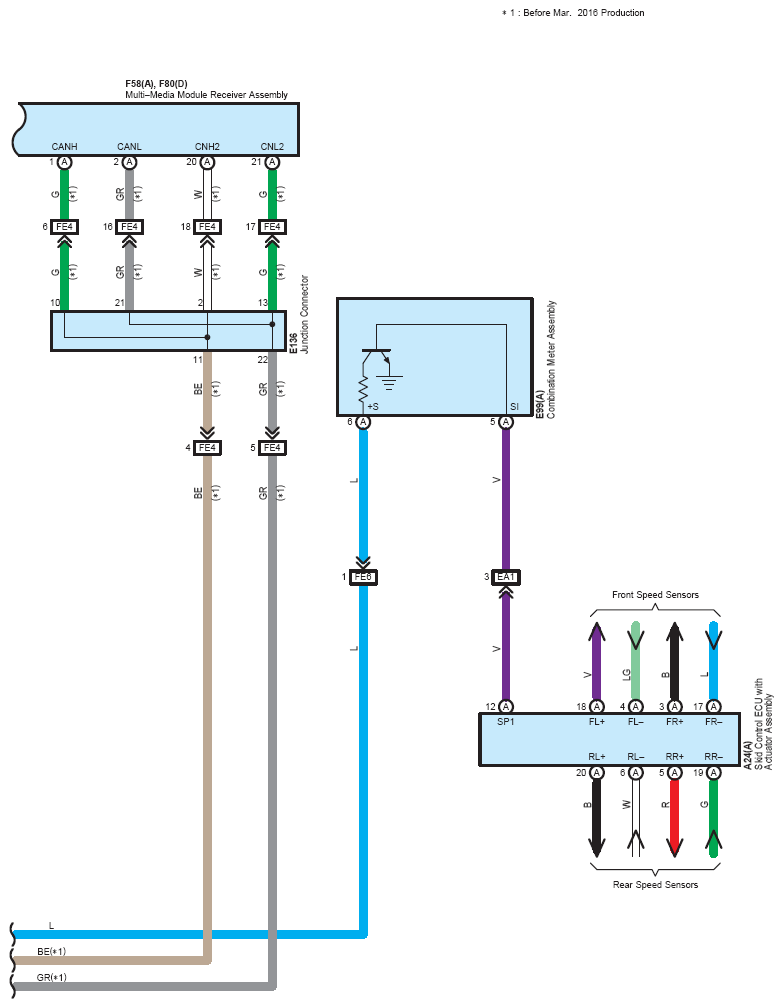

Fig 5: Safety Connect (5 Of 5)
G12206713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
