System Diagrams

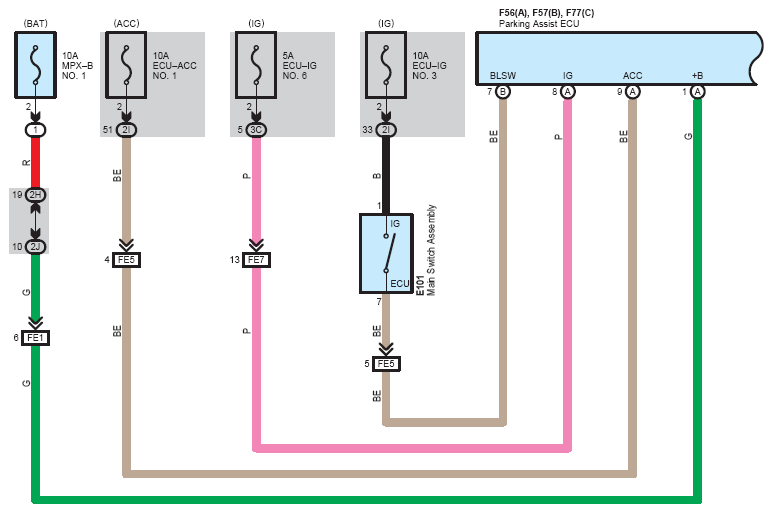

Fig 1: Multi-Terrain Monitor, Parking Assist (Back Guide Monitor) (7 Of 7)
G12206617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

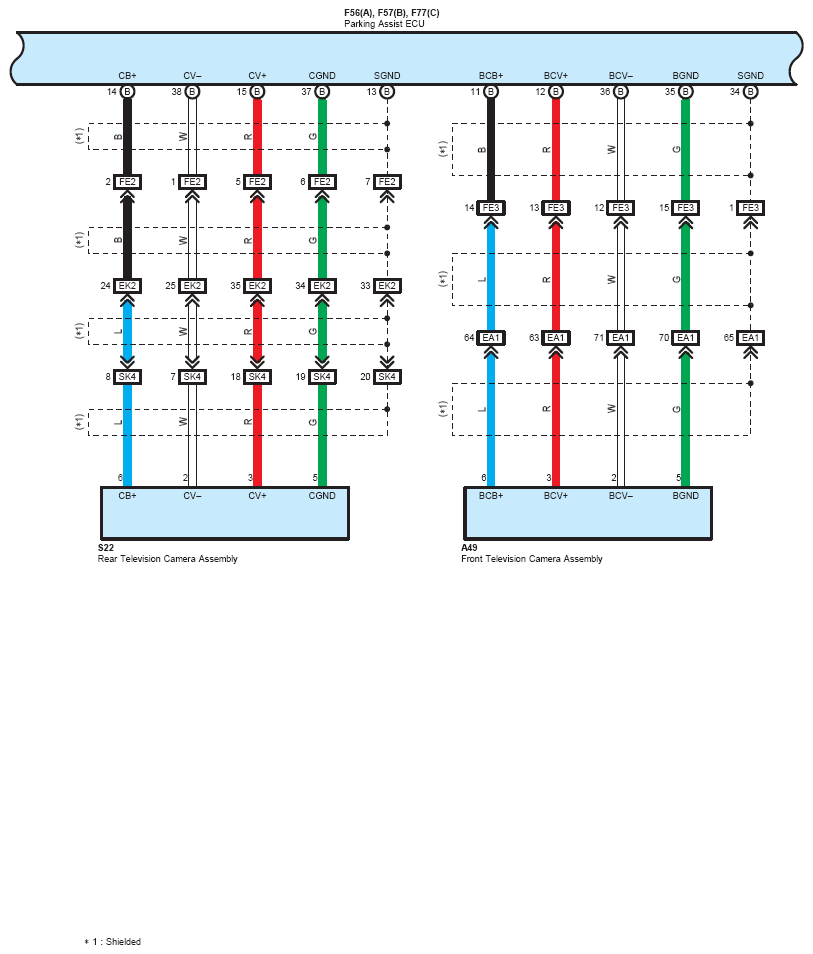

Fig 2: Multi-Terrain Monitor, Parking Assist (Back Guide Monitor) (8 Of 7)
G12206618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

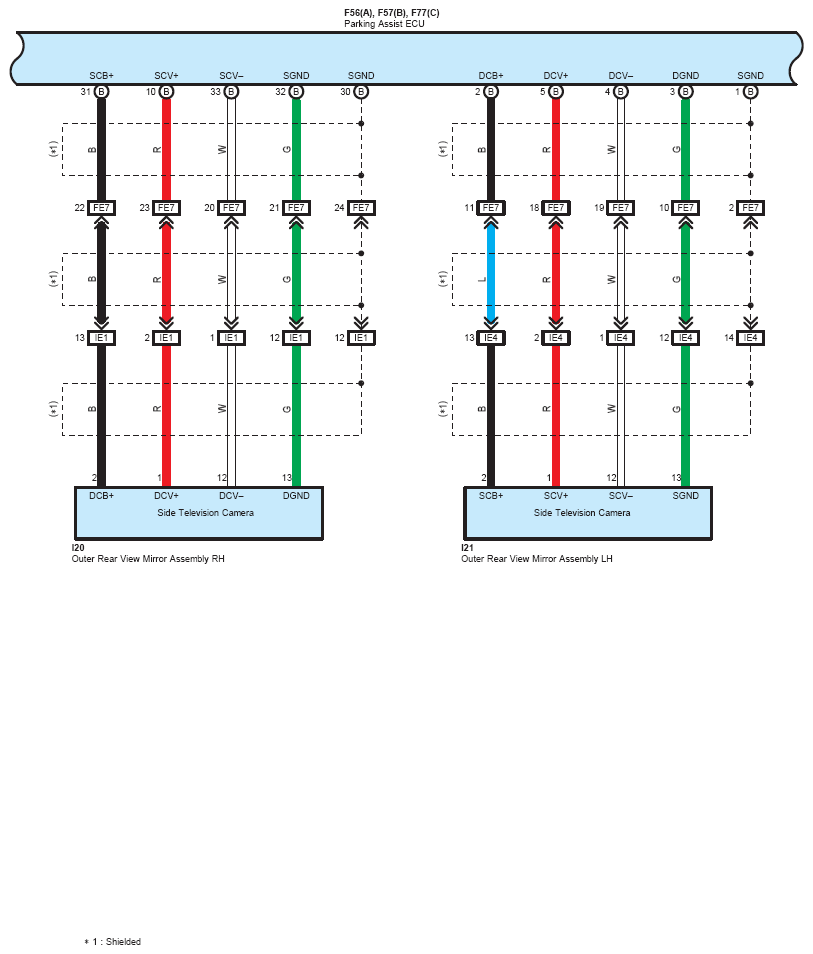

Fig 3: Multi-Terrain Monitor, Parking Assist (Back Guide Monitor) (9 Of 7)
G12206619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

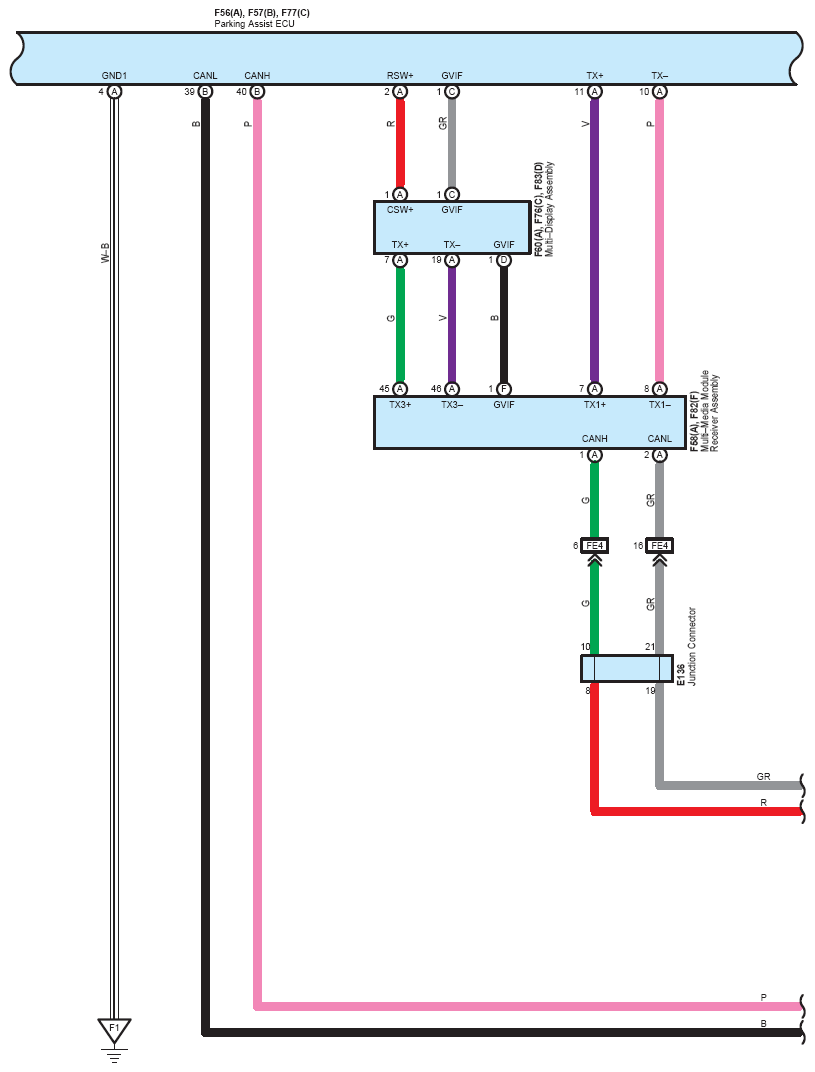

Fig 4: Multi-Terrain Monitor, Parking Assist (Back Guide Monitor) (10 Of 7)
G12206620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Multi-Terrain Monitor, Parking Assist (Back Guide Monitor) (11 Of 7)
G12206621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

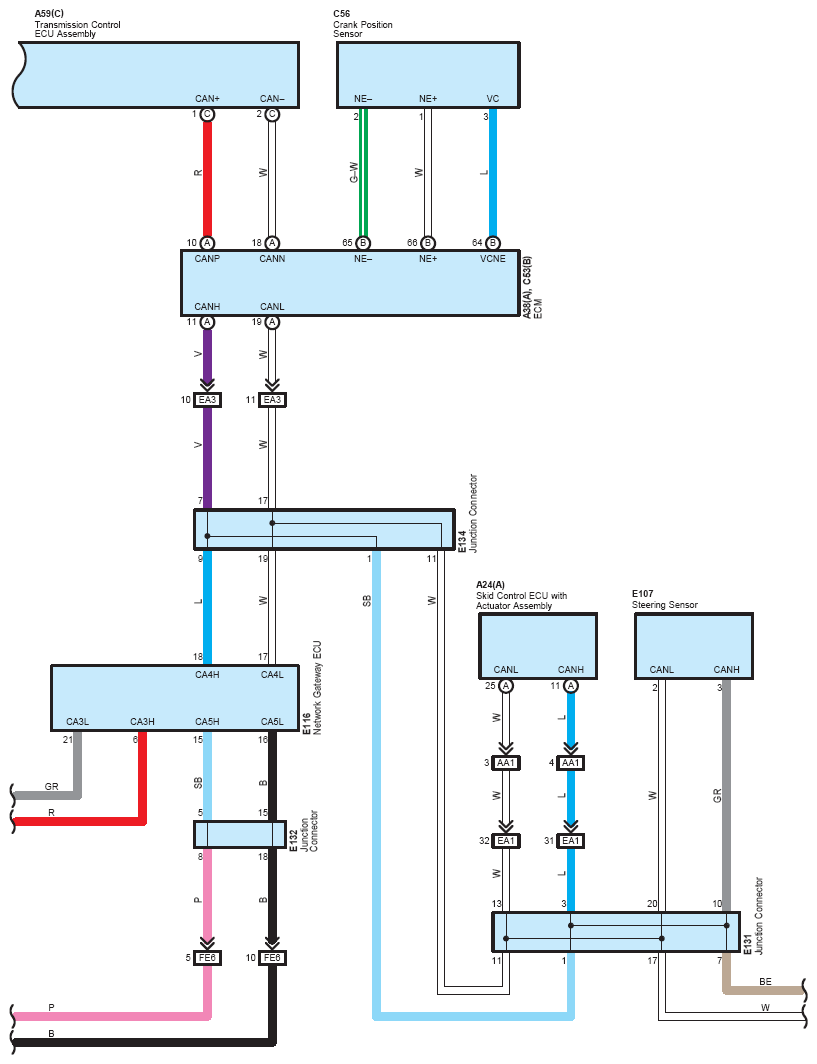

Fig 6: Multi-Terrain Monitor, Parking Assist (Back Guide Monitor) (12 Of 7)
G12206622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

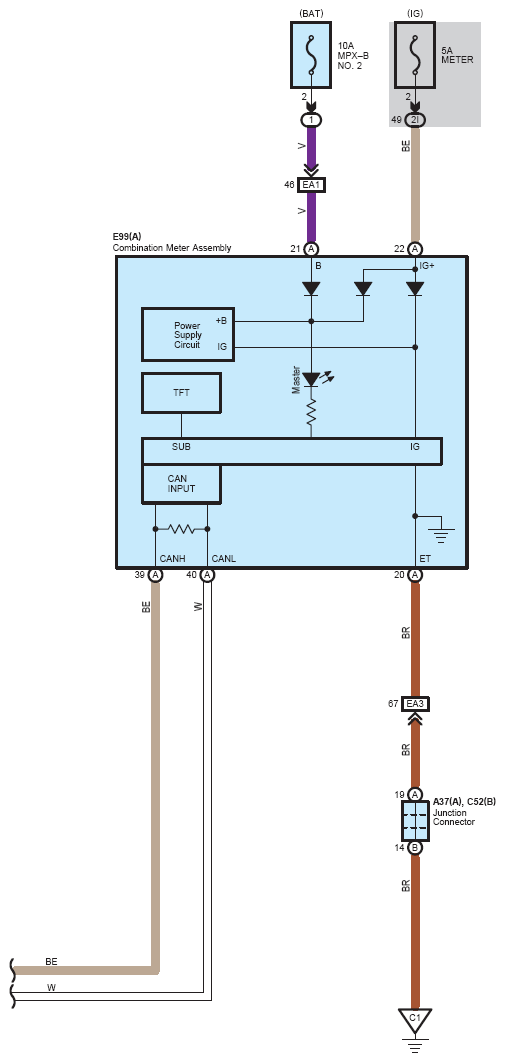

Fig 7: Multi-Terrain Monitor, Parking Assist (Back Guide Monitor) (13 Of 7)
G12206623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
