System Diagrams — 2017 Toyota Land Cruiser Service Manual ~ LEMON Manuals

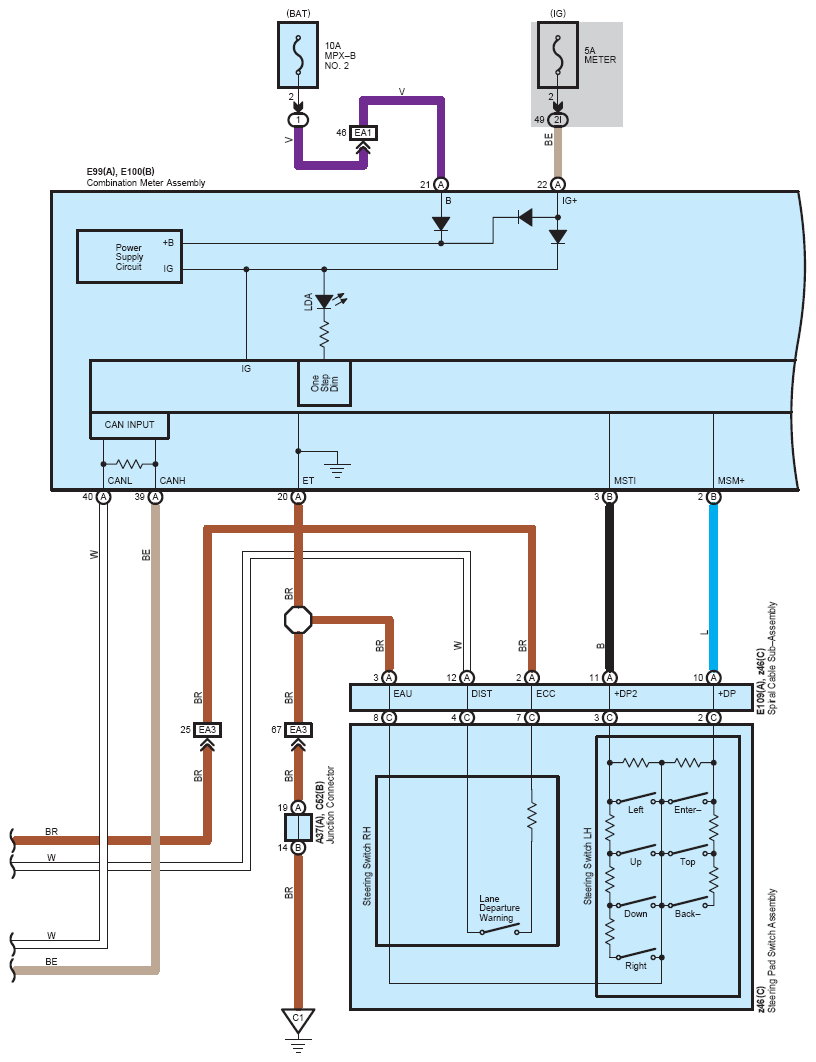

Fig 1: Lane Departure Alert (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

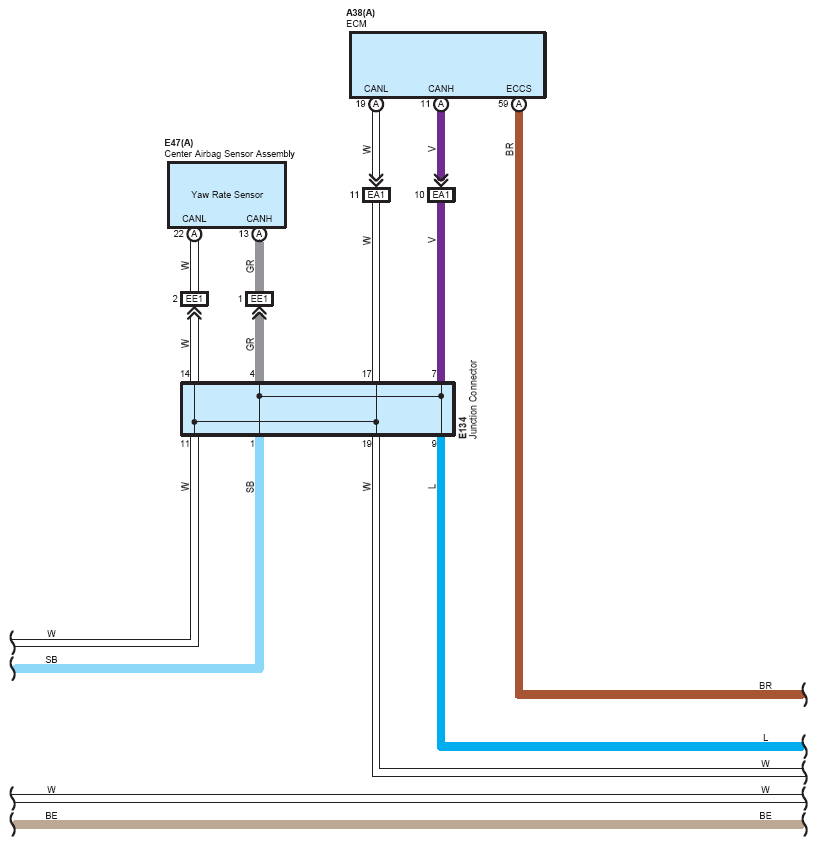

Fig 2: Lane Departure Alert (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

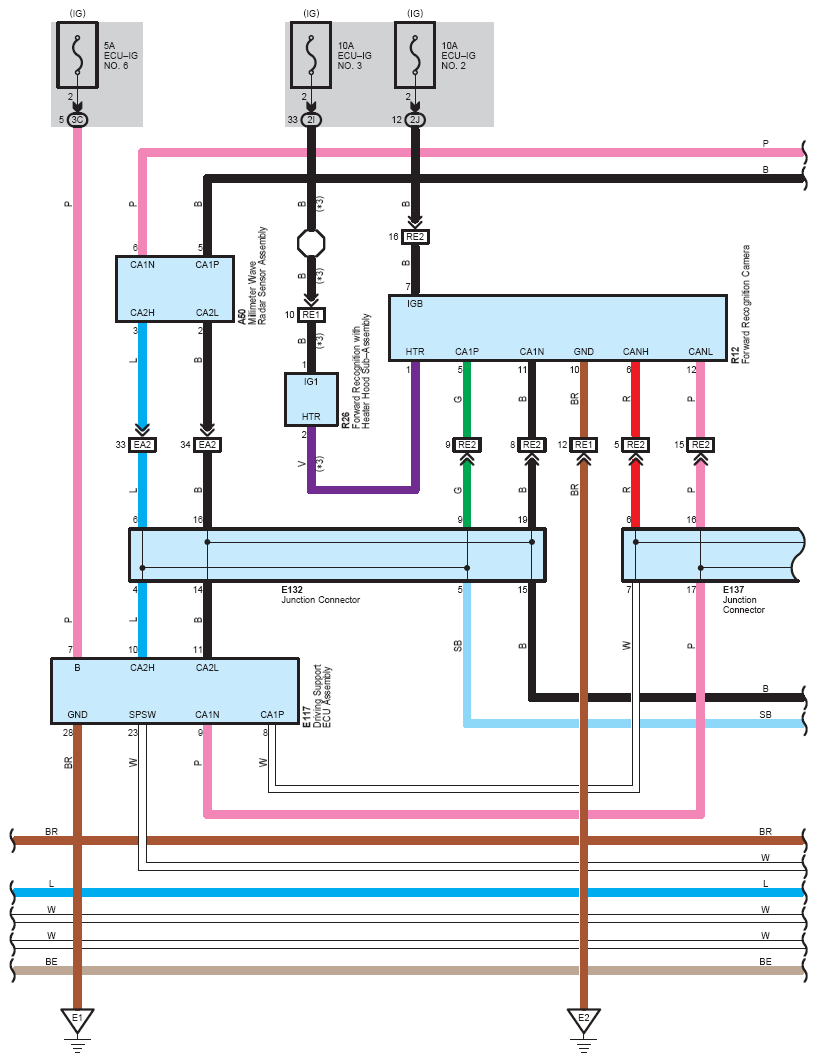

Fig 3: Lane Departure Alert (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Lane Departure Alert (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Lane Departure Alert (5 Of 6)

Fig 6: Lane Departure Alert (6 Of 6)
