Home >> Toyota >> 2017 >> Land Cruiser >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Heated Steering Wheel System >> Connectors

Heated Steering Wheel System: Connectors

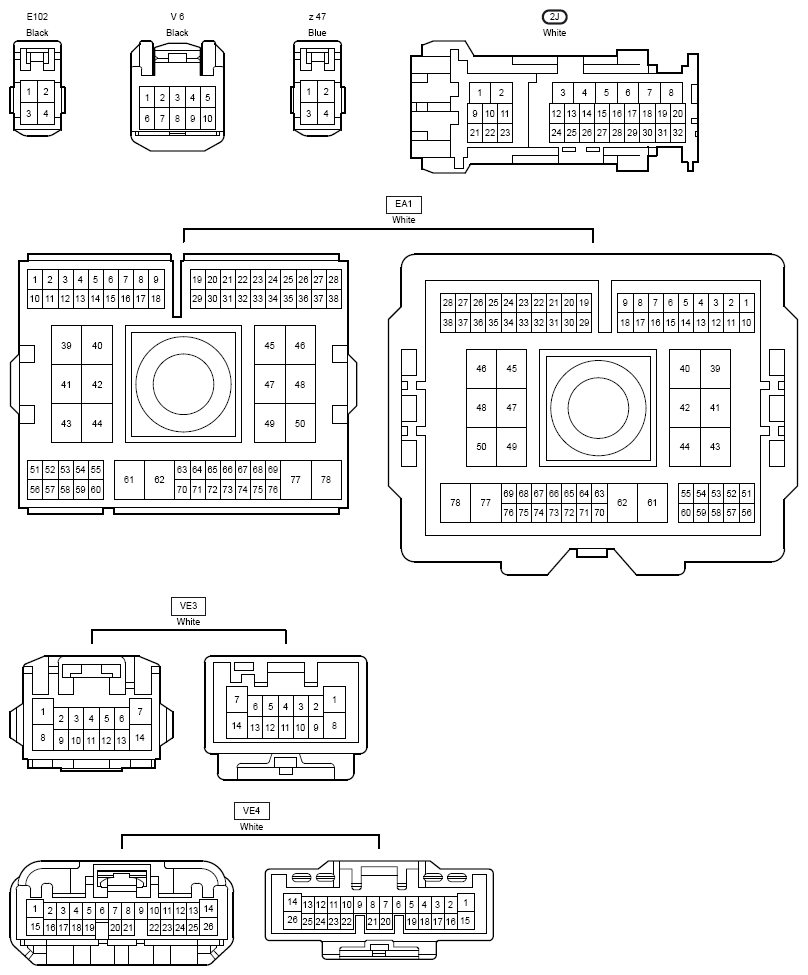

Fig 1: Connectors

G12206544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
