System Diagrams

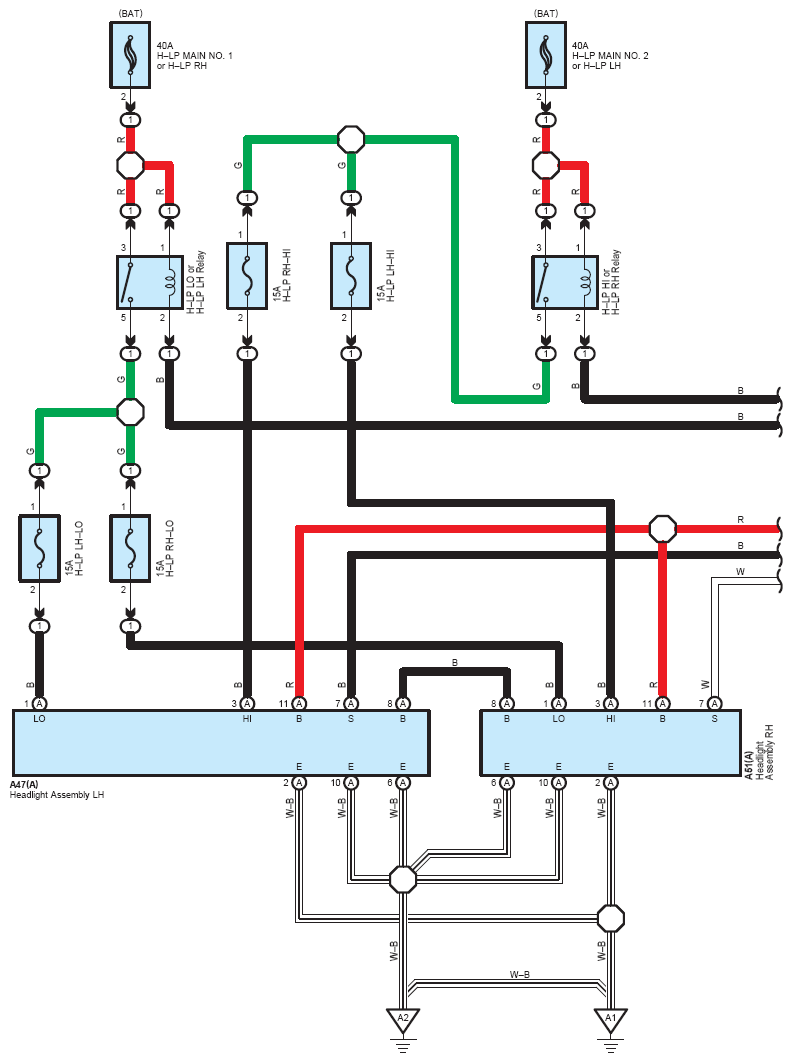

Fig 1: Headlight (1 Of 5)
G12206531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

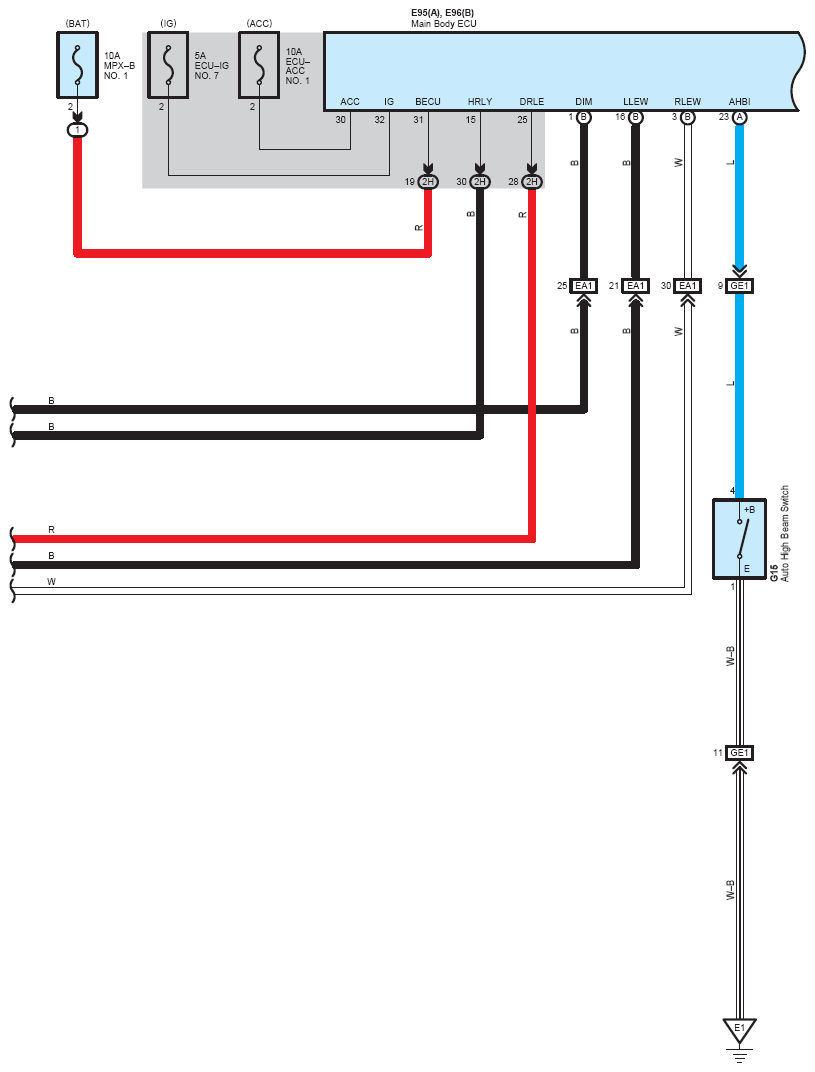

Fig 2: Headlight (2 Of 5)
G12206532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

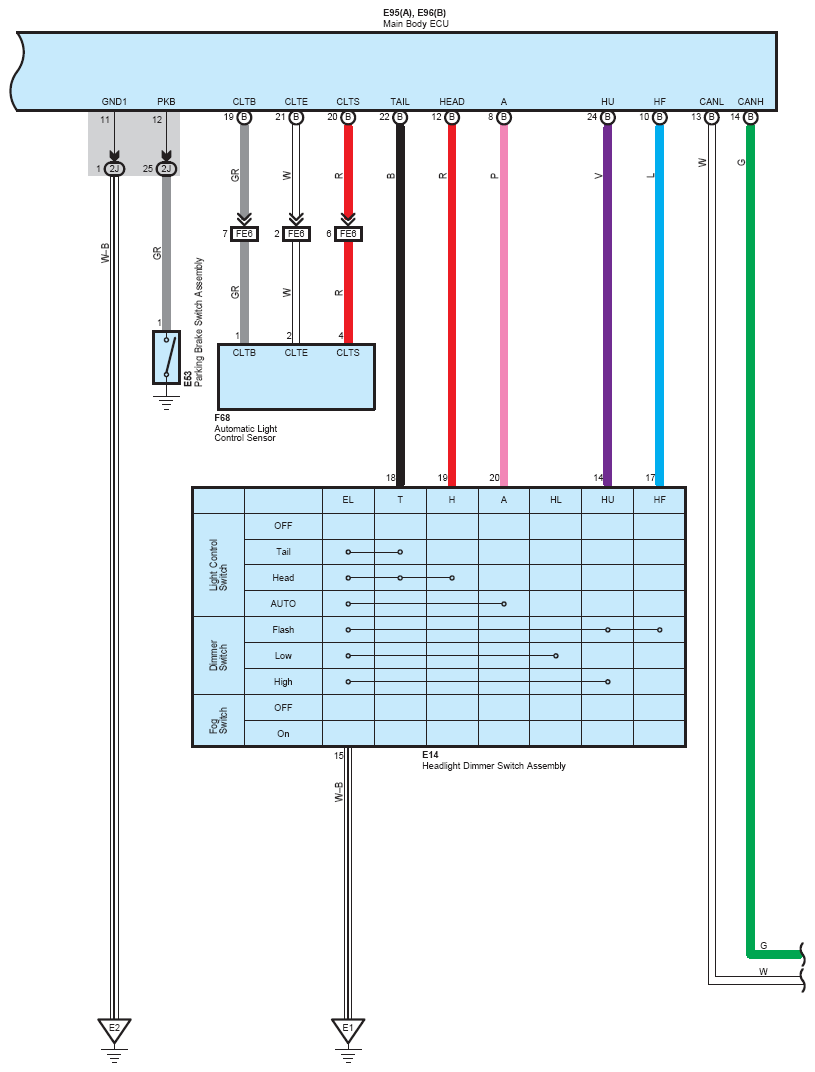

Fig 3: Headlight (3 Of 5)
G12206533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

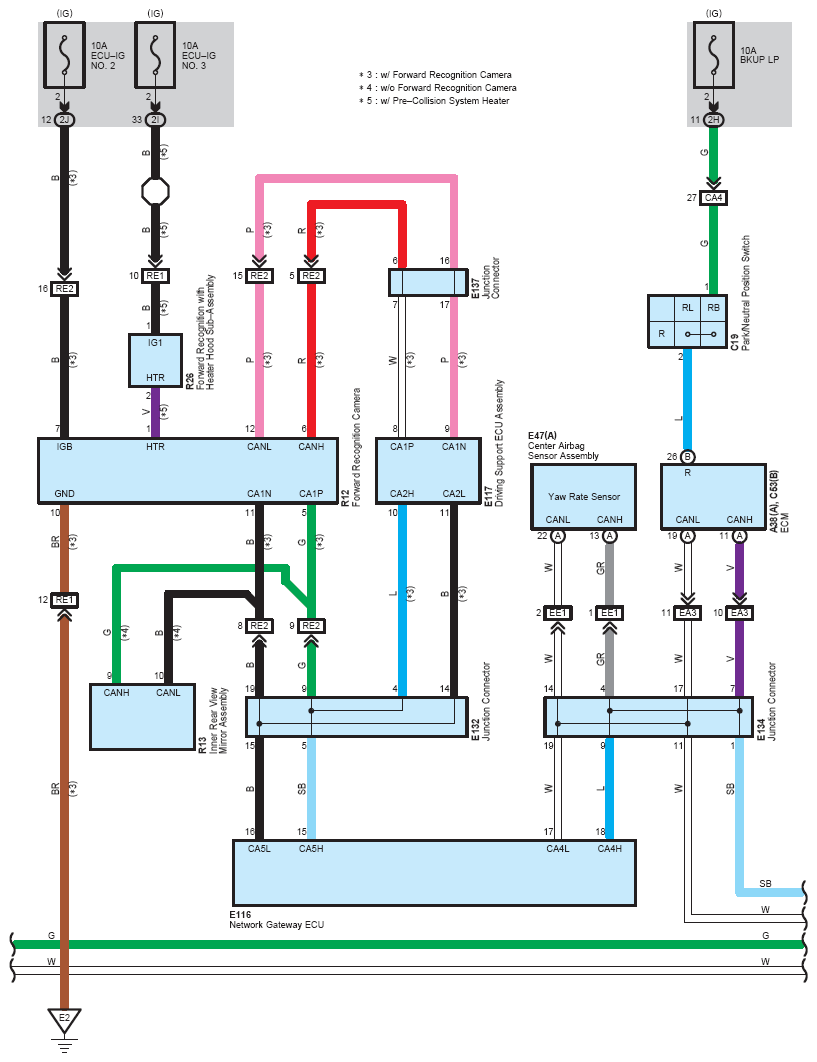

Fig 4: Headlight (4 Of 5)
G12206534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

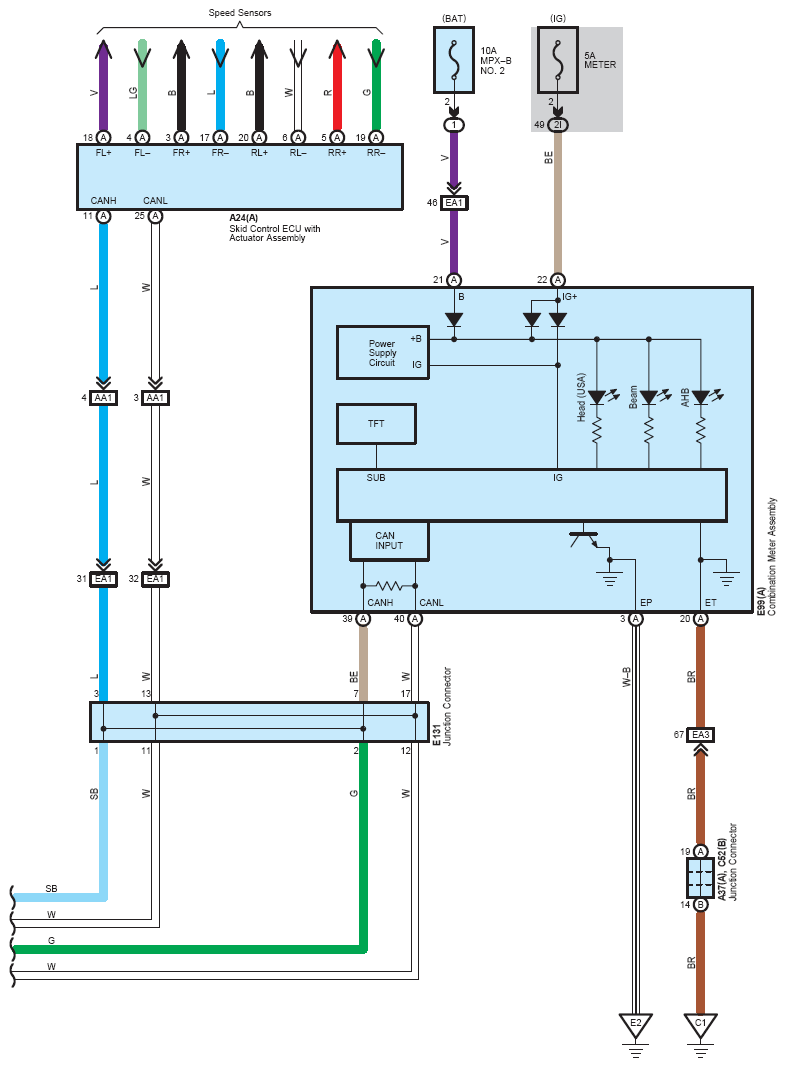

Fig 5: Headlight (5 Of 5)
G12206535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
