Ground Point: Connectors — 2017 Toyota Land Cruiser Service Manual ~ LEMON Manuals

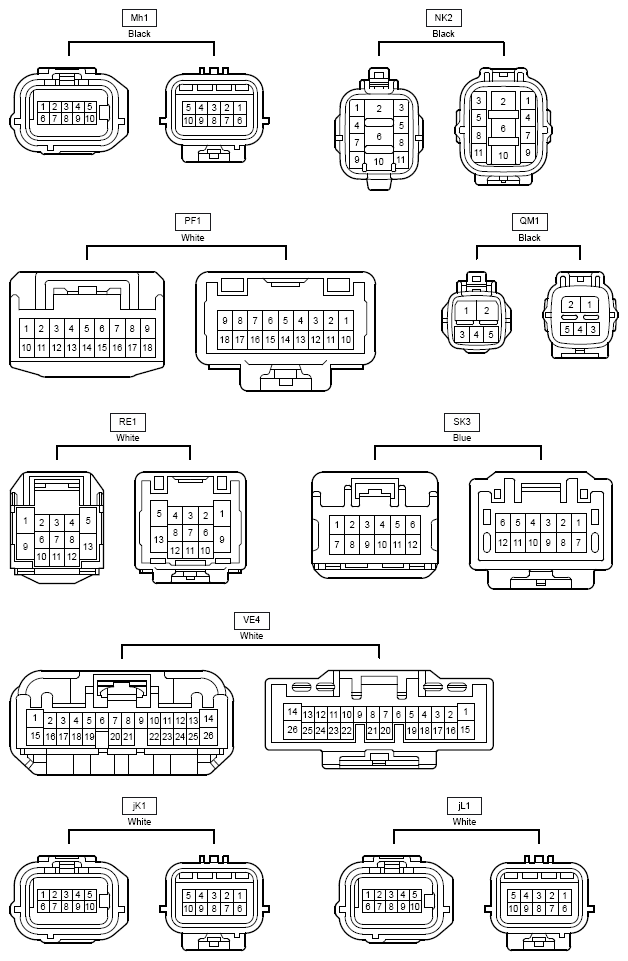

Fig 1: Connectors (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

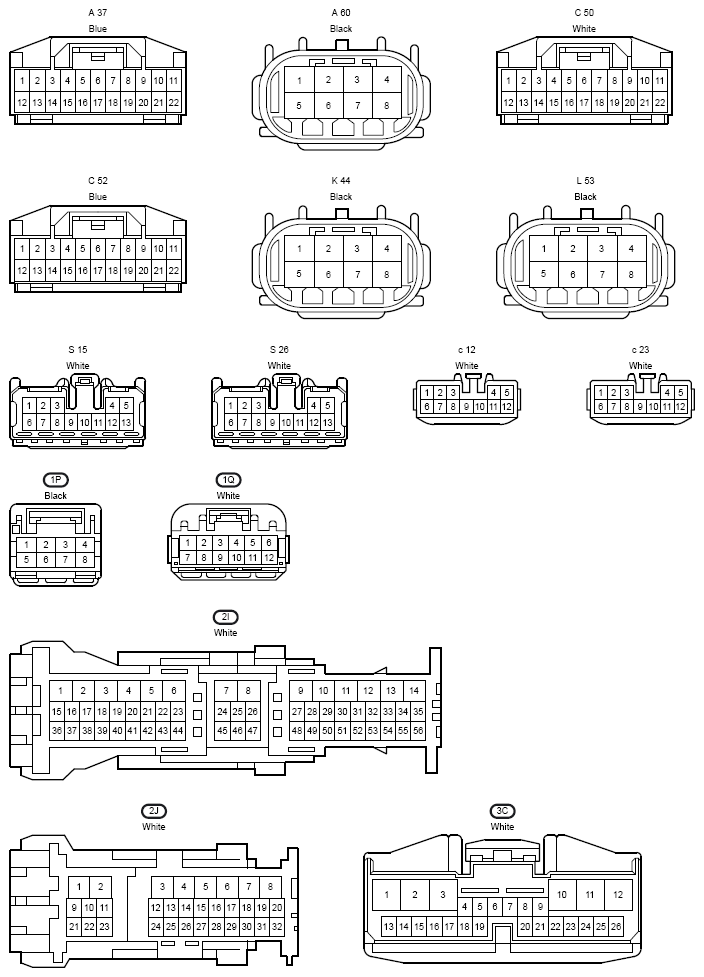

Fig 2: Connectors (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

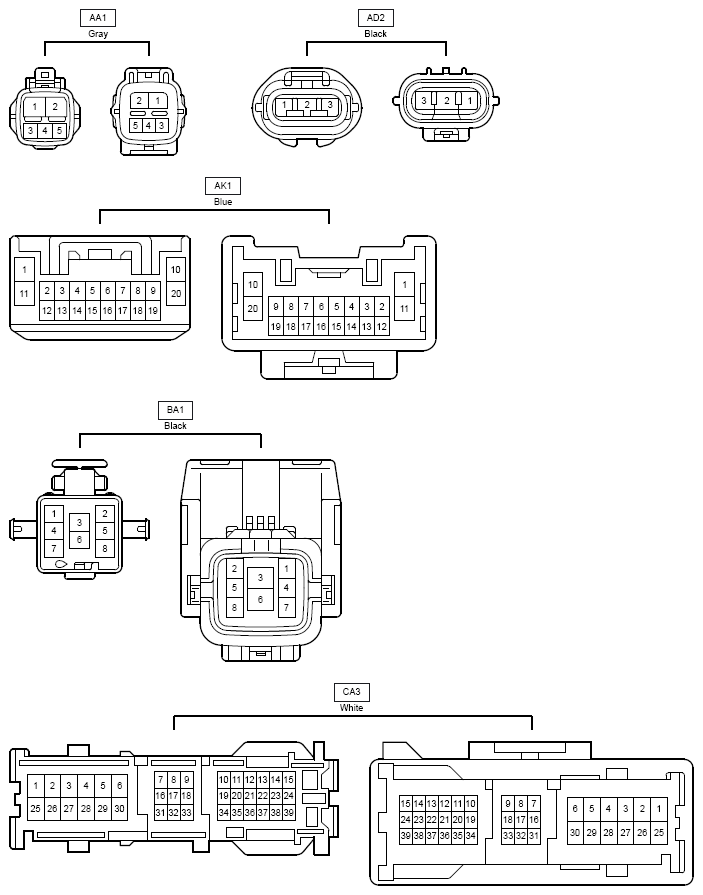

Fig 3: Connectors (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

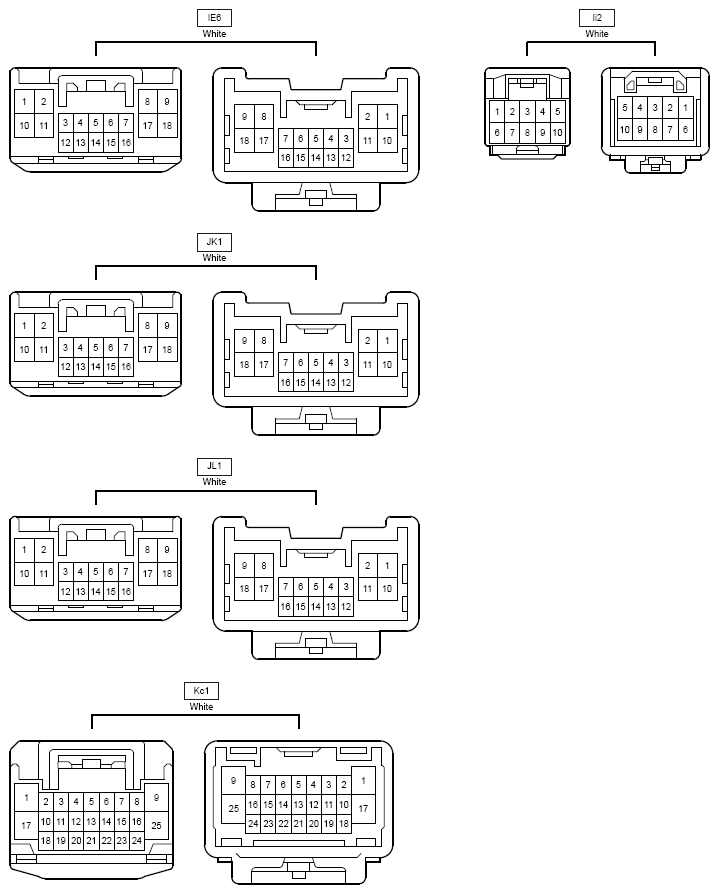

Fig 4: Connectors (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

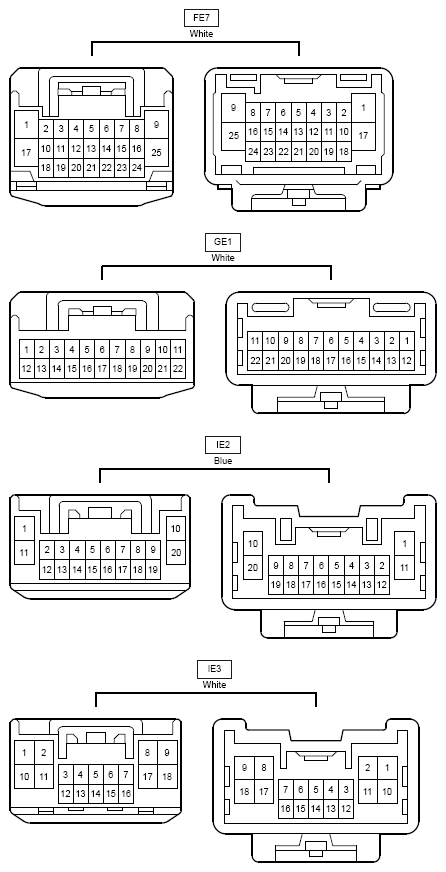

Fig 5: Connectors (5 Of 7)

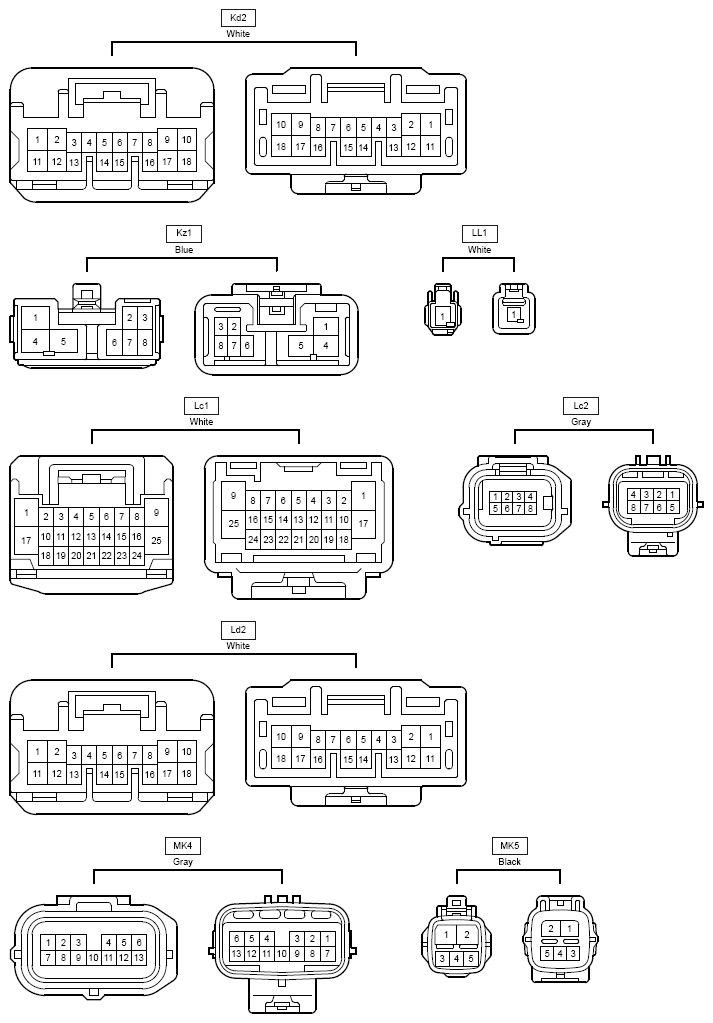

Fig 6: Connectors (6 Of 7)

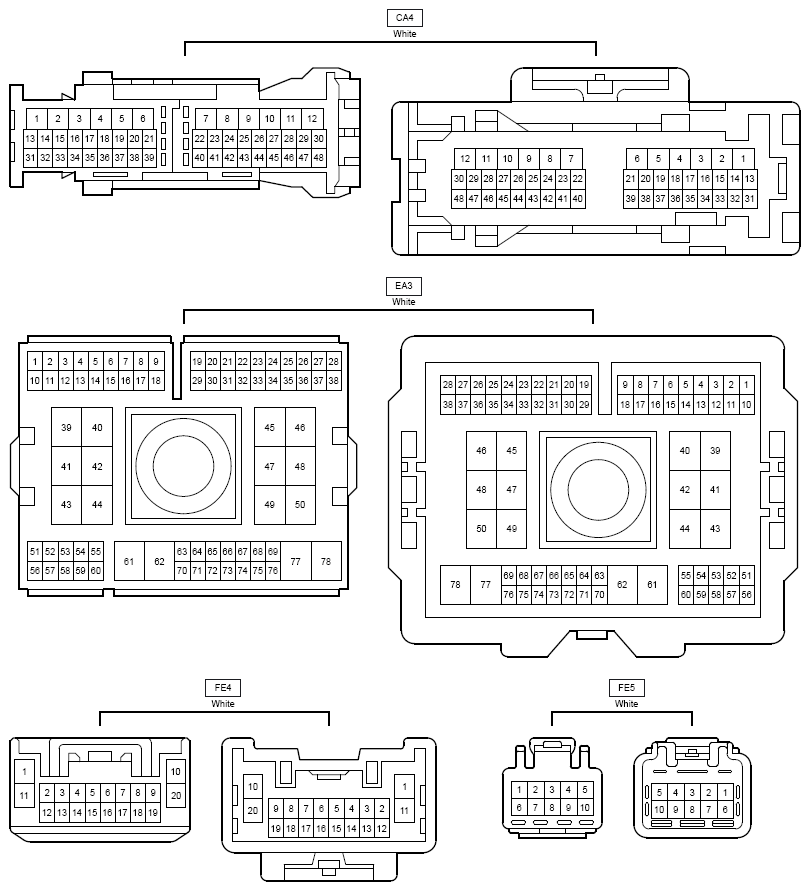

Fig 7: Connectors (7 Of 7)
