System Diagrams

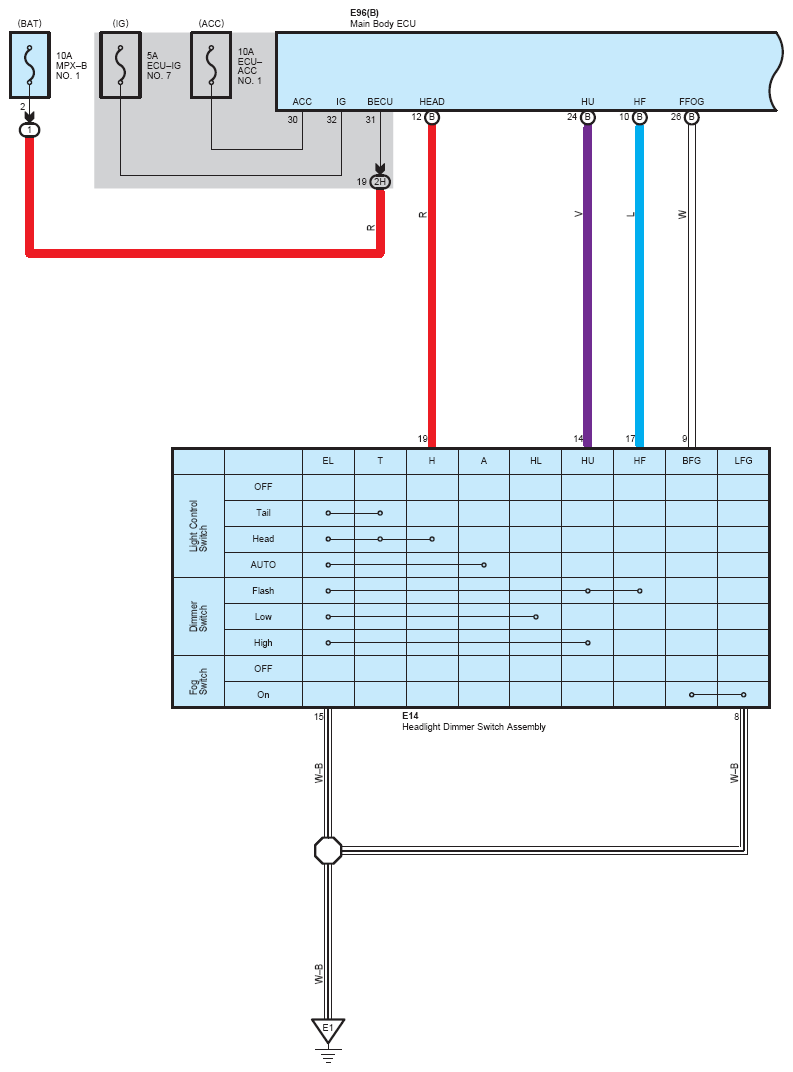

Fig 1: Front Fog Light (1 Of 3)
G12206485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

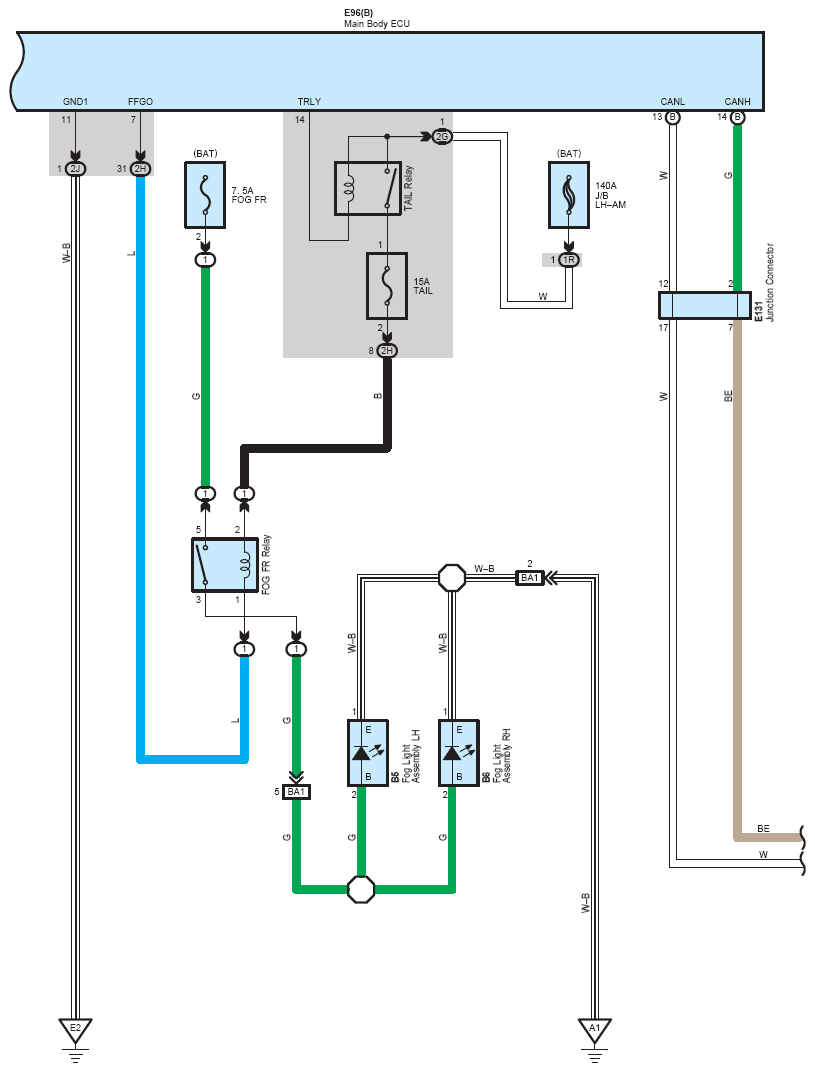

Fig 2: Front Fog Light (2 Of 3)
G12206486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

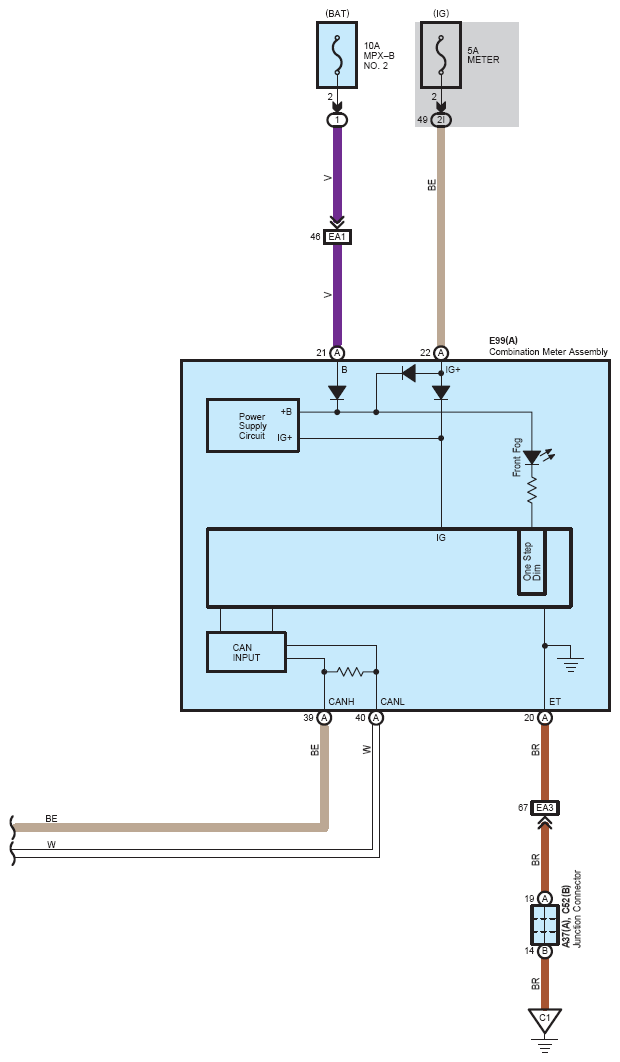

Fig 3: Front Fog Light (3 Of 3)
G12206487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
