Data Link Connector 3: Connectors

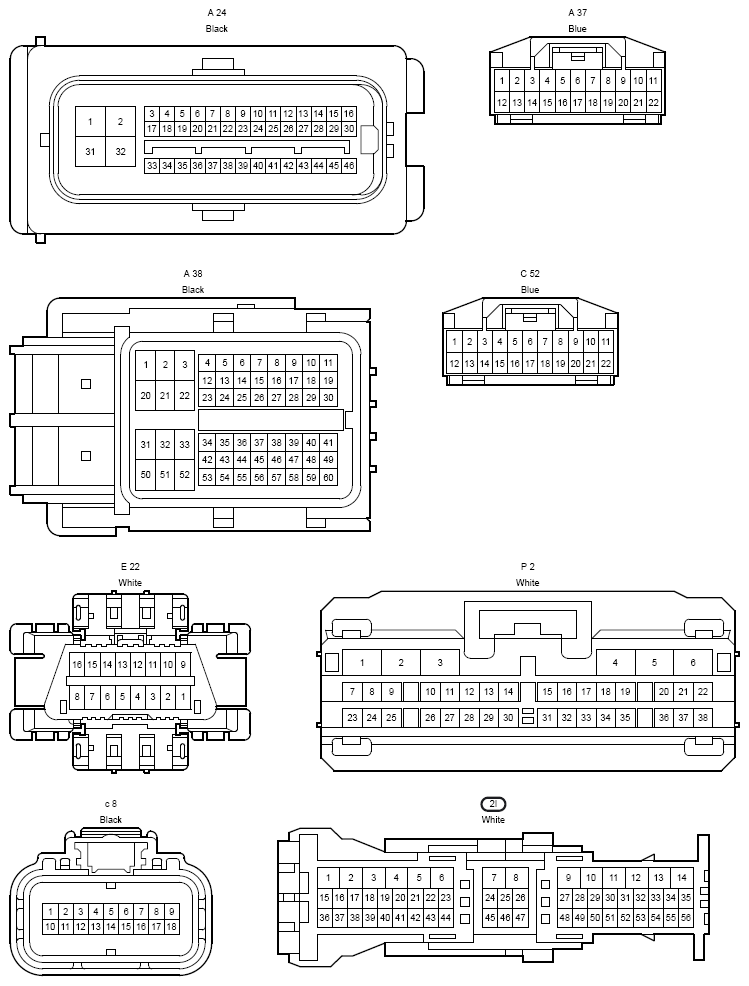

Fig 1: Connectors (1 Of 3)
G12206426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

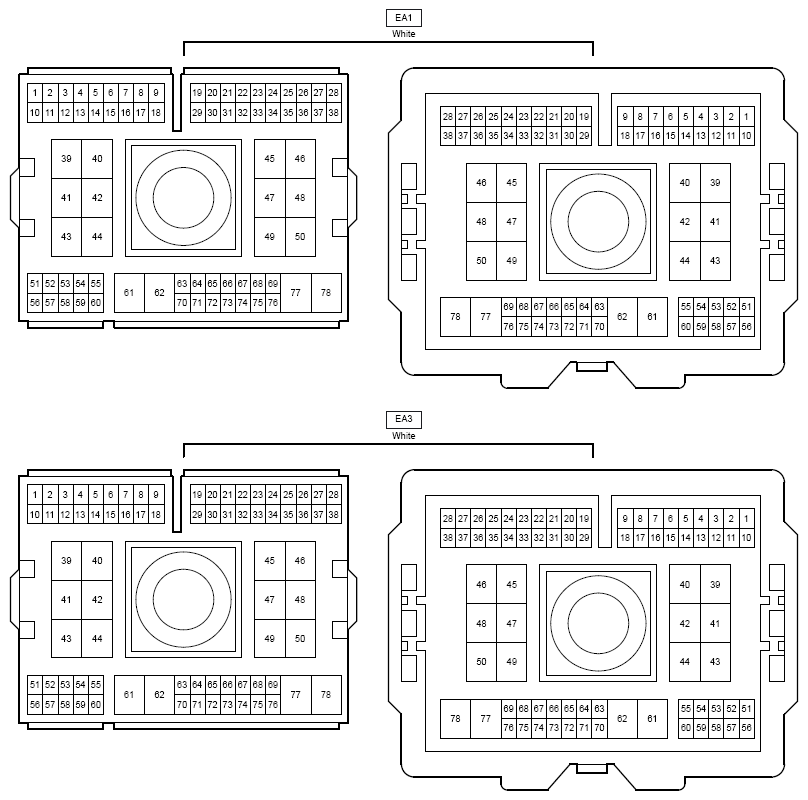

Fig 2: Connectors (2 Of 3)
G12206427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

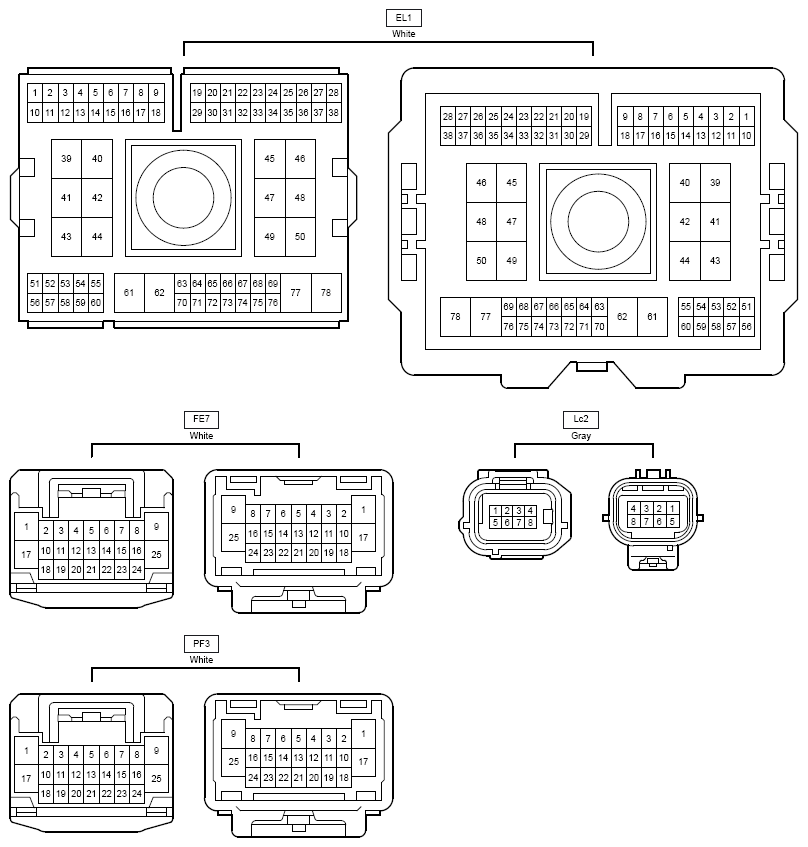

Fig 3: Connectors (3 Of 3)
G12206428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
