Cruise Control, Electronically Controlled Transmission And A/T Indicator, Engine Control: Connectors

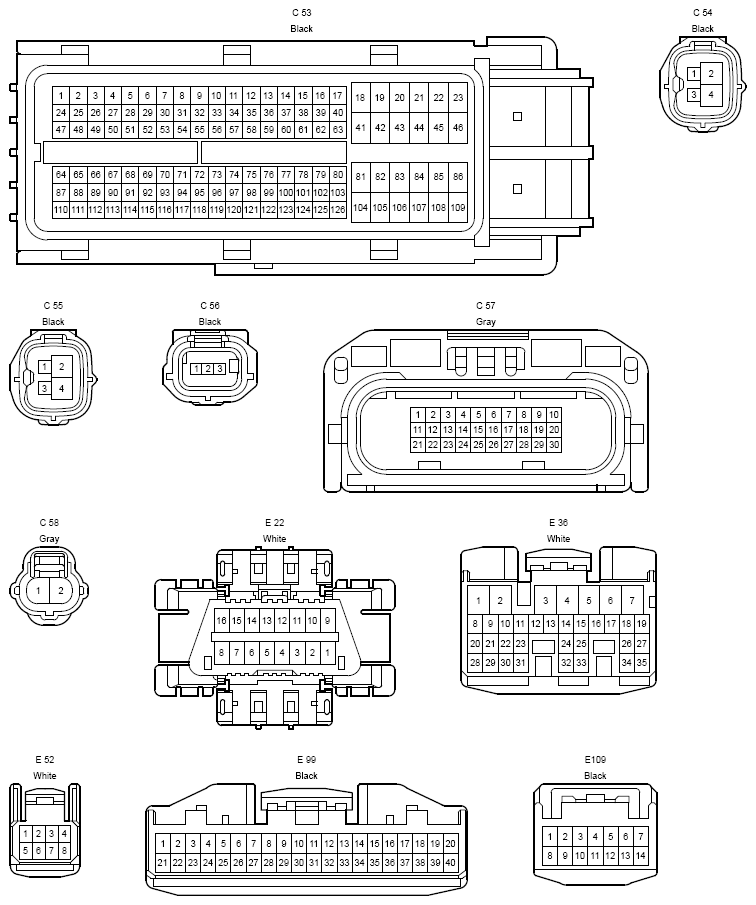

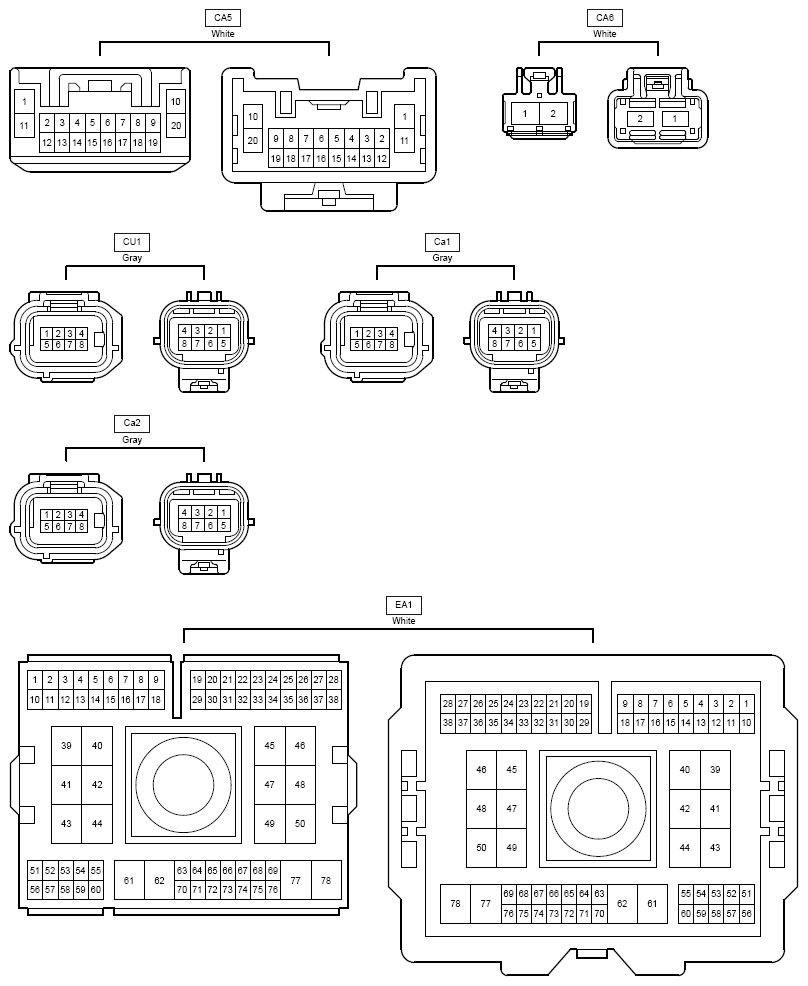

Fig 1: Connectors (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

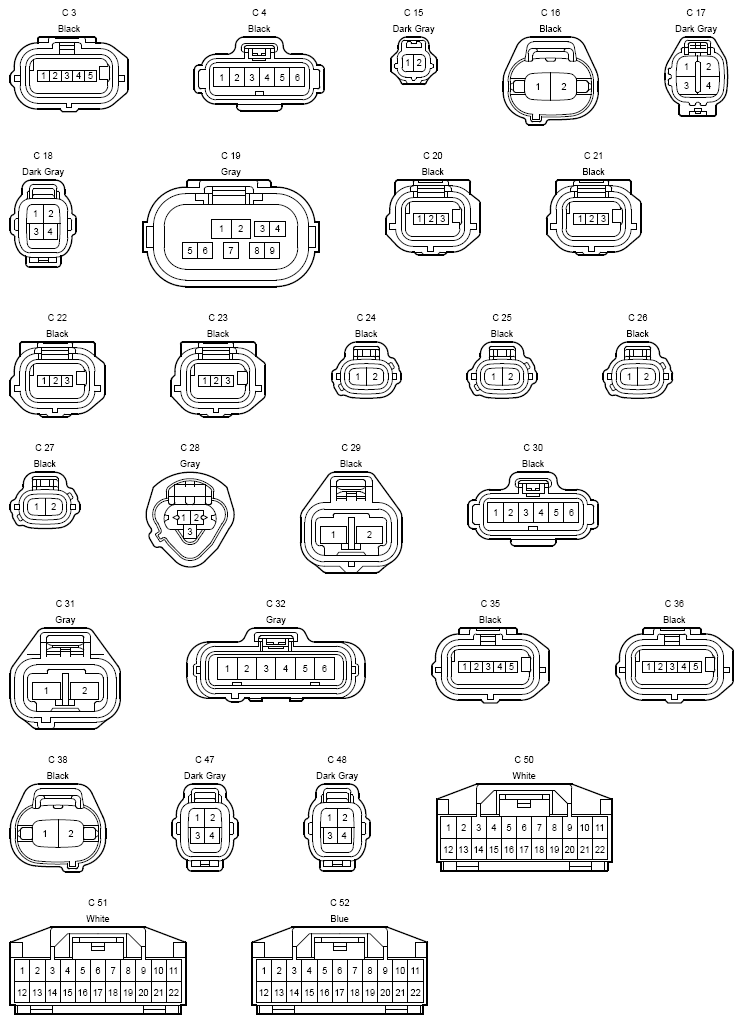

Fig 2: Connectors (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

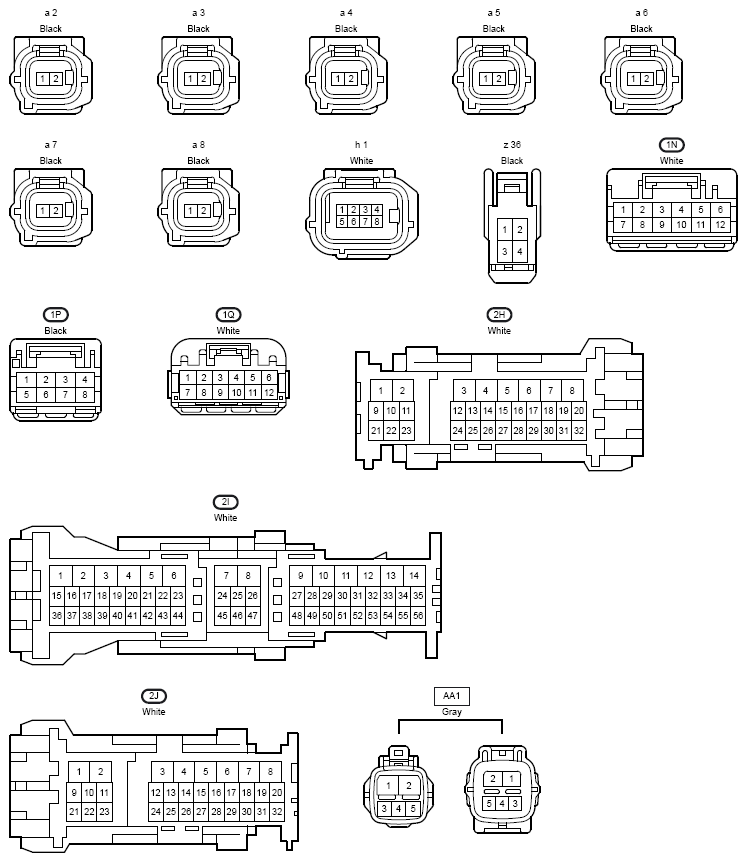

Fig 3: Connectors (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

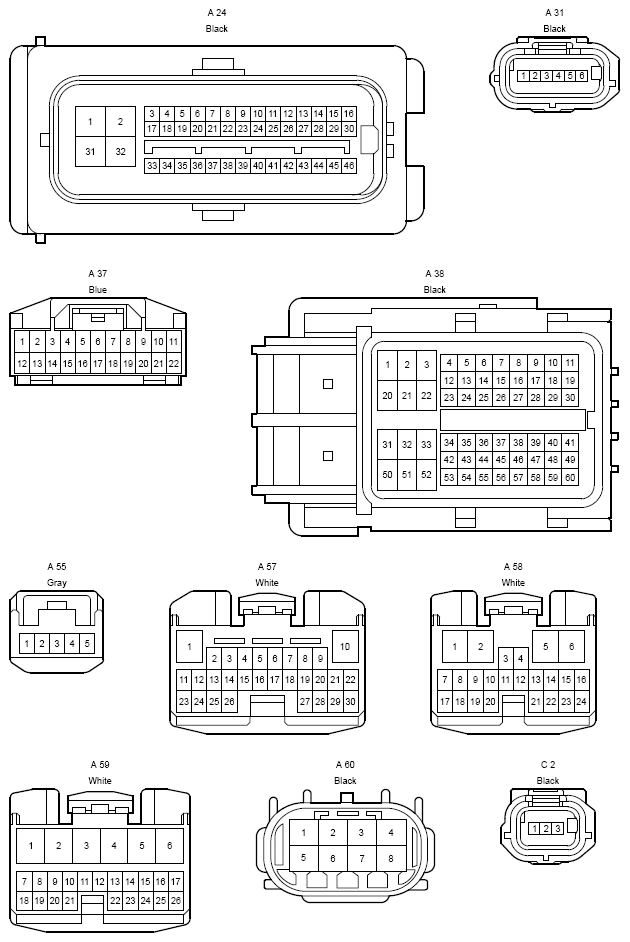

Fig 4: Connectors (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

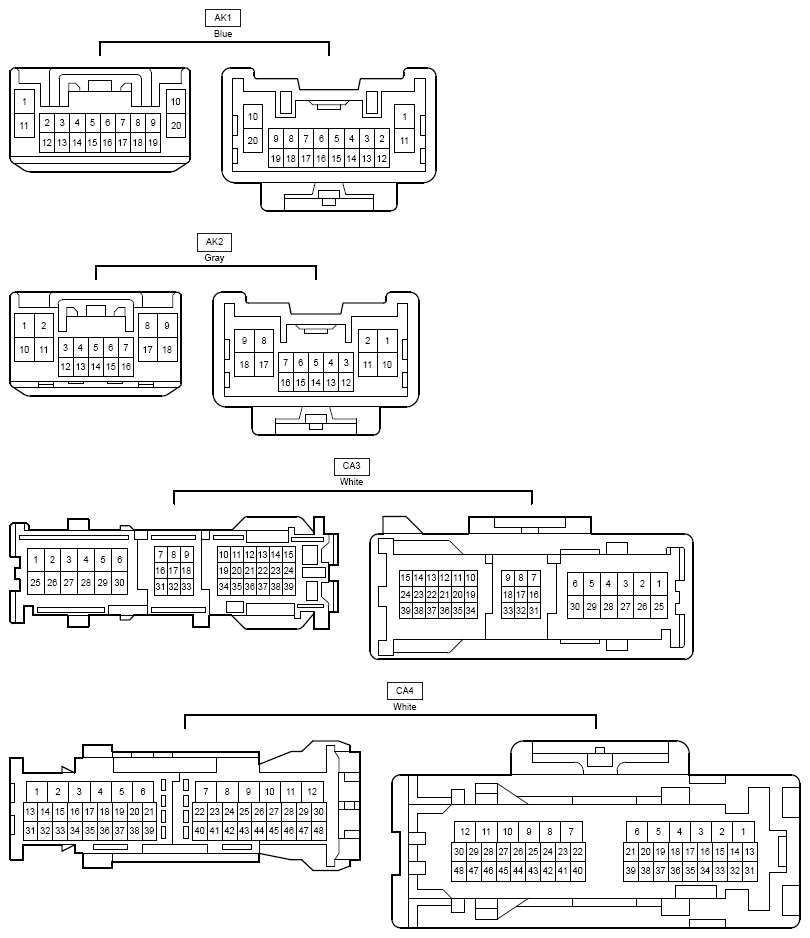

Fig 5: Connectors (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

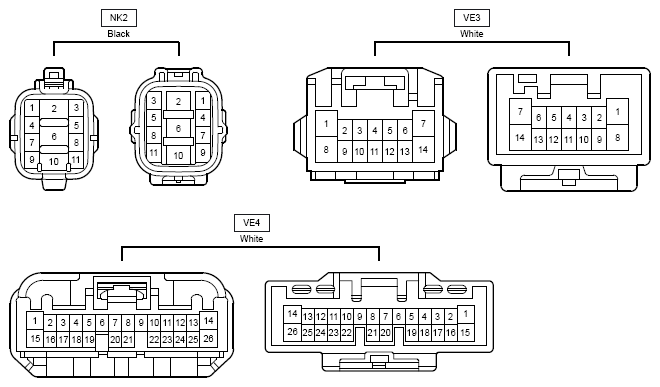

Fig 6: Connectors (6 Of 9)

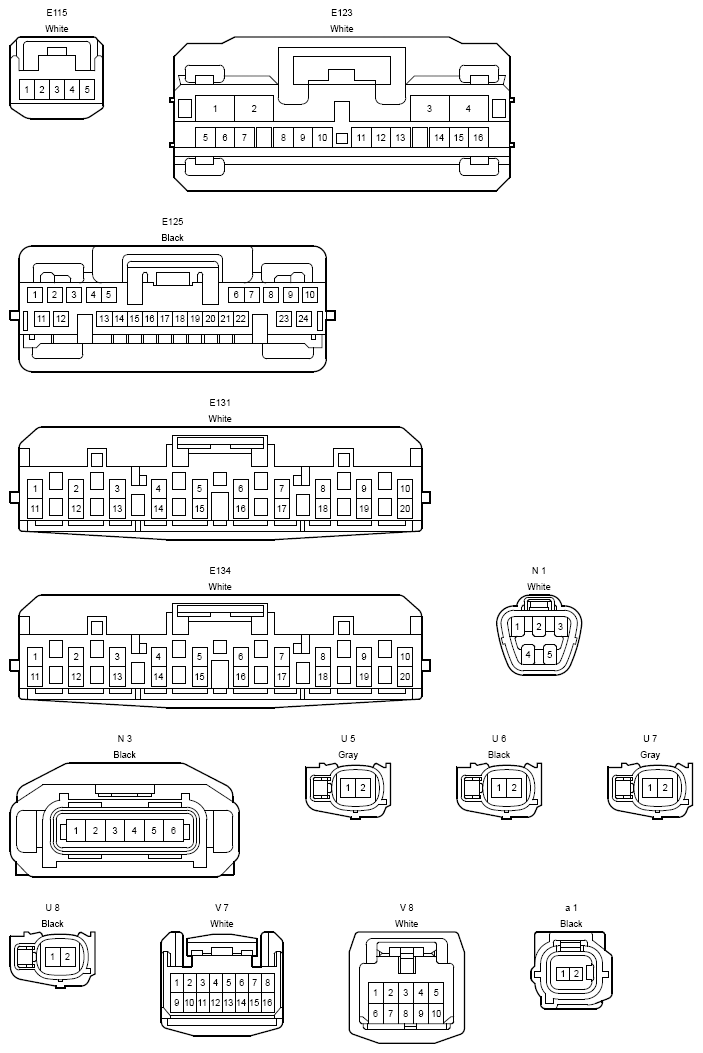

Fig 7: Connectors (7 Of 9)

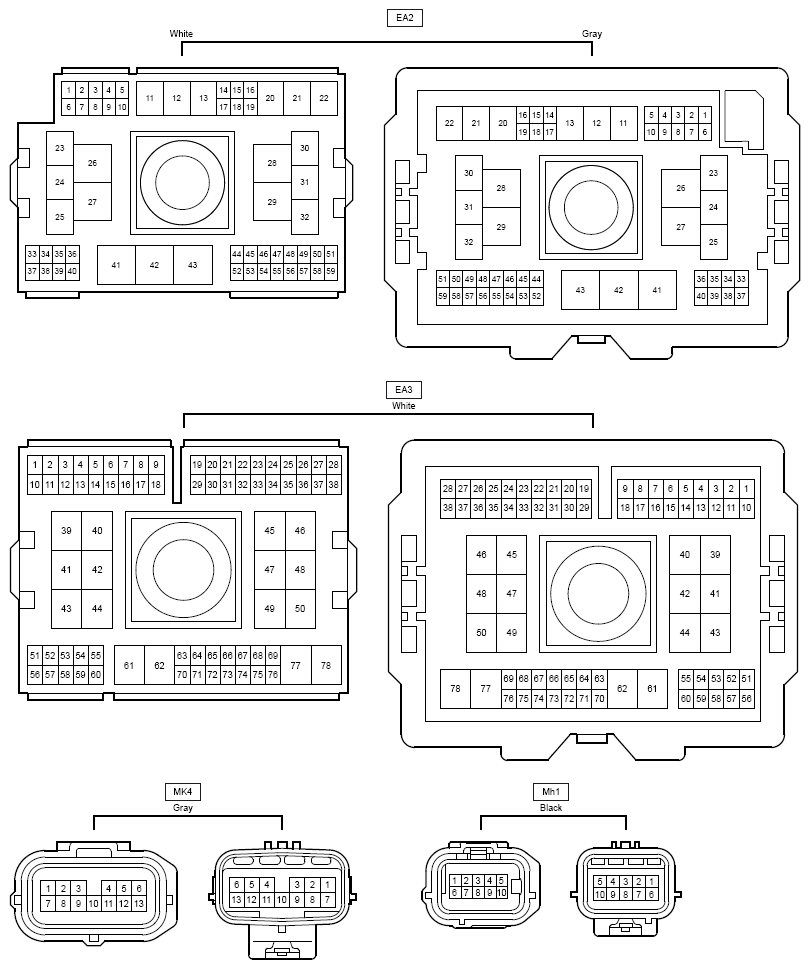

Fig 8: Connectors (8 Of 9)

Fig 9: Connectors (9 Of 9)
