Body Electrical
>>
OEM System Circuits
>>
Condenser Fan
>>
Connectors
Condenser Fan: Connectors

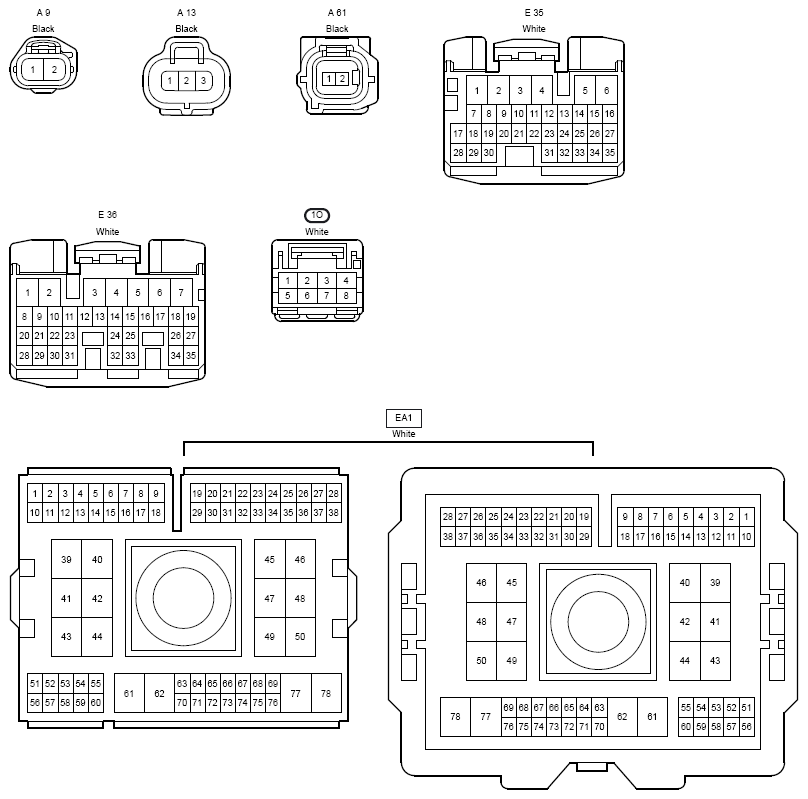

Fig 1: Connectors (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Connectors (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
