Removal [08/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] Refer to INITIALIZATION [08/2017 - ] ).

  3. REMOVE FRONT WHEEL
  4. REMOVE FRONT SKID CONTROL SENSOR WIRE LH
    1. Disconnect the connector from the front speed sensor.
      GTY546203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and harness clamp.
    3. Remove the nut and harness clamp.
    4. Remove the 2 bolts and 2 harness clamps.
      GTY611123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the connector and then remove the bolt, harness clamp and sensor wire.
      GTY592739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT SPEED SENSOR LH
    GTY606382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and speed sensor from the knuckle.
      NOTE:

      Pull out the sensor while trying as much as possible not to rotate it.

  6. REMOVE FRONT SKID CONTROL SENSOR WIRE RH
    1. Disconnect the connector from the front speed sensor.
      GTY610760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and harness clamp.
    3. Remove the nut and harness clamp.
    4. Disconnect the connector.

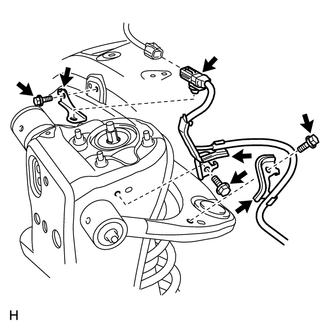

      GTY225053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Detach the connector from the skid control sensor clamp.
    6. Remove the bolt and skid control sensor clamp.
    7. Remove the 2 bolts, 2 harness clamps and sensor wire.
  7. REMOVE FRONT SPEED SENSOR RH
    GTY578203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and speed sensor from the knuckle.
      NOTE:

      Pull out the sensor while trying as much as possible not to rotate it.
