Section 249 (Smart Key System (Entry Function) - Symptom Tests - (Hybrid))
>>
SMART KEY SYSTEM (for Entry Function)
>>
Symptom Tests
>>
Room Oscillator does not Recognize Key [11/2016 - ]
>>

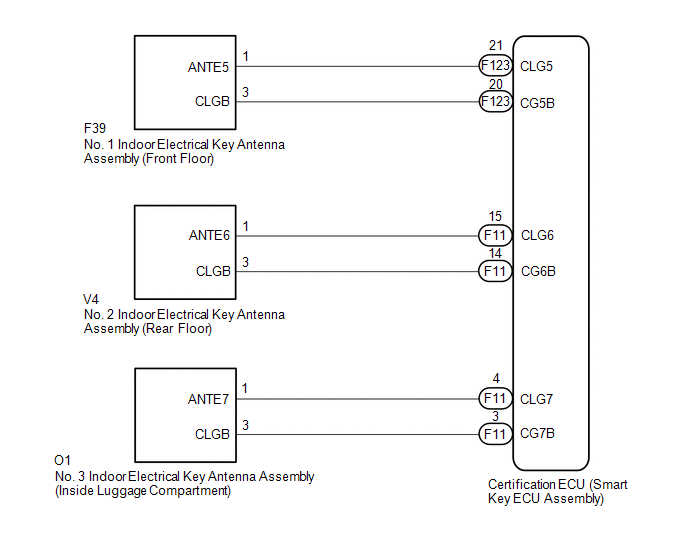

Wiring Diagram
Room Oscillator does not Recognize Key [11/2016 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
