System Diagrams

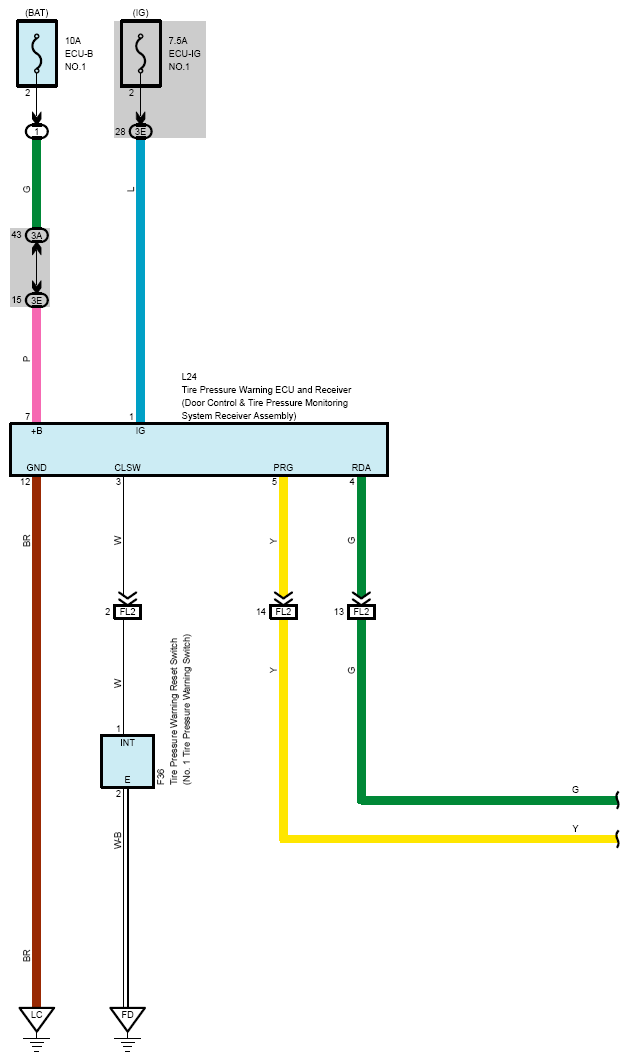

Fig 1: Tire Pressure Warning System (1 Of 4)
G12205614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Tire Pressure Warning System (2 Of 4)
G12205615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

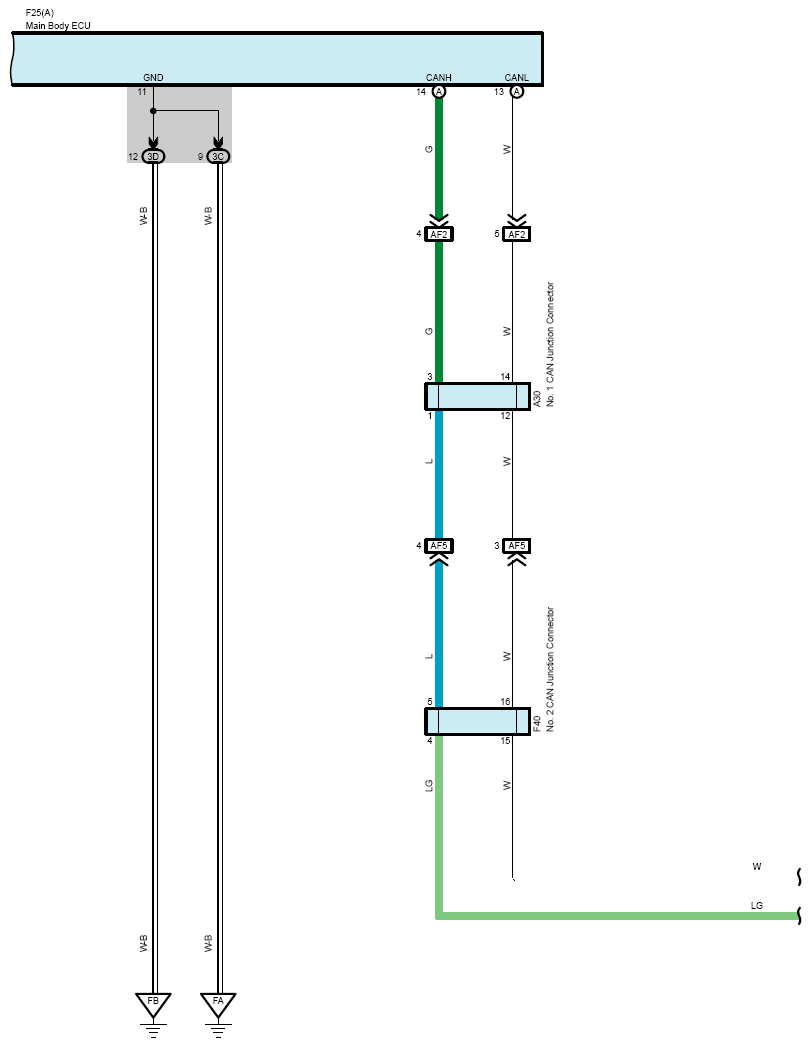

Fig 3: Tire Pressure Warning System (3 Of 4)
G12205616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

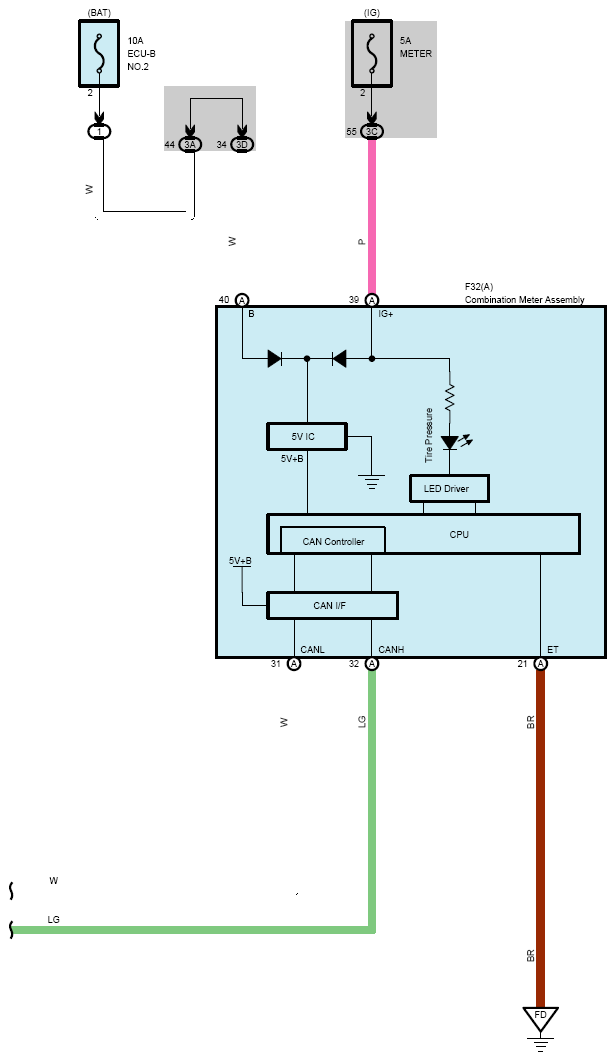

Fig 4: Tire Pressure Warning System (4 Of 4)
G12205617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
