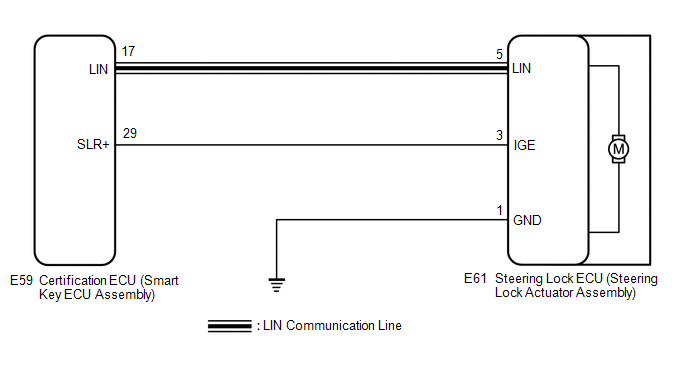

DTC B2782: Power Source Control ECU Malfunction [08/2013 - 08/2015]: Wiring Diagram

GTY423748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
