Components [08/2013 - ]: Illustration

Fig 1: Steering Wheel Replacement Components With Torque Specifications (1 Of 3)
GTY430328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 STEERING WHEEL ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

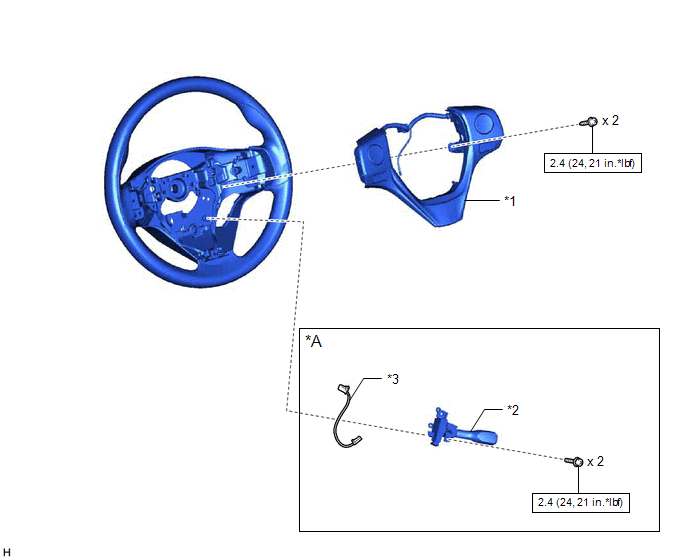

Fig 1: Steering Wheel Replacement Components With Torque Specifications (2 Of 3)
GTY427030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Cruise Control System - -
*1 STEERING PAD SWITCH ASSEMBLY *2 CRUISE CONTROL MAIN SWITCH
*3 CRUISE CONTROL SWITCH WIRE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

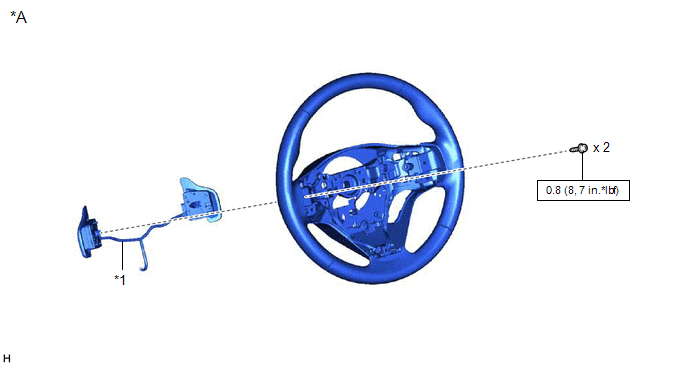

Fig 1: Steering Wheel Replacement Components With Torque Specifications (3 Of 3)
GTY426586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Shift Paddle Switch - -
*1 SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
