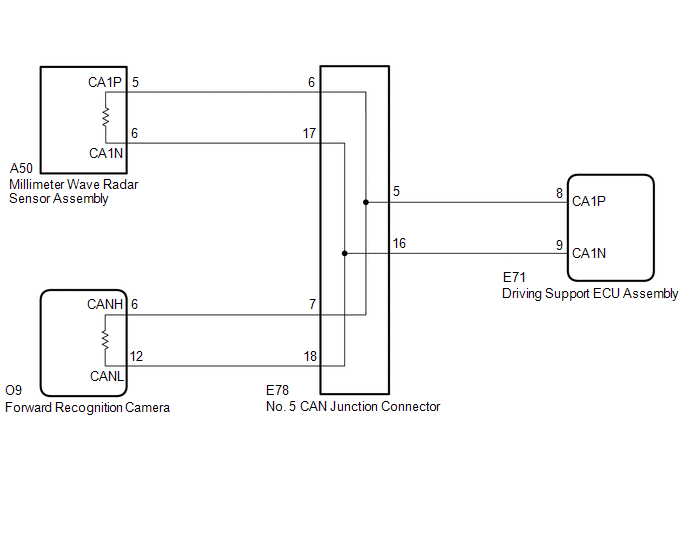

DTC U1002: Lost Communication with Gateway Module [08/2016 - ]: Wiring Diagram

GTY706800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
