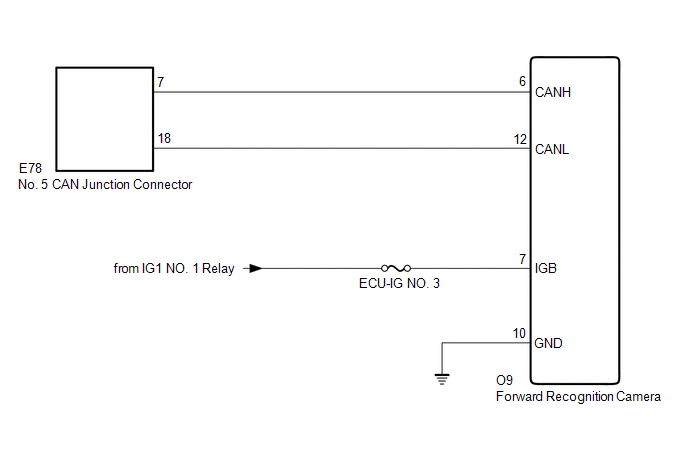

DTC U023A: Lost Communication with Front Camera Module [08/2016 - ]: Wiring Diagram

GTY690293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
