Power Source Circuit [08/2016 - ]: Wiring Diagram

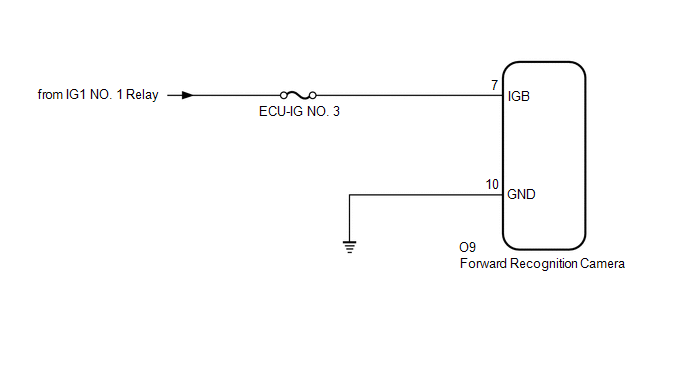

GTY711695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
