Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Sliding Roof
>>
Connectors
Sliding Roof: Connectors

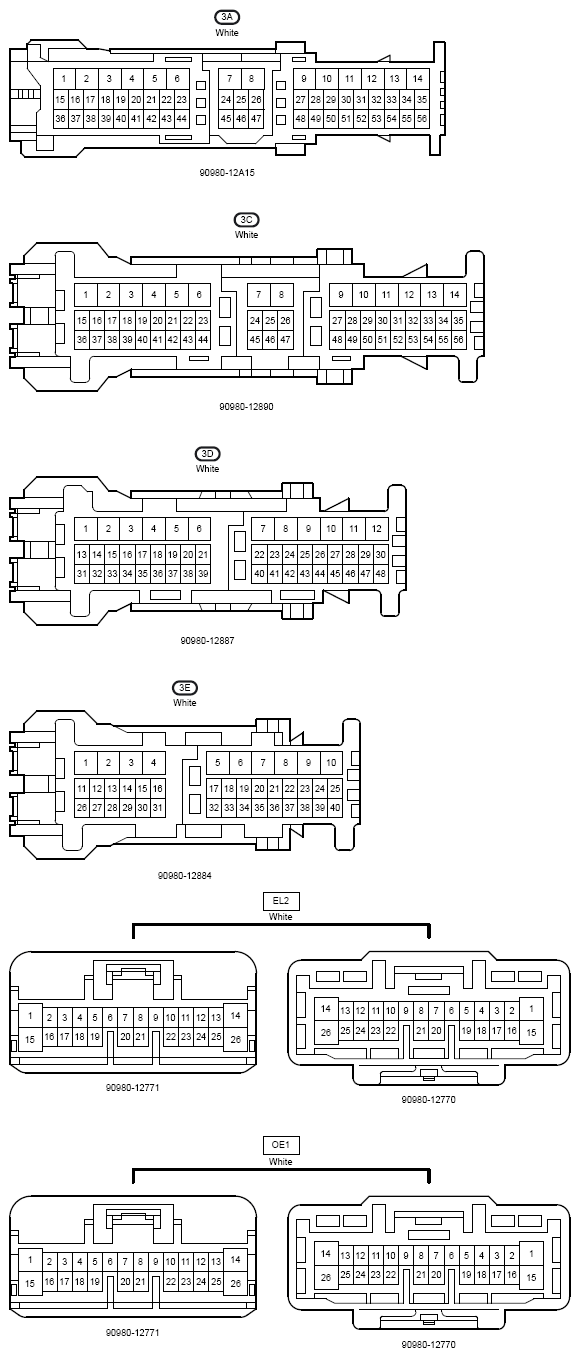

Fig 1: Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

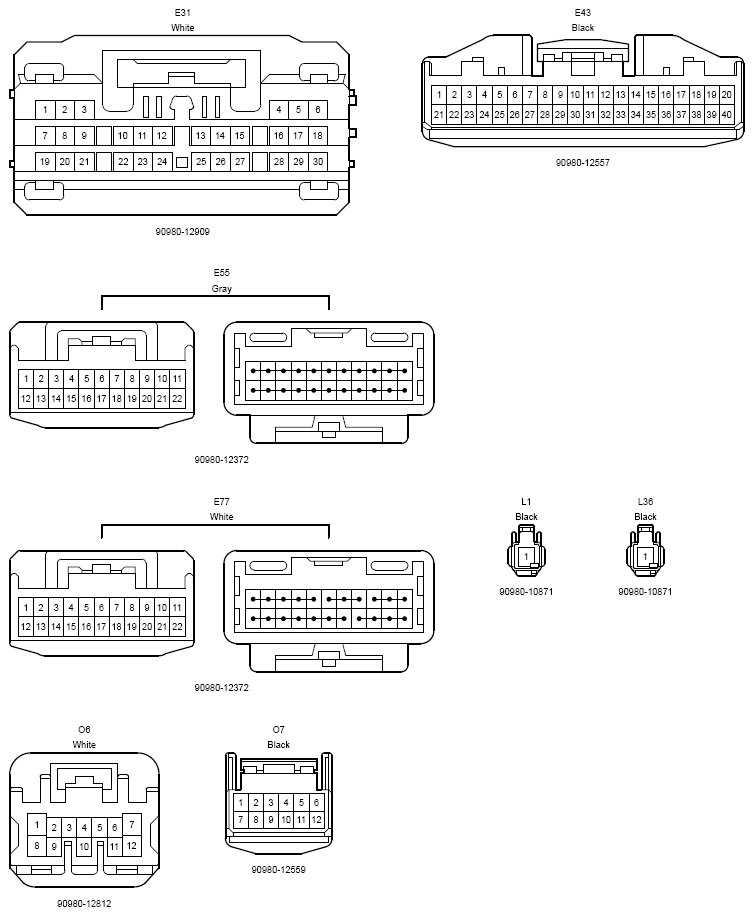

Fig 2: Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
